Viewing all customer Discussions for:

15-047 Pivot Shoe, 5/8" Thick

I spoke with an agent by phone and mentioned an issue with the 15-015 pivot that does not have a CENTER slot for the spiral balance shaft. The 15-015 was what was recommended by you contact based on his observation that the original pivot shoe looked to be 17/32" thick and not 5/8" (15-047).I recei ... (cont.)

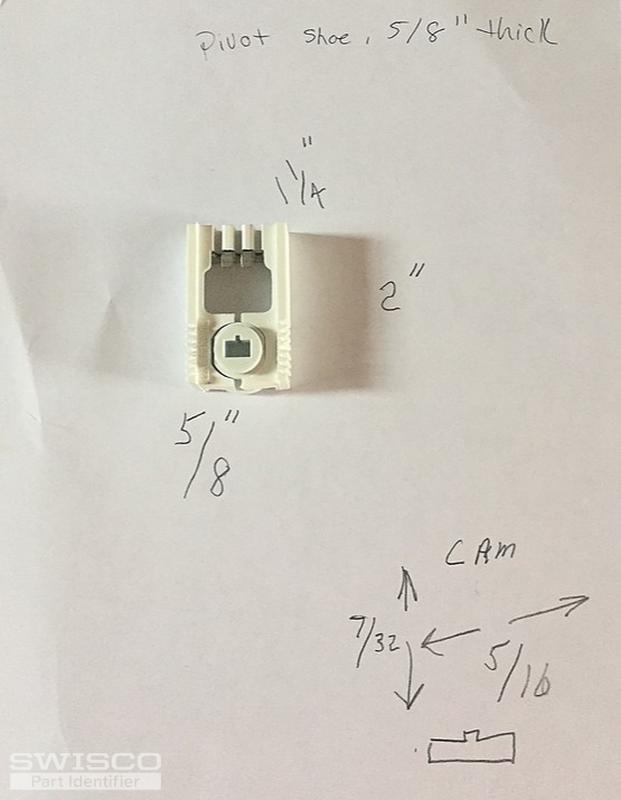

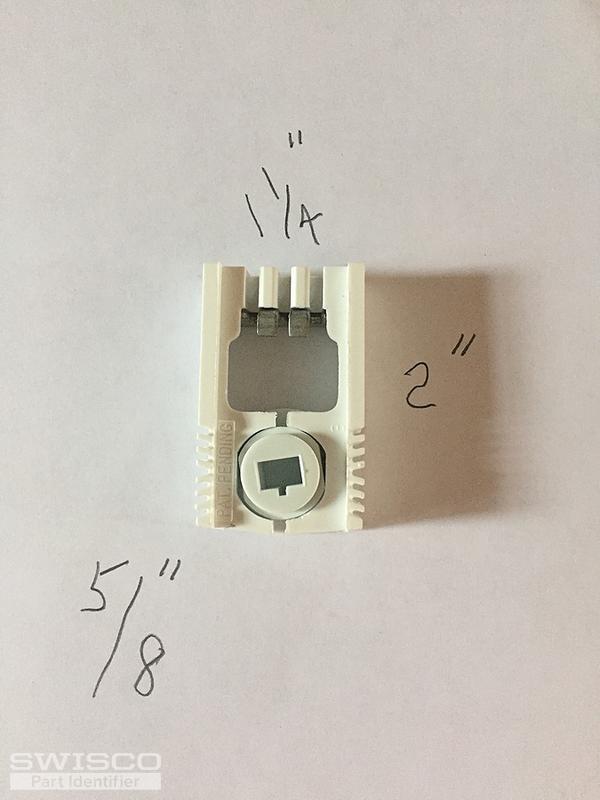

I have to replace 20 of these plastic slider/cam assemblies. The metal spiral spring clips into the plastic slider. The springs are all fine, just the plastic part has deteriorated on all the south facing windows. They are 2" high X 1-1/4 wide X 5/8 thick. You were able to supply an obscure storm do ... (cont.)

Greetings - I need at least seven pairs of windows shoes. I do not have an intact one to attach, only the broken pieces shown in the attached pics. I do know that the patent number on them is 3.055.062 but I am not sure that only one size shoe goes with that patent number. Can I be confident that ... (cont.)

looking to purchase replacement pivot shoes want to make sure I order correct one. I was thinking 15-047 or 15-070 thanks for you help

need to replace 1 pivot shoe(15-047), and 28" rod but cant tell if 900 0r 600. is lower tilt window installed in 2002. only have contractor( phil colman- out of orange mass.)bill with collegiate letter head. also need to replace 2 Pivot bar #4926524.

Looking to replace the pivot locks on the windows the home I board I'm not sure what company they are aluminum windows see the attached pictures. I placed an order (1126440)for the 15-047 and the 15-154. The blue pivot lock was just a little too loose in the channel and the black one the lock was t ... (cont.)

Looking to find replacement parts

Can you also assist in identifying this pivot shoe? Thank you again!!

can't find any names or numbers

This part is approximately 1 1/2 inches wide and 2 inches tall and 5/8 inch thick

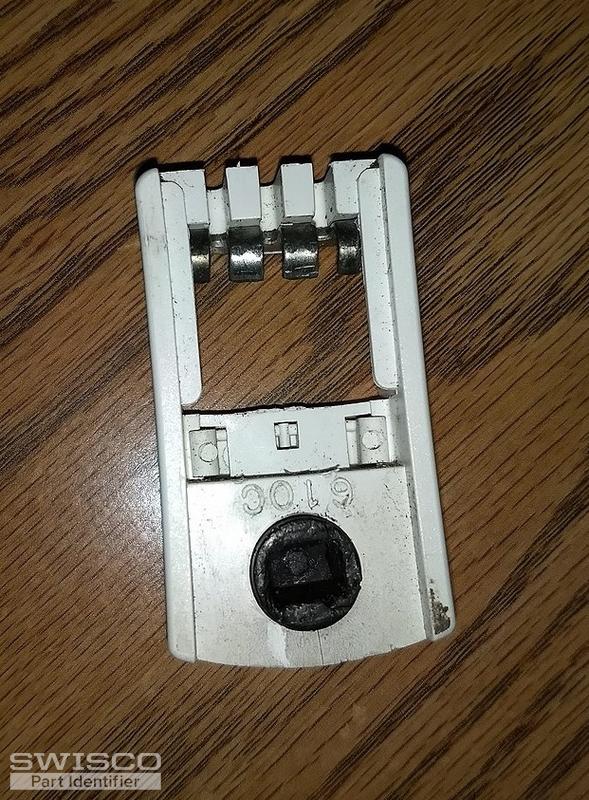

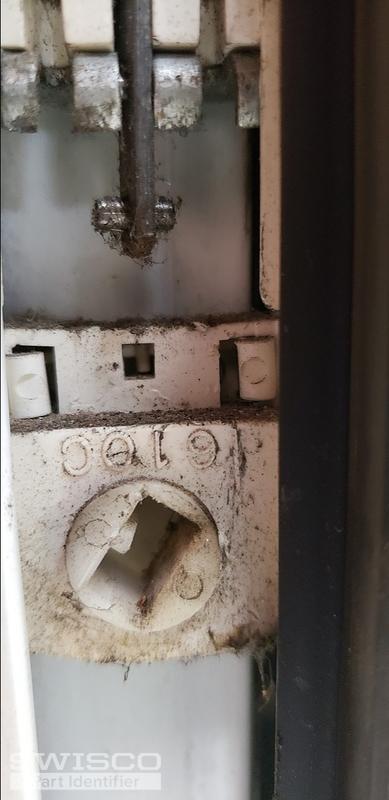

Need a pivot shoe to replace one manufactured for BF Rich windows. The one I have is 2 1/4 x 5/8 x1 1/4. It appears that your 15-047 is closest with the only difference is the current one is 1/4" taller that the 15-047. Is that an issue? The only identifying number is 610C. Thank you for your assist ... (cont.)

you have the pivot shoes I need 15-047 and pivot bars 26-063 Can find a brand name on windows they are vinyl replacements

I have tilt windows and need pivot shoes for a few windows. Ive attached pictures of what I need.Would be greatly appreciated if you could take a look at pictures and let me know if you have replacement parts I need.Thank you Rachel

Spiral Tilt Window Balance for an aluminum window

I purchased item number 15-047 thinking it was a good replacement for this part. I haven't tried it out yet because I have to purchase the jam tool to get the old one out. I was just wondering if you think the part I bought is a good replacement or if you can find the exact one that is in my windo ... (cont.)

I'm looking to find the correct replacement part for Atrium model #616 double hung window which is no longer in production. The part in question is part of the balance shoe. The plastic part question is the that attaches the sash, assisting rising and lowering the sash. I'm also attaching a pic sh ... (cont.)

This is a pivot shoe I believe. It goes with my spiral window balance. I need 16 pieces and all.

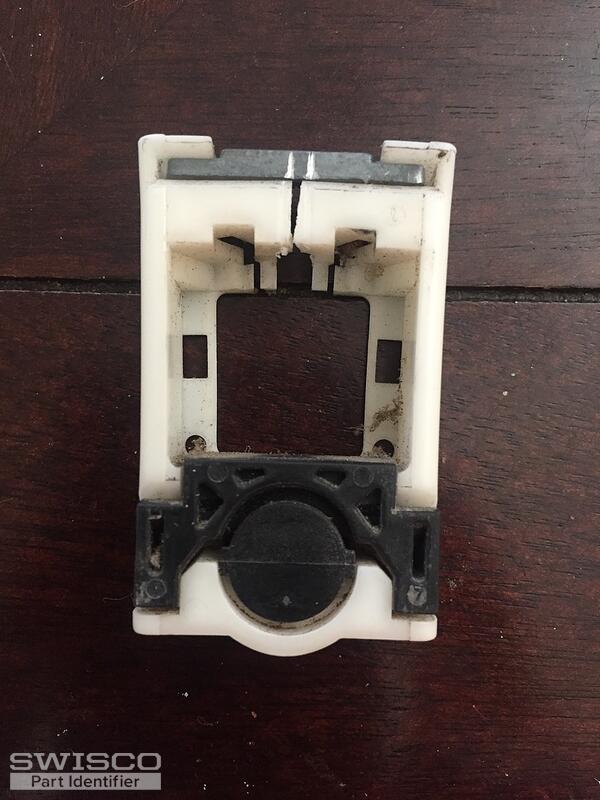

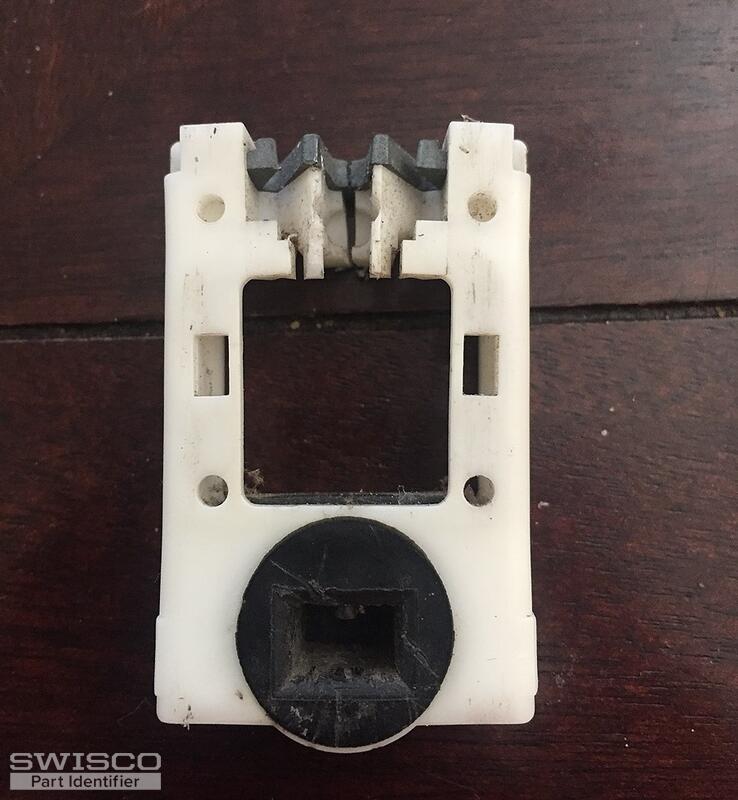

There are two parts here. The Pivot Lock Shoe and a piece which attaches to the holes on front of the pivot shoe lock to add depth and width. I'm pretty the pivot shoe is https://www.swisco.com/Pivot-Shoe-5_8-inch-Thick/pd/Tilt-Window-Replacement-Pivot-Lock-Shoes/15-047 but I cannot find any informa ... (cont.)

Please let me know if you have this part.

I would like to replace a broken window pivot shoe. I've attached some pictures and the dimensions are approximately 30mm wide, 50mm tall and 15mm thick. Can you please help me identify this part? Thank you!
