Viewing all customer Discussions for:

15-047 Pivot Shoe, 5/8" Thick

There is no brand tag on these windows. The factory put the spiral balances into the center slot, which is the weakest option. That pinched of the angle slots down, so I guess we'll change out the shoes. This looked exactly like a Great Lakes s shoe from my stock, but I don't find this one in your ... (cont.)

I'm replacing all 3 of the above and have identified suitable spiral balance replacements (series 600). The pivot bars can't be found on any site I've visited. They are metal, "L"-shaped with ribs, 2 3/4" horizontal (includes the nub that goes into the cam) w/ 2 screw holes spaced 3/4" apart x 1" ve ... (cont.)

It looks like it is 5/8 but I don't see anything about width. Is width pretty standard ?

we have a houseful of almost 30 year old Owens Corning windows, and most of the tilt/brake mechanisms don't function well anymore. The spiral slide have slipped down on a few, and when cleaning the windows tilted out, one side or the other will drop down. I'm hoping you'll have something that will h ... (cont.)

I am looking to replace some pivot shoes, spiral balances and surface mount tilt latches. I think the windows are manufactured by American Craftsman. Img 8804 surface mount latch has 2" on center screws and a 7/16th offset, and a number on the back L 307. The spiral balance Img 8805 end that connect ... (cont.)

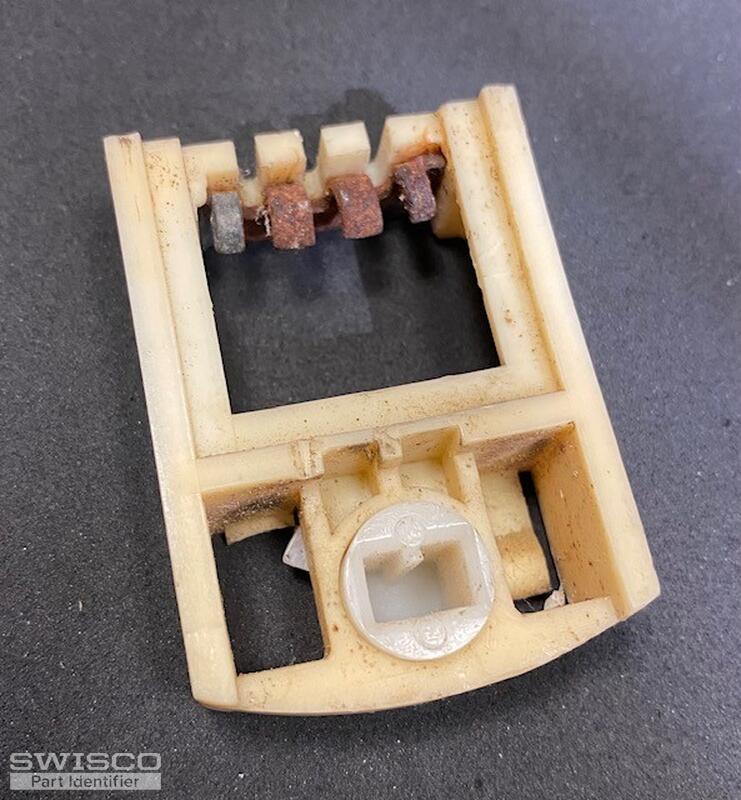

Good day, I'm trying to find 16 of these older style locking pivot shoes for channel balances. The shoe is 1-1/2 inches wide, about 2 inches tall and 5/8 inches thick. Honestly never seen one so wide before!!! If at all available I would also need the cam bars. Thanks, Keith.

Looking for window pivot shoe and corresponding spring

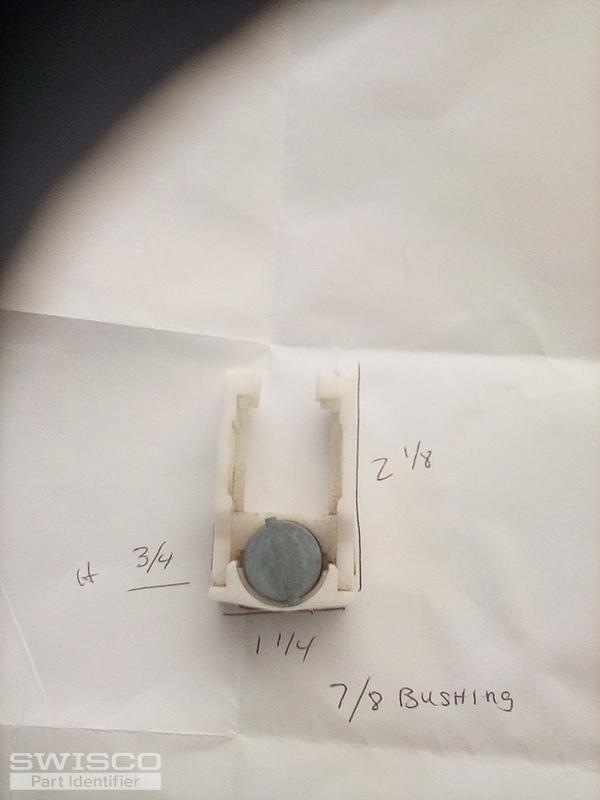

This is from a aluminum window. I could not find any numbers or markings. The size is 2 inches long by 11/4 inches wide. Thank you. Anne

I cannot find the exact style can you pls take a look and let me know what you suggest john Thnks

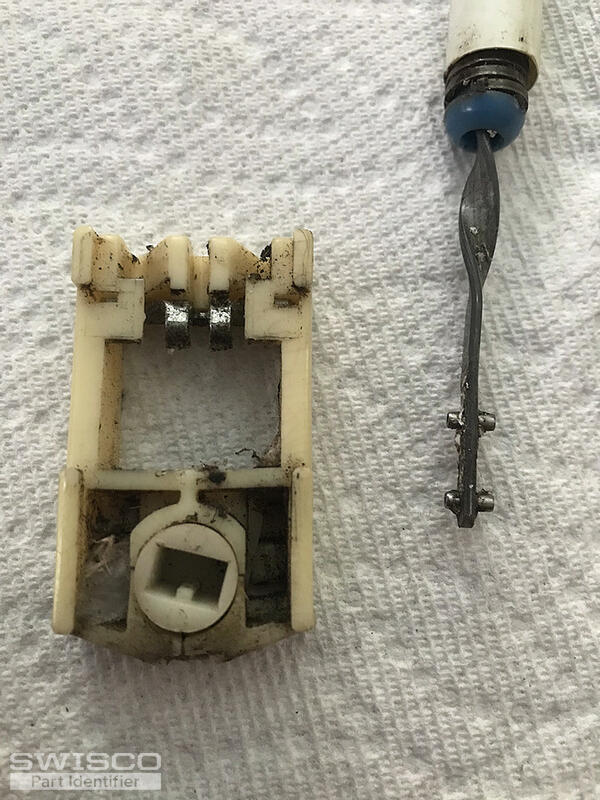

Hello, Thanks in advance for any assistance you can give me. I need to repair about 8 windows the bottom sash won't stay up, these are pictures of the shoes and the ends of the spiral balancer the shoe on the left is the lower sash. It appears that the shoe may have disintegrated there's nothing ... (cont.)

Hello I need a couple of plastic lifts that are 1.16 inches wide and 2.12 inches high. You can probably go a bit smaller on the 1.16 if needed 1.16 inches wide 2.12 inches high Plactic window lifts Everything seems to be 1.250 wide

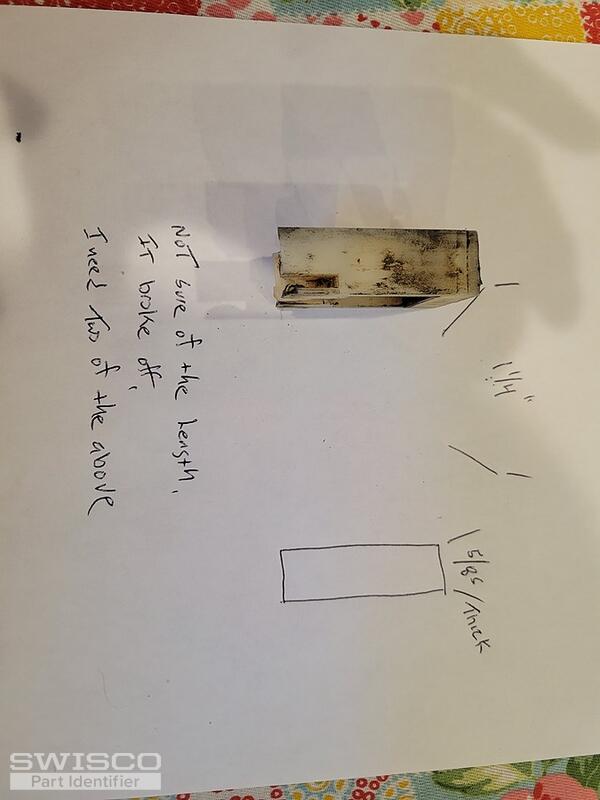

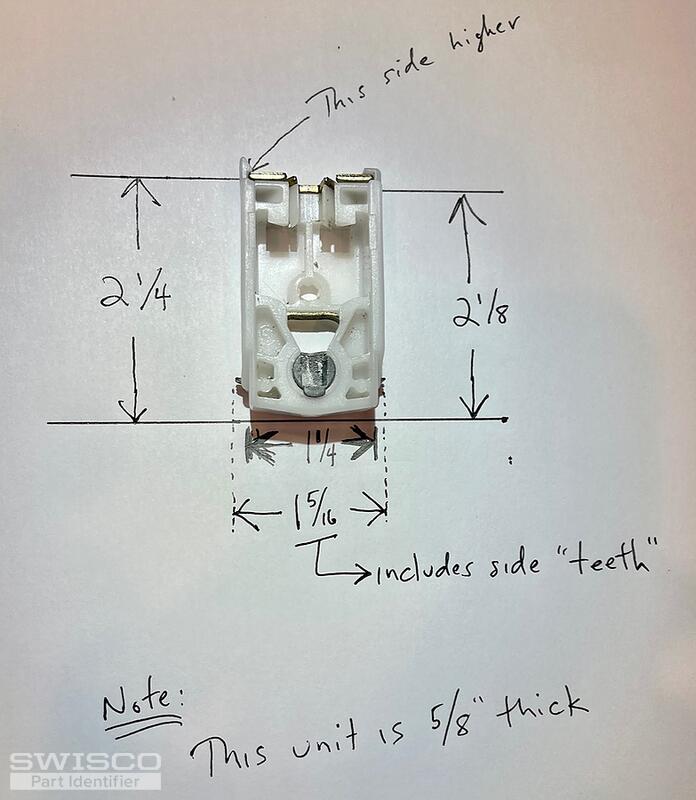

the shoe is 5/8 thick 1 1/4 wide 2 inches tall at furthest point8

Need to identify this shoe and find a replacement. This is from a replacement window that tilts.

Hi, This pivot lock shoe is from a spiral balance type double hung. Made by PGT window company in Florida. (Model DH 560 series) Hurricane impact glass. (Discontinued, and PGT is of little help). Do you have these, or know where I can get them?

Hi,Can you help me with some replacement parts for my vinyl window balancers?Thanks,Don

Blue Tip 26 e3/16 long, 1/2 diameter Thanks

For Traco tilt sash metal window frame. The shoe goes with a Series 85 tilt balance. I am trying to find the correct replacement shoe.

Good day, I am looking for 4 -right and 4-left tilt latches for my double hung windows as well as 36 pivot shoes for my two-panel sliders. The tilt latch has a large "M" molded into the bottom. Also pat#5.139.291 and a separate number 75 molded as well. The pivot shoe has nothing molded into it. ... (cont.)

This part was originally installed with Aire-Tite tilt-in windows.

It's may be tough to see but I'm in need of replacing a couple of the attached shoe sash carriers. Please let me know if you are able to determine what I need from the images. Thank you
