Viewing all customer Discussions for:

15-111 Pivot Shoe, 1/2" Thick

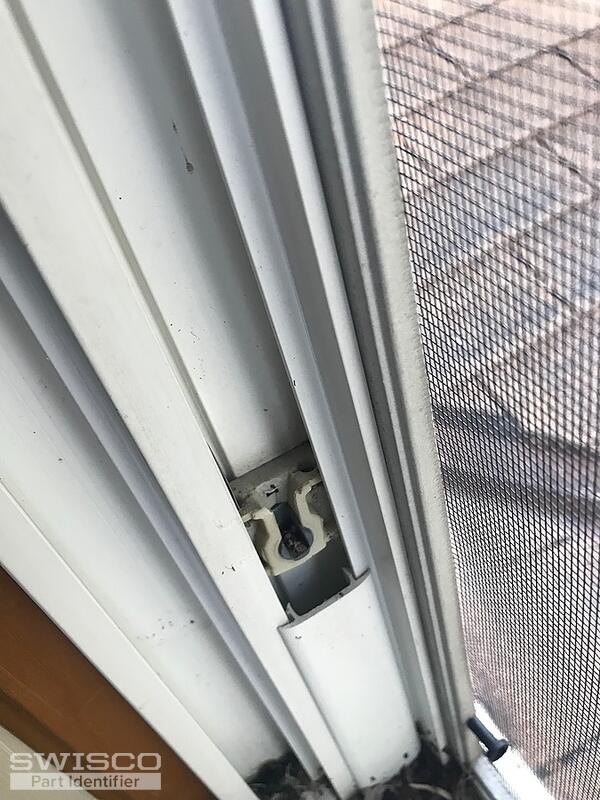

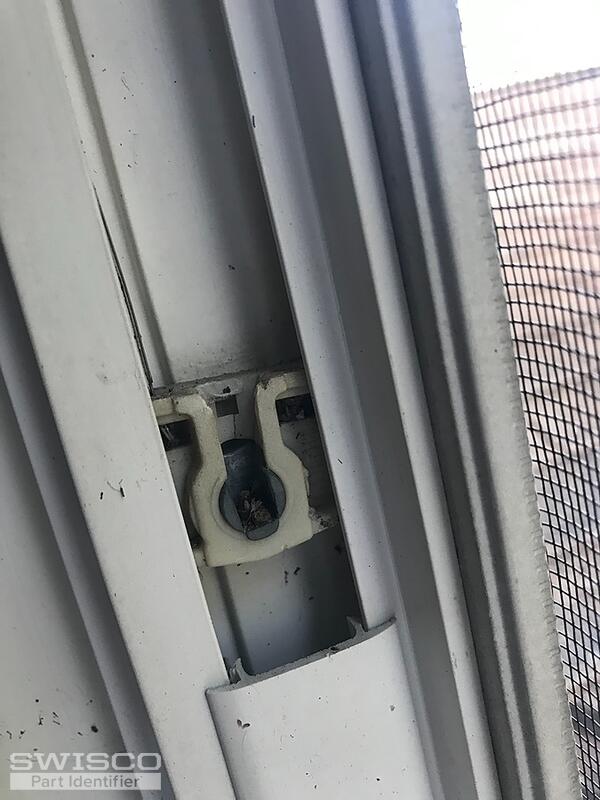

Hi , can you please help me identify these locks o need 2 for one window. Also need all the stuff in the track that keeps the window balanced. The pictures are from a complete window that is the same

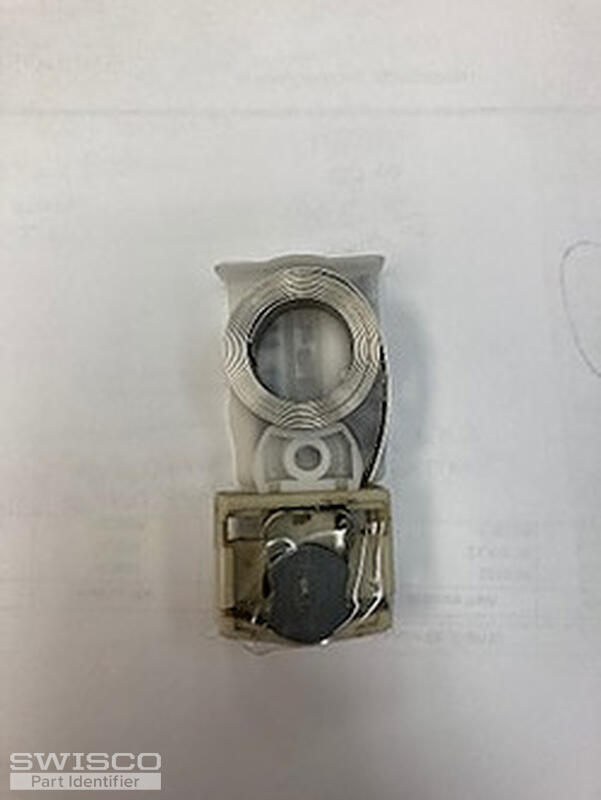

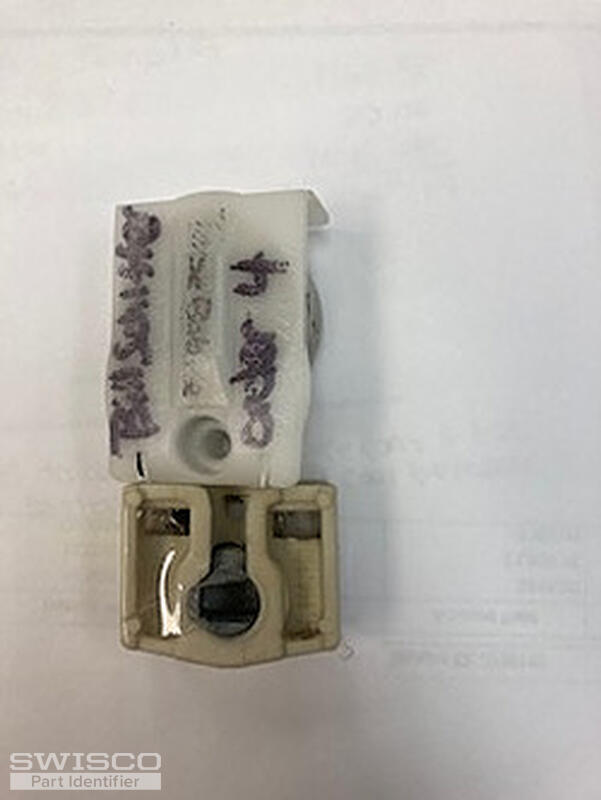

I have double hung windows with with 2 coils to each constant force spring housing. The top coil has stamped on it 6.5 PAT5 8. The bottom coil has a 3 stamped on it. Both coils measure right at 0.496 inches diameter using a caliper. The top coil thickness is @ 0.181 inches. The bottom coil is @ 0.15 ... (cont.)

Two window springs and shoes

I am looking for a right side Milgard Tuscany Balance Shoe for a double hung window with coil balancer.

hi i need to find out what i need, the coil has a number 6 on it, i think this is a double coil but not sure

I am not sure of make sash weighs 19.5lbs

I'm looking to order 4 of the above parts for my Hayfield H201 window. They where manufactured in 2004. I believe this is called a quick tilt mechanism. They normally will slide up with the window and hold it in the up position.

The only marking on the part is a patent# 4 610 108.I assume that what hooked the spring to the shoe has broken off.Thank you for your time in this matter,Rich

THESE BALANCE SPRINGS ARE OFF OF MY BATHROOM PULLOUT VINYL WINDOW.THE WINDOW WILL NOT STAY OPEN. IT SLAMS RIGHT DOWN.DO YOU HAVE ANY REPLACEMENT SPRINGS. I NEED LEFT SIDE AND RIGHT SIDE. THANK YOU TONY

Markings say #5.5 and 35", PAT523208. I believe they're Simonton windows. I'll need to replace coils, shoe and support. Thank you in advance for your advice!

I need to replace the tension coil replacement spring and the housing the spring connects to. I don't know what the part is called. But I need both parts.

Does not need to be exactly the same. Number on coils are 35" #4.5 and other coil is # 5.5 35"

I need both sides. Part # on cover is 801020

Left and right tilt window locks Left and right full window balance

Please match my window pivot shoes, and other parts also bars.6 windows needs repair thank you

The assembly shown is detached from the window. Need to know if you can identify this part.

I have some Trilite windows in my home with broken springs. They have double coil springs that say, "5.5 33" Pat5232208"on them. Could you please help me select the right replacement parts, I need several. Thanks,George

Just bought 15 year old home with these windows. Variety of problems; some hard to move up and or down, a few have not tension. All glass is good no clouding. This morning I watched several video to R and R pivot locks and Balances (coil, spring and spiral) I want to repair the problems and see if ... (cont.)

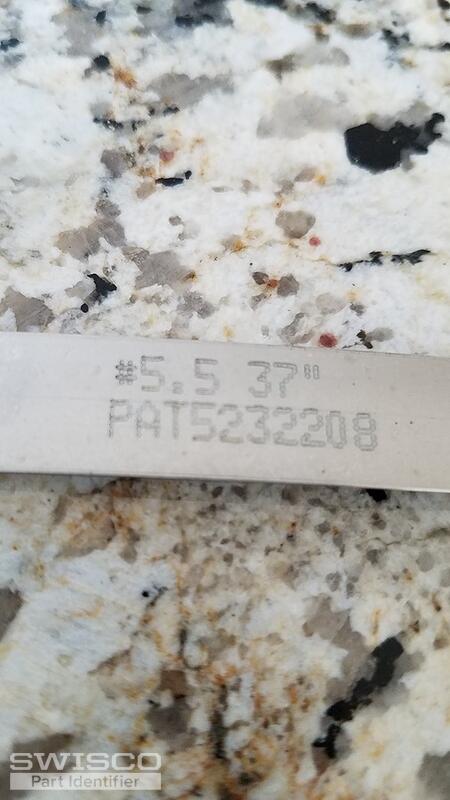

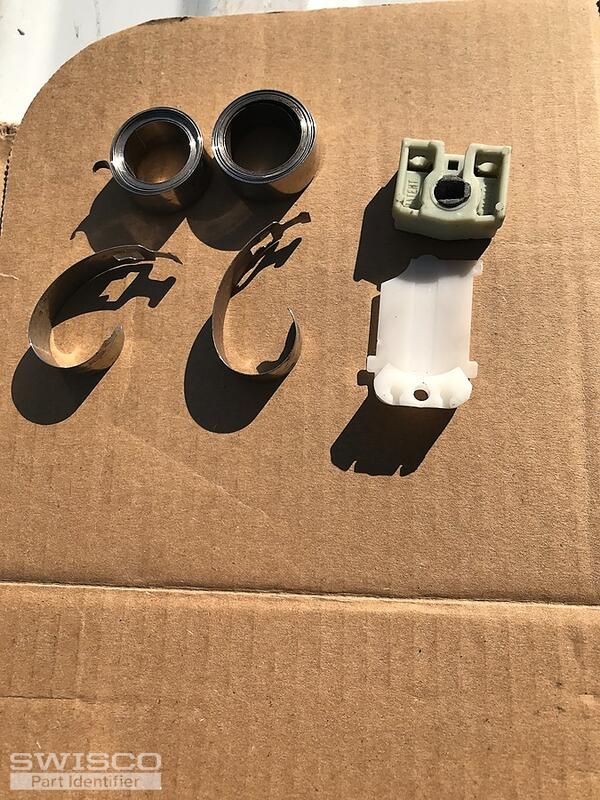

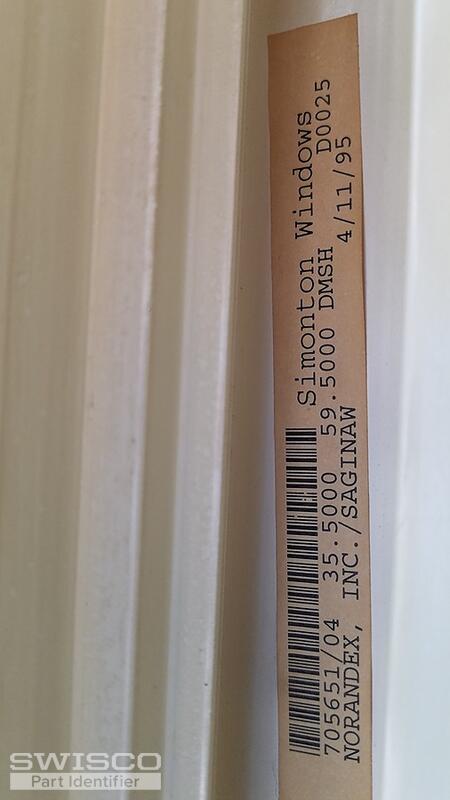

Looking for replacement coils. Each window has two coils on each side. Only the coils are broken. Simonton windows. The sticker on the window says 705651/04. 35.5000 59.5000 DMSH. The coils say #5.5 37" PAT5232208. The coils are .5 inch wide. I have attached photos of the parts.

looking to buy the sliding hardware, the existing coils are broken. it says #7.5 31" PAT523208 on the coild
