Viewing all customer Discussions for:

15-178 Pivot Lock Shoe, Brown Brake Pad

Thank you

Windows are Louisiana Pacific MFG date codes 97-10 & 98-1 Window sticker pix attached pivot shoe pix attached. Pivot shoe block is similar to your 15-046 The old had metal pivot with a slot opening not a closed like on yours. Also it is 2.5" tall where yours is 2". other measurements match your 3 ... (cont.)

I need help in identifying a pivot lock shoe for a Plygem window by Great Lakes Window - pictures enclosed. It's approximately 2 1/8 inches high, 1 1/4 inches wide, and 5/8 inches deep. It has a metal cam which accepts a circular pivot bar. Thank you in advance for your assistance. ... (cont.)

Hi, I have model 0601 Alside windows that have almost all of the shoes and locks broken on them. Can you recommend replacements? Thank you, Cheryl

This part is measuring at 2 1/8" L 9/16" thick 1" wide the brake pad on this part is WHITE!

Can you please help me locate replacement pivot shoes??

no markings found but they seem to match up to part #15-188

We ordered parts 15-178, 26-228 and 26-229 to repair our windows.Are there directions for their installation?We couldn't find any.Thank you for your attention to this matter.Jean L.

Series 8000

No names or numbers known on part - Guessing these are called shoes?DIMENSIONS APPEAR TO BE : 1" Wide2" Long1/2" DeepDo I have to remove window from casing to replace these?Appreciate your assistance !Thank you.

I don't think your sash vent latch shown is the same s my shoe balance.

I have the small pivot shoe as shown in this post: https://www.swisco.com/discussions/Cant-find-Match-to-Pivot-Shoe-77-142287 In the post, Bob recommended 15-178, yet why wouldn't 15-188 work as 15-188 appears to be closer in size depth wise than 15-178. Does it have to do with the brake pad thickn ... (cont.)

Hello, I have some barber & ross windows that need some fixing. I just had several washes replaced and while installing them a few of the track pieces failed on me. Likely do to me installing the windows wrong. I'm looking for suggestions on parts and/or help finding a path ahead if I can't find ... (cont.)

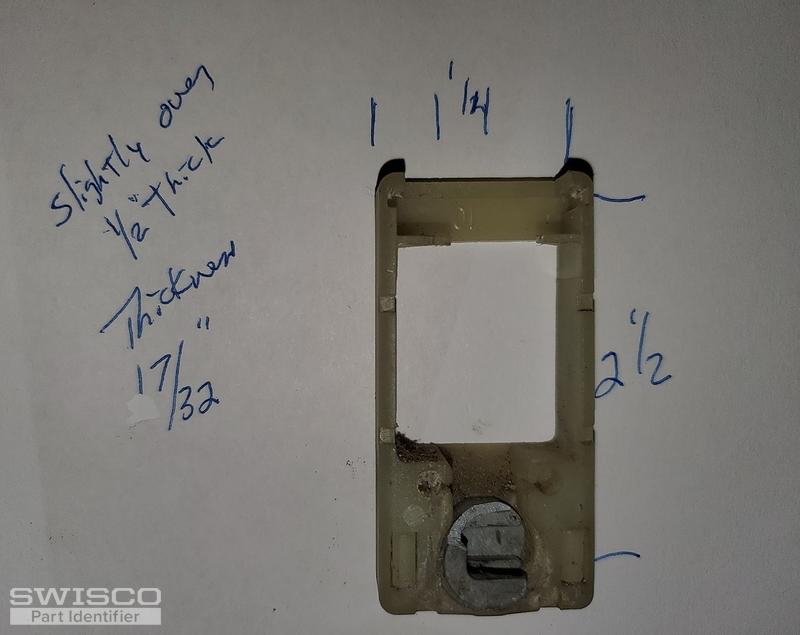

The shoe measures - 1 1/4 x 2 1/2 x 9/16. It appears to have what looks like a brown break pad. Nothing in your catalog matches. Will need about 24. 3 pictures attached (front, back, side). Looks like the windows were installed in 2003. Please advise.

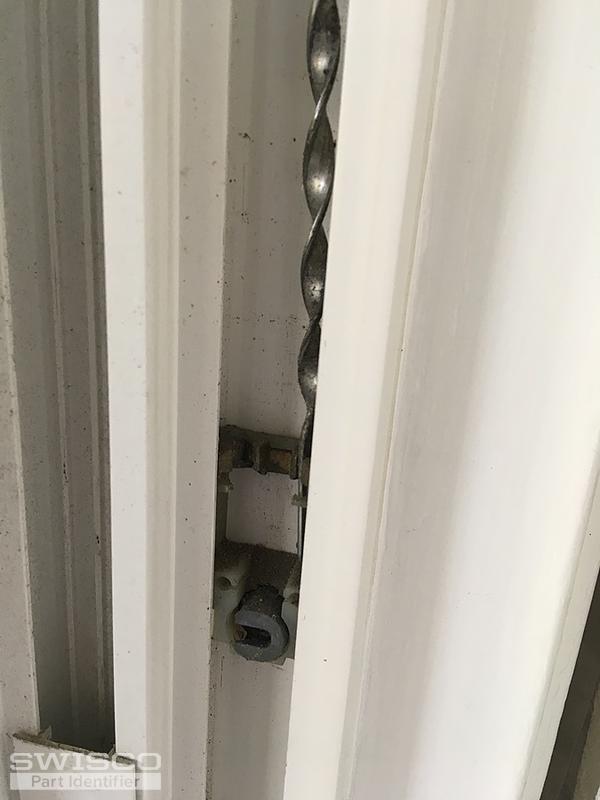

I need to replace 2 pivot shoes on a Jeld Wen vinyl window, probably at least 20 years old. The cams are broken. These photos are from an identical window. Works with a spiral balance. The old shoes have plastic "locks" to hold the balance in place. Roughly 2 3/8 x 1 x 5/8. Do you have something tha ... (cont.)

The part shown I believe is in a Silverline window. I'm not sure if the glide is intact or not can anyone help identify the part Thank you

Unable to locate the same size in your catalog. I didn't find any numbers on the parts but the windows were manufactured by Georgia Pacific and were installed in the early 90's.

hi ...I just got off phone with Jody wish we could have spoken a bit more ... my window's measurement is in one of the pics(30 1/2 * 56 1/4) the date on the label is 1998 ... I need to order parts to fix my tilt replacement window .. hope these measurements are helpful ... measuring to the nearest ... (cont.)

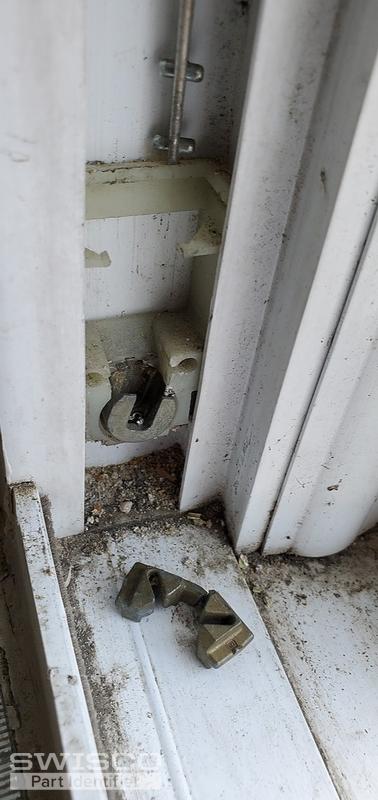

The metal piece on top of my window pivot lock shoe that accepts the spiral balance spring has broken and I'm looking for replacement shoe or parts. The pivot shoe in question looks very similar to the PIVOT LOCK SHOE, BROWN BRAKE PAD (Product Code: 15-178) and the measurements are similar except t ... (cont.)

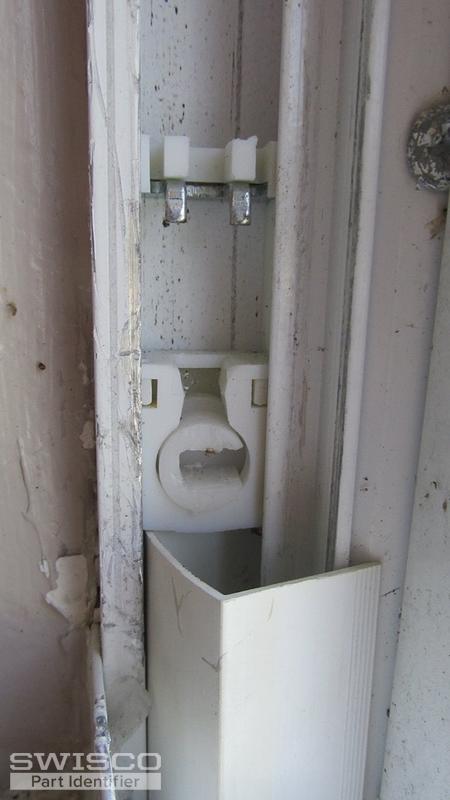

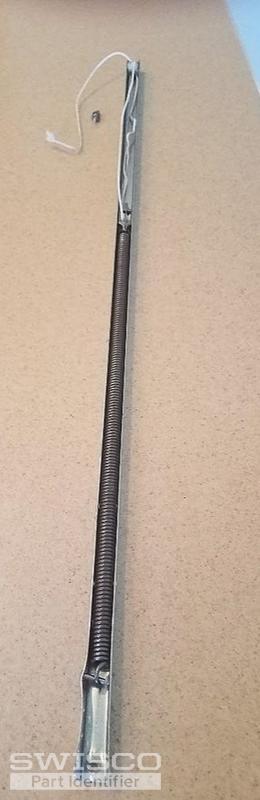

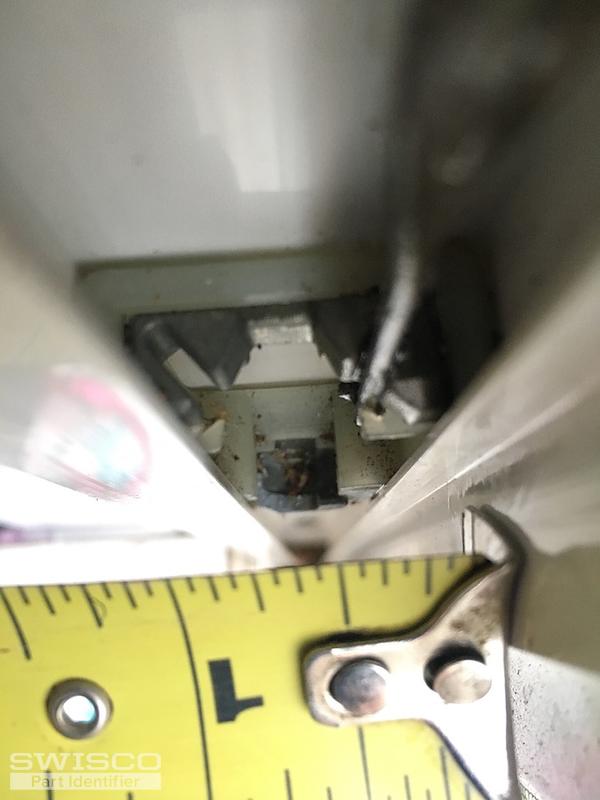

The Balance I have and depicted in the attached pictures has a Plain Channel, rounded corners on both ends, 28" Long (metal to metal), 9/16' Wide, 1/2" Deep, the Number 27F is stamped on the back, the Sash Weight is 34 to 36 lbs.Included is a picture of the Shoe in the Window Frame (IMG_0002)Mike ... (cont.)
