Viewing all customer Discussions for:

15-087 Coil Housing Pivot

I need help finding these parts to fix a window or 3

I have attached 5 photos. The window itself weighs 12 pounds. If you could help me identify the parts, I would appreciate it. I am a handy homeowner.

My left side coil balance broke. What balance do I need to order for replacement.Tim

Hello, I was so excited to find your website with so many useful information and parts for windows. Several of my windows' coil balances are broken. The attached photos are from the same window. My questions are: 1. What are parts # for coil and pivot bar that might fit this window? 2. Since thi ... (cont.)

7ch on coil spring and 7L and 7R on the white housing. The springs are broken.

My daughter in IL has a broken coil spring right side window balance that I need to replace. I have attached a photo of the existing coil spring. Can you help identify and offer a replacement?

Double hung bathroom window, need balance coil replacement, traco manufactured in 1991, are you able to provide partsThe window sash is 12 lbs, and more photos of the window jamb, if you need the parts still pulled I can do that. But maybe replace that pivot shoe, with one that is open, this one is ... (cont.)

Hi, I'm not sure what I need here. I never replaced one before. I looked on you site, but didnt see anything like I have. Pics of spring and also the lock. Thanks for the help.

20 year old window no markings on type, only marking on shoe was "5" need both sides thank you

Broken part is from a low end brand of window that has apparently been discontinued. There is NO Notch to remove the balance. I'm asking for advice on how to remove the broken piece and the availability, if any, of a suitable replacement part from Swisco. Other than the 5R marking in the picture I s ... (cont.)

Good morning. I am looking for pivot shoe and spring replacements for the above window, the springs have broken. The units measure 2 5/16" tall, 1 1/4" wide and 9/16" deep. The 28"X18" sach is stamped '7' on the unit and the 32"x22" sach is stamped '8'. I will need 5 sets of the #7's and 2 of the #7 ... (cont.)

Hello, I need help with part numbers and advice on how to install the parts for two of my windows. First, I think my windows were made by Traco and I am hoping they take generic parts? I need all new tandem coil springs for each window. They have the Blue screwdriver tab and the spring had a #6 or ... (cont.)

coils snapped on both sides of the window. Need assistance on replacement parts. Thank you, Brian

The picture is of my old sash pivot bar it is 2 5/8 long 5/16 wide u shape 3 holes one closest to pivot shoe is 5/8/inch next one is 5/8 back from there last one is 1 3/8 from first hole. Pivot shoe looks to be a 15-087 and stamped on spring is 15v then a different type of 6 on it also. Pivot shoe n ... (cont.)

Brouken banances

I need a pic or video of how to assemble the s180 coil into the 15-187 coil housing pivot. Please tell me the 26-422 pivot bar fits into this new housing. Need a pic or video of how the this works

Looking for replacement hardware for these. Thank you!

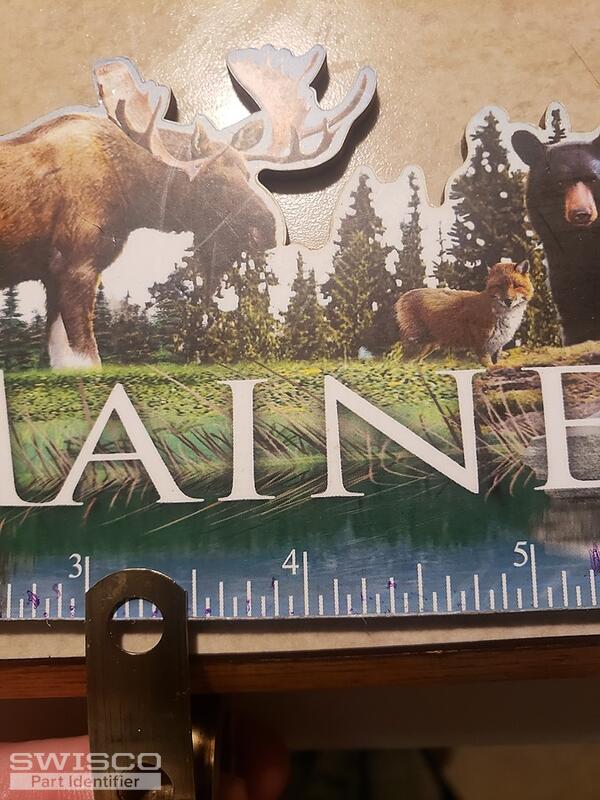

Hi, there were no markings at all. I measured the coil, not a great ruler, but that's what I had. Thank you

Can you identify the make and model number of this pivot shoe?

I need to replace the coil balance and tilt latch in my vinyl window. The coil snapped. The coil has 6kg imprinted on it and the coil housing has a 6. I probably should get the clear plastic mounting bracket too. Also the tilt latch broke. It looks like it's a corner latch, maybe? I'm sending photos ... (cont.)
