Viewing all customer Discussions for:

15-087 Coil Housing Pivot

coils snapped on both sides of the window. Need assistance on replacement parts. Thank you, Brian

The picture is of my old sash pivot bar it is 2 5/8 long 5/16 wide u shape 3 holes one closest to pivot shoe is 5/8/inch next one is 5/8 back from there last one is 1 3/8 from first hole. Pivot shoe looks to be a 15-087 and stamped on spring is 15v then a different type of 6 on it also. Pivot shoe n ... (cont.)

Brouken banances

I need a pic or video of how to assemble the s180 coil into the 15-187 coil housing pivot. Please tell me the 26-422 pivot bar fits into this new housing. Need a pic or video of how the this works

Looking for replacement hardware for these. Thank you!

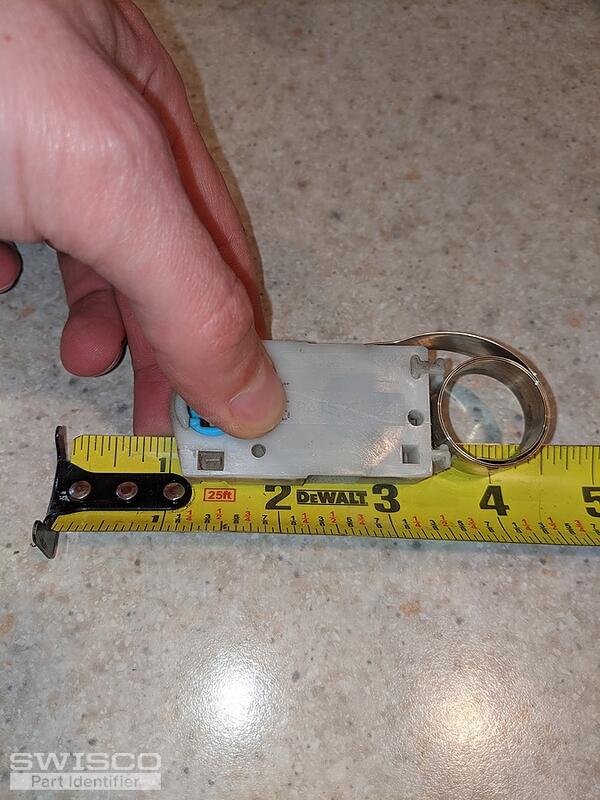

Hi, there were no markings at all. I measured the coil, not a great ruler, but that's what I had. Thank you

Can you identify the make and model number of this pivot shoe?

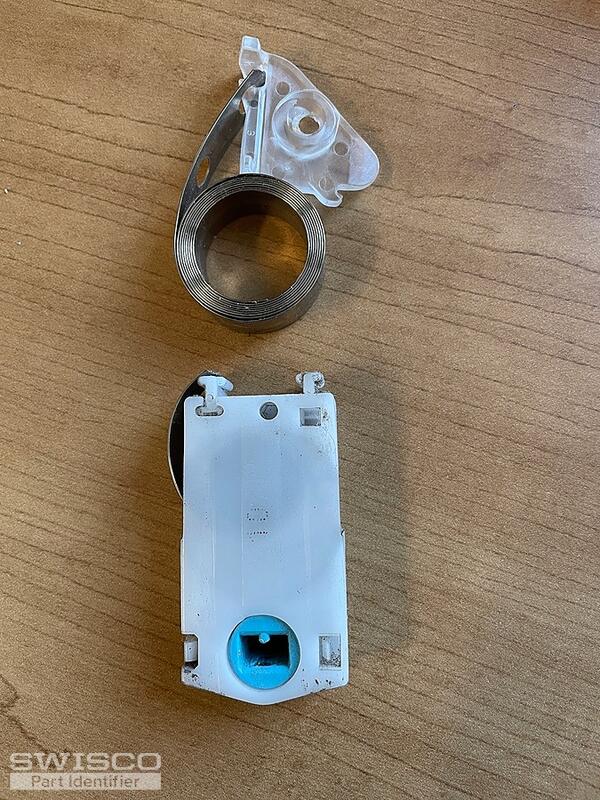

I need to replace the coil balance and tilt latch in my vinyl window. The coil snapped. The coil has 6kg imprinted on it and the coil housing has a 6. I probably should get the clear plastic mounting bracket too. Also the tilt latch broke. It looks like it's a corner latch, maybe? I'm sending photos ... (cont.)

Hi, I am looking for this replacement part. This is coming off of a 50 series American craftsman window from HD. Thank you

hello, can you tell me please if you have this coil? thank you

Hey there, I have a few vinyl replacement windows in my apartment that seem to have a broken piece preventing me from being able to open them. The piece in question, that I was able to get a picture of is the piece with a blue circle on it. Research tells me this might be a window balancer, though ... (cont.)

Hi, Last week you guys recognized my obscure pivot bars and sent me replacements. I was astonished. Now, it gets hardest. Turns out the coil balances are also broken on both sides in two windows. Can the attached photos give you a clue as to what I need?Thanks,BG

The only number I could find was the #10 on the white housing. This part is for a Silverline window. I need to know what to order

I need help solving my issue. My springs broke on my Barrington DH7 vinyl window. I think the 180 series matches my model but my previous setup are 10 lbs but yours onlybgo up to 9 lbs. I am skeptical about trying 9s. Would the 161 series also work since it has a 10 lb coil spring option? ... (cont.)

2 7lbs series 1 9lbs.series 2 coil housing pivot [blk). Plus 2 other parts I took pics of.Maybe you carry them? Bill. Would I be able to pick up in N.J.

Hi. House was built in 2005 and has original Kinco windows. One window has faulty coil mechanism on one side. Attached are pics of the label and the 'mess' on that one side. Also a pic of a good plastic coil mechanism from the opposite side that seems to be fine.I am not sure what to do. I can re ... (cont.)

This pivot lock shoe has a spring install inside to raise the window and does not remove from shoe, is 1-1/4" wide, 2-3/4" long, without spring tab on top, 4" with the spring tab on top, 9/16" deep, made from Moss windows 6 years ago.

I have 2 windows I pur in new in 2014 American Craftsman 8500 series pats are 37/8" long an 11/8" wide enclosed are piCtures it looks like a 6 or 9 on the Plastic and the same on the sprayers I can't tell how many springs are really are because they were all apart when I open the window and close f ... (cont.)

Need to order these parts the pin rusted and broke the broken pin is rusted in pivot stash

I can't identify any numbers on it it's really old and worn. Thanks
