Viewing all customer Discussions for:

15-087 Coil Housing Pivot

The window size is 27.5''x37.5''. The window is a Traco window and I believe they are out of business. Google got me to here using the Pat.# 5353548. Can you help?

Number on this PAT5,353,548

The shoes we ordered, 5# 210 roller-tilt single are 2.584 in long and .846 thick and the ones I need look identical but are 2.278 in long and .549 thick. They are both 1.25 wide. You carry a smaller one to match our Traco.

Hi, After the window is opened, it cannot be hold there, it will fall off and close. Is the balance broken? Please advise me buy the parts to fix it. Thank you! Tania

Window balancing coil for vinyl bathroom window. Balancing coil has a marking of Pat. #5,353,548 and written in blue marker is #4 and also the coil itself has also a marking of 4lbs. See photo. I need two(2) units and please send me an estimate. Thank you.

I need to replace all 3 of these parts for both sides of the window. I'm just not sure which parts to order. The info on the coil is 5NL. Thank you

Sash weighs between 14-15 lbs. There is a patent number 5,353,548. One side is marked 3 or B with a marker.

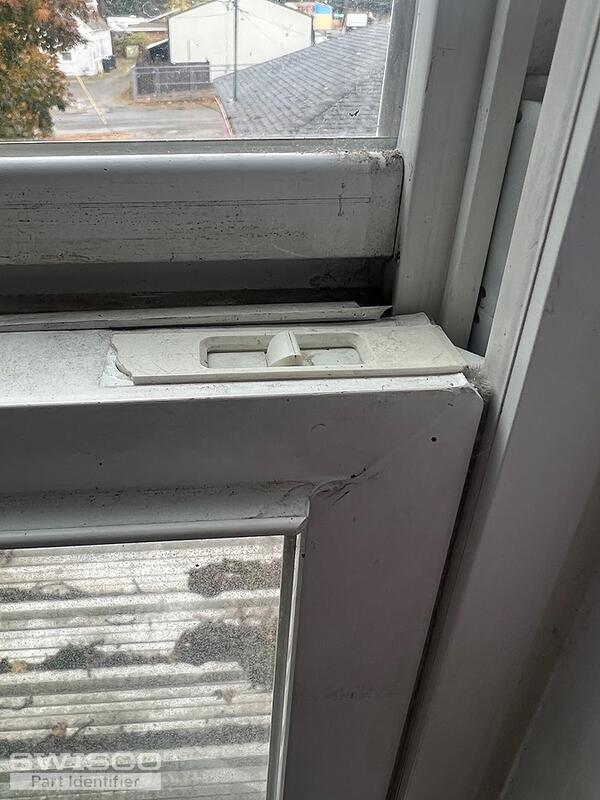

I have a double hung window 33"x47" and the top section has a broken surface mounted tilt latch and the bar that goes into the valance is also looks bent. the Valance spring also appears to be broken. Both are on the left side when facing window from the inside. I would like replace both bars and bo ... (cont.)

I have a twenty year old Traco replacement window with both balances broken. I've attached pictures of the balances that I can see without removing the balance covers. Would you have the part(s) to replace the existing balances and give me an idea of how to do that. Thomas

Slide T-Pivot and Roller tilt

Hi just curious about replacents

looking for these window springs for American craftsmen 8500 series windows.

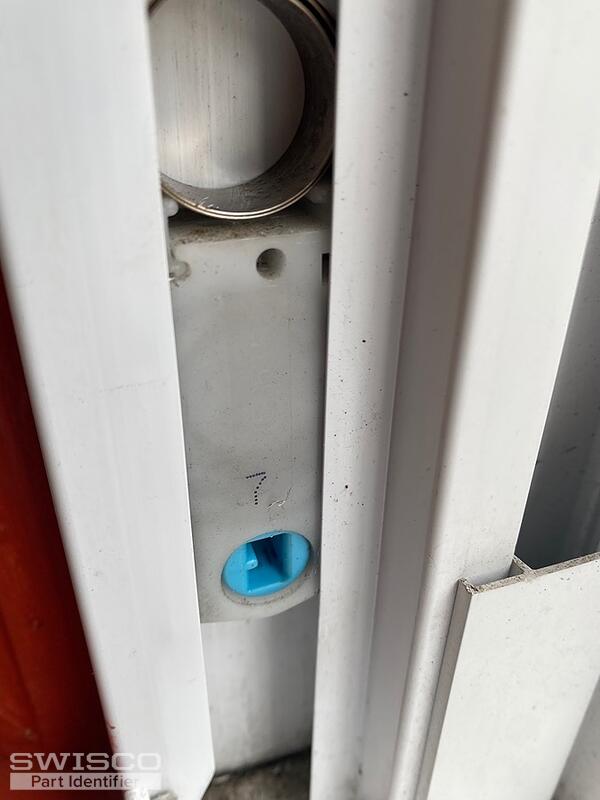

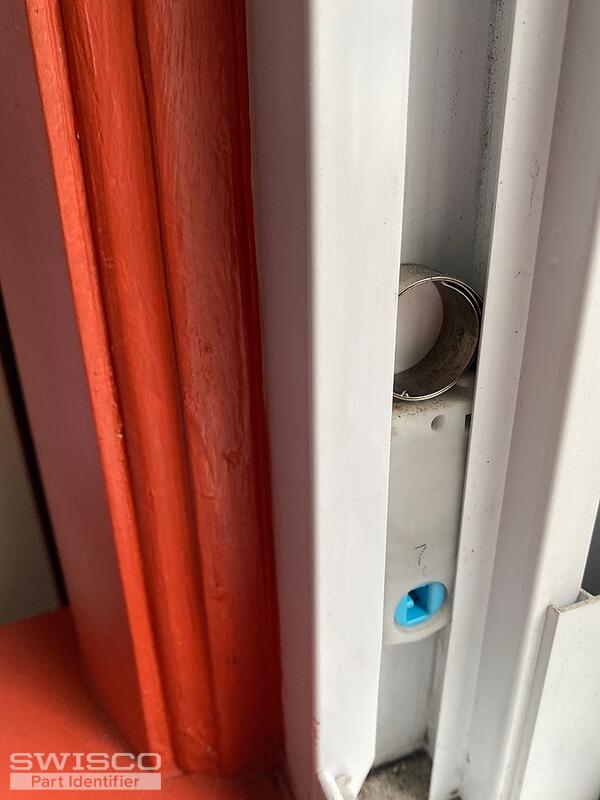

Would this Shoe Stop 15-087 work for the replacement the pivot pin looks like a 26-444. Also would a s161-7 work for me cuz of the coil has a stamp of a number 7

I need four total sets. Are there left and right sides?

Pat:5,353,548 Spring mechanism for a vinyl window

Hello. I recently ordered window tilt latches from you. Work like a charm. Now I need to replace coil housing pivot. See attached photo. Window will not stay up.Need to replace both left and right sides.The depth of housing is 1/2 "

I need both springs on 2 Windows,so 4 springs Total. Windows are 20 years old+ Also send me a video describeing how to insert them and if I need any special tools.

Hi. I'm trying to locate replacement springs and sliders/units for 2 American Heritage(?) double hung windows approx 15 years old. Photo 937C? shows a snapped spring and has 8HB stamped just below the 2 holes that connect to the side bracket in the track (photo E0CA?). The housing unit attached to ... (cont.)

I have a 20 year old window I purchased at HomeDepot, I think it's a Americancraftsman window, I have inserted 3 photos of the parts I need. Thank you

looking for for balance coil for a 70 Series American Craftman window. Mnf# 10-8015A thanks
