Viewing all customer Discussions for:

15-087 Coil Housing Pivot

hi, couple of windows coils broke, got the windows from home depot i think the brand was american craftsman. the stamp on this is 7 and the size is 1-1/4" x 9/16" any replacements? thank you.

I could not remove the bottom as there are no cutouts. I need anything that will work it doesn't have to be the same. I will create cutouts if I have to. I have no knowledge of windows at all but I am very handy

Hello Emily the expert , There are two picture. showing my problematic coil balance, with no names, numbers or markings on any of the parts, as I can see. Only a number "8". The window sash weighs 30 lbs. Please help to identify the part (spring) to be ordered, or other ways to solve the pro ... (cont.)

I am fairly certain these two parts are correct (based on patent 5,353,548) Coil Housing Pivot (plastic) 15-087 Tandem Coil Housing (plastic) 15-086 There was no number on the coil spring. Need help in finding the correct coil spring The spring is 1/2" wide with two round holes Dimensions of ... (cont.)

Can you help identify the following parts (see provided pics): I think I need the "S180-8" (8 lbs Series 180 Coil Balance) because I see an "8" stamped on the more neatly coiled part. However, I am concerned about the actual weight of the sash (12 lbs) versus the values (8) indicated on the coil ba ... (cont.)

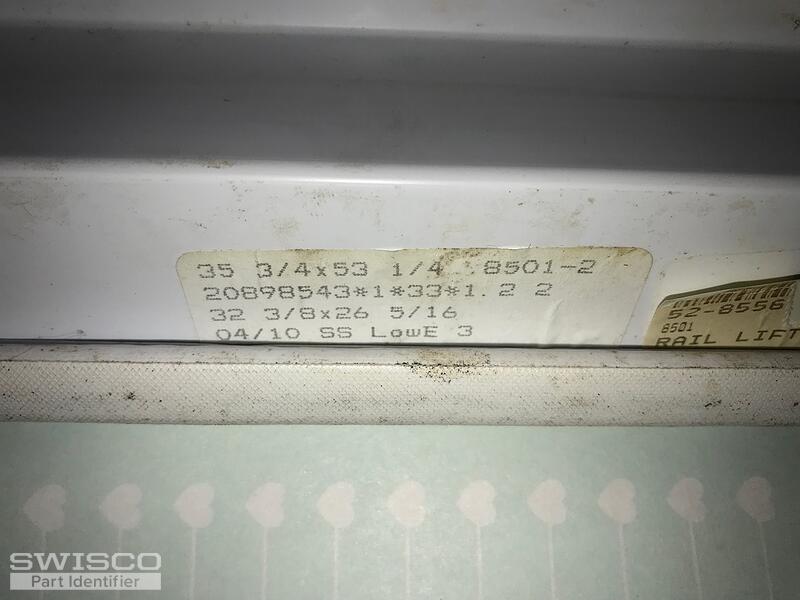

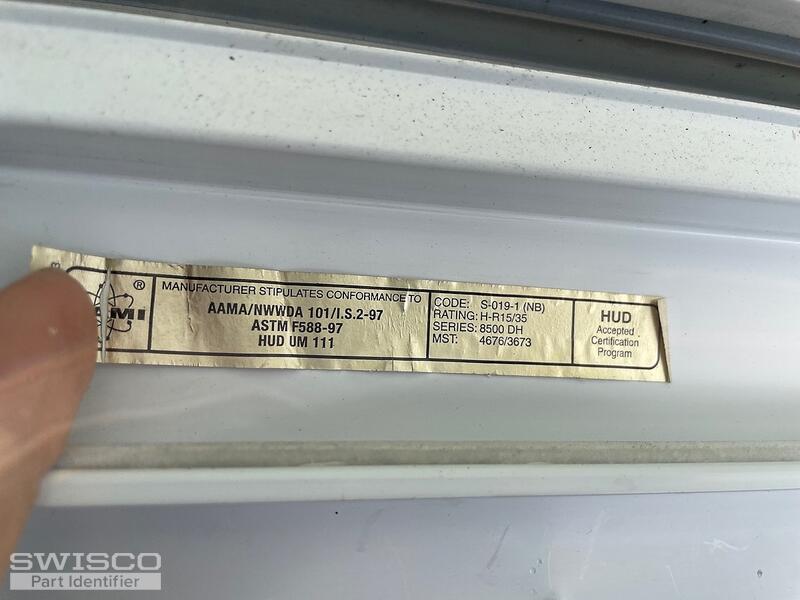

I bought American Craftsman windows series 8500 from Home Depot in 2006. The spring broke, I was able to remove the remainder of the spring from the case. The case has a 6 stamped on the side. The spring has 6DB stamped near the end. The case is 2 and 7/16 inches long, 1 and 1/4 inches wide and 9/ ... (cont.)

Looking for 4 replacement balances. Measurements are 1 1/4" x 9/16". Please let me know if you can help. Thank you!

Window will not stay up. The plastic cam housings and pivot lock shoes have cracked under pressure and broken off. I believe part of what I need may be #15-087 balance coil. Not completely positive that this is correct. The window pane measures 16.5"X31.25". When I opened and tilted window pane to ... (cont.)

Good afternoon. I have two window sashs requiring the coil balance replaced. One sash weights 13.6 lbs and the other weights 15.6 lbs. I couldn't find any identifying marking either on the housing or the coil spring. I measure my housing and it is slightly smaller than than the S161 and S210. My ho ... (cont.)

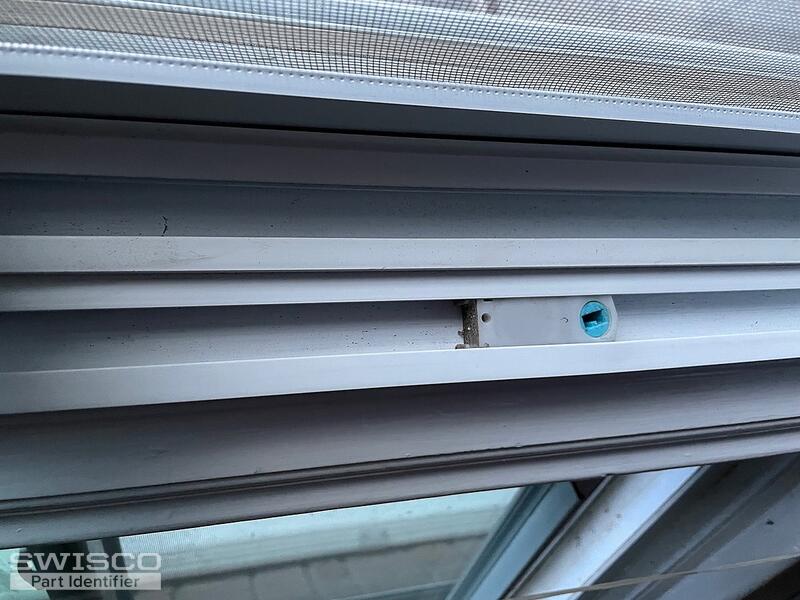

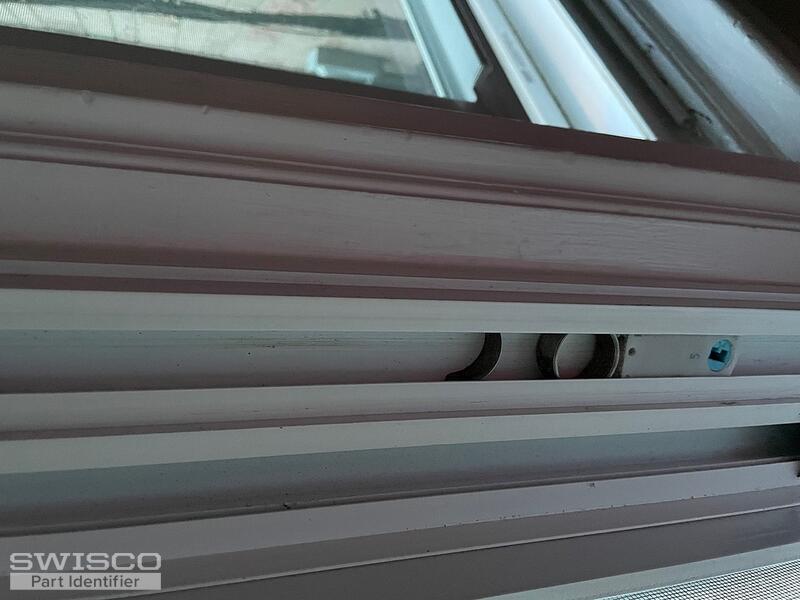

Hi, The right side of my double hung window balancer is broken. I couldn't find the right part on your website. One the plastic piece where the window connect to showed number 5 on the balancer. Can you tell me what do I need to get this replace? I also upload the left side where it is still g ... (cont.)

My windows seem to have what looks like your 15-087 housing pivot.I'm trying to take my window out to get a look at the replacement parts I need but there is no slot on the housing pivot that I would need to slide the window out.Can you tell me how to get the pivot bar out of the way to remove the ... (cont.)

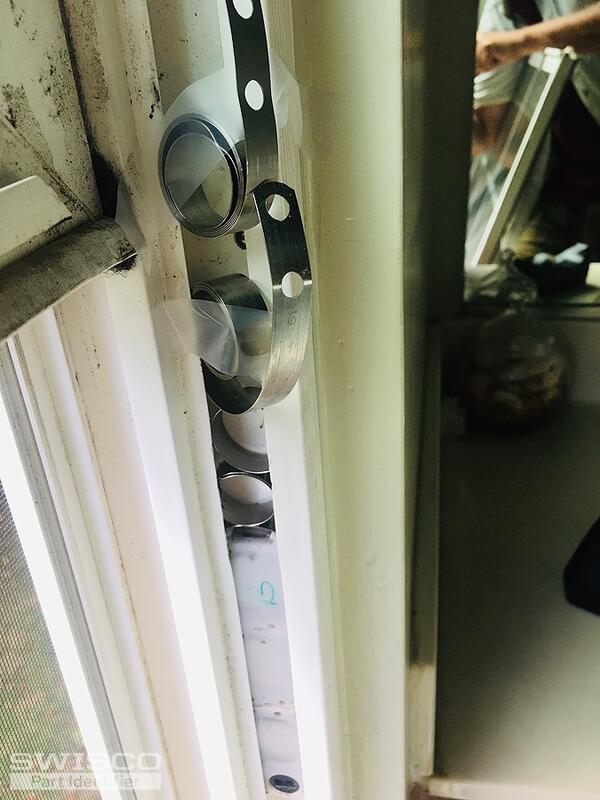

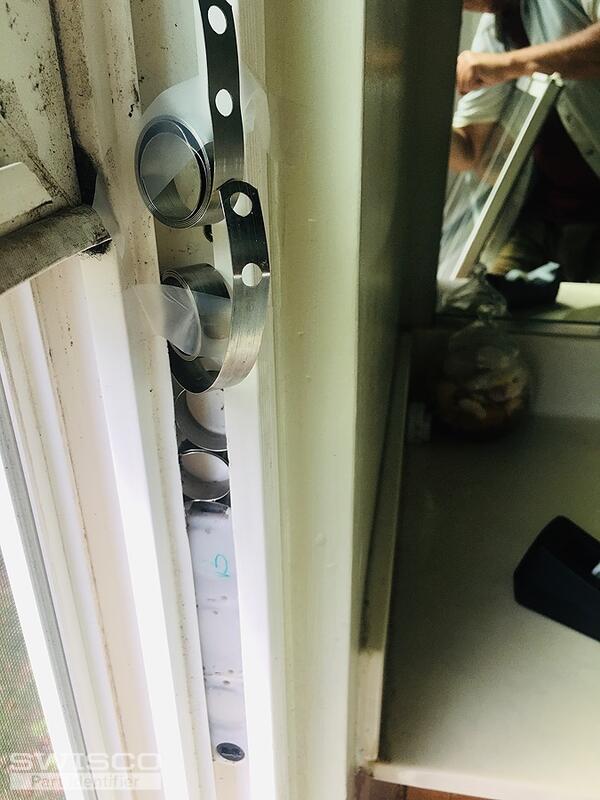

Hello, need to replace coil balance springs on window sash 38 lbs. ?. 36 inches tall. (33" wide). One side had coil failure and the other looks like it is ready to go. I believe each side has three coils and each coil is labeled 6 lbs.Vinyl windows are about 20 plus years old. Don't know the mfr. ... (cont.)

Hi, I need to obtain two of these coil balances. They use a single coil. The weight of the pain is about 16 to 16.5 lbs. you can also let me know if there are other associated parts that I may need in addition to the coils. I may have to cut a slot in the track as there is no way to remove the ... (cont.)

Hello, This window is in a rental unit, it is a complete mess. It appears that one balance was replaced with something that should not be there. I am limited to 5 images .. Thank you for your help, Daniel

Hello, my windows kept falling down because the coil balance is broken and I wanted to replace it. I am not sure which coil balance, guard, and shoe I need so I took pictures. Thank you in advance for your help.

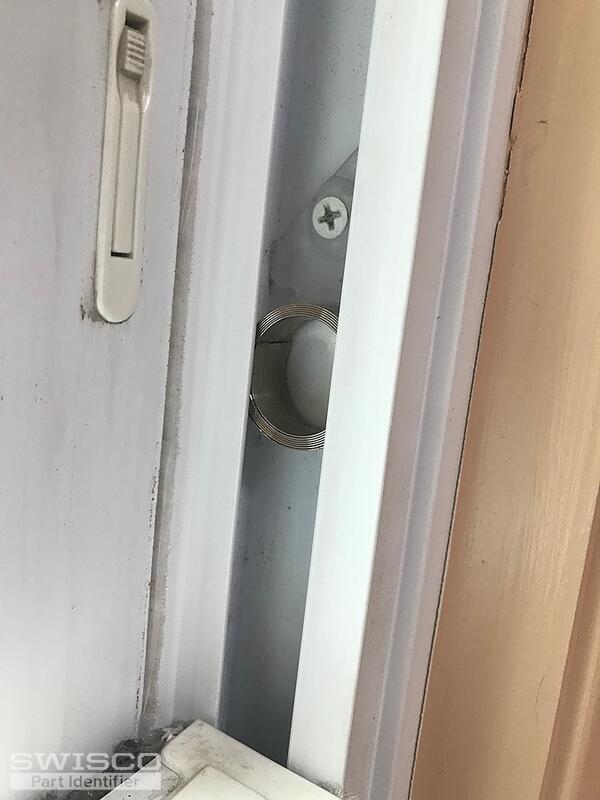

My window won't stay up and the round coil came out. This is the picture I took from Window. What parts do I need. Just want a quick repair because I'm selling house and want window functioning. Other pictures are of window lock that broke. I purchase one before but when install and i pulled ... (cont.)

Hi, which pivot bar is compatible with Coil Housing Pivot Product Code: 15-087.

Looking for a replacement window balancer. This balanceer had a "7" stamp on it. Customer states that they were Andersen replacements that were installed in 2007 although I did not see an andersen logo in the bottom corner of rhe glass.Not sure if the coil is part of the balancer or not. It also app ... (cont.)

Hi I need replacement for my window as it does not stay up when it is open.I believe it is an 8 lb show need because I see a little 8 stamped on the coilHow soon could this be view for advise on which piece to purchase for inspection, as I have an inspection coming up very soonThank you in advance f ... (cont.)

Could you please suggest what model will be suitable replacement of attached broken window balance. Many thanks!
