Viewing all customer Discussions for:

39-348 Sill Mounted Awning Operator

Can you please provide me with this part no. so I can order it?

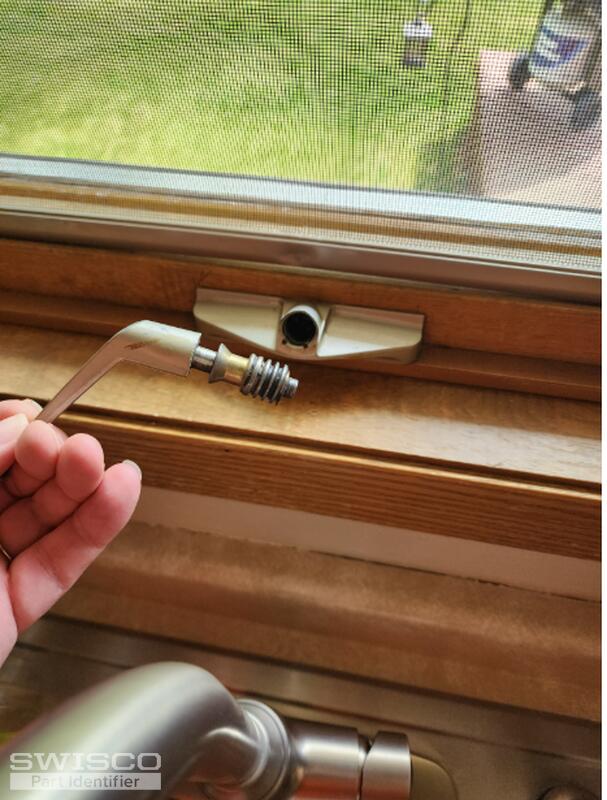

The screw the crank operates seems to be stripped, looking for replacment parts. Possible guide bar operator replacemnent.

Trying to find that little connector that connects arm to window. Window intstall circa 1988. Thank you

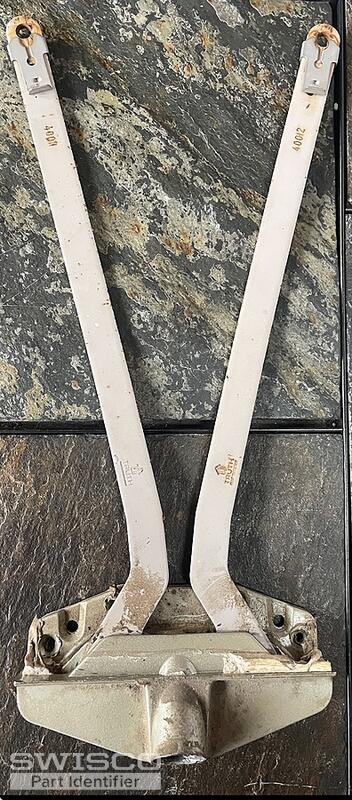

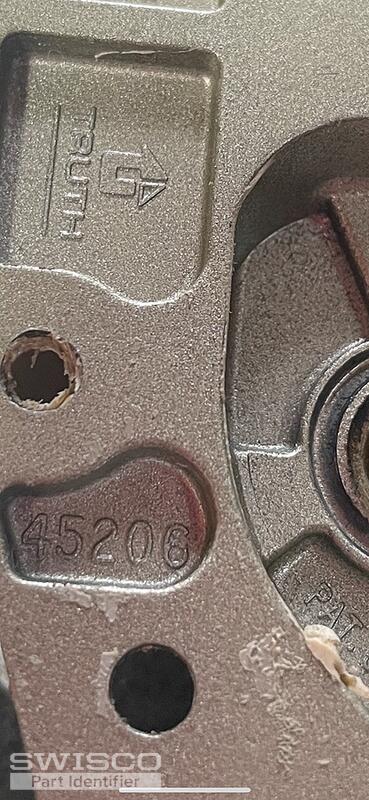

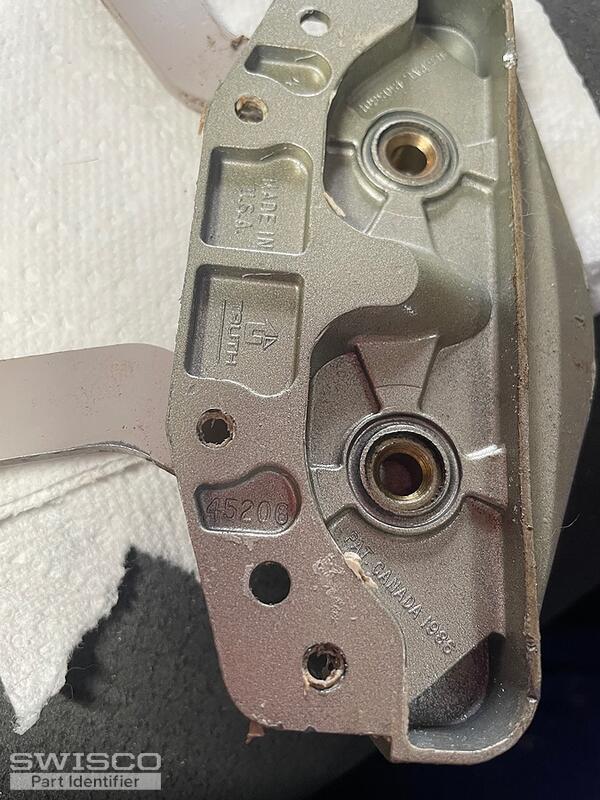

Truth is the brand. #45002 is number stamped on the underside.operates an awning type window. If I new the tap size I could straighten out the threads so the auger stop would screw in. So I guess I gotta get the whole part.

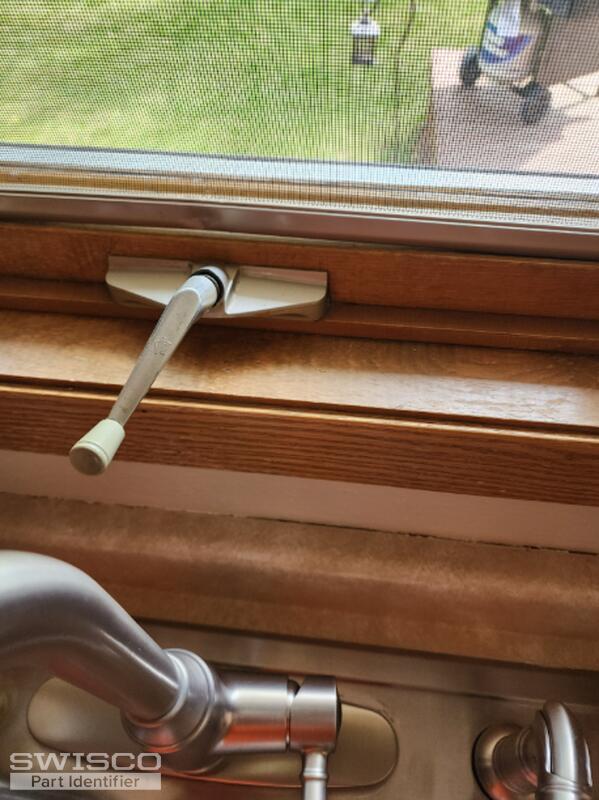

Looking to replace this window crank.

I need to price out replacements as pictured. The casement guide bars came off a left hinge (looking from the interior) I would need a top and bottom. On the awning operator, I need 3 of these priced out and the holes on the arms measure 24". I need the same color and please include the handle on pr ... (cont.)

Looking for a replacement or something close for this

Hello This is for Awning windows that are approx 35-36 years old. The glass measures 22'H x 27'W . There are 2 straight arms . 2 Arms per window.

Windows hardware help.

Replacement operator

Weathershield no longer supplies hardware for the Custom Shield Awning windows, I need both the crank handle & the cover attached to the window replaced. Qty. 4 Do you have anything that would work? Thanks!

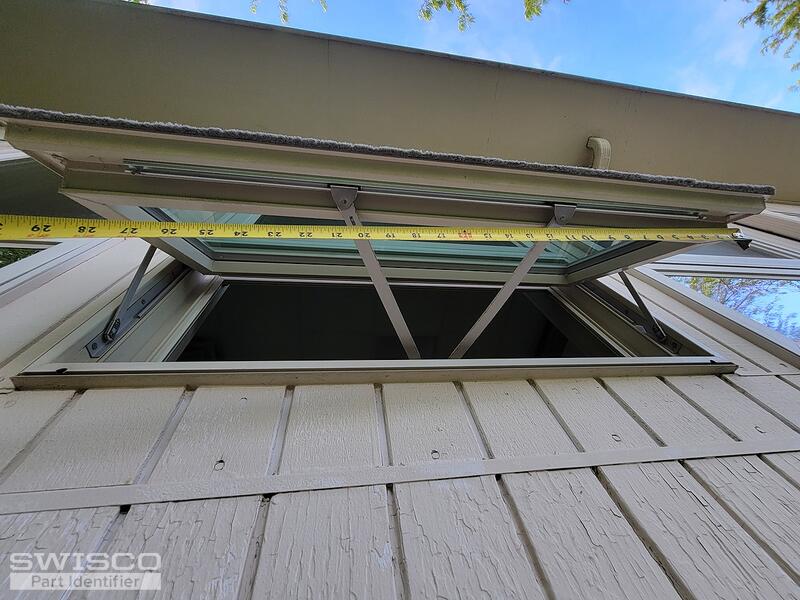

Hi, I believe I need 39–348 based on the attached photos and the width of 24 inches. Two of the screws lineup roughly 2 inches apart, but I can't see the other two screws because they may be hidden by the arms. Can you confirm that they are about 4 1/4 inches apart? It also appears that I need ... (cont.)

please advise if you have the full part with all the parts

Crank can open window but doesn't close window. Wondering whether any of your awning cranks would work.

The crank handle of an awning window has come out and cannot seem to stay. The crews may be stripped. The window is original to my house which was built around 1991. We plan to replace all of the windows but I would like to limp along a bit more with this one. The only numbers or lettering I fou ... (cont.)

House was 4 yrs old when we bought thus 1988 built. The Sill is wood but might have thin plastic cap full width however I can not remove screws that hold the handle mechinizum under sill, 4 -6 screws. Thinking about removing ~ 1/4 inch thick piece of sill above mechinizum so as to access srew heads, ... (cont.)

Crank housing is 3 1/2 inches wide. I need 2 replacements. Crank arms for awning window shoul be around 7 inches long since width of window is only 14 inches wide.

Hi. I recently moved into a new place and several of the windows do not function properly. Some of the cranks do not function at all, some of them will open the window but will not close the window, most of them come apart when trying to use them. The handles themselves seem to be fine and the mecha ... (cont.)

From: MARK/1-4 WeatherShield Alum clad awning window. 38.5" x 14.25" Just need to verify that the 39-348 operator in white with the 39-205 folding handle in white is the best choice. Shoe stud, clips, and operator track seem to be fine. Please advise. Thanks, MARK.

Hello - I'm looking for some old Kolbe & Kolbe awning window parts. House was built in the early 90's. Need the guide bar track (1 @ 26 1/8" long and 1 @ 26 3/4" long) that screws to the bottom of the sash. Also need the brackets that slide in the guide bar track that clip to the arms. And... ... (cont.)
