Viewing all customer Discussions for:

39-348 Sill Mounted Awning Operator

Hello ~ I have a broken awning window for which I hope you can provide replacement parts. It is a WeatherShield 8204 Aluminum Clad Awning, installed in 2008. The window was yanked upward when partway open, twisting the operator arms and pulling the guide bar off the awning's interior wood frame. ... (cont.)

Need help finding replacement awning window assembly. When folded in the closed position arms measure 24 5/8 inches. Steven

I'm looking for the clip that holds the arm to the sash in this 1980s era window.

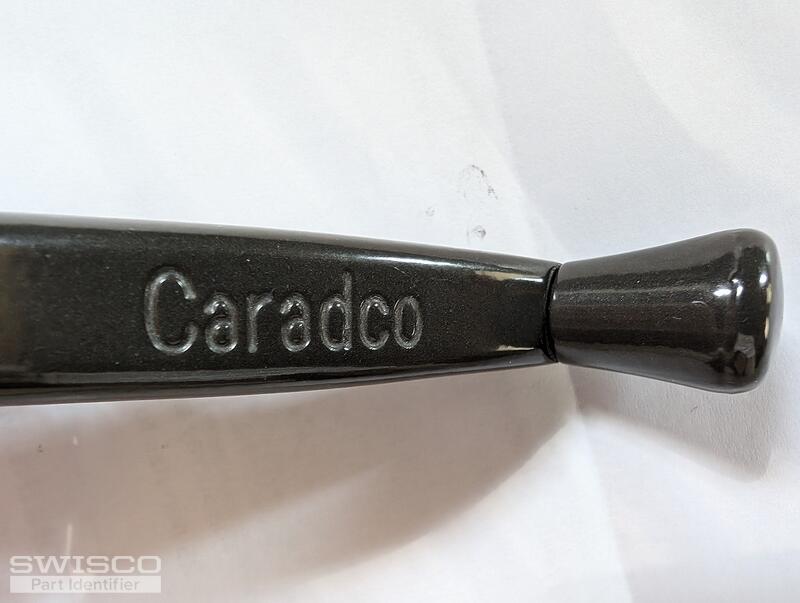

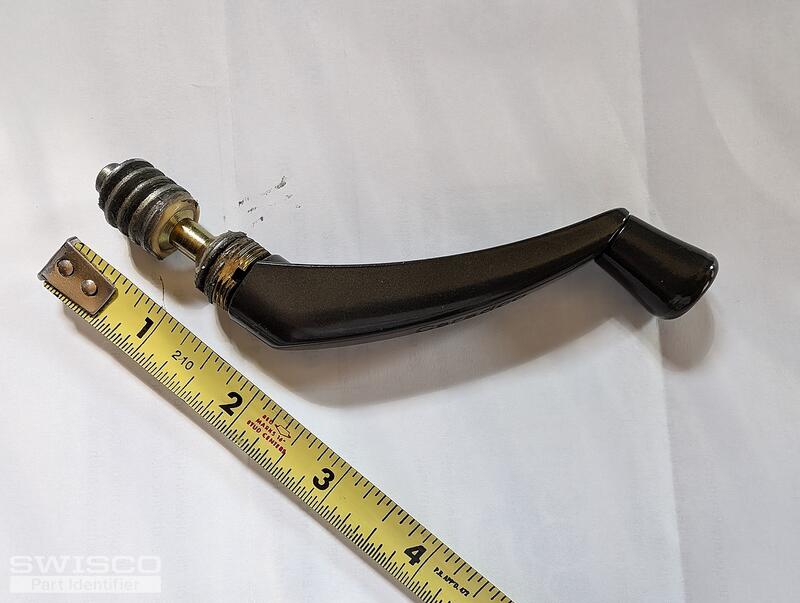

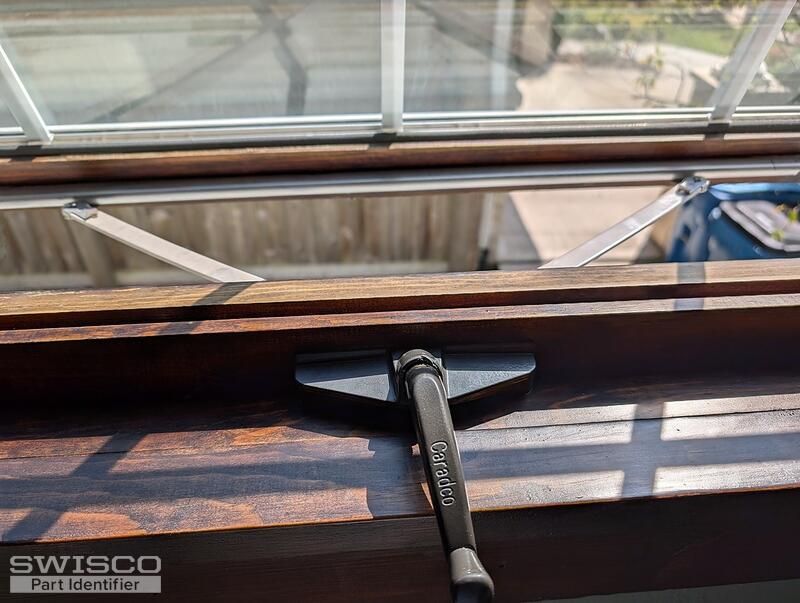

hi my name is Jim.the gear part seems to be stripped on our Jeld-wen awning window.marked on the window JEL-N-201Caradco is on the handle.Truth is on the arms.it's a 2 arm setup.probably need 2 new arms - due to threadsthe operator and handle -- as the handle is one piece.see photos.also .. I can't ... (cont.)

Can't tell if it's an Anderson or not

Sorry for the delay. I don't know if you have just the parts I took photos of. I don't need the whole operator. I've attached photos of the parts, and I don't really think I need the handle, but it's in the first photo. Also, I've included the PDF from weather Shield; pages 1 for the exploded view, ... (cont.)

I have this casement window which swings bottom-out. There are two arms that sort of sizor out. The crank seems stripped and just falls out.

I need a replacement operator for a Weather Shield awning window which was manufactured Dec 1990. The worm gear has come out and I cannot use the mechanism to close the window. Thank you,

hi, here are the dimensions : window size : 39" width x 27" height operator arm length (2x) : 14" slide bar (affixed to lower inside of window) : 35"

Hello, I'm having trouble removing the cover from the old operator. I just wanted to quickly replace the cover and the crank, but it seems to be stuck. Additionally, one of the window arms is no longer connected to the pin, and I am having a hard time closing the window. Could you please point me t ... (cont.)

Hi, I am trying to replace this awning window operator. The handle comes right out with the insert connector. It is stamped Truth on both arms, but I see no part numbers. There are two arms that are about 10 inches extended fully and about 23" when closed. The window dates to 2008, if that's a ... (cont.)

Hi, I would like to know if you carry this operator. It is a dual arm. Arms are 9 in. long. It has a screw in retainer plug with two flats. One side of the retainer plug that holds in the threaded shaft is about .622" while the other is about .685". The threaded shaft looks like the shaft/stem f ... (cont.)

Had this operator break. Can't seem to find an exact replacement for it. Arms are 9in in length. Looking for an exact replacement so I dont have to redo the sill trim.

I am trying to replace x2 'Truth' window operators - the long metal piece that attaches to the actual window measures 26.75" in length. On the underside of the metal base that the crank is attached to are the following markings: Truth 45206 Made in USA US PAT. 4505601 PAT. Canada 1986 There is als ... (cont.)

I am looking for a replacement for this unit. It a Truth opener with 45142 stamped on the back.

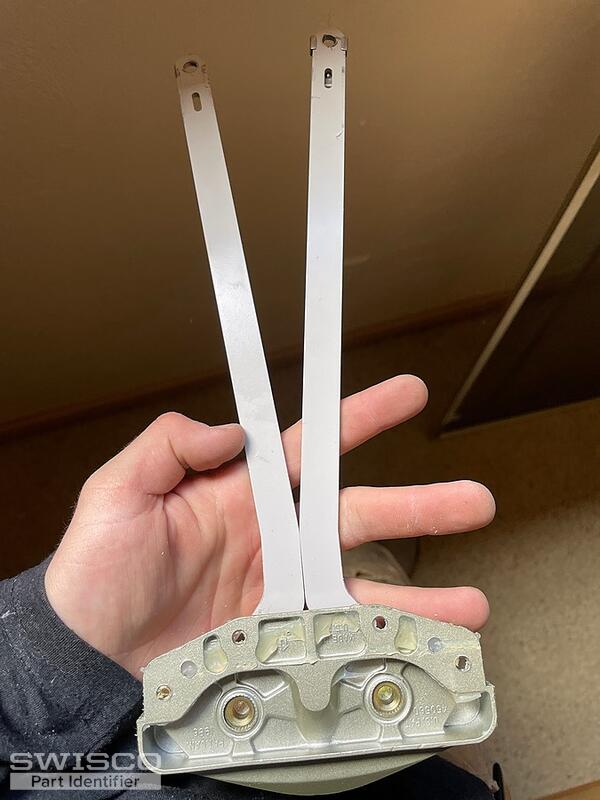

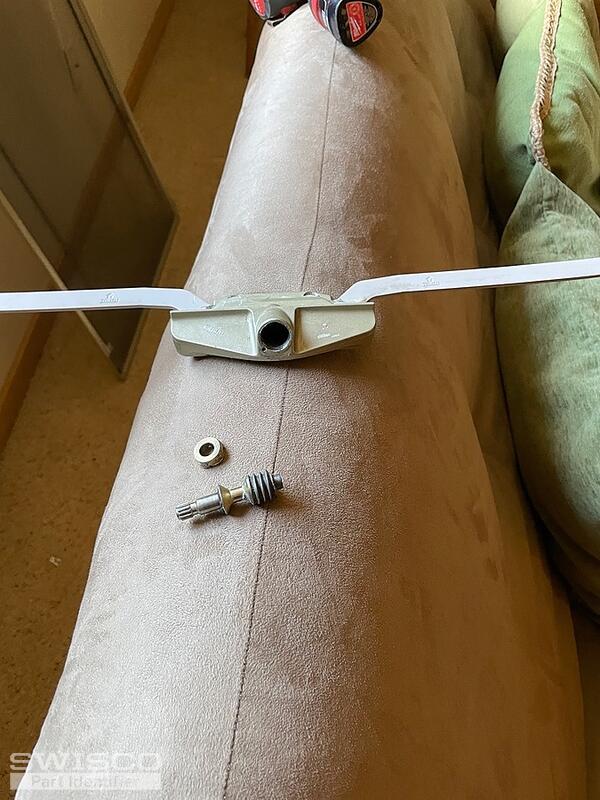

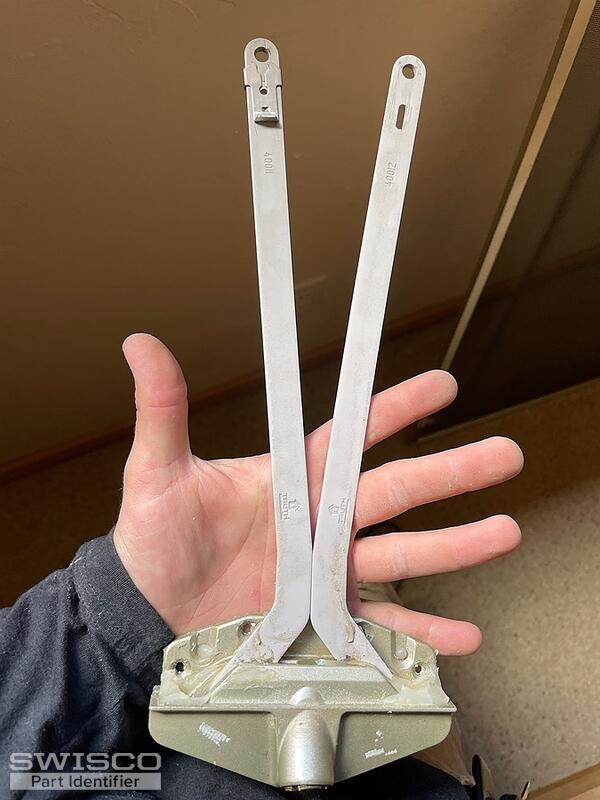

I have an awning-style casement window that needs a new operator assembly. The awning arms have a center base and two straight arms. When open, the arms make a V shape. The arms are stamped Truth 40011 and Truth 40012. When shut, the assembly is about 25" wide. Can you help me find my repl ... (cont.)

The Operator gear is stripped. The interior part that the handle hooks to is 5 inches wide. One unusual thing is that there is no easy way to get to the two philips head screws that hold the mechanism in place. Appears that you need to chisel the bottom of the window frame up to access. Thanks f ... (cont.)

See attached pics

The screw mechanism "retaining ring" (?) has popped out. Unable to screw it back in as the threads that held it in are stripped. Being from the South even tried JB Weld Epoxy & that did not hold either. No one around here seems to know what to do & they recommend replacing the whole window. ... (cont.)

Awning window operator. I don't know how it's attached at sill
