Viewing all customer Discussions for:

26-378 3" Pivot Bar

Both left and right springs are broken. Need a replacement for both- left and right

I have a 26 year-old Jilco / Simonton double hung window. It has a double coil spring set up. I wanted to replace everything including the coil balance, pivot shoe ,coil springs , double coil support/cover and the pivot bars. I had some help with Chatgbt and they stated that I could change that Dou ... (cont.)

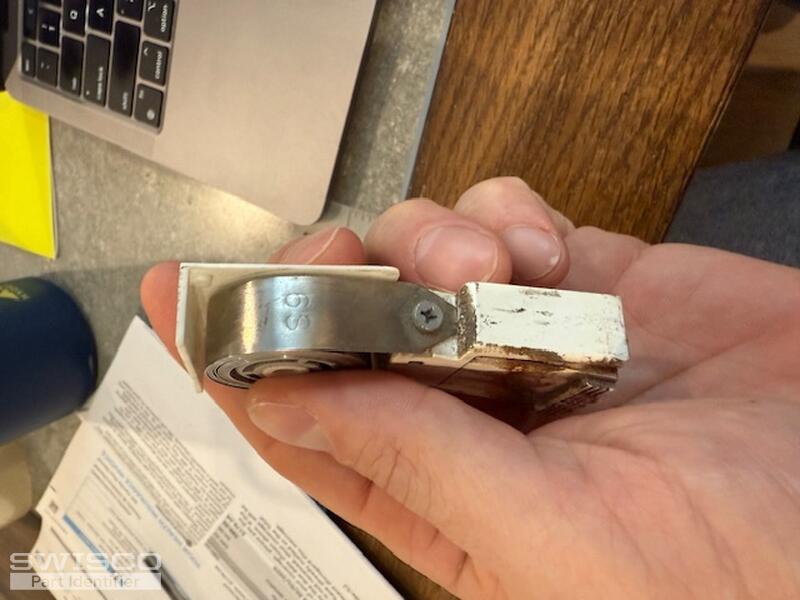

Hi, Please help me select the correct replacement coil spring for a Certainteed BrynMawr II vinyl window installed in 2003, lower sash. The sash is 28.5 inches high and weighs 21 lbs. The original spring is bronze, 1/2 " wide. "S6" is very faintly stamped on the spring above the screw. I don't see a ... (cont.)

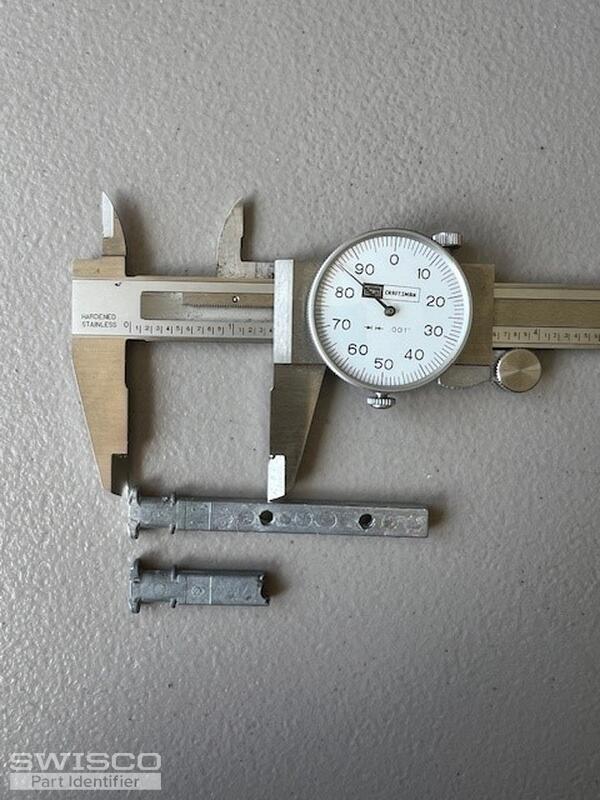

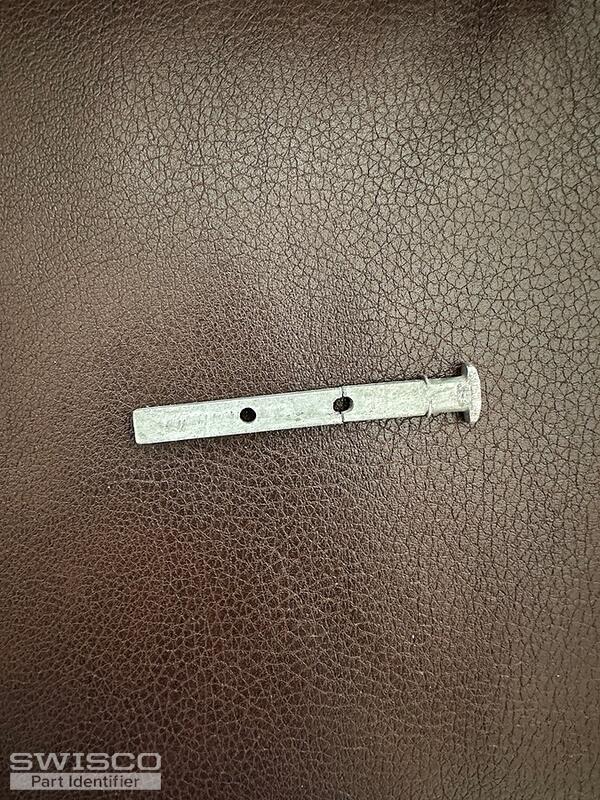

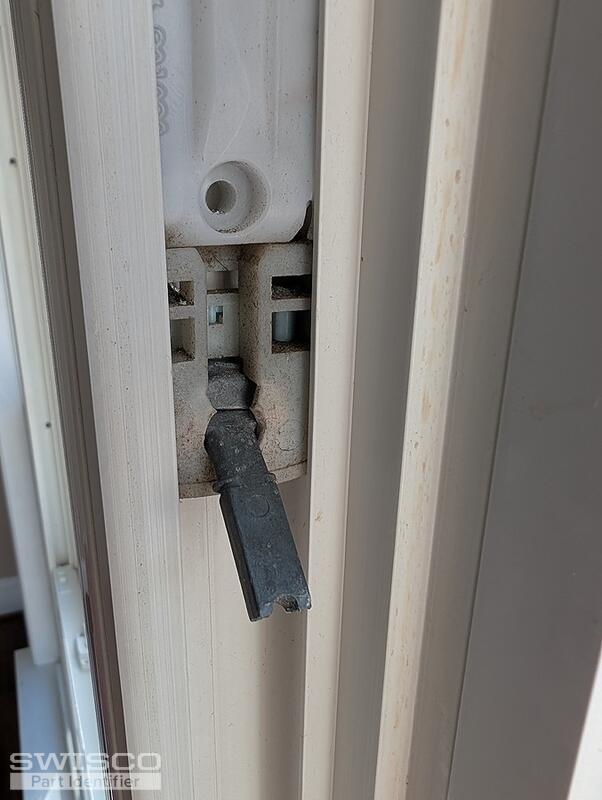

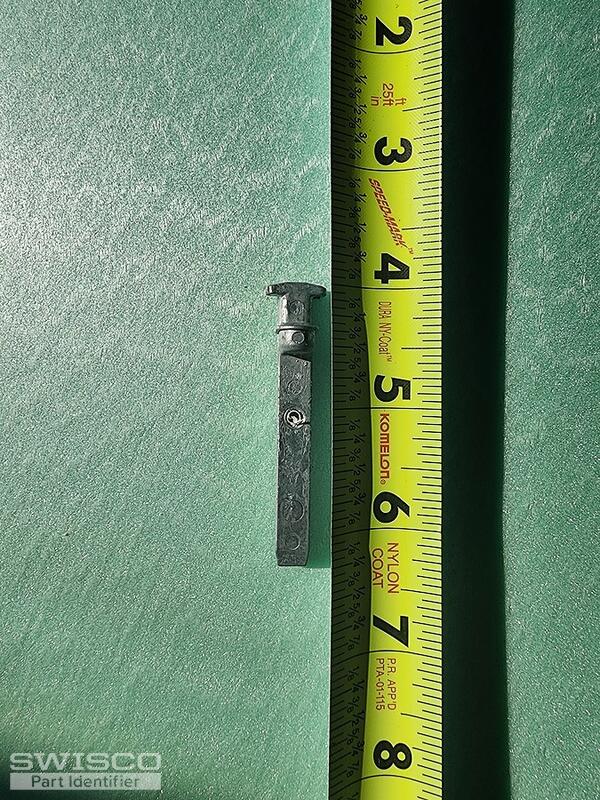

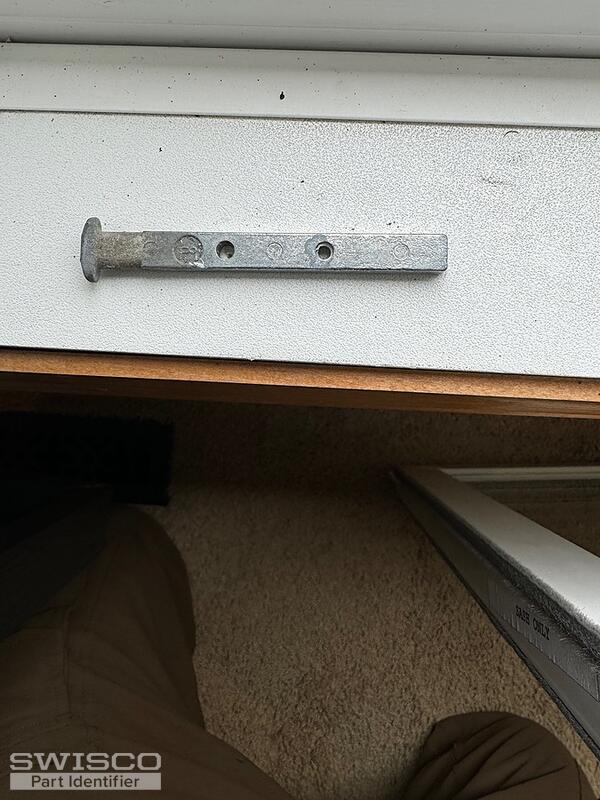

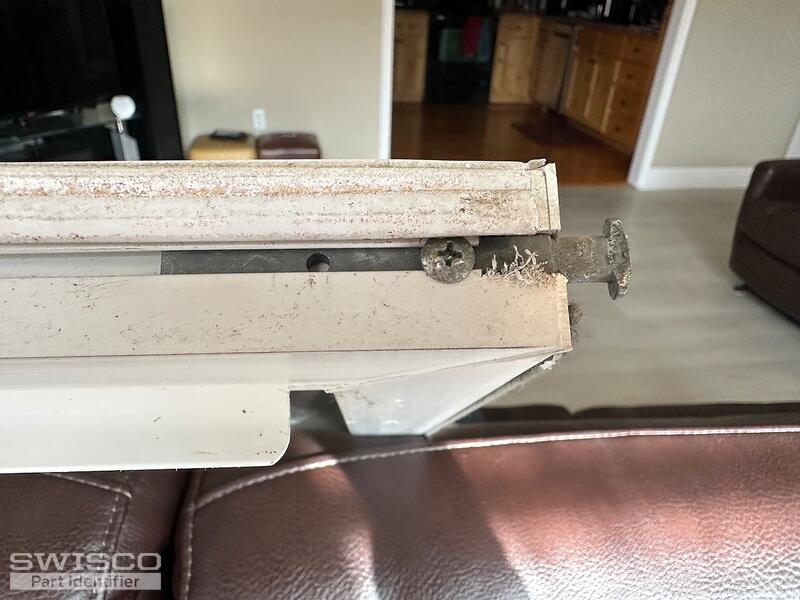

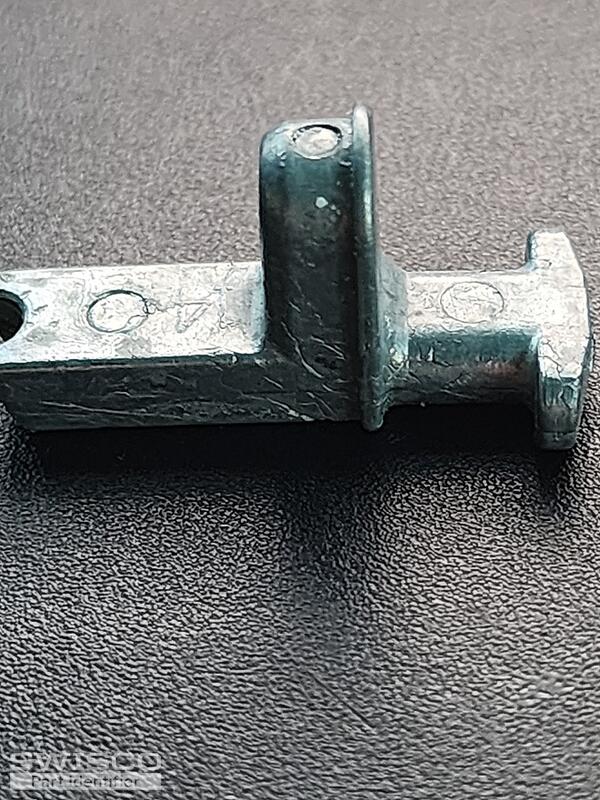

The pivot rod that allows the window to tilt towards me has broken on the left side.

Springs balance

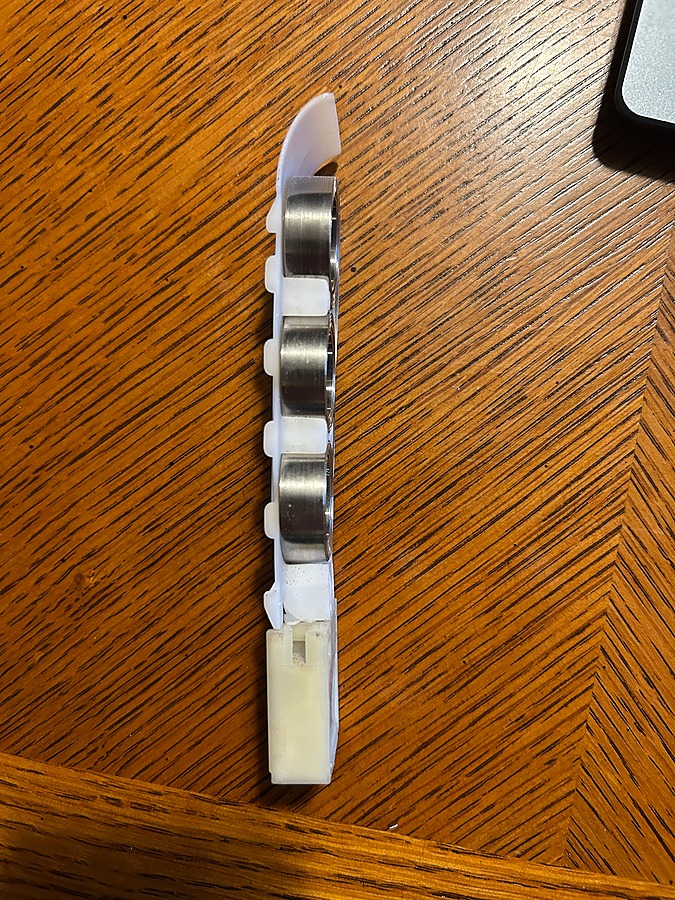

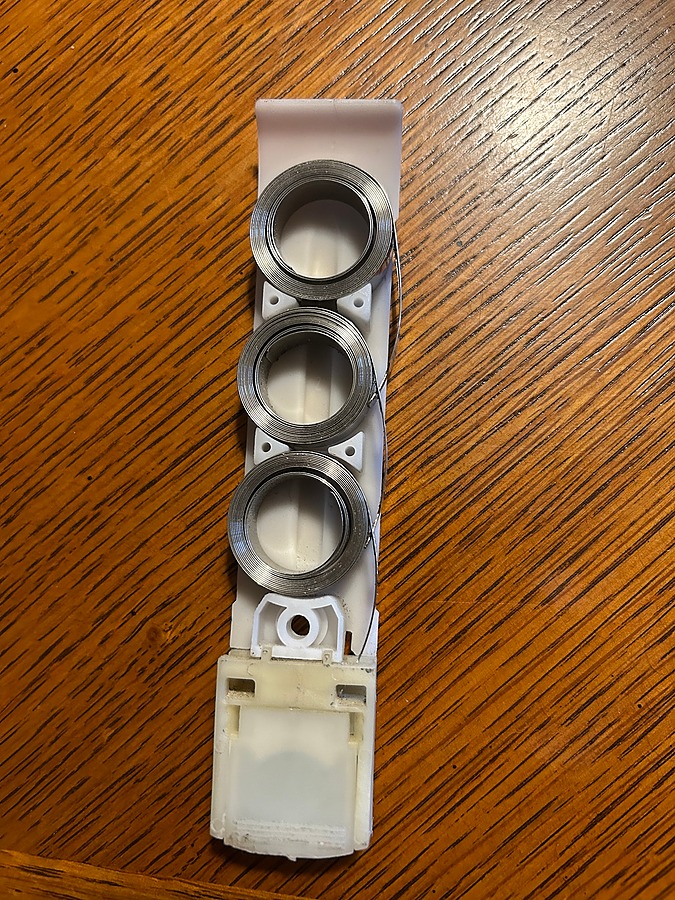

Only markings I see is on the springs. One is 5.0 and 2 are 4.0. All 3 say 35". Entire assembly is 6" with the part holding the coils is 4 1/2". 1 1/4" wide and 1/2 deep.

I have taken several pictures of window. Please see attached. Thank you in advance

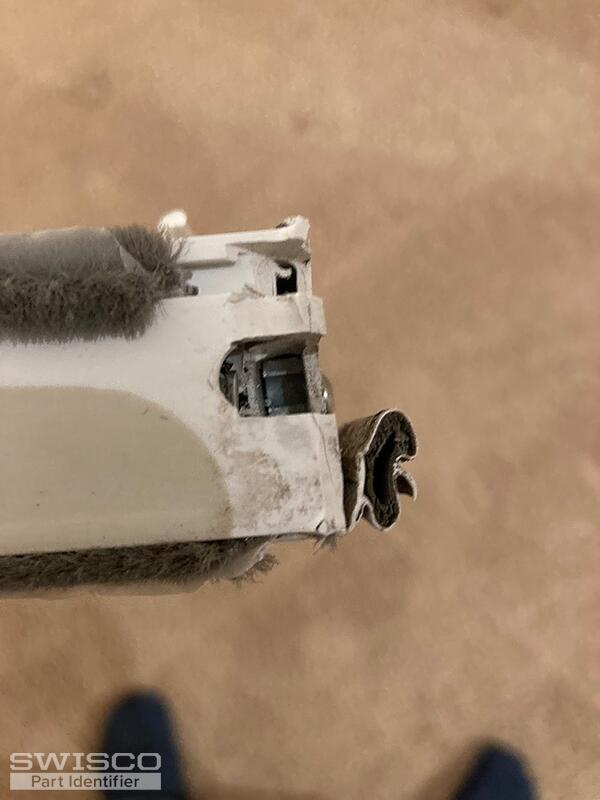

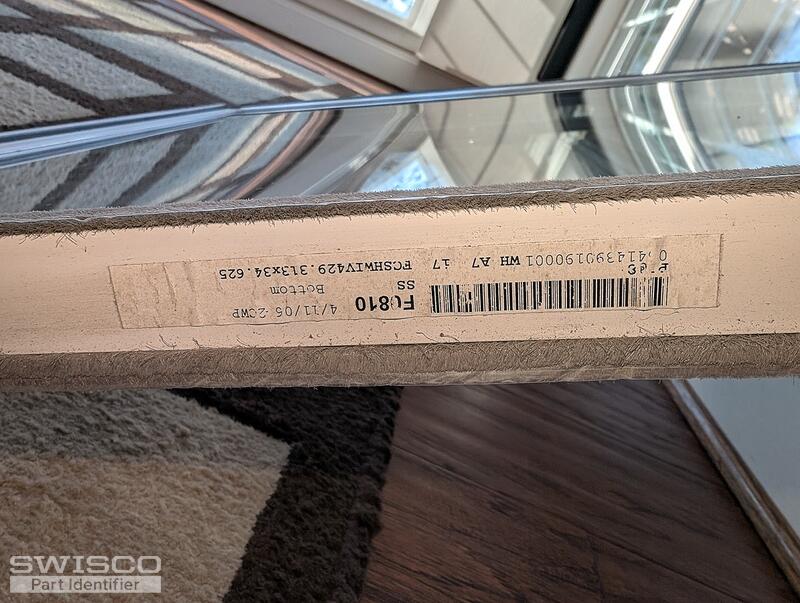

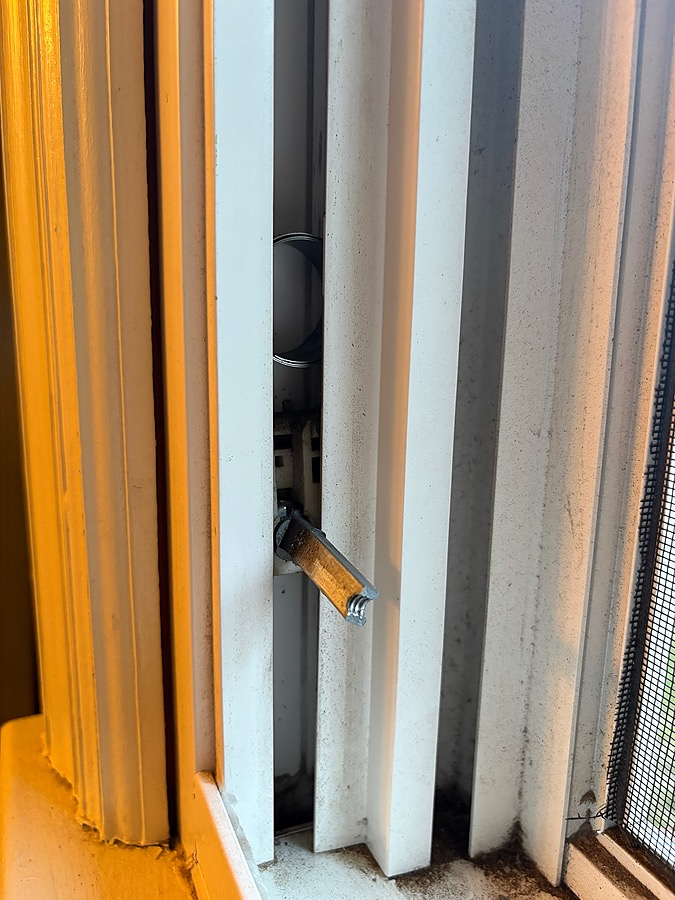

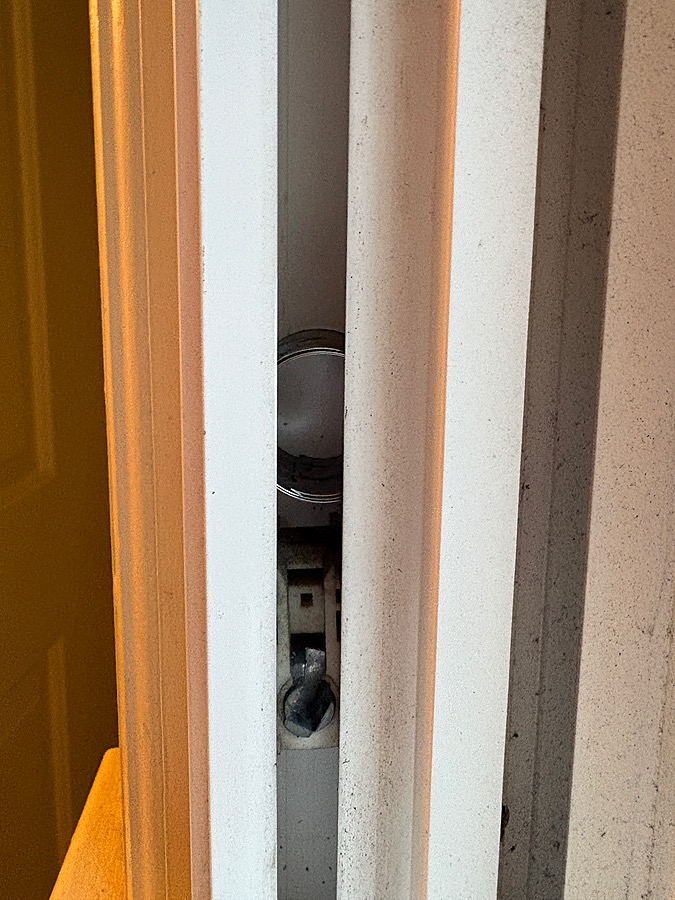

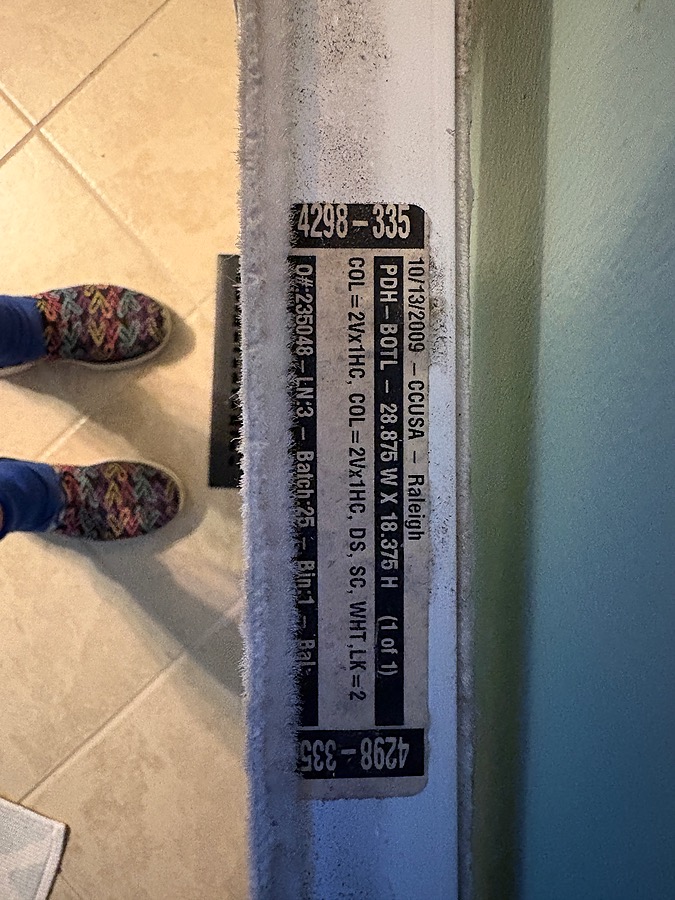

1. Window sticker 2-3. Broken coil and pivot arm inside track 4. Parts removed 5. functional side window coil says 6.5 pounds 40 inches. White part is shattered but holds the coil and I cannot read the part number. Need also the pivot arm and the mangled shoe thing.

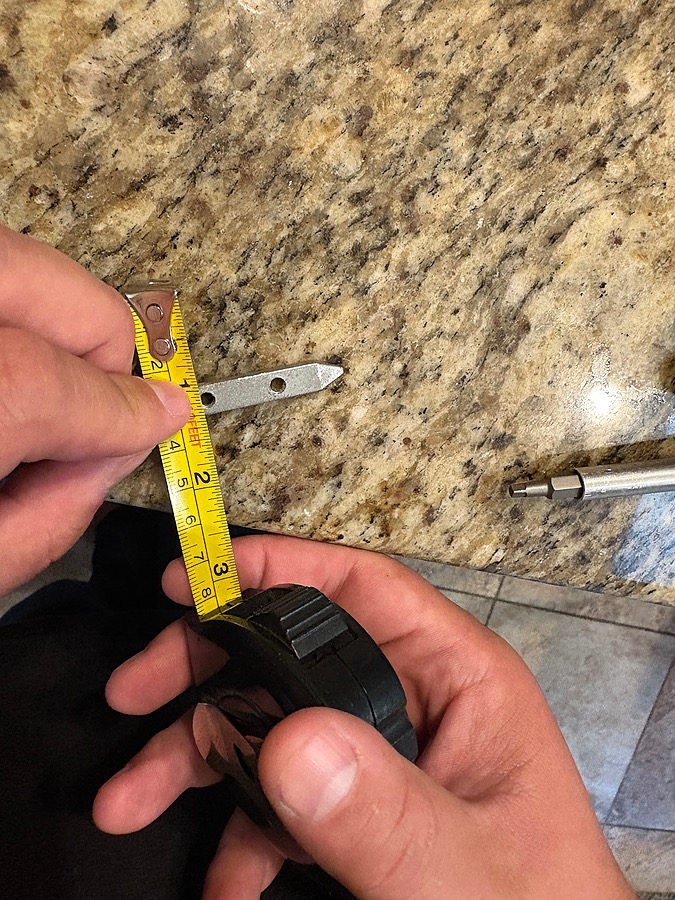

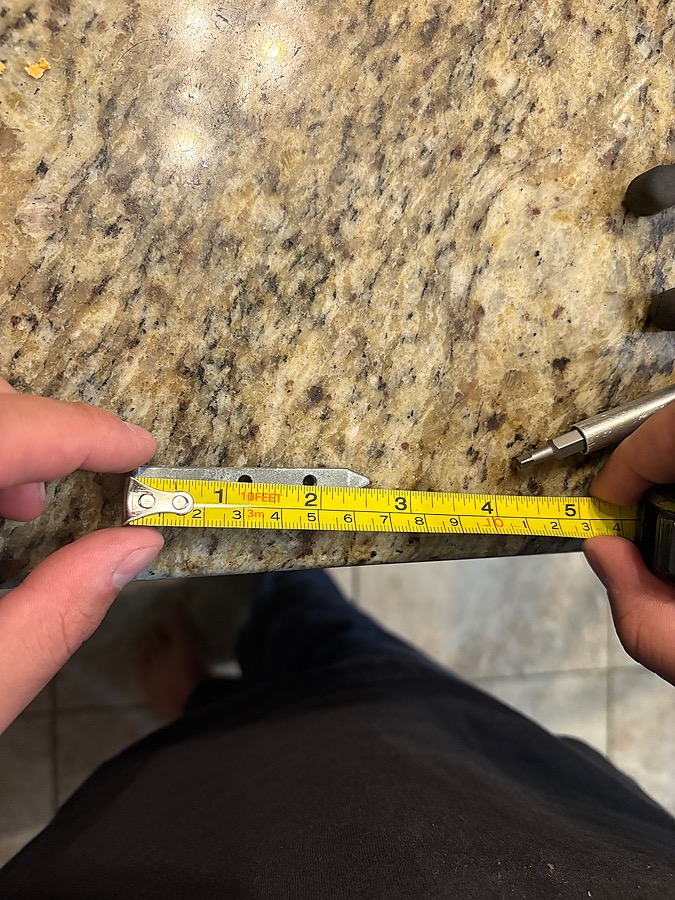

Hello, I wasn't able to identify any make/model for my windows, but I do have the attached photos with measurements. I believe it's roughly 2.5 inches long with tapered ends.

I need to find coil balance 35" #4.5 35" P. what is the closest to match mine? They are 1/2" wide. I think the pivot shoes are still fine. thanks

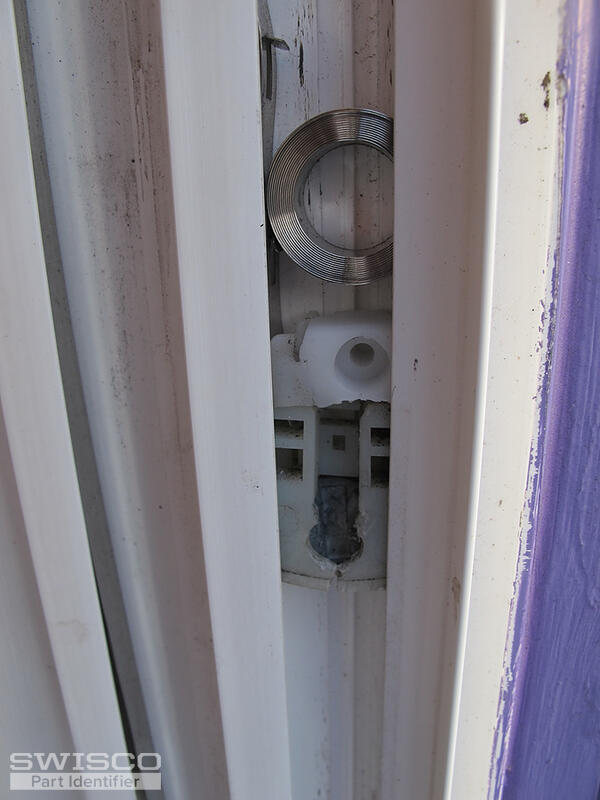

The coil spring balance system on my Simonton window needs to be repalced. Based on the pictures above what parts do I need to order? Thanks, Dan

Hello, Do you have this? Thank you

Hello, I am looking to replace the coil balance assemblies for a window. shoe width ; 1.25 shoe depth ; .5 coil spring thickness ; .5 8lb spring rating. There appear to be two coils in the assembly, but I am unsure if this is a single coil that snapped or if I must replace both. Thank you in ... (cont.)

I can only see a number 4 on one coil. Coils are 3/8" wide, coil holder is 1/2" wide. I am looking for the easiest way to replace this. Is there an all in one retrofit or do I need to replace these exact parts? It seems like there are 1/2" coils standard with the series 160 1/2" holder on this site, ... (cont.)

Spring and tilt mechanism

Need balancer things with metal ribbons and a metal T part that's broken.

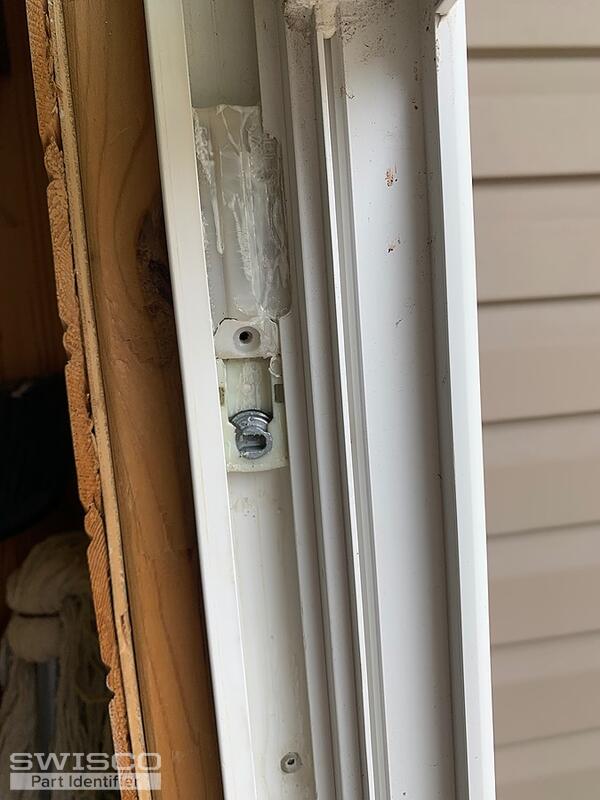

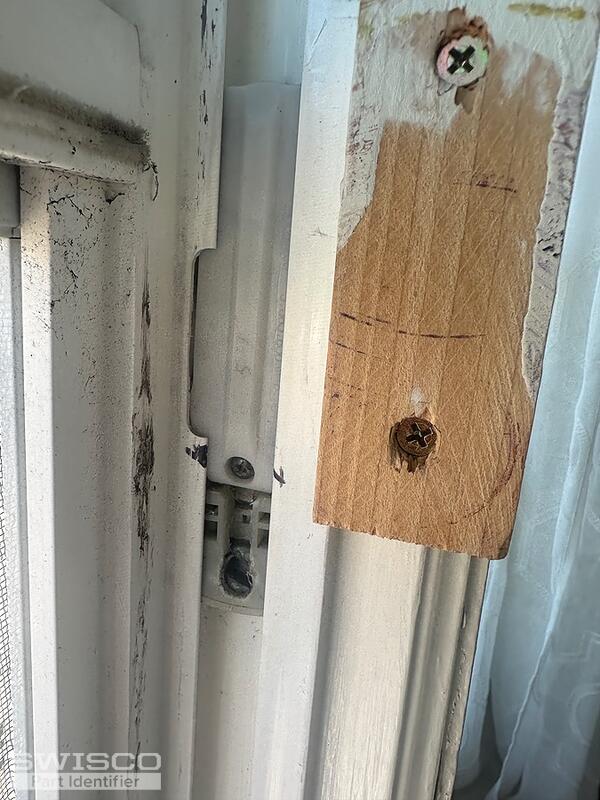

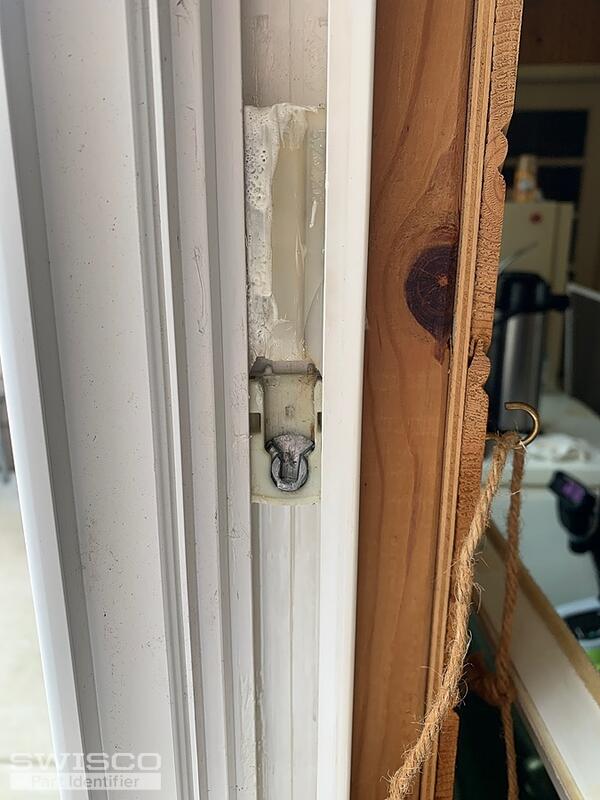

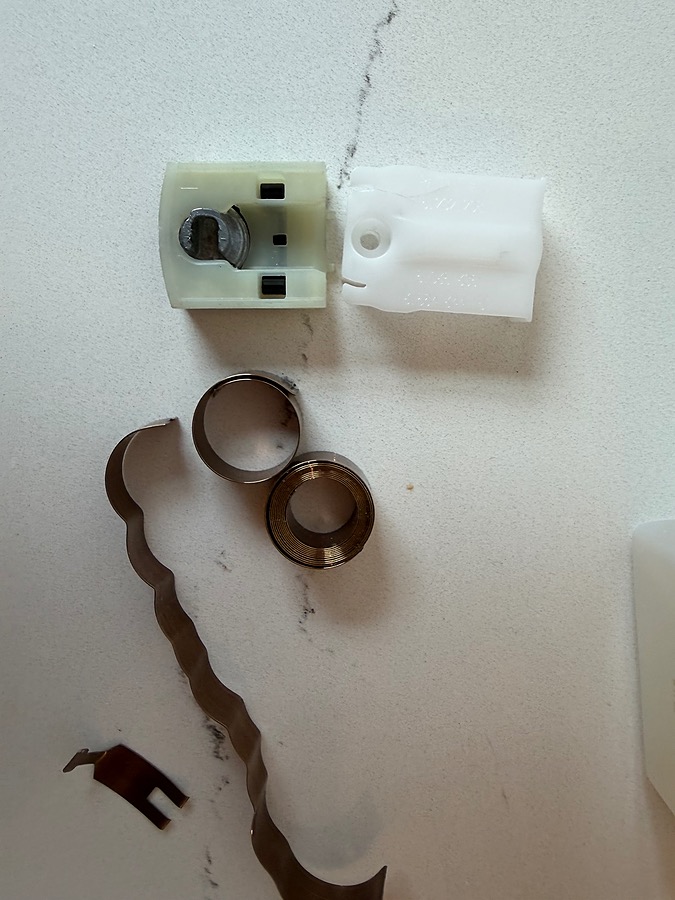

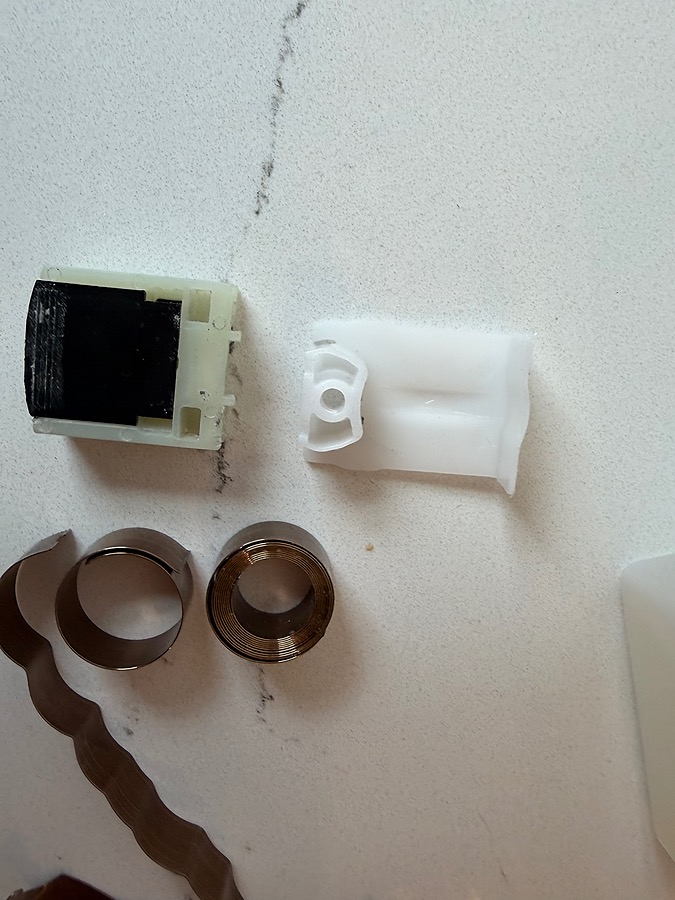

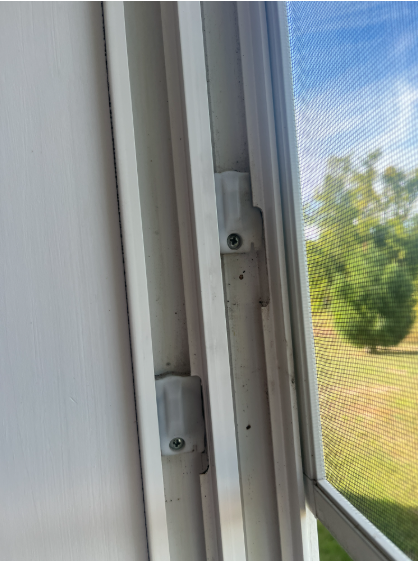

Hello I am trying to replace a coil balance for a small simonton bathroom window. I've attached photos of the parts I removed from the window and the installed part on the window itself. Can you help me find the replacement pieces in need to replace it? Thank you.

i didnt see any markings on the pin or the window.

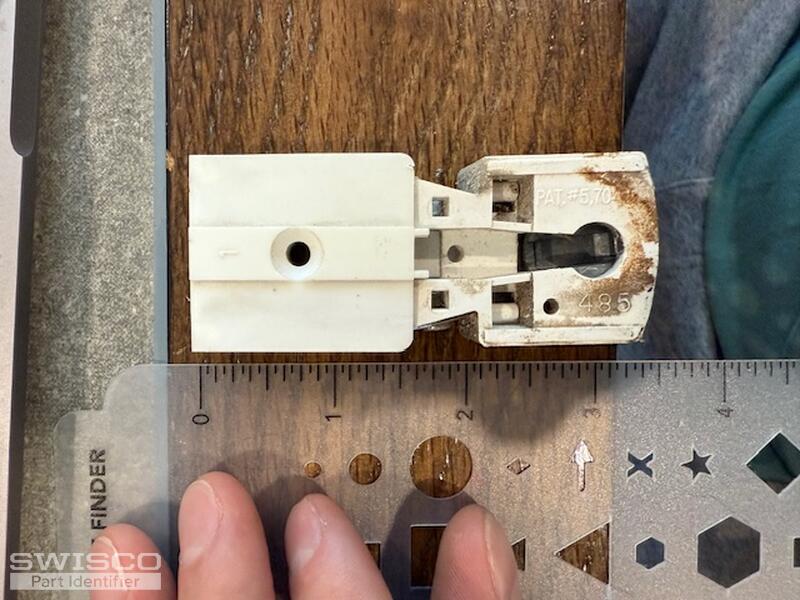

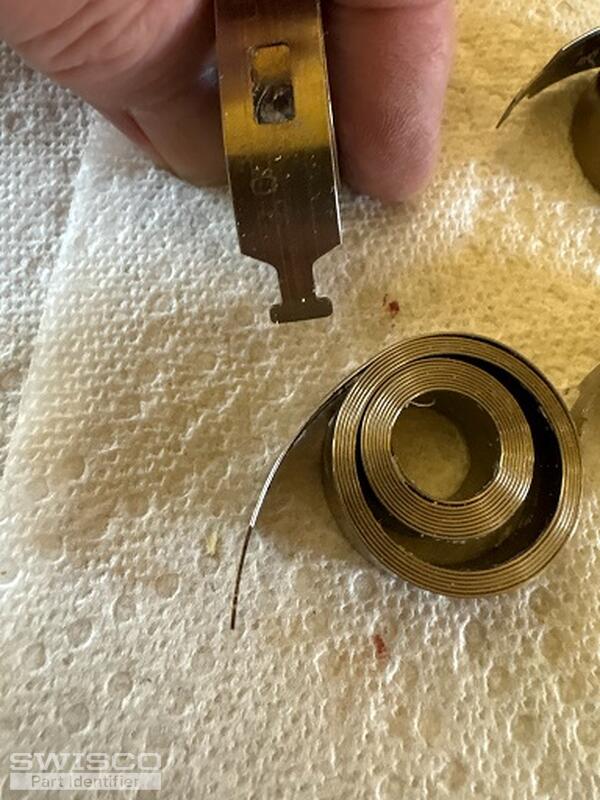

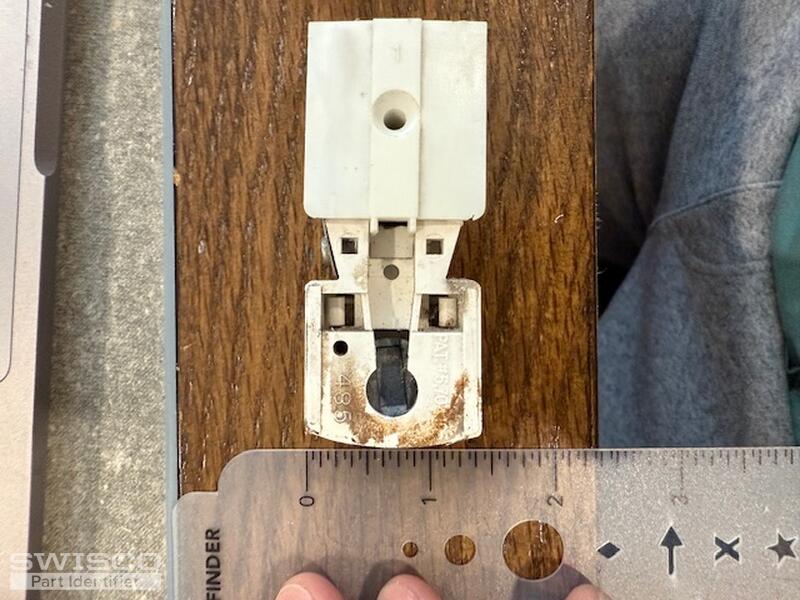

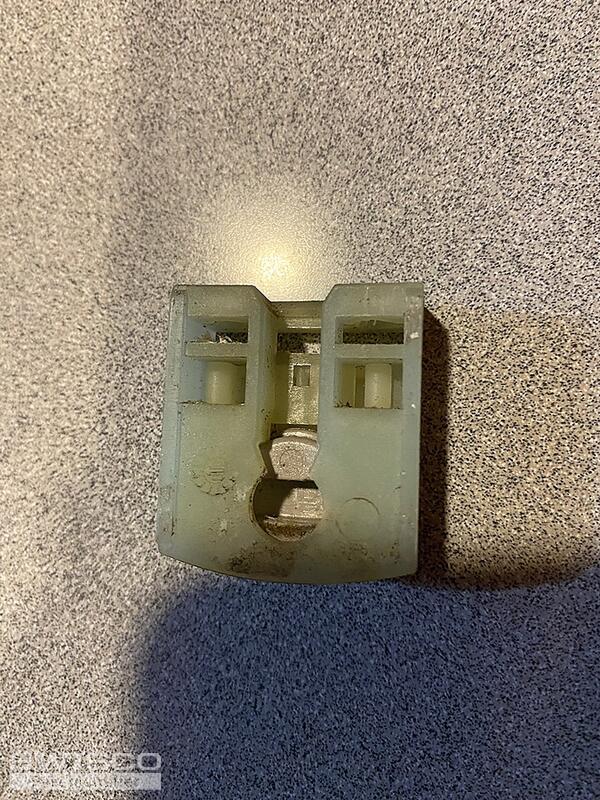

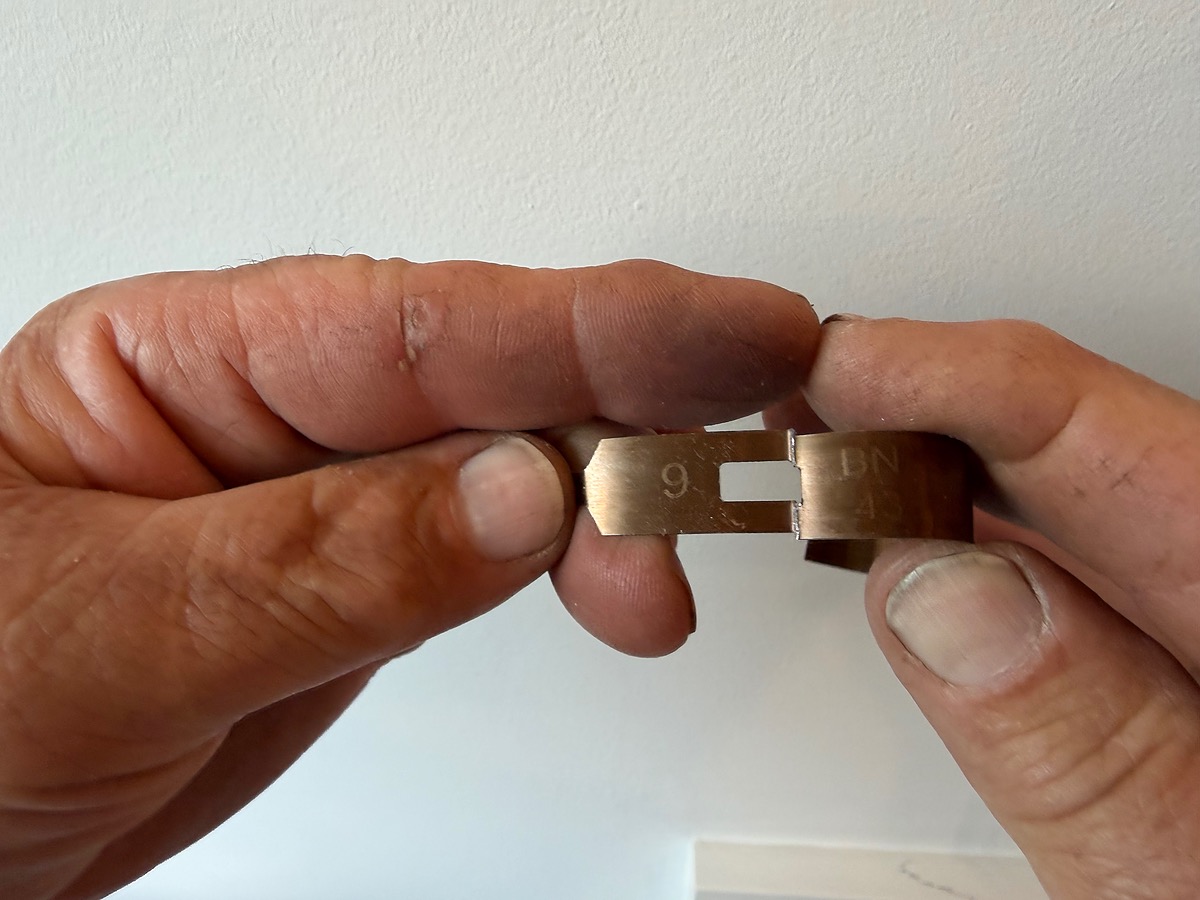

Hi. One of the coils in my window has broken. Can you tell me what part I need to order? The pictures I've attached are the front and back of the pivot shoe and the part of the broken coil attached to it and another picture of the coil itself so you can see what it looks like. There are some marking ... (cont.)

Hi, hope you can identify these parts for replacement. The sticker on window sash says "series 380DH" also has "H-R25-47x73". The coil part has #7.5 35" printed on it, also I can see the numbers PAT 5232208. The 2208 is clear but the 1st 3 numbers are questionable. The pivot pins are both slightly b ... (cont.)
