Viewing all customer Discussions for:

26-040 Pivot Bar, 3"

Need to send photo of balancer and window slide keeper

Sir, I am looking for a 4 inch long (or longer) pivot bar similar to your model 26-040 which is 3 inches long. I am looking for a longer bar because the receptor grove on the window is in part missing. See the attached photos: 1900- existing pivot bar at left side of window - 3 inches long 1897- rig ... (cont.)

This is Shou again. We like to replace all 3 bottom of porch window both side hardware too. Porch window is heavy then bed room window. Spiral Balance tube diameter is 5/8", length of silver part is 29", rest part is on the picture. Hope we give you enough information. Thank you. ... (cont.)

Hi Have a Silverline single hung window built in 1999 need the pivot pin and it's a "U" shape about 3" long. Can you help? Called Silverline and they were no help, they're asking for a model # of the window which there's no label and also sent then pictures of the window and pivot pin, they sent me ... (cont.)

This is a small bathroom metal window. Both shoes need to be replaced. The bar that fits into the shoe doesn?t have a screw attaching it to the bottom window. so I need the screw. The screw has a square tool fitting in its head. There is a piece of metal in the picture that I don?t know it?s purpose ... (cont.)

Some sliding/tilting windows in my coop apartment had their pivot shoes break, and I need to replace all 4. They are regular spring loaded, not spiral, from what I can tell. I can't quite decide between the 9/16" and 5/8": what I measured looks like the thickness is kind of in between. So I would l ... (cont.)

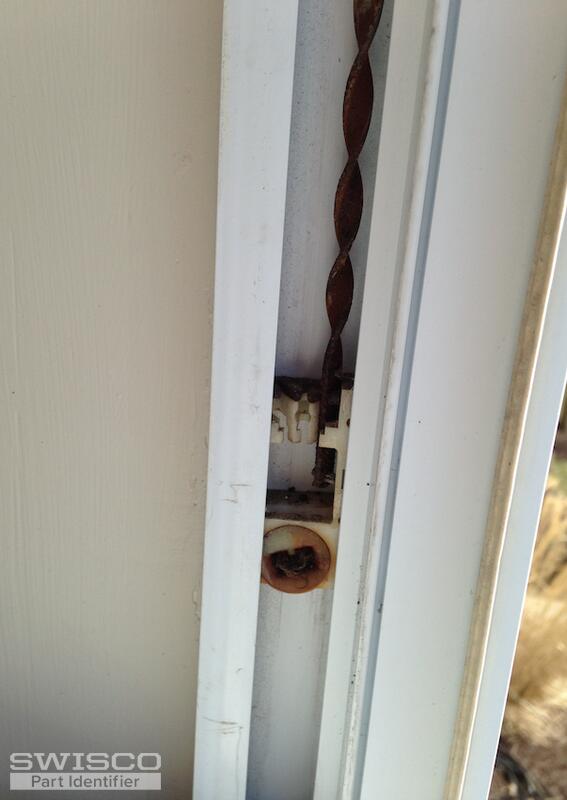

Hello- I am needing to fix a spiral window balance on older double hung tilt windows on a condo I have purchased. The condo was built around 1979, and association has no clue of window manufacturer! I am hoping I can get the needed parts. The issue with the window is it slams down. I guess I need ... (cont.)

4" Long bar with 5/16" width curved at 2-4/16, 1-3/16, 8/16 inches. The screw hole is 1" from outer edge. This bar that engages with pivot shoe is bolted at the bottom of window.

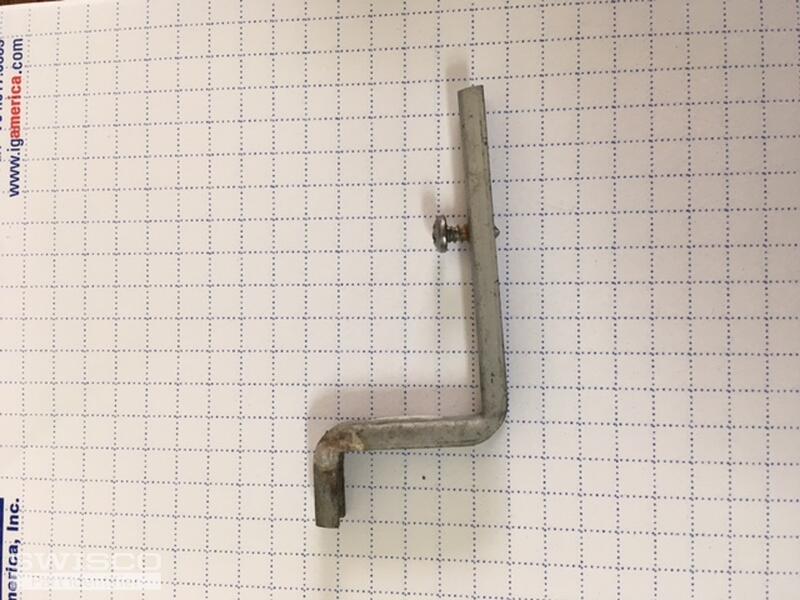

This part is 1/4" thick/wide This parts longest leg is 2-3/8" Shortest leg is 5/8" The middle leg where it's bent is 1-1/8" The screw hole is 1" from the end Please advise if you have anything you think may work, or know where to find one. Thank you, Mandy

Pivot shoe. Not sure about thickness. 2" H. 1 1/4" Width Pivot bar 3"

This piece broke on the other side of this window.

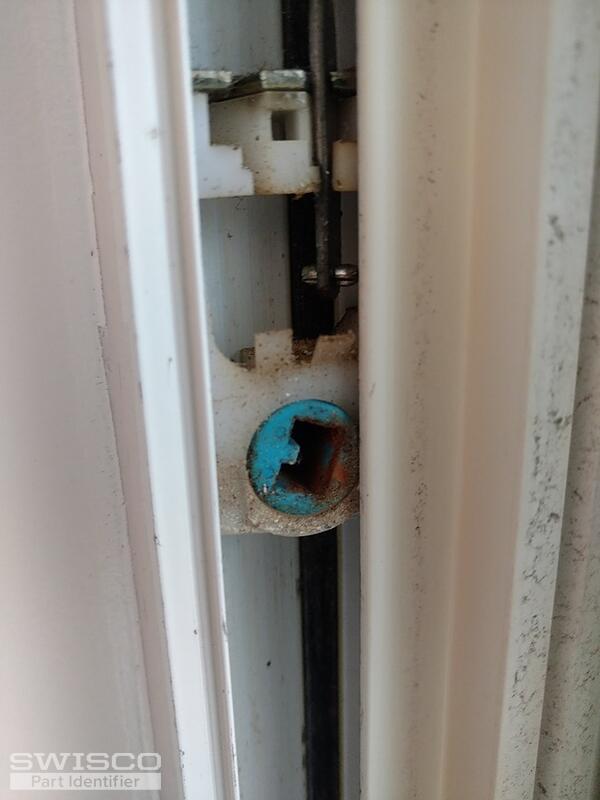

This whole system is rusted and missing in our bathroom window. I am looking to replace it. Here is a similar window with a working window balance. There is one picture from the bottom that shoes the blue piece that holds the pivot bar and one picture from the top. The markings I found say PAT 35354 ... (cont.)

Can Swisco find this part?

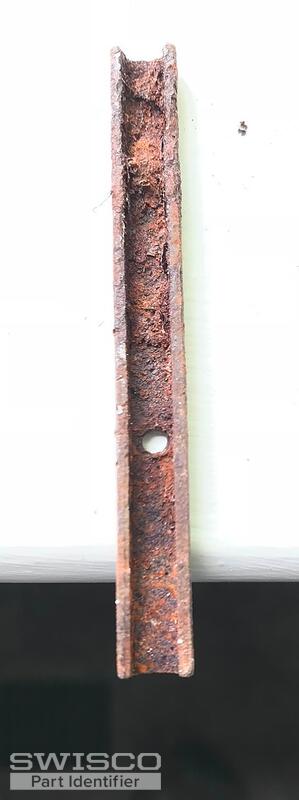

Need replacement pivot bars. All are rusty and broken. Need about 28 pieces to start. Matches with pivot shoe code# 15-015. Thanks Jack

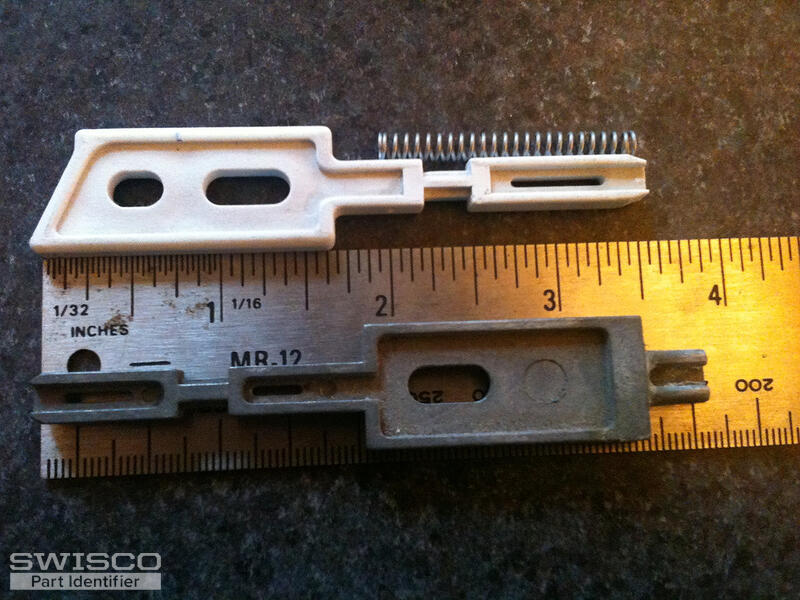

Similar to your 26-129 but not quite the same. Overall length: 3 3/4 inch. Main body: 11/16 x 1 19/32 . Nose: 1/4 x 3/8. Tail: 1/4 x 1 25/32. Thickness: 7/32. No brand or number on pivot bar. Aluminum frame of sealed glass stamped as ALWCO-84. Same vinyl pieces inside the four corners of vinyl w ... (cont.)

I need the attached parts. The shoe is attached to a spring which is covered. I don?t see a space to remove or insert new shoe so I will need a spreader also. Thank you Dan

I am looking to purchase replacement window parts for our condominium. Pivot Lock Shoe Black Cam 16H98, 1-1/4 x ¾Tilt Balance ToolCaldwell Balances Attached is a sketch showing the sizes of various windows. Also provided are photographs.

THIS IS A 3 INCH PIECE THAT FITS TO THE BOTTOM OF THE WINDOW AND INTO THE MIDDLE PICTURE PIECE. THIS BREAKS MORE OFTEN THAN ICARE TO SAY AND CURRENTLY HAVE THREE WINDOWS THAT NEED THIS.

While replacing the pivot bars (#26-040) we noticed we also need to replace our pivot shoes. We believe the measurements of the pivot shoe are 2" High, 5/8" deep and 1 1/4" wide, though it was difficult to take accurate measurements while the shoe was still in track. What replacement shoe do y ... (cont.)

I am trying to find the part to replace on my tilt window saw. The part I think is bad is both the pivot shoe nd the pivot bar attached to the sash. I don't have the manufactures name or model number as this home is about 25 years old and the windows are original. I have attached a picture of the ... (cont.)
