Viewing all customer Discussions for:

39-025 Awning Window Crank Operator

I need to replace it. I'm clueless about measurements, etc. I had ordered a replacement from Amazon, but when it got here I noticed that it had two holes at the top of it and the one in the picture only has one hole at the top. I had to return it. I'm asking my son to install it since I am in my ... (cont.)

Need a new 1 cant find any part numbers anywhere

I wanted to know if you knew a replacement part for this hand crank. There are no names or numbers on the windows or cranks that I saw. Thank you for your help.

2 R.H. Patent # D-198.202 US RD 1963 can.

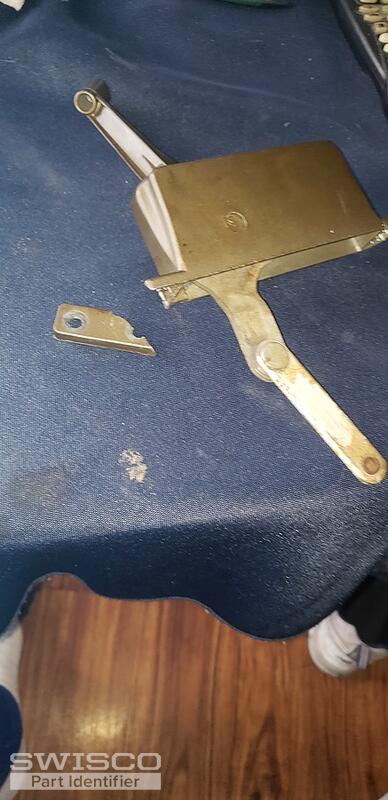

Unfortunately the hole is larger on the operator link than my original screw. I cannot tie on tightly. By the way the holes are the same size on the operator link and the window torque bar. What should I do, I don't want to send the crankers back they fit perfectly, please help, Thanks in advance Am ... (cont.)

SD only marking It's a right hand operator

I ordered 39-025 but the holes don't line up. I believe this is a right hand awning crank. The old one only has one screw hole on the bottom plus another a little higher on the right.

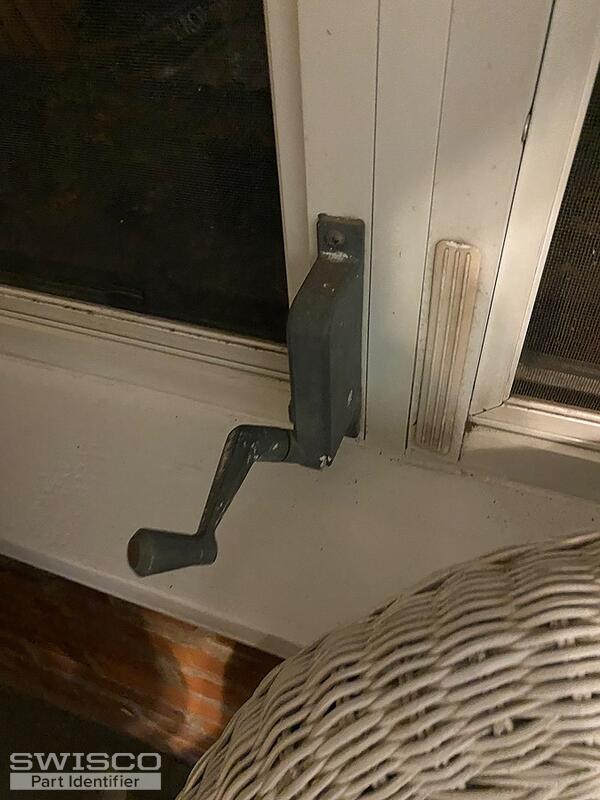

Trying to replace it but I don't know the model.

Height- 5 1/4 Bottom-1 1/8 Crank operator 2" or larger Hope this helps need new one to replace it before taking old off broken

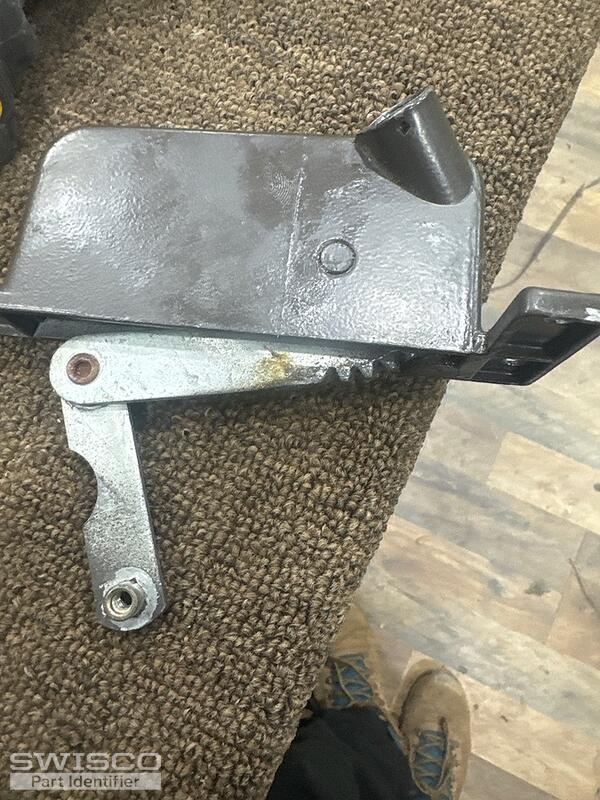

I'm wondering about the new 39-025 arm link, it doesn't have the half moon cut out in the metal, it's solid. Will that interfere with the window closing? Sorry I'm a novice with repairs

I believe this part is stripped internally. When I swapped a good one from another window, it opens and closes fine. Which one exactly might I need? I can't find any information anywhere. No number or anything, not on this part, not on the window. Thanks

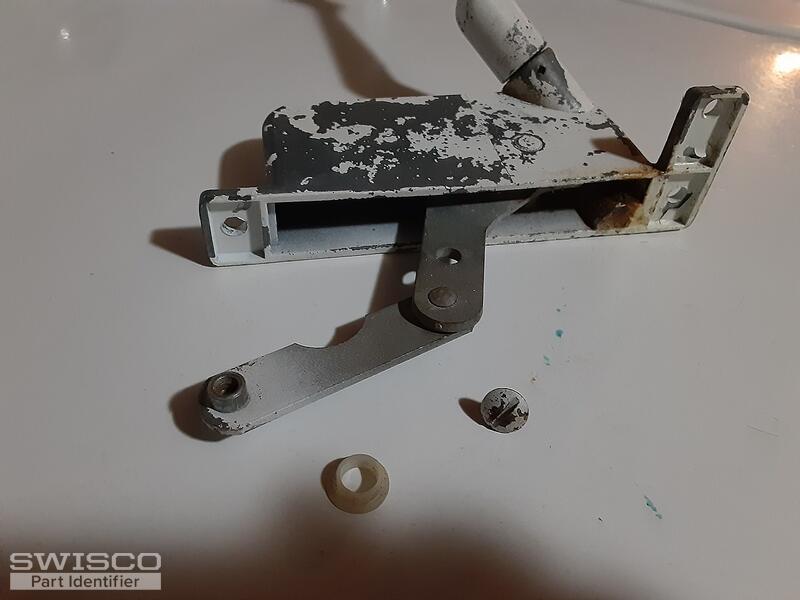

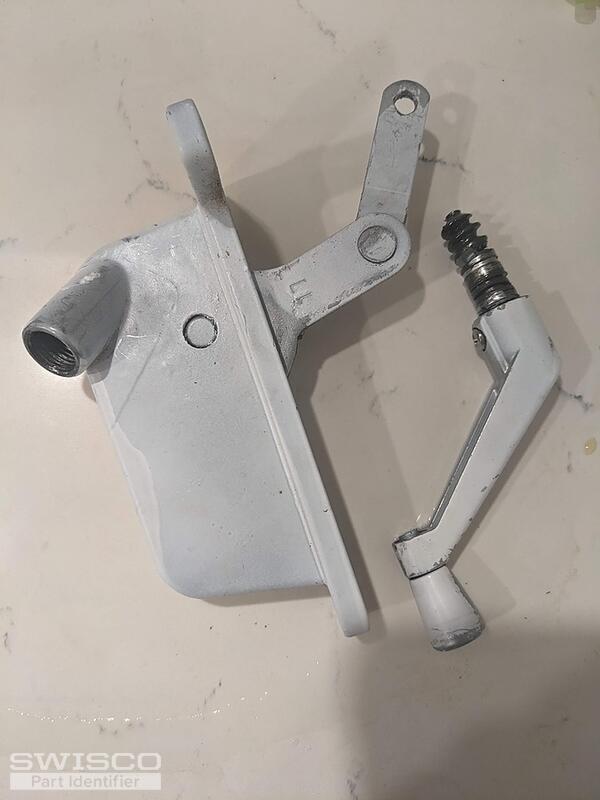

I have to awning window operators that have stopped being able to close the windows; they handle just unscrews as seen in the dissasembled photo. Inside the operator (i think that is what the part that screws into the window on the inside is called) it says "RM JHL /L1". I was unable to find an ... (cont.)

I would like to replace three easement window hardware in brown. The windows were part of a Four Season Sunroom. The body measures five inches and screw holes are 5.5 " apart.Please identify this part so I may place an orderThank you,Morris

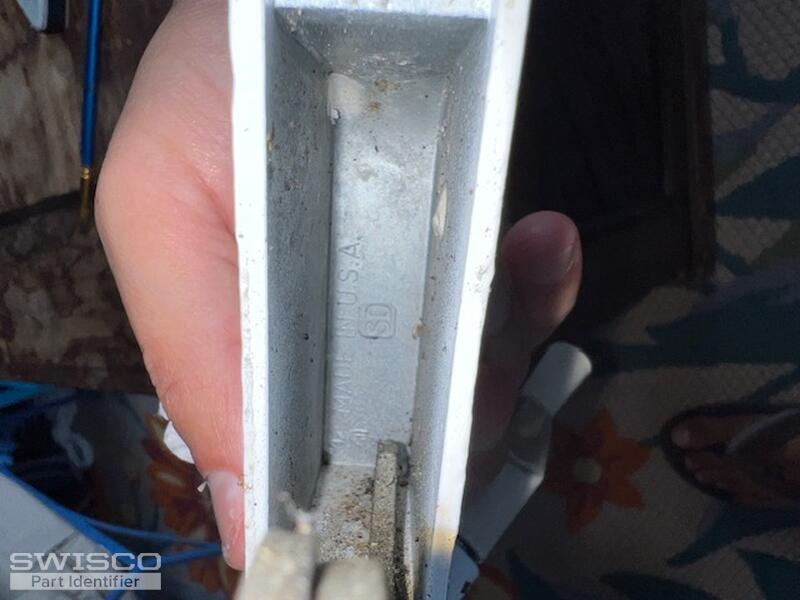

Hi, I'm trying to confirm if my awning window crank operators are from Swisco or not, only marking/stamp I can find is Made in the USA SD (which you can see in first picture). I'm trying to get a replacement. If you need any different/better pictures, just let me know. They are at least 15 years old ... (cont.)

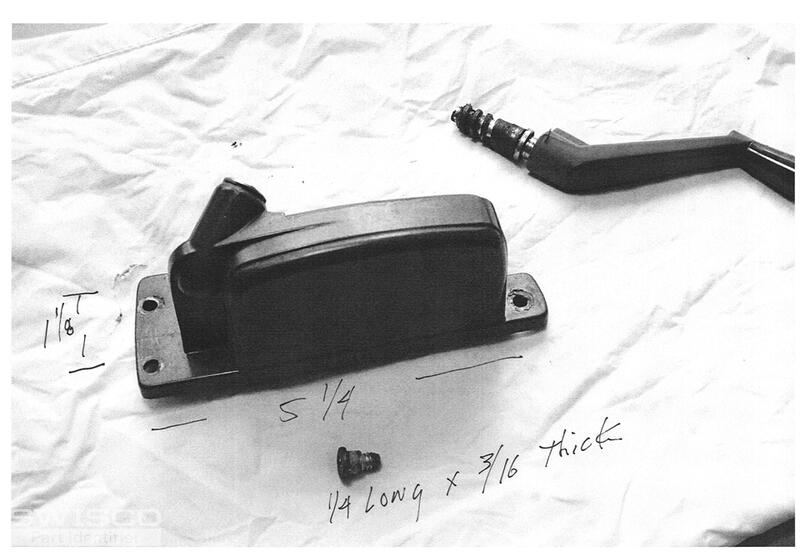

What's a post? The crank has one hole at the top and two at the bottom. From top to bottom the distance is 5.25" measuring from center of hole to center of hole. The distance between the two bottom holes is 1 1/8". The armature screw is i/4" long (just the threaded part) and 3/16" thick. I sent a ... (cont.)

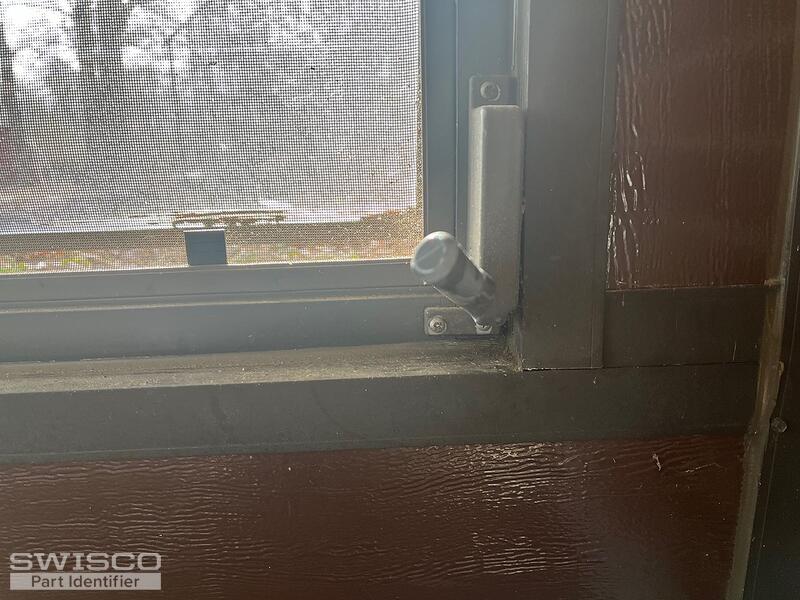

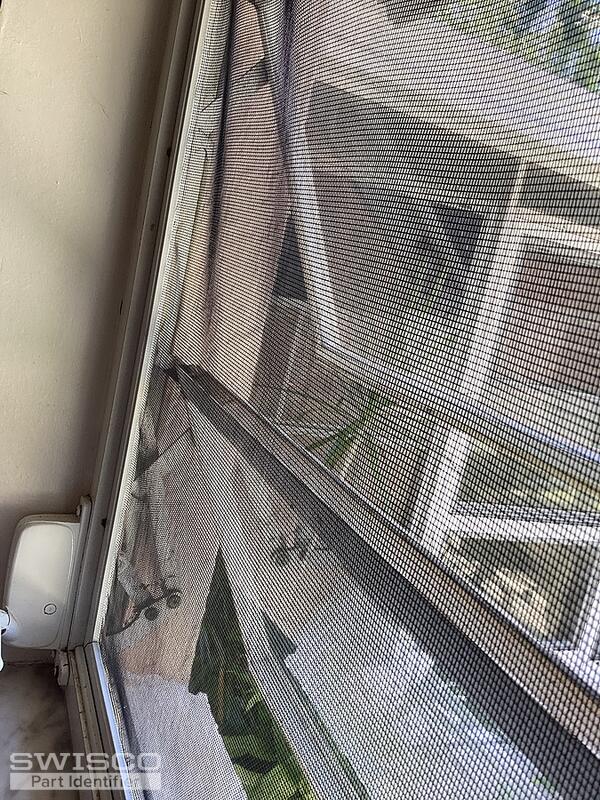

The window is not secure to the frame. I think the retaining clips are not holding. Also can not find the correct replacement operator to wind out the window for replacement.

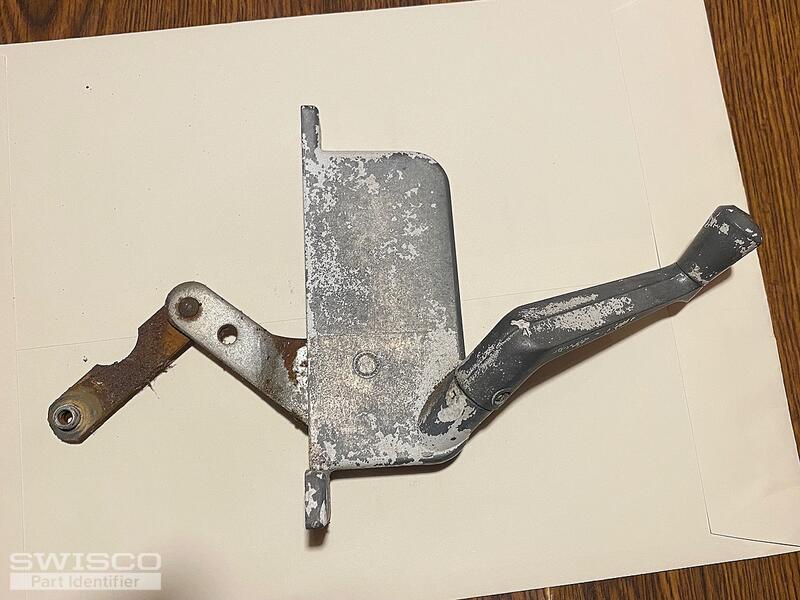

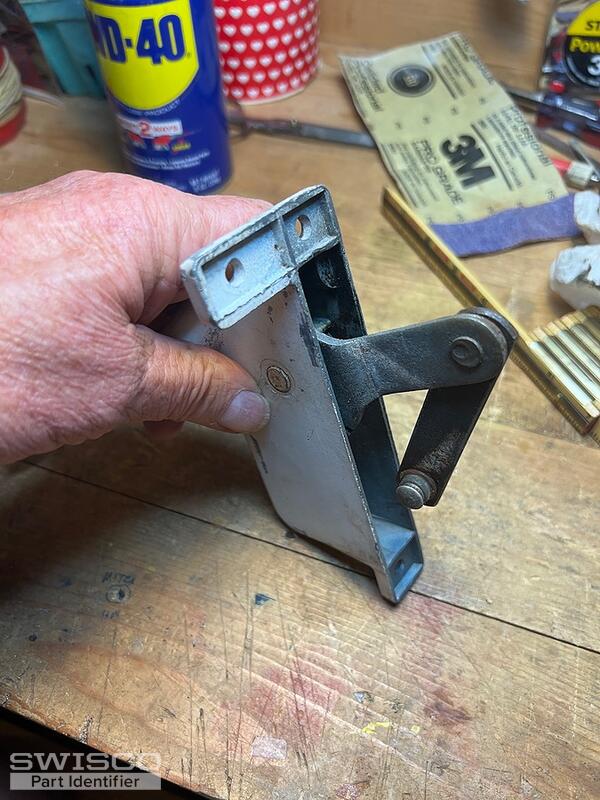

The gear seems to be worn out. Note the curve in the drive lever, unlike the one I bought which gets in its own way when closing. Mounting screws - 5-1/4, & 1-1/8, lever centers - 2-3/8"

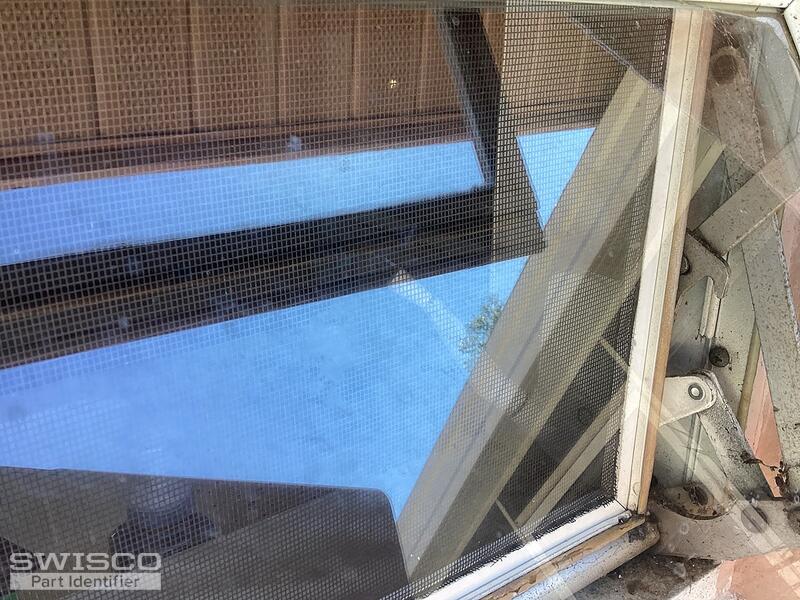

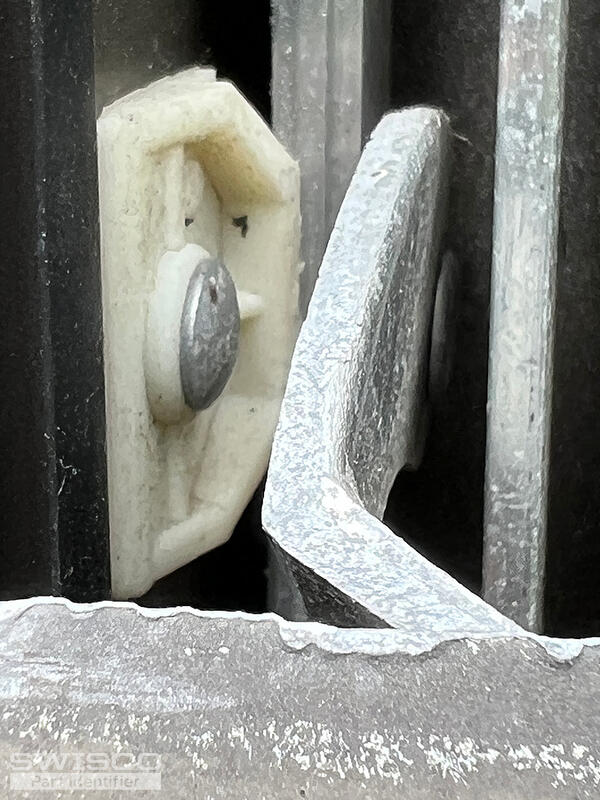

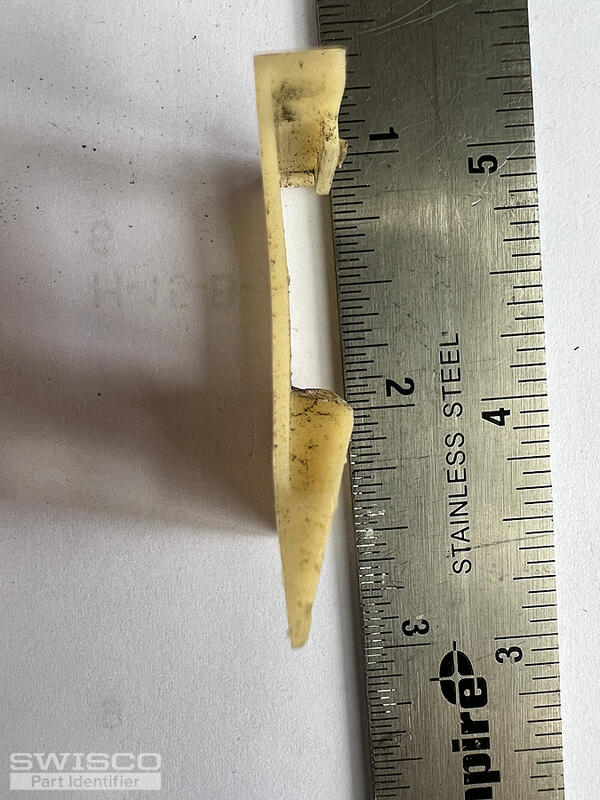

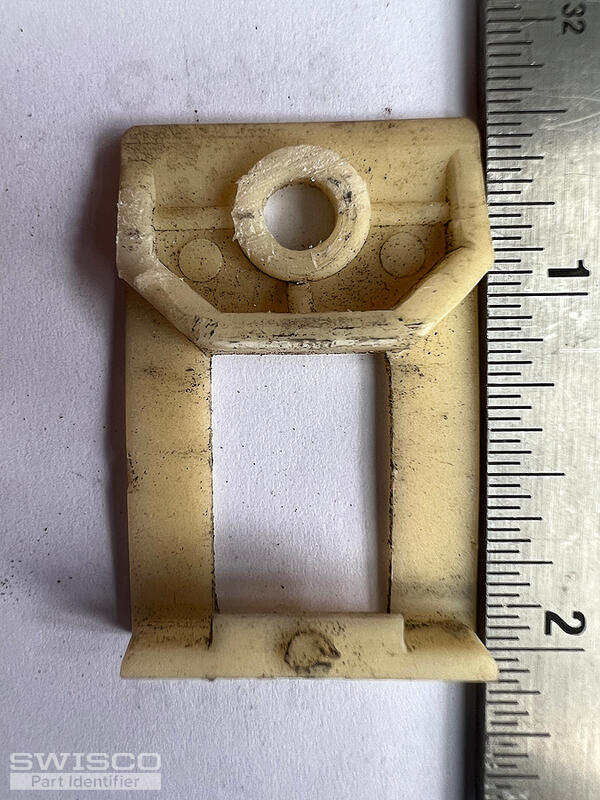

Hi, I managed to find the proper torque bar plastic slide (36-018E) for my failing awning windows (used 39-025 awning operator). But I am having trouble finding the plastic slide for the flat bar. I have uploaded some pictures of a working slide bar plastic piece in place at the moment. Is there ... (cont.)

Dear Swisco, I need to replace my Window Operator on my Florida Awning Windows in my Florida Room. The only Operator that is fairly close to mine is the 39-350My operator's arm though is off set and has a threaded piece at the end of the arm that slide into the hole in the shoulder and a nut to ... (cont.)

There are no markings I can find. This may be similar to a Keller 39-061 but slightly different. Here are the dimensions:Top to bottom mounting screw (center-center): 5 1/4"Left to right mounting screw on bottom (center-center): 1 1/8"final link center-center: 2 3/16"The connecting hole & t ... (cont.)
