Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

This is the part we need

I'm assuming I have a 29 inch metal part 5/8 inch thick which would make it a 600 series then I'm also assuming I have a 9/16 inch shoe pivot and then a 3 inch metal pivot bar I think I also need a tool to do the spiral balance charging And I'm not sure if you sell sash stops because I don't have an ... (cont.)

Good morning The plastic part in second picture broke. This plastic part is attached to the metal part that holds the window up preventing it from slamming down. Thank for your help and waiting for you reply.

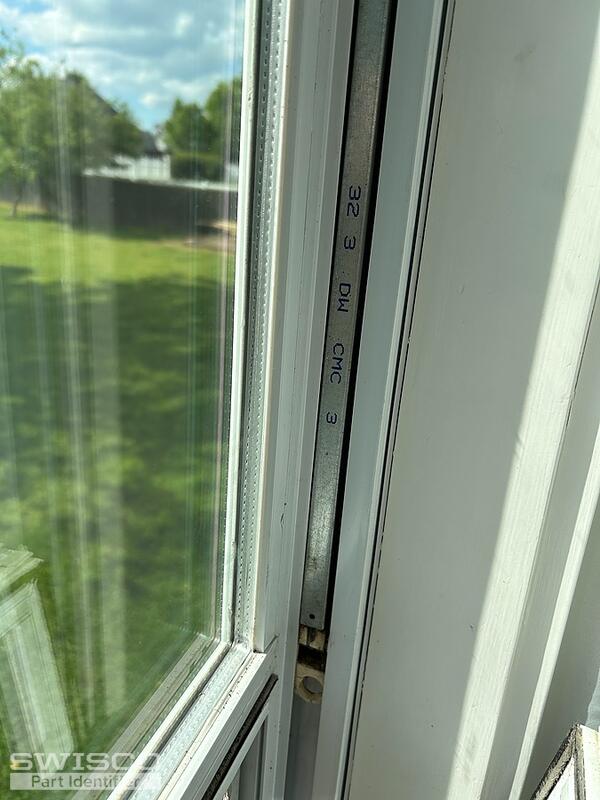

Balance is 33" long and 1/2 " wideIt is labeled 32 7 FV CMC 4I will also need the top and bottom shown in the attached photos.

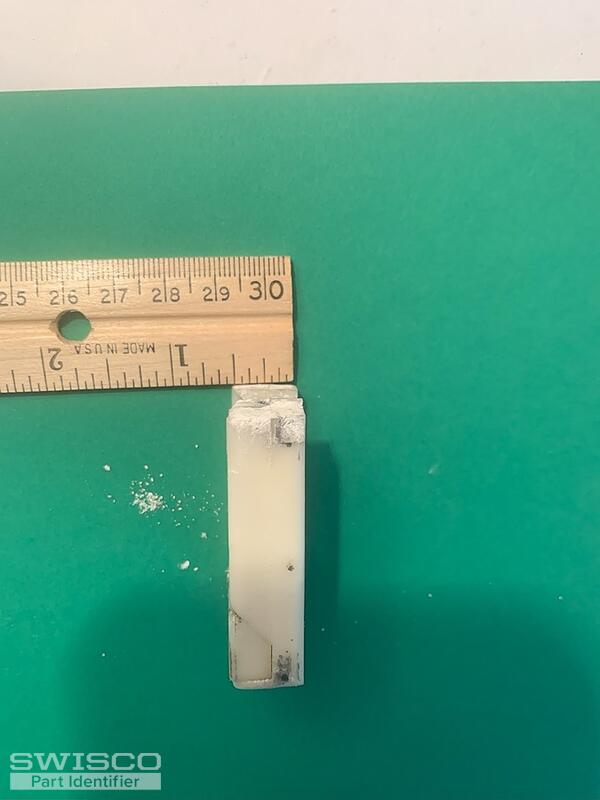

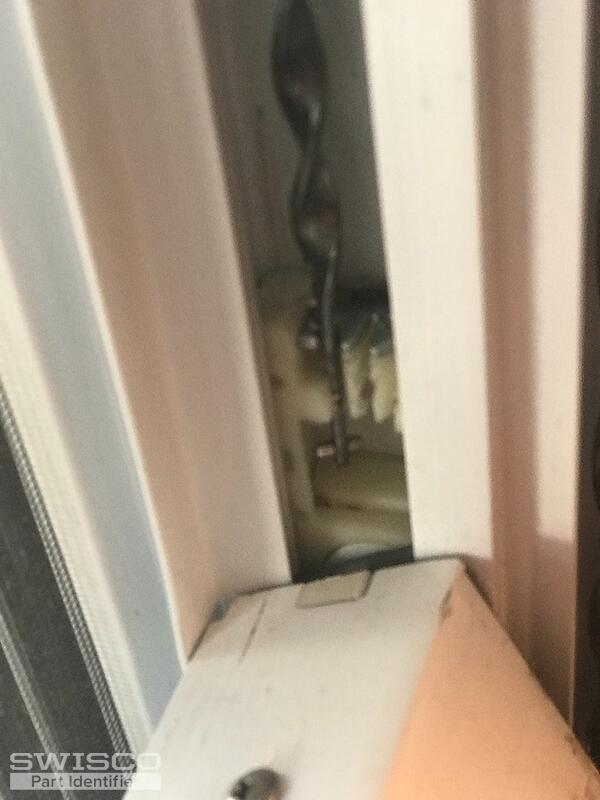

I need to know which pivot shoes I need for my window. I am attaching photos of intact shoes from the window.Thanks, Rick

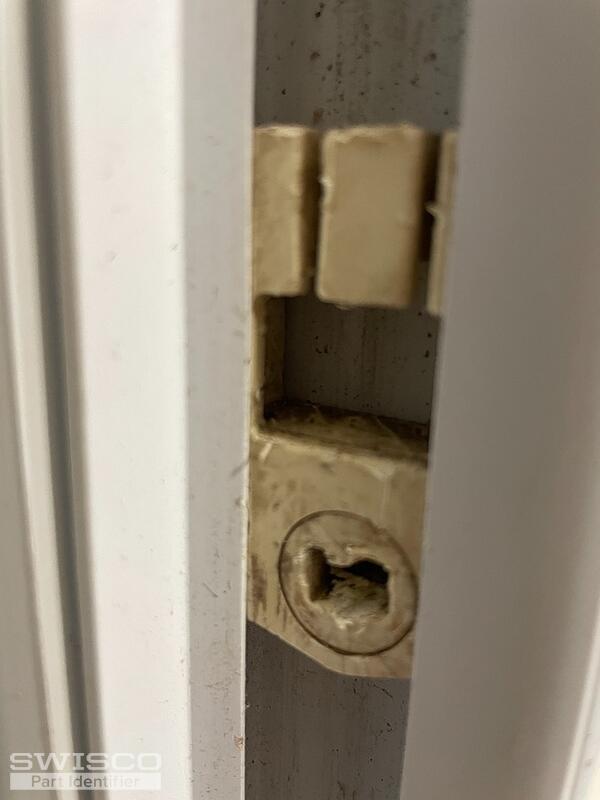

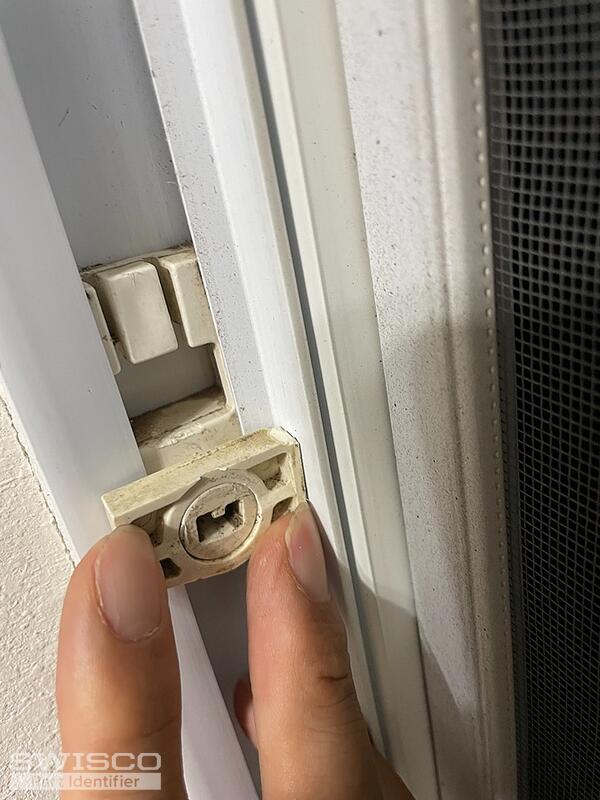

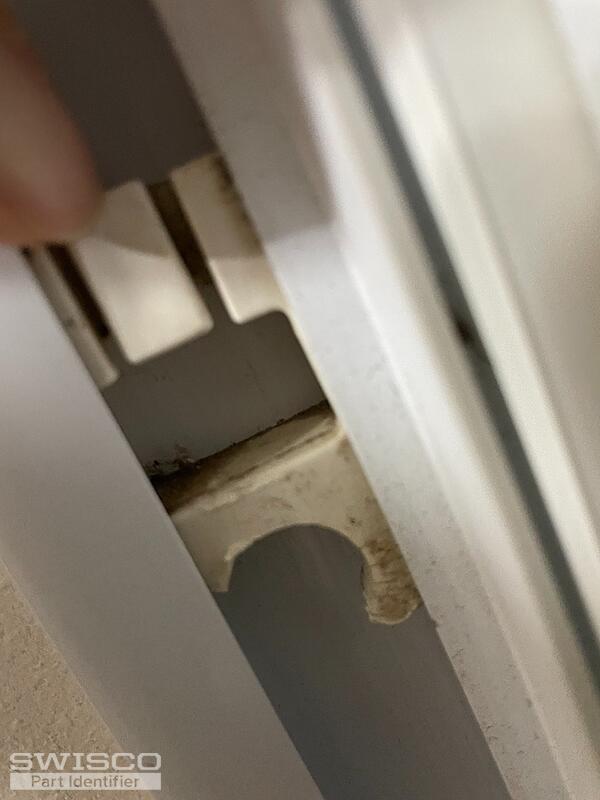

The right side of the window has the pivot shoe with the tilting part inside the pivot shoe(img_3130). The left side has a stack on the pivot shoe(Img3135, img3136 from both sides) that goes into the part inside the vinyl window track(Img_3132, which is broken) - shown in image_3131 how it stack. ... (cont.)

Need to replace this pivot shoe. Spiral balance is colored red. Am not finding a cutout to remove pivot shoe. Is that common? Do I make a cutout near the top of the channel? Thank you, Bernie

I am puzzled how to get the one white plastic piece out of frame that pivot pin fits into. If I broke it out, how would I get new thing in that slides up and down channel. Thank you for any guidance you can give me and I hope you have these parts. I need them for two windows. Let me know if you ... (cont.)

We need to get some parts for windows we have at 2350 Geary in San Francisco. From what I have gathered so far (see pictures), we need the Caldwell Ultra lift AF 28-38 balances measuring 28 1/2" in length. The rest of the parts I need some help with identifying. The pivot shoe measures 1 1/4"x 2"x 1 ... (cont.)

I believe these are silver line series 1 windows. I need 4 pivot bars and 4 shoes as I have two windows that failed. These are near the ocean so stainless if available would be great!

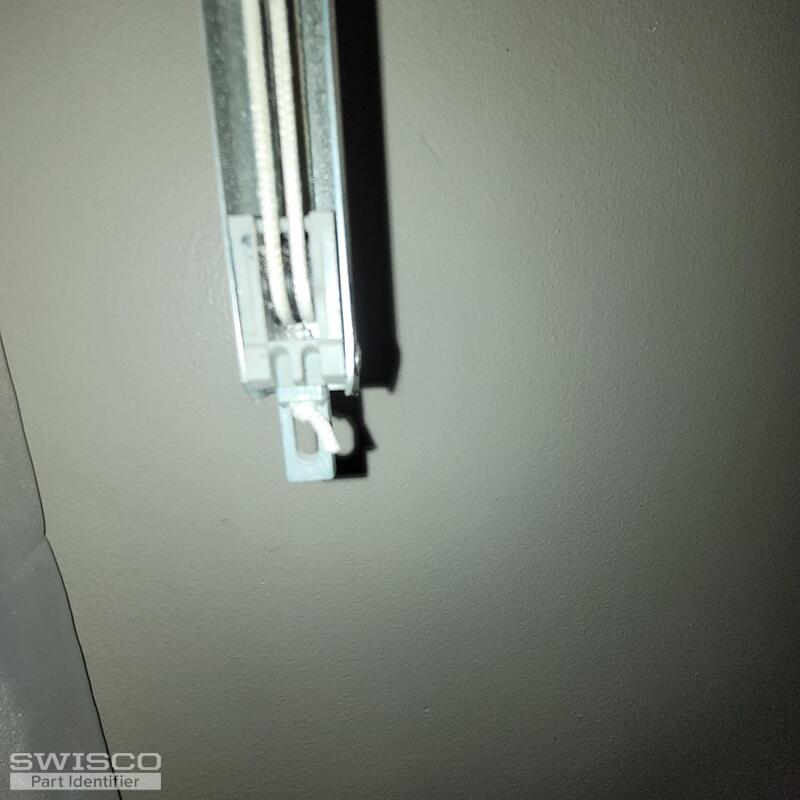

Here are some pictures of a lift where the string inside has broken. The metal measurement is 28". The stamp on it shows 27. I don't know what the brand is. Can you help me figure out what part I need ? Thanks. Glenn

Tilt latches sizing top length is 2 7/8 Depth is 3/8 top width is 3/4 Balance shoe Length is 2 1/8 width is 1 1/4 Depth is 1/2

This is Window shoe1 1/8 high1 1/4 wide3/8 deepEric

We need two of the balance shoes shown in the picture. The size is 1-1/4"Wide x 2" tall x 1/2" thick for a 19-7/8 sprial tube assembly

Tilt window spiral end

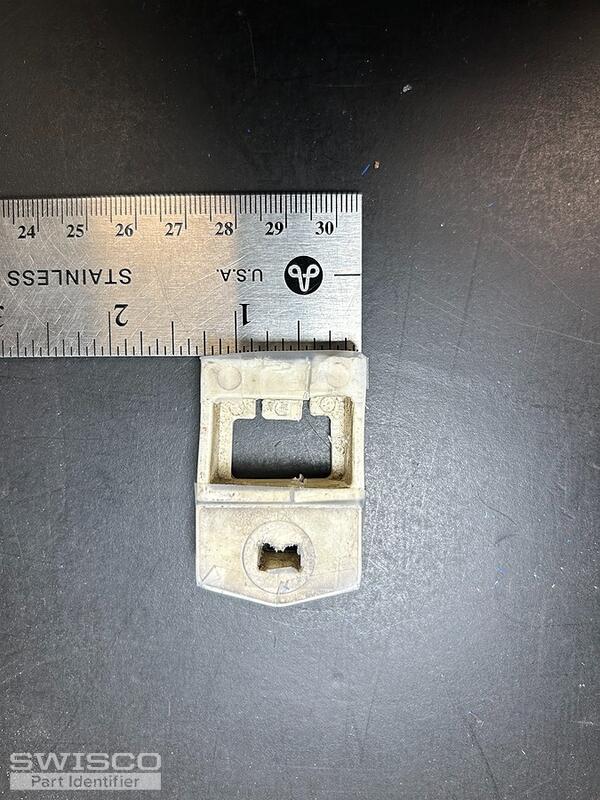

Can you help me identify the correct pivot shoe replacement for 2900 series Silverline windows. Current shoe dimensions: 1-1/4" wide 1/2" thick 1-7/8" total height. Mfg Rep identified this shoe as a 10-2911 but not sure they are correct. Also, can you advise how to replace this shoe? Tks. ... (cont.)

I need to replace this balance the shoe cam was so deteriorated that I cannot submit a photo if you have a shoe cam that you can recommend with this balance please do so as well.

It appears that have the same Silverline 2900 series windows and I'm also looking for this replacement part. I'm also looking for advice/direction/instructions on how to remove and install the new pivot shoes in these 24" x 72" Silverline 2900 series windows. This shoe was cut out of the window but ... (cont.)

Parts from 22 years ago. Both Pivot shoe locks broken. Not sure if need new pivot bars

Hello My top window Wil not stay closed. I'm not sure what series I have.i will also need the tool to charge and install the new balance. Upper window measurement is 23"x5/8 and lower is 25"x5/8. I would like to replace all4 with the tool can you please let me know what part numbers I will need. ... (cont.)
