Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

I need two spiral window shoes, two pivots to find the shoes and the screw for the pvots

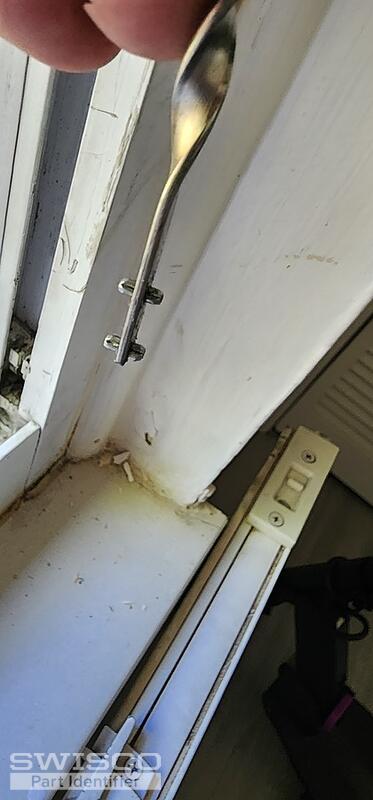

Spiral balance is 31" long Green tip and has the attached picture block and round pin ends I need 2

I got Pivot Shoe, 1/2" Thick Product Code: 15-046, and used the cut out method to replace. The problem is I am having a hard time putting the windows back in. When I turn the pivot shoe insert 90 degrees on both sides to insert the window, the pivot shoe locking mechanism won't let them slide to a ... (cont.)

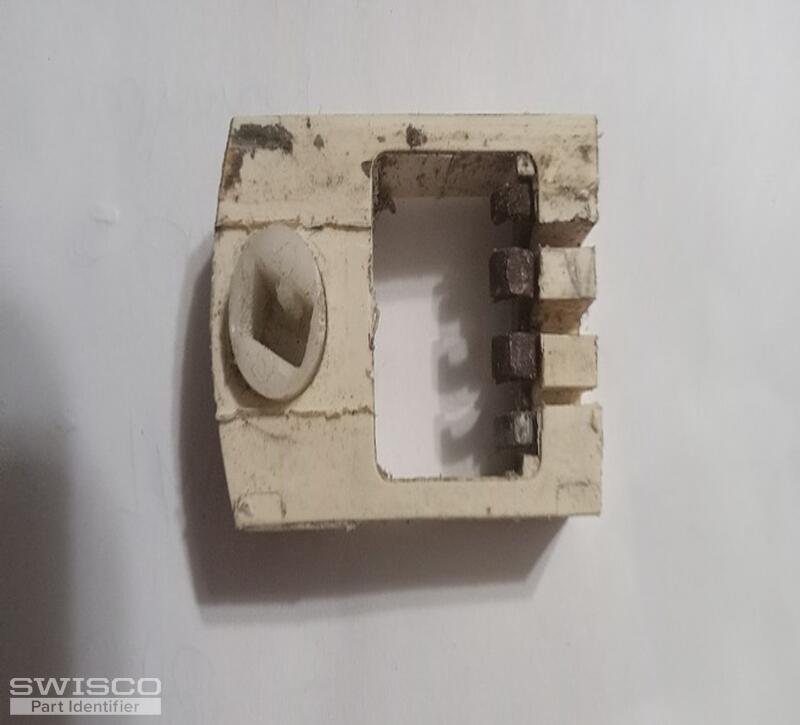

How do I identify this pivot shoe to find a replacement? Thanks!

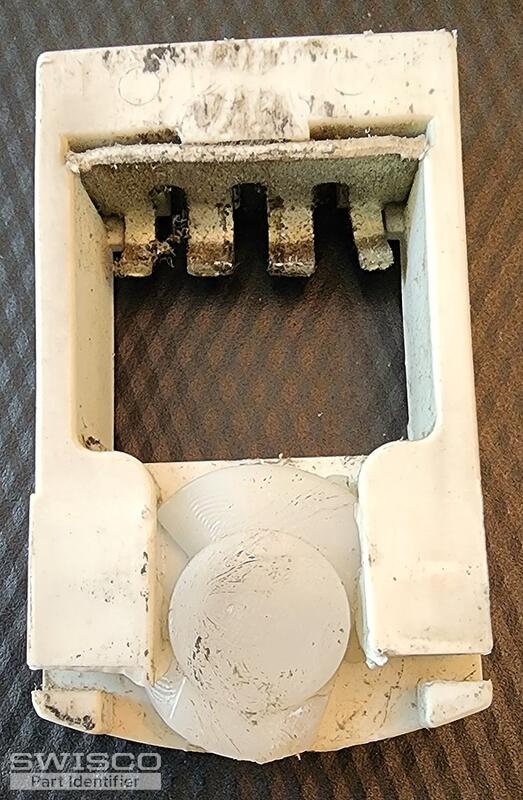

Looking to match this shoe for spiral balancers

Series 200 5/8" spiral valances

I have a few questions about replacing damaged or deteriorating parts. The spring release catches on the top of the window and the pivot pins that allow the window to pivot down for cleaning. The mechanism in the window to control the window to move up and down , not falling down on its own. Deta ... (cont.)

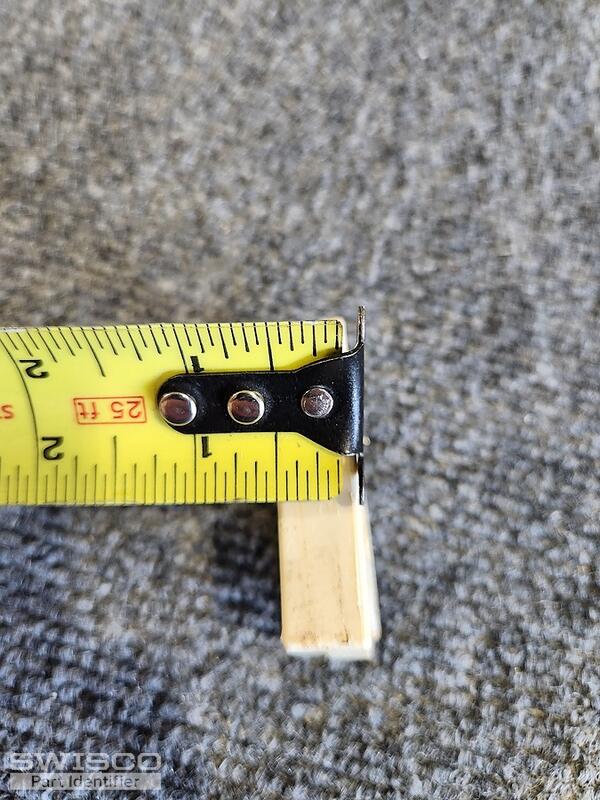

9/16 thick 2 1/4 long 1 1/4 wide Better Built window

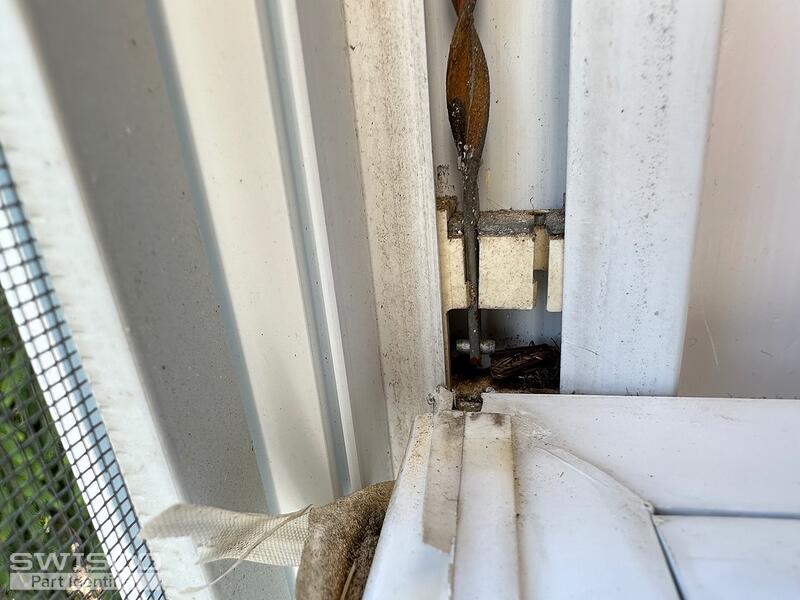

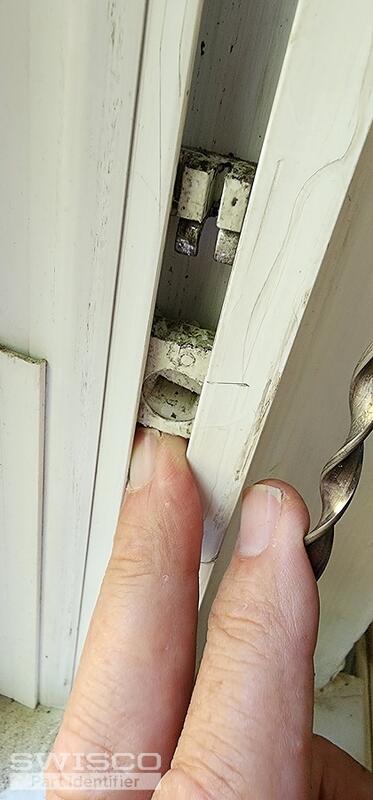

I believe that it is a 3/8 diameter 36 inch balance. The clips on both side have rusted off. The balance on one side needs to be tightened. Photo 1 - spiral balance shoe Photo 2 - bottom sash clip rusted off Photo 3 - slack spiral balance Photo 4 - close up of bottom sash Photo 5 - slack spir ... (cont.)

Hey this is Michael I'm a maintenance tech for a university. These are the original spiral balancers (with the black tip) and shoes (with the black slot) that I am trying to replace. Went to a local glass/window shop and they gave me these other ones (with the orange tip) and shoes (with the blue sl ... (cont.)

I have a tilt window and I think is missing something between the top pivot and hinge shoe. I don't know the manufacturer of the window, the label is missing. Can you help identify the missing balance? I removed the window from the pivot to get a better picture. Have a great day! ... (cont.)

I am trying to find some replacement pivot shoes and pins for the windows in the picture. The closest match pivot bar I see is 26-473 The closest match pivot shoe I see is 15-015 The dimensions appear to be correct. Questions -- Does the above pivot pin fit the above pivot shoe Does this loo ... (cont.)

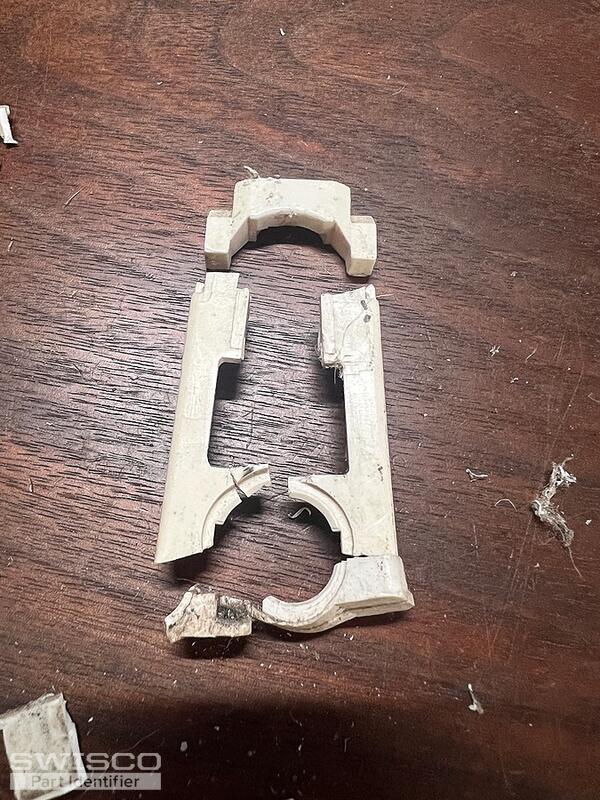

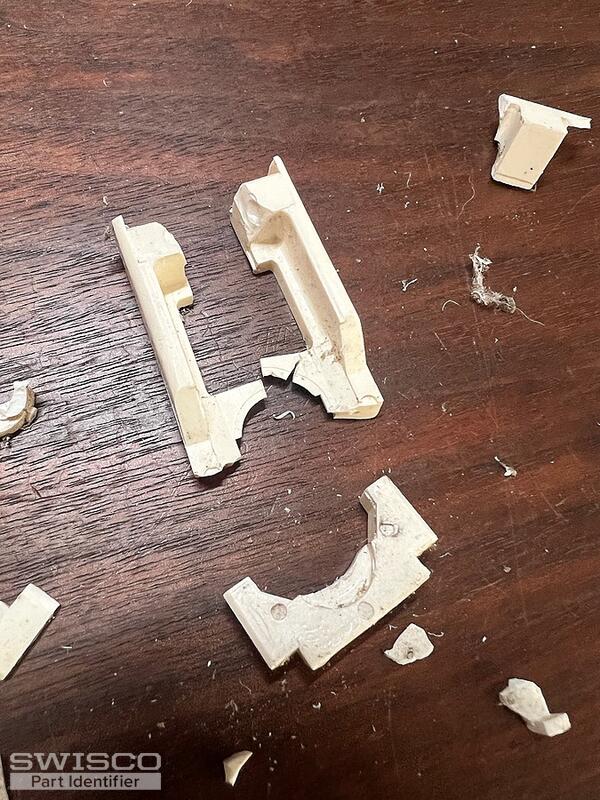

I have replaced the spiral balances, but the shoes are old and cracked - no longer usable. The pictures show the shoe and the type of balance that uses it. The shoe measures 2 1/16" tall, 1" wide and 5/16" deep, although my measurements could be off by 1/16", especially on the width which just mig ... (cont.)

I believe this is the part that hold the window up or down when moved. The string snapped so we need a new one. The ID number is included in one of the pictures (IMG_1019). Thank you!

Could you please direct me on your website where I could purchase these items. Also the tool necessary to fix the pivots.

Would like to repair windows in my daughter's condo. The worst problem is that the pivot bars snapped where they screw to the sash. I removed the remaining part from the sash, but need help identifying a replacement pivot bar and understanding how to reinstall them. Problem 2: The windows are ve ... (cont.)

1/2 15/16 2"

Hello, I need 10 pairs of T-Lock Balance Shoe for American Craftsman double hang windows 8500 series. Sample picture attached. Thank you & Regards, Cez

Can you identify this part for me? I didn't see anything similar on your site.

All stuff arrived and all is working fine. I do have 2 other windows I would like to repair. However, these windows do have a completely other spring system with spiral springs. Please see attached pictures. You don't have replacements for these, do you? If not: I'd like to convert it to the coil ba ... (cont.)
