Viewing all customer Discussions for:

39-280 RH Awning Operator, 3/8" Hole

Good morning. I'm restoring the original windows in my new home. Most important part I need is the bracket, which has a broken tab. It's about 5" in length.Judging by the another set of holes in the frame the crank might not be original. I might need one going forward as I've only started with th ... (cont.)

Hi, I have aluminum awning windows and need to replace the rusted part located at the bottom of casing and attached to the operator. I need to identify the part. Can you please help me! thanks.

Markings: IH CO 790 Awning window operator Link arm has hole, no threads Please let me know if you need additional measurements and/or images. Have 2+ operators to replace on our patio.

Need replacements for old window cranks. House is old and nothing is standard. Can't identify manufacturer, although Swisco seems to be very close, if not it exactly. Crank base has the following part no engraved inside: PT NO 10-9231-LH-4.

Handle for casement window in condo. Located on bottom right side. Window has 3 panels that open from top to bottom.

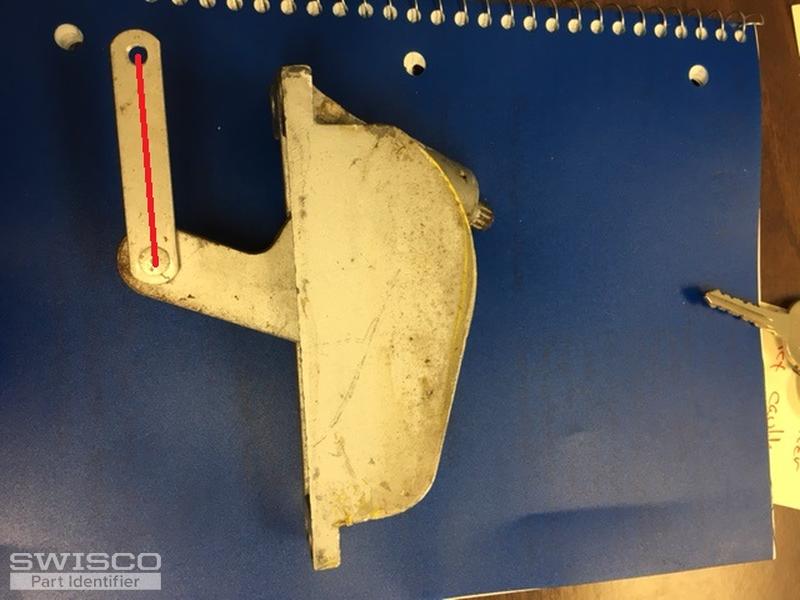

All the dimensions match up with your part no 39-280 except your 2.5 dimension and the 3/8 dimension. My link arm is 2 1/8" on center and the hole is 3/16". Top to bottom screw ho,es are 5-3/16". What do you recommemd?

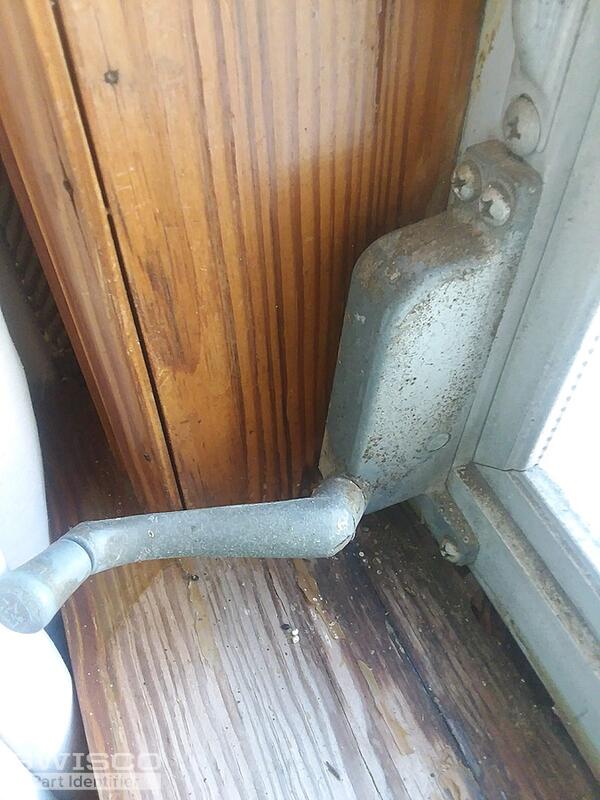

Need to find a new replacement as shown in the picture

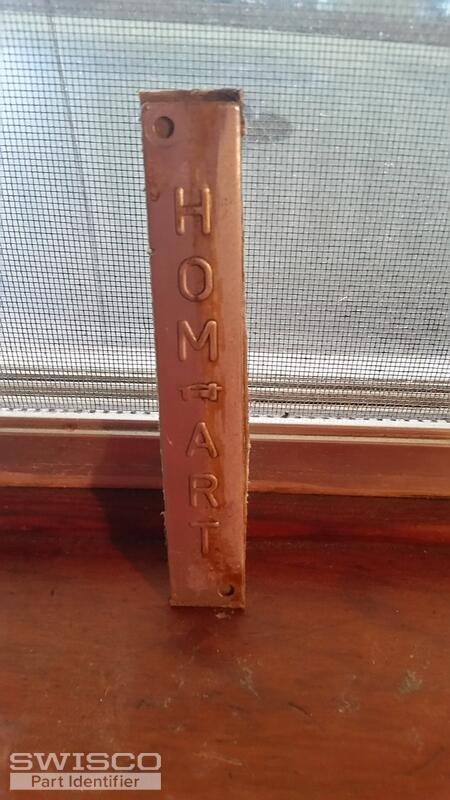

1955 home with an 1970 addition with HomeArt windows installed in tge addition. I'm missing two right hand cranks.Please advise, thanks.

Product Code: 39-280 looks like it would work for my windows except the arm with the 2&1/2" measurement needs to be 1&7/8, all the others match up,any help? Thanks

Please identify my operator

My mom is looking for the mechanism for these windows. She needs about 12 of them total.

would the 39-280 be the best fit even tho the connecting arm is shorter or is there a better choice?

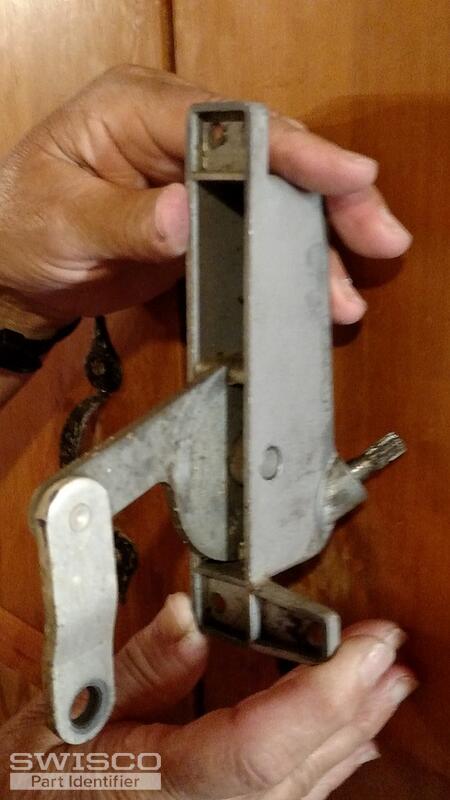

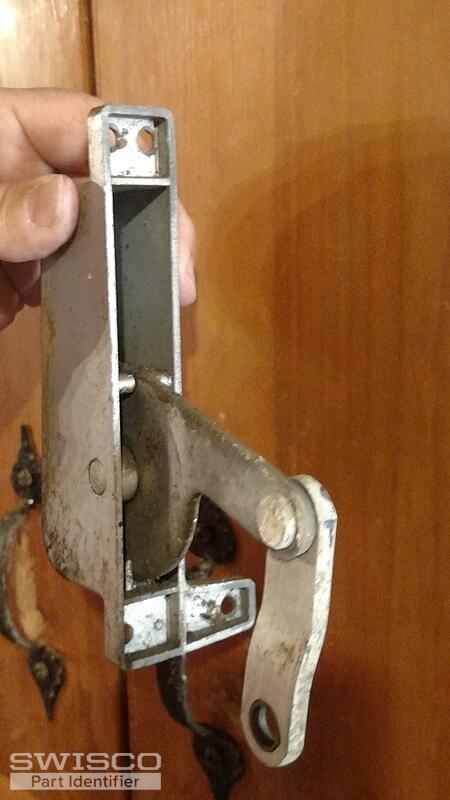

I've been searching for a replacement window operator like the one shown in the attached photos. No luck. There are no names or numbers on the operator or window frame. I can probably mount an operator that doesn't have the lower dogleg and can transfer the old connecting link to a new operator ... (cont.)

It is similar to 39 - 194 left-handed crank I made a mistake that the wrong number please contact me

The crank replacement is for an old Howmet Aluminum Corp. which I believe was their Homet Plant Playroom. It is all aluminum: sides, ceiling with skylights and awning windows. Please help if at all possible.

I am looking to replace the hardware on six windows if you have complete kits that would be great thank you

What is the length of the operator arm or this part?

The two holes at the top of the operator the holes are 1/2 inch apart and the two holes at the bottom of the operator the measurements are 1 inch and a sixteenth.

Looking for replacement part

Replacement window operator needed.
