Viewing all customer Discussions for:

15-129 Pivot Shoe, 9/16" Thick

The part has number stamped 26c The actual length is 26 inches The part that attaches to the window sash and tension string is in photo as well.

I need 4 of the( 01/3 ) unique 27-B- 20 counter balance complete arms also 4 boottom brackets that hold the string lock in place plus 4 magnets including outside white plastic cases ( maybe one unit? ). What part numbers do I order and how long for shipment to Naples, FL? Mike

I am working on a group of commercial grade windows, aluminum frame, 38 1/4" wide x 51" high sash, double hung, tilt out. Balances are 9/16" dia. coil springs and 51" long. Top is loop with screw through it, bottom is set for shoe connection. The shoe shown is 1" wide by 2" long. Some pics are ... (cont.)

Please provide the best replacement for this part. A picture has been attached. The measurements are below: D=1/2" W= 1 7/32" H= 2 1/32" Thanks

the original description 5215 V1 DH WH (white) DS/CL for the glass So, double hung window, frame dimensions 46 1/16th by 57 1/4th Windows weigh 30 lbs. each Lower window balance 25 7 D15Q CMC Upper window balance 23 9 E10S CMC? can't tell if CMC or CNC do not see the lower portion of the b ... (cont.)

This came out of my vinyl window. The balance was a 16B I need a 1/2 dozen balances and a dozen of these tabs. I have enclosed photo of balance.

The pictures I have attached looks like your item no 15-152. The measurements are about 1 1/4" wide, about 2" long and about 5/8" deep.

I need window parts for Capitol Windows and Doors. It is model 455SH. I need lock shoe, rivot, window balance

Please review the picture. We are not finding this part on your website. Do you have this part available for purchase. Thanks.

I am finishing a job someone else started. They have already purchased the 15-129 pivot shoe. However, I need to replace the pivot bars as well. My question: will the 26-316 pivot bar work with the 15-129 pivot shoe? Thanks - Donald

Hi - help! can't close my window without this part! First pic is complete Pivot shoe, second is pivot shoe missing plastic arrow that holds window in place Can I buy this plastic arrow piece? Not sure how to take window apart. Pretty sure this is your 15-129. Would like to avoid buying jam spreade ... (cont.)

Attached you should find two photos of what I think is called "pivot lock shoe." I can find no markings on the pieces. They come from a double hung window installed in a new home built around 2006 - 2007. As best I can determine, the piece is approximately 2 inches tall and 1/2" deep, and 1 1/4" ... (cont.)

I have a heavy lifting window and saw some parts are broken. The first photo shows the part where the window itself sits and looks kind of bad. The 2nd one, shows like a little arm that is missing from one side of the window. The one it has it looks like metal not plastic. Any advice? T ... (cont.)

Looking to replace several pivot shoes that have deteriorated and broken apart (see attached photos of an intact pivot shoe). I have already identified the associated Pivot Bar part number and installed them as replacements (they work great, except, of course, in the windows with failed pivot sho ... (cont.)

Window falls when pull up. It doesn't stay. I think this is the broken piece causing the problem.

Installed Original New in 1998 Paramount Vinyl Double Hung Tilt Windows then the Company sold out to Winco then to Jeld Wen. Jeld Wen Cannot help. Several Pivot Pins are broken. They are Zinc Die Castings with 1 3/8 to Centerline of first hole with casting # 9762 1 and 9762 2 depending if right or l ... (cont.)

Trying to find a part for vinyl double hung window. My girlfriend's window track broke I don't have a manufacture or part number. I am going to try and go over tonight to try and see if I can get some more information. Attached is a picture of the broken part. The window does tilt in for cleaning ... (cont.)

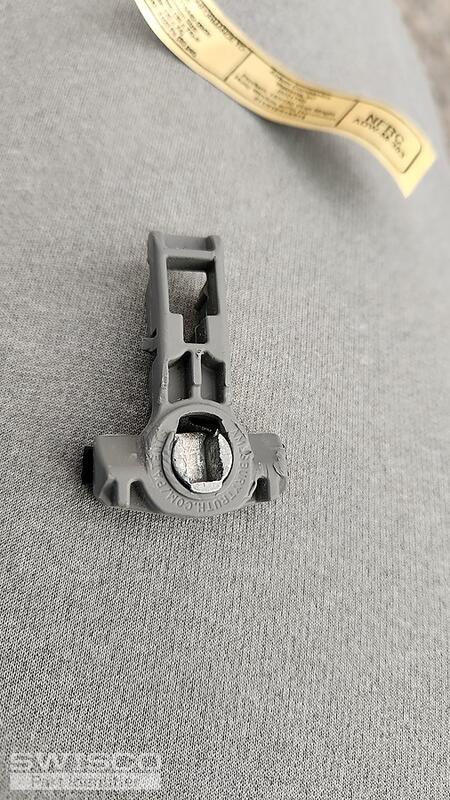

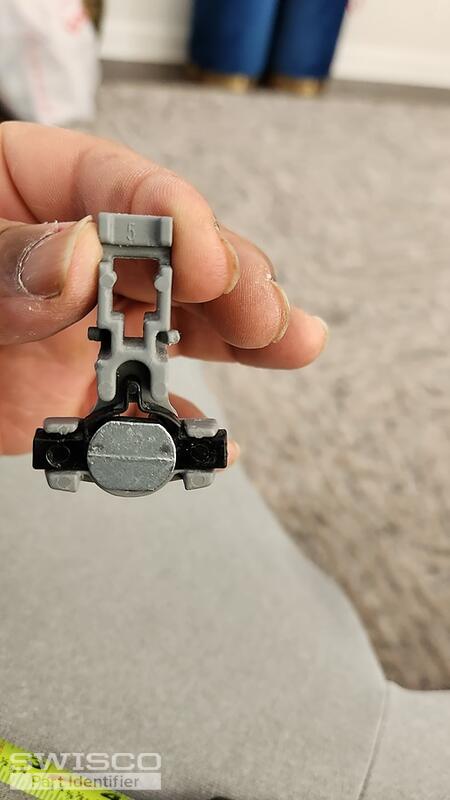

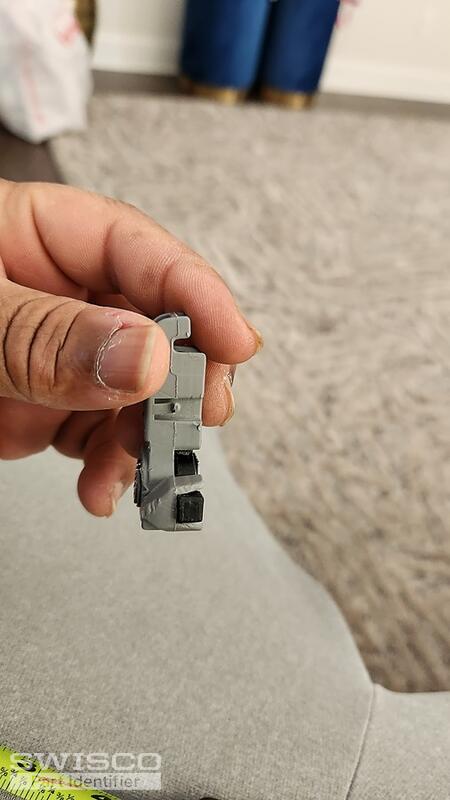

this is Greg. We took another window apart to check on the shoe size and it has entirely different type shoes. I have attached pictures of the shoes from this window. We found t label on this window that says : "NFRC Amer. Weather Seal" My wife has been talking with you on these balances. My guess i ... (cont.)

The metal channel is 33" long, 9/16" wide and 1/2" deep. It has markings: 33E BS1. No top guide is attached but there is a hole in the top for screwing to window frame. The bottom guide is broken. There is a little handle attacked to the string end and hook up the shoe in the frame. ... (cont.)

I ordered and received two of you pivot shoes 15-129. They did not fit and remeasuring the existing ones, they are 2" high, 1 inch wide and 1/2 inch deep. Couldn't find it on your website.
