Viewing all customer Discussions for:

15-135 Pivot Locking Shoe, 1/2" Thick

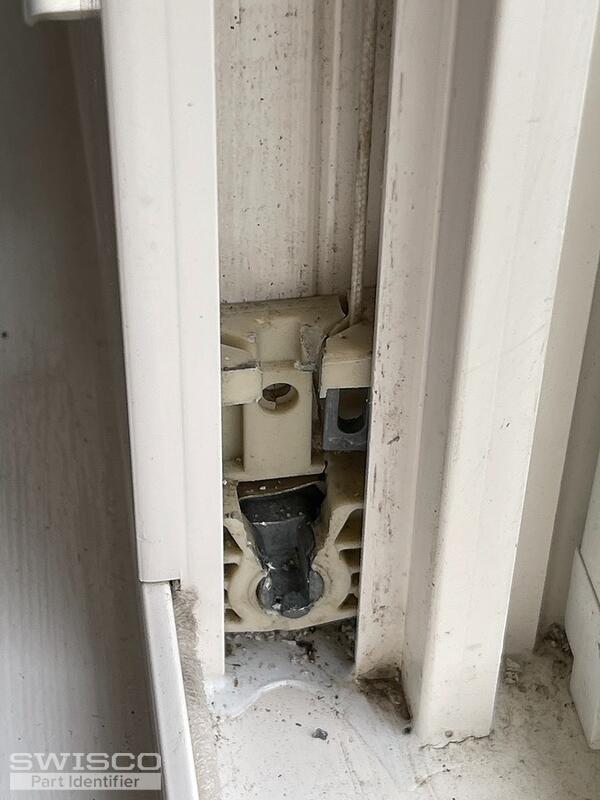

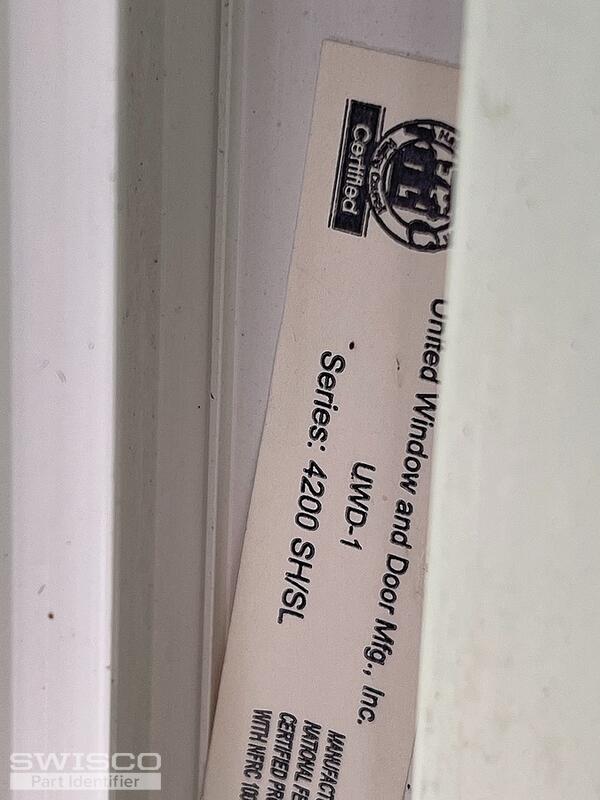

Need assistance identifying and replacing two broken window shoes for a United Window.

Looking for replacement shoe. Only markings I see is "patent 4.610.108

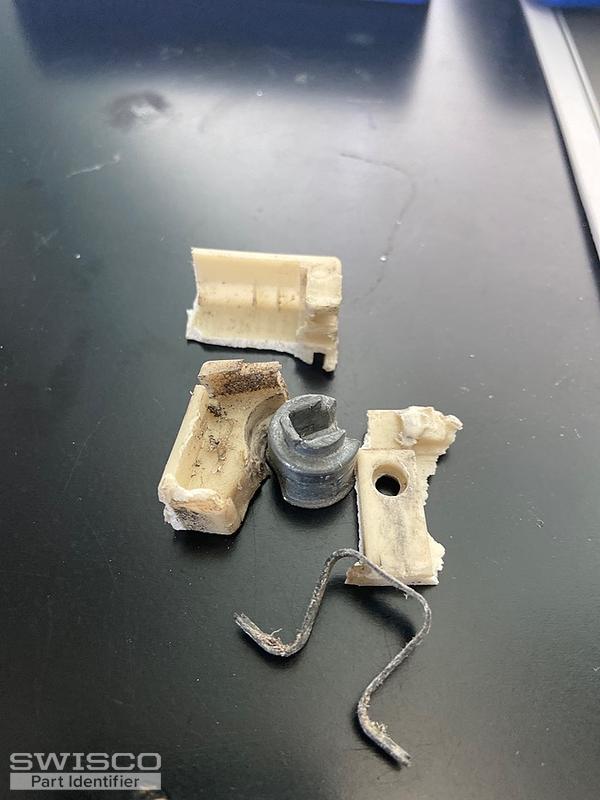

Hi, my son purchased a new home with old replacement windows where none of the windows stay open. All are double hung and the bottoms tilt out. We took a couple apart and they have the same problem... old plastic parts have rotted and broken in various ways. Found your site based on a patent number ... (cont.)

looks like 15-135. Do you sell the string balance parts also?

The shoe is for a tilt-in window. The size is about 1 1/2 wide x 2 1/4 long.

Please let me know uf you carry the correct parts for my broken balances. The markings on the balances are 26D BSI and 26F BSI I do not believe that my shoes need to be replaced but maybe you can offer some advice based on the photos and installation advice or window specialists in the area who wil ... (cont.)

Good morning - We have a customer that purchased 25" Series 795 Channel Balance Option 25D directly from you folks. They have asked us to find and purchase the attached cams? Any help?ThanksVinny

The lock shoe was similar in shape to your Code 15-135. But a replacement was given as your code 15-169. The length of the channel is almost 35.5 X 0.5 X 0.5

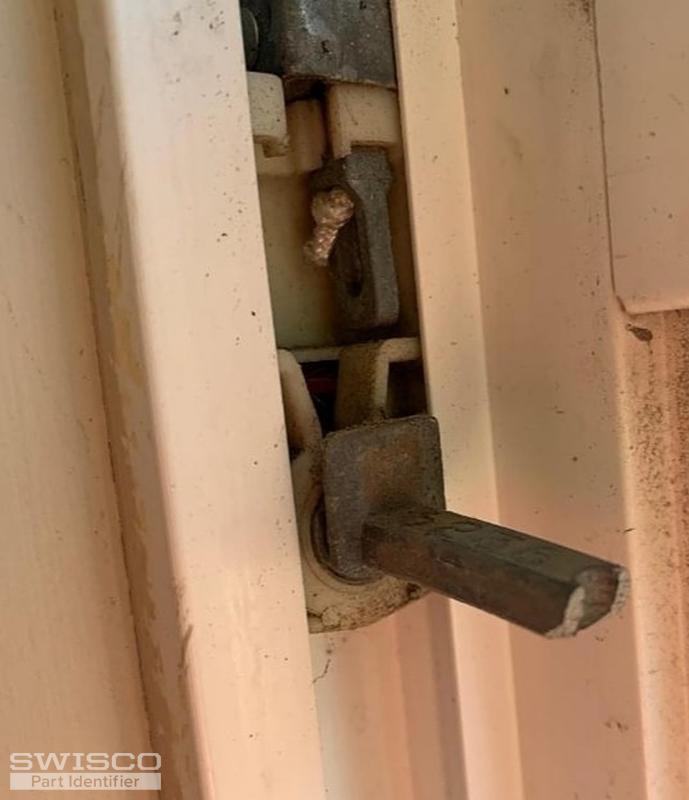

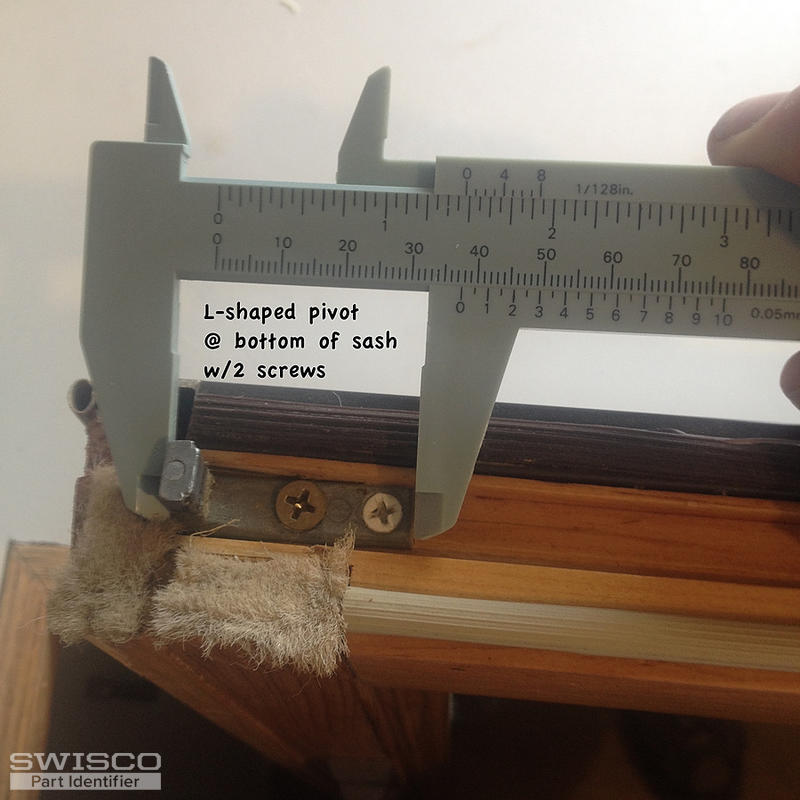

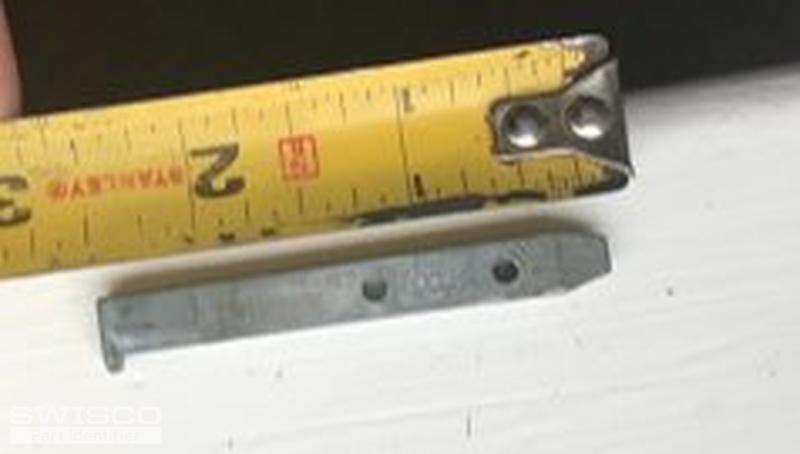

The pivot I have is not pictured in your gallery of pivots. It is L-shaped with 2 screws above the L bend. It is for the upper sash of the double hung.window. I was unable to locate a brand name or part numbers for the window on the panes or anywhere else.

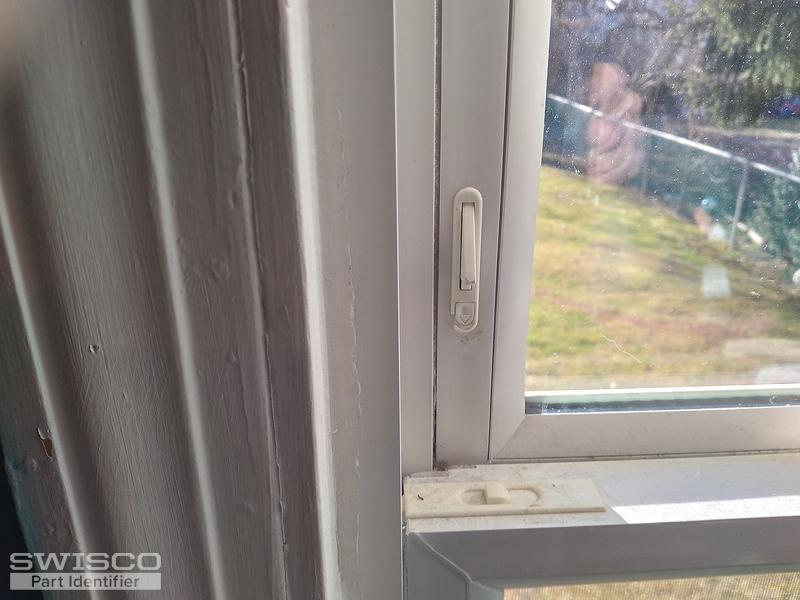

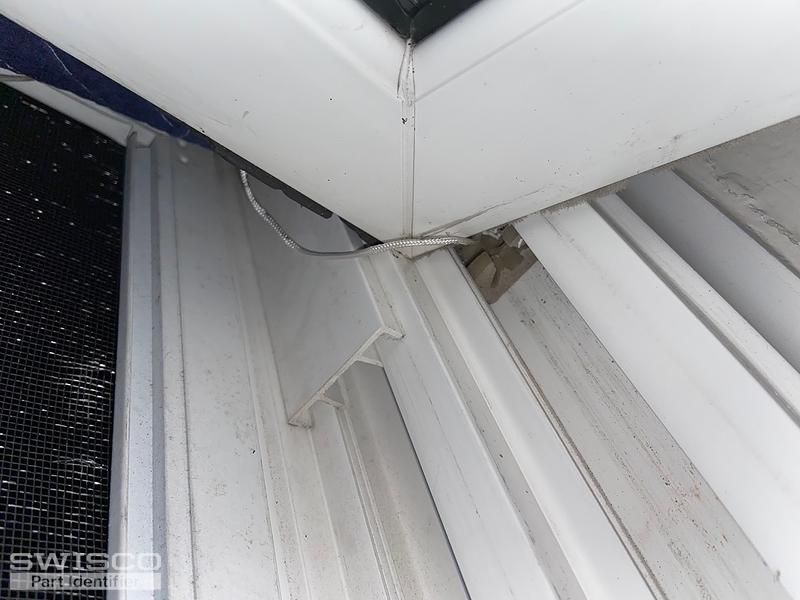

I have new balance to install which comes with new shoe. How do I remove the old shoeWanted to add a photo but it wouldn't go to " Add Photo " Do you also sell the window to frame latch?Locking tab was taken out when balance string let go

Need 2 and 1 spring rod

I need replacement parts for my windows. I have listed a few pictures hoping they would help in find the correct parts that I need. Thank you so much for your time. Have a good day!

The metal balance is 30 inches in length and 1/2 inch to 9/16 inches in width. The white plastic piece is 1 3/8 inches in width and 2 inches in length on either side and 2 1/4 inches in the middle. The metal piece that attaches to the window is 2 inches in length with 2 screw holes 5/8 of inch and 1 ... (cont.)

I'm needing both, the shoe pivot, as well as the pin that goes into it. Please let me know if this is something you can help me with, or if you need anymore information from me. I have a complex with 330 units, that has dozens of windows with these part broken / missing.

here are good pics of the longer part of this assbly and 1 shot of both parts assembled thanks john carew

seems fastener hole is 2-3/16 to center. can you please identify if you have replacement. if can not match exact, which would you recommend?

I see you have some items that can help me. See attached and links below. Please confirm: https://www.swisco.com/Top-Tilt-Latch-LH/pd/Surface-Mounted-Latches-For-Tilt-Windows/26-228 https://www.swisco.com/26-inch-Series-770-Tilt-Channel-Balance/pd/Series-770-Channel-Balances/S770-26 We need: Ti ... (cont.)

Hi Can you help me to identify the replacement shoe? Will it be 15-188 or 15-135 or other? The size is 2"x 1/2" and 1 1/4". See the attached picture

windows were installed in 2009 face of pivot lock measures 1 1/4 inch. depth is 5/8 inch. Height is 2 1/8 inch.top metal plate that holds the spiral balance is not in this pivot lock. Could you tell me which pivot lock I need as I have to replace all windows. Thank You Stan McIlvee ... (cont.)

Ordered and received 15046 shoe. Didn't realize I had locking shoes. I believe I identified the correct part 15135. If you could please confirm that would be great. When I ordered the 15046, I picked the first half inch shoe that matched all my other dimensions not realizing there were locking shoes ... (cont.)
