Viewing all customer Discussions for:

15-135 Pivot Locking Shoe, 1/2" Thick

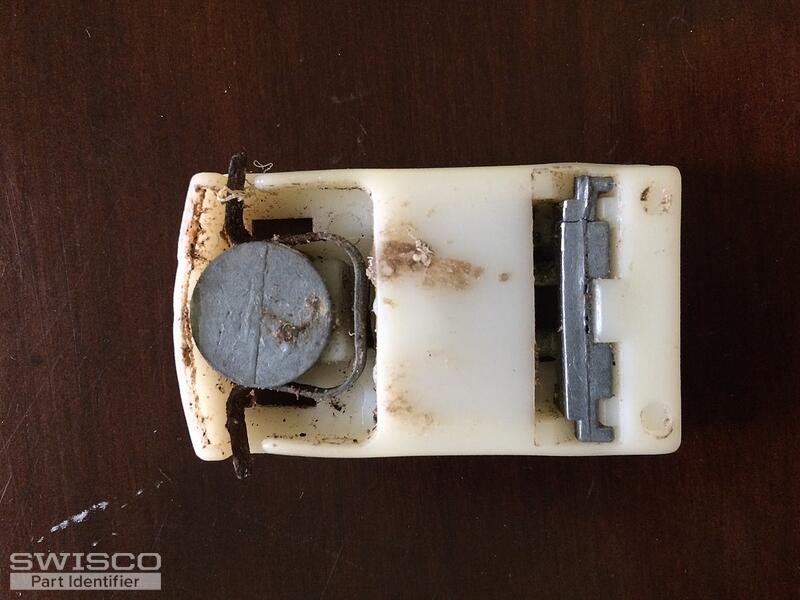

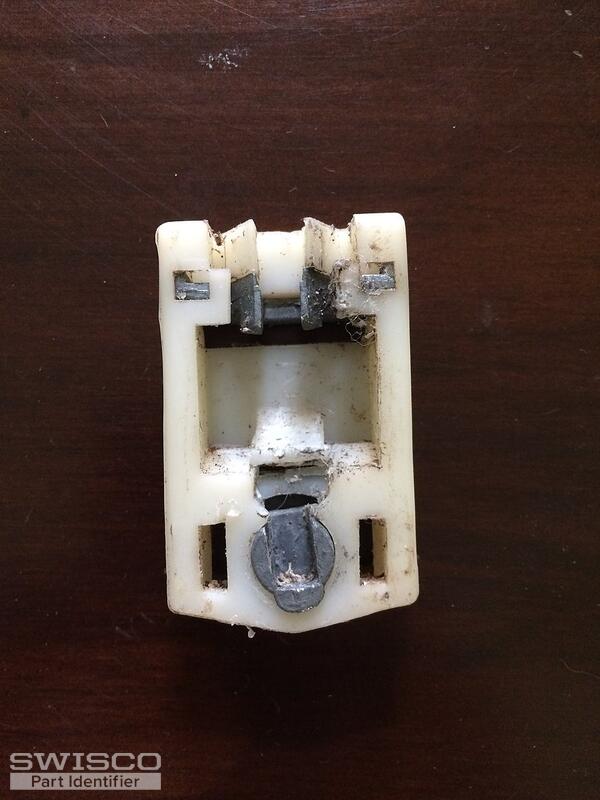

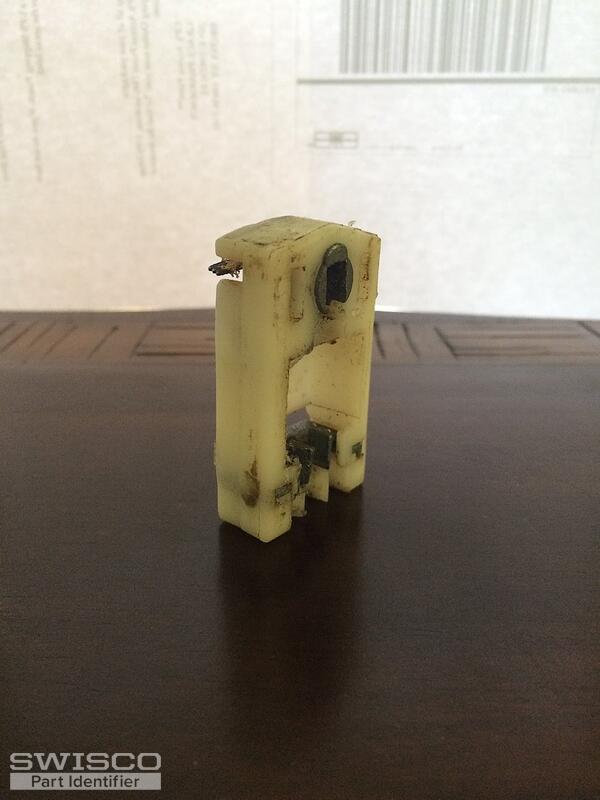

here are good pics of the longer part of this assbly and 1 shot of both parts assembled thanks john carew

seems fastener hole is 2-3/16 to center. can you please identify if you have replacement. if can not match exact, which would you recommend?

I see you have some items that can help me. See attached and links below. Please confirm: https://www.swisco.com/Top-Tilt-Latch-LH/pd/Surface-Mounted-Latches-For-Tilt-Windows/26-228 https://www.swisco.com/26-inch-Series-770-Tilt-Channel-Balance/pd/Series-770-Channel-Balances/S770-26 We need: Ti ... (cont.)

Hi Can you help me to identify the replacement shoe? Will it be 15-188 or 15-135 or other? The size is 2"x 1/2" and 1 1/4". See the attached picture

windows were installed in 2009 face of pivot lock measures 1 1/4 inch. depth is 5/8 inch. Height is 2 1/8 inch.top metal plate that holds the spiral balance is not in this pivot lock. Could you tell me which pivot lock I need as I have to replace all windows. Thank You Stan McIlvee ... (cont.)

Ordered and received 15046 shoe. Didn't realize I had locking shoes. I believe I identified the correct part 15135. If you could please confirm that would be great. When I ordered the 15046, I picked the first half inch shoe that matched all my other dimensions not realizing there were locking shoes ... (cont.)

I believe this is the part we need. 15.-135

Hello, The need to replace several broken pivot bars on my 15 year old Crystal tilt sash windows. I'm not able to get the broken pieces out of the shoe while in the jamb so I'm not sure if the shoes need to be replaced as well. I only have pictures of the broken off bar in the shoe and a few piece ... (cont.)

Hello, I am looking for some parts for my windows. Unites Windows and Door MFG sent me to you. My window model is UWD-1 Series 4100 DH/SL I am looking for what gasket I need Also I am looking for Tilt locks and another piece that prevents the window from being raised after a certain point. I h ... (cont.)

I have 4 year old vinyl double pane windows they tilt out and can be moved for cleaning both inside and out, however on several of the windows the "pulley"is jammed and won't move, so I can't move or completely close the window... I am at my wits end. Please help!

1/2" thick , 13/8" wide, 2" long to top of arch, the only number I can find is a number 2 in the middle of the part

I am looking for a tilt cam for Clear Choice windows.

looking for replacement part

Please help me to find correct pivot bar and pivot shoe (part no. 15-129 was little wider) for my S770 tilt window with plain balance 35C,35A,35B and 29C. I attached pictures and measurement of pivot bar here in this email .Earlier I sent you an email inquiry refrence no.7523124 Thanks, Vijay ... (cont.)

Here is picture of what is on the top inside of my windows. I am not sure if the word Gravois is the brand name. I am looking for couple of balences, pivot lock shoes and tilt latshes. Please let me know if you have the product or if is will be ok to substitute with different brand that is available ... (cont.)

lookinng for replacement parts. and how to replace them.

One of the pulleys that is part of the channel balance on my Republic double hung tilt vinyl window broke. The channel balance that needs to be replaced is stamped with 16C B.S.L. L. The channel balance is approximately 17/32" wide in the interior dimension and about 1/2" deep. The balance spring is ... (cont.)

I am having a little trouble with identifying this spring and shoe - the height of the window in total is about 41 inches - so I am not sure that I need something with a 40 inch travel because of the space at the top ? No stamping on the springs and the shoes I can't tell if they are part of the spr ... (cont.)

Number on pivot shoe is 4610108

The dimensions are 1/2"x1-1/4"x2". The hole in the cam is 3/16"x 5/1/16". My guess is that I need #15_135. I just didn't know what the cam hole size was on that one. Thanks for your help. LeWayne
