Viewing all customer Discussions for:

15-150D 1/2" Coil Double Support

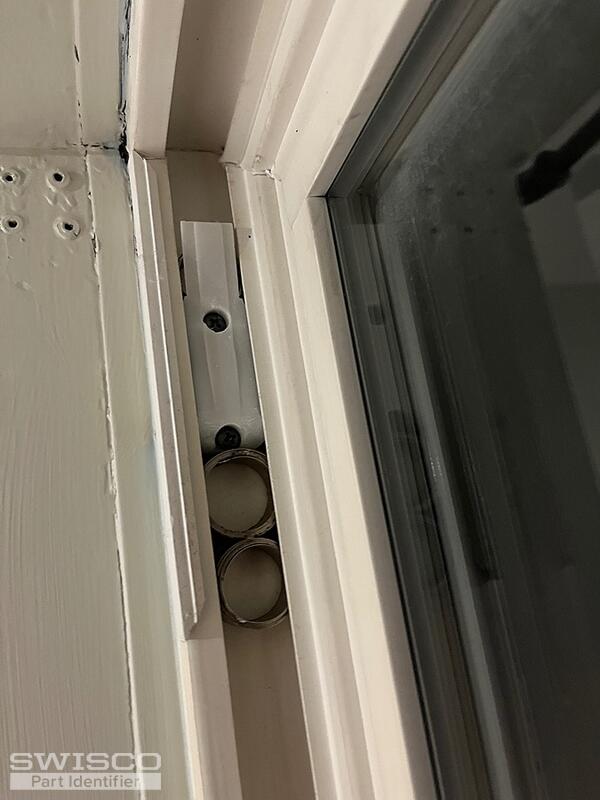

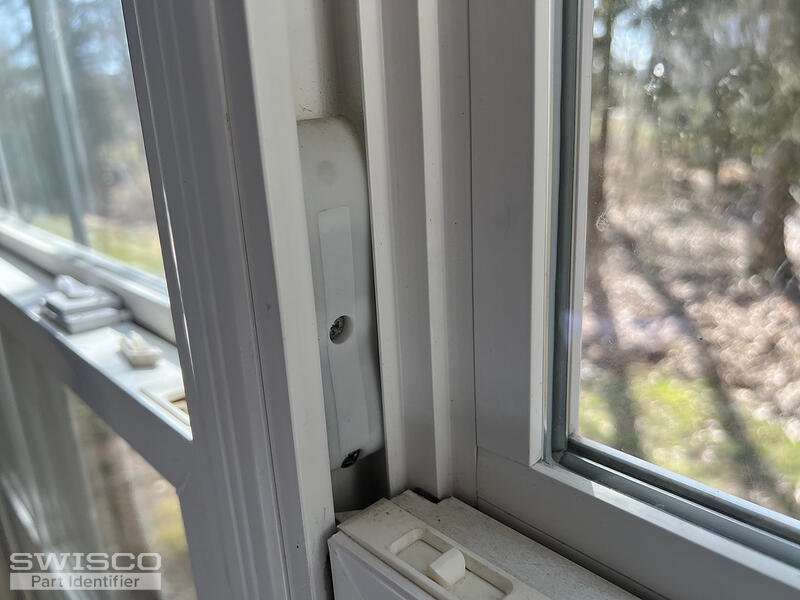

Just purchased this house and found this condition. Double hung window, 33WX30L, sash is 21.5lbs. The attached pics show 2 different mounting heights. I believe I need 2 S140-11 assemblies but where do I mount them? Also do I attach 1 coil to each side of the slide or just 1 side as shown. Lastly ... (cont.)

Have vinyl hayfield window assy. Double hung The lower window weight is 20.3 lbs I will attach photos let me know if ya can help me Thanks Bruce

My spring covers are cracking due to sun exposure. Need to replace but unsure what I need. I can't find any numbers on them.

I'm looking for replacement brake shoe and coil spring support assembly that fit into the frame jamb which support the weight of my double hung windows. The parts are exactly 1.1875" wide. I would need 4 pairs of replacements (enough for two sides of 4 window units).Windows were originally manufactu ... (cont.)

need a spring, tilt hardware, and weatherstripping. Please respond either way, thanks, Mike

I don't have a stamp number on the casing. It is for a tilt window. I am trying to figure out which part to order.

Need help can't seem to identify this part in your lineup it would be great to have a double spring above it.

These are alliance counterballance

Do you know where we can get parts for American Weather Seal balance pieces as pictured? Thanks! Melanie

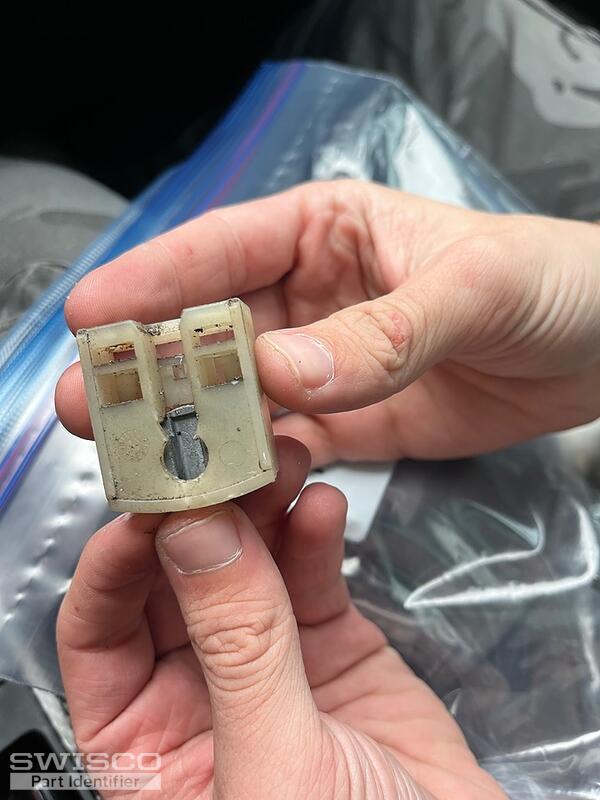

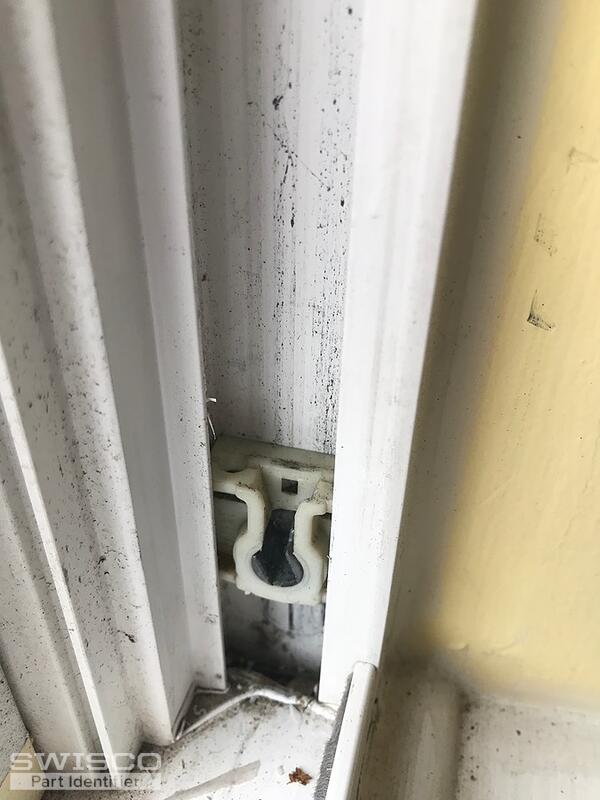

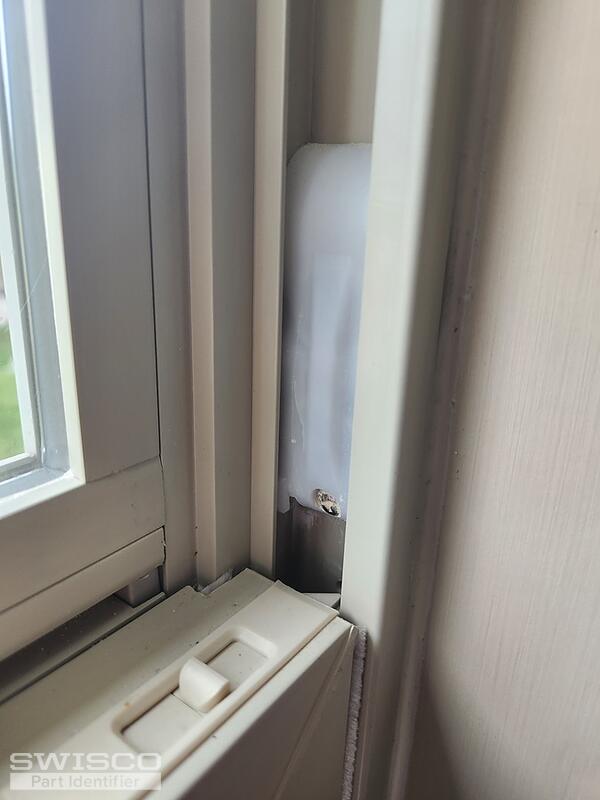

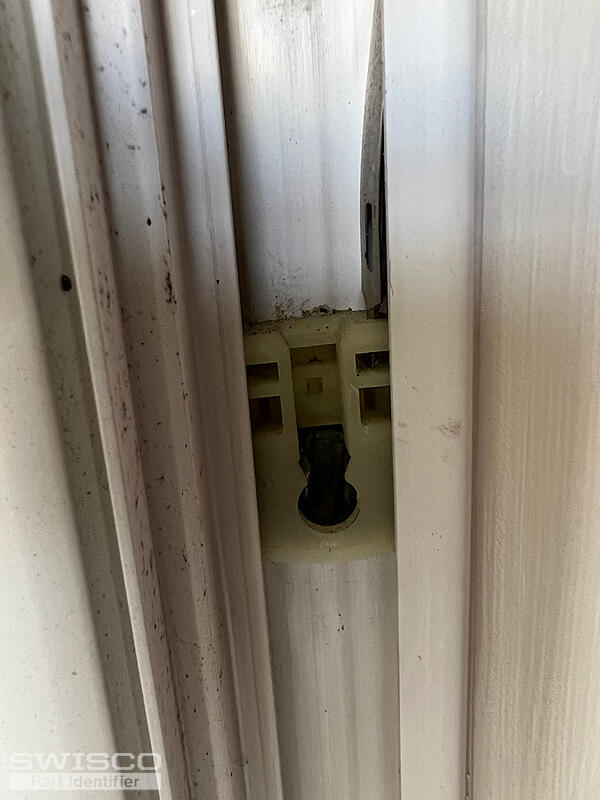

This part is the bottom pivot part for the window to tilt in. I'm guessing it usually travels up and down with the window but now is stuck at the bottom. I've tried several times to work it free but I can't get it to move. So I guess I have two problems: 1) Get this broken part out 2) Get its repla ... (cont.)

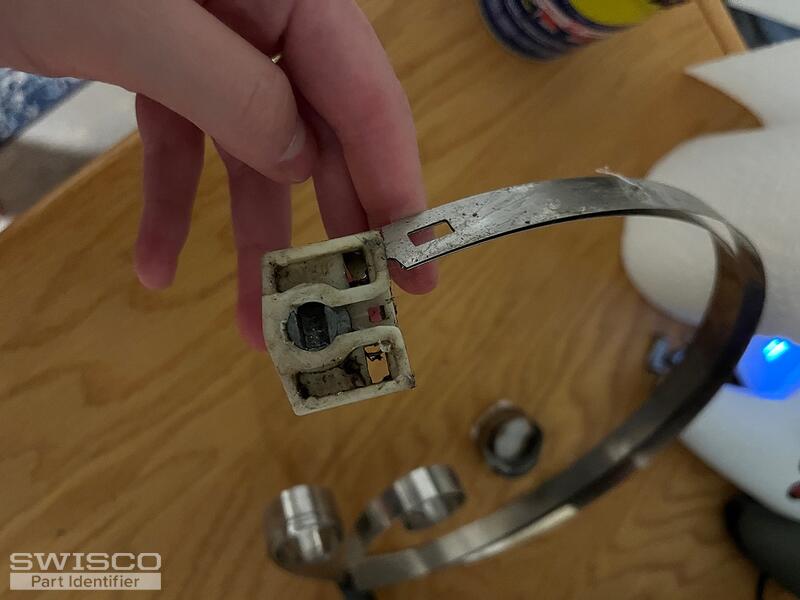

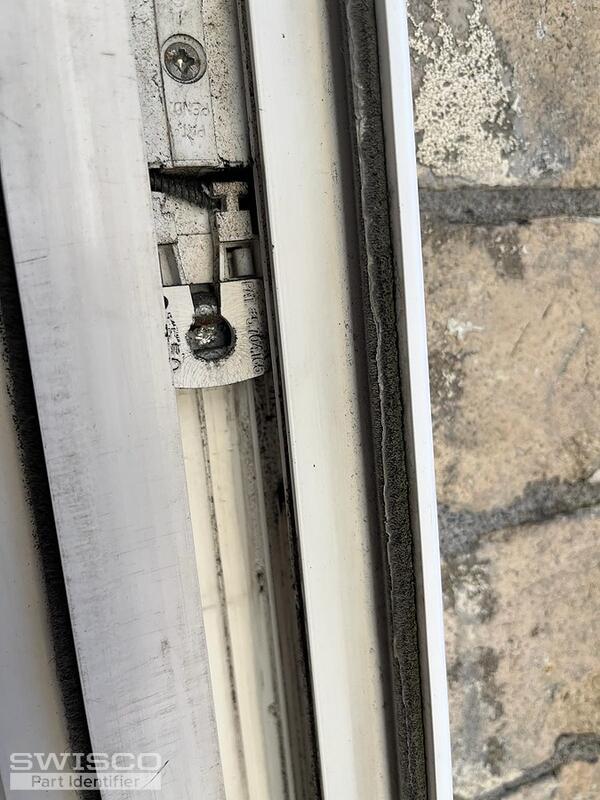

The pivot is connected with both springs end only at one side. Both springs are hooked at one side of pivot.the other side of pivot is open.Is that is correct?

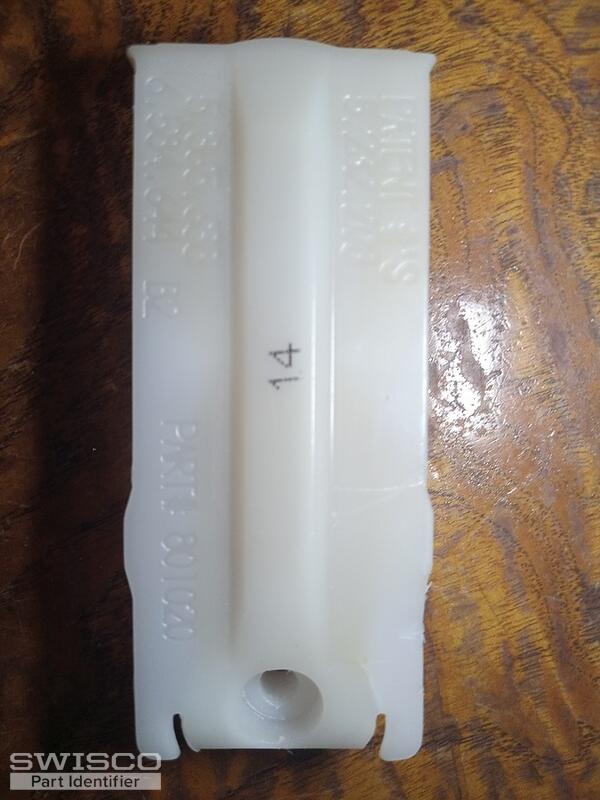

Weight of larger window is about 30 pounds and small window is about 27 pounds. There is one label with 13 on small window and 14 on larger window. I installed coil spring with purchased one at right and left side of window with code S140-14. But spring coil keeps going up when set at "U" shape. ... (cont.)

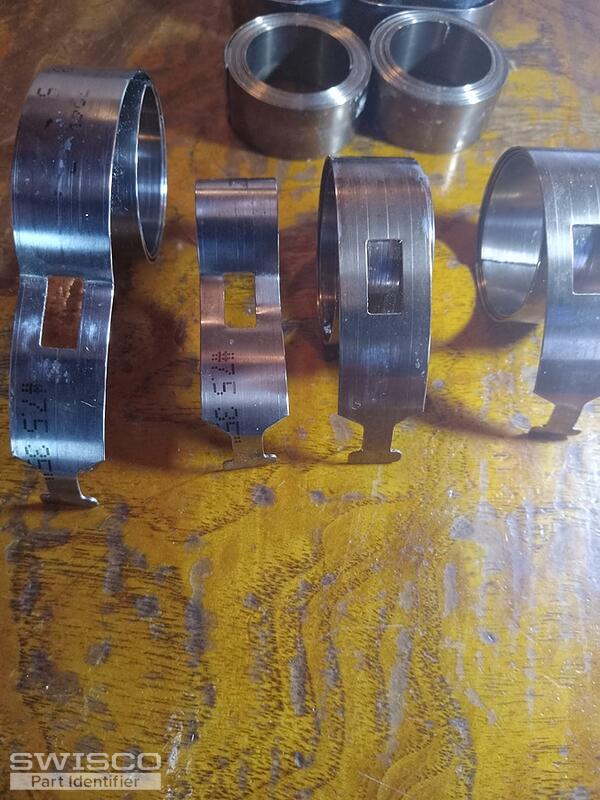

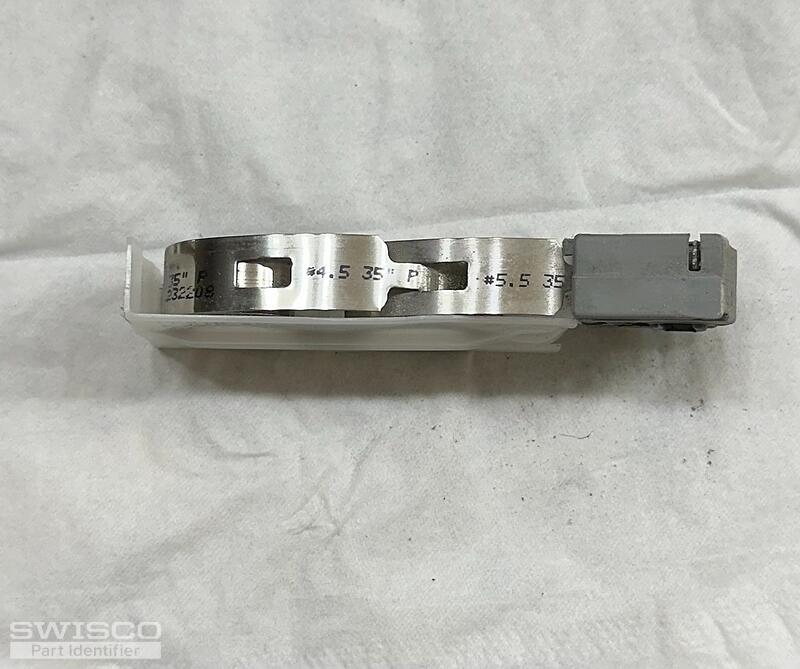

Need 4 assemblies, 2 left and 2 right(2 windows). The assemblies I have, have 2 #5 springs in each, meaning 2 #5s on the left and 2 #5s on the right. Does that mean a weight balance of 20 lbs, 10 lbs, or 5 lbs for the window? If 20 lbs, could I use a left #10 spring and a right #10 spring? ... (cont.)

Hi, I need help identifying parts to replace the constant balance double coil in my vinyl windows. I can't remember who made the windows, but I think it's either Simonton or Certainteed or some other manufacturer in Richmond, California that's no longer in business.I took a few pictures of the label ... (cont.)

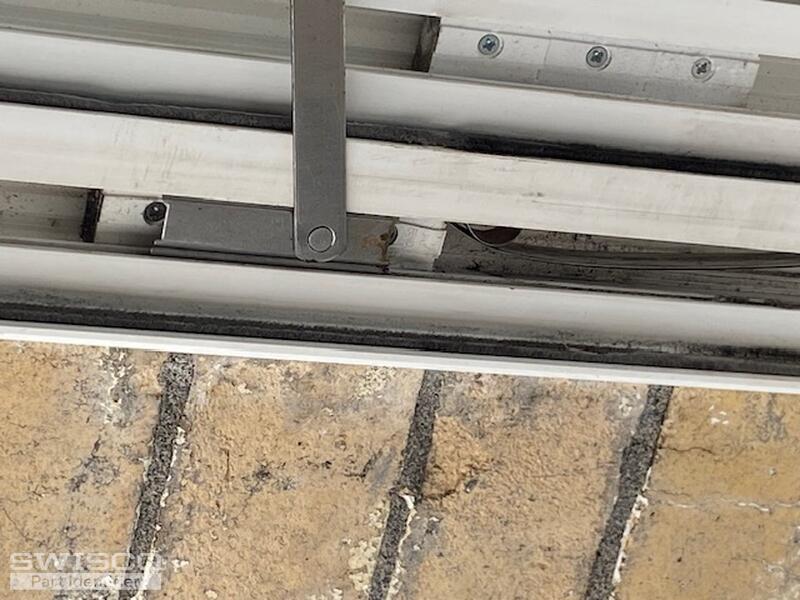

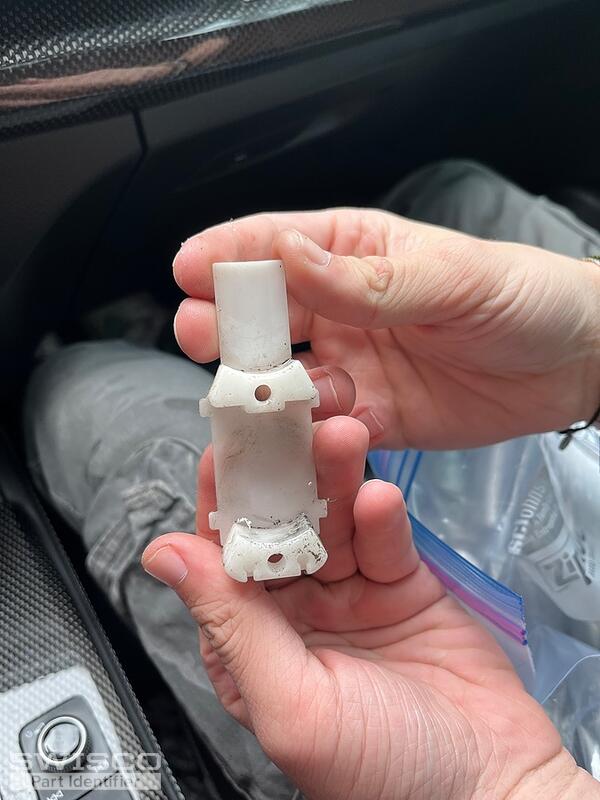

This is on an ocean facing window. These are the left and right top sash pivot pins broken off in shoe and attach to window via 3 screws in an "L" type piece, which appears broken. The pin slide into the window frame, attached by 2 screws into the frame and 1 screw on the side where the actual pin ... (cont.)

I need the coves for the balance springs.

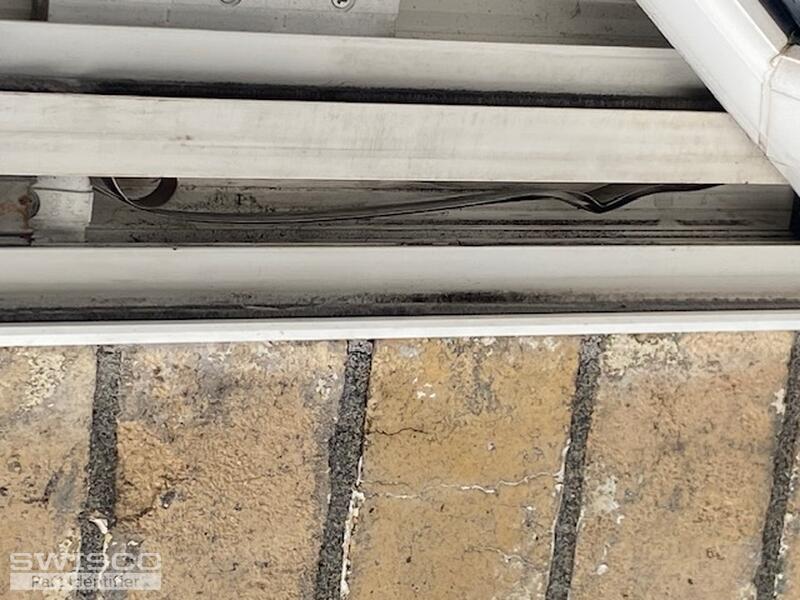

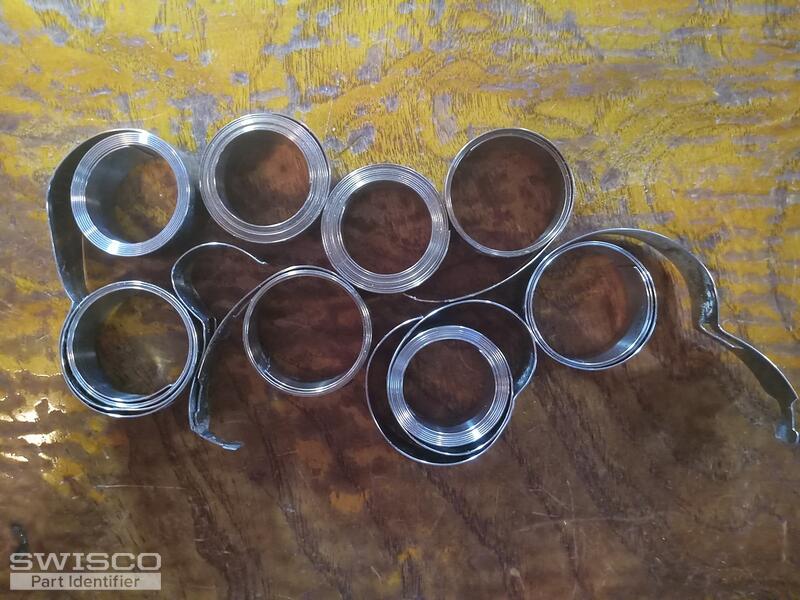

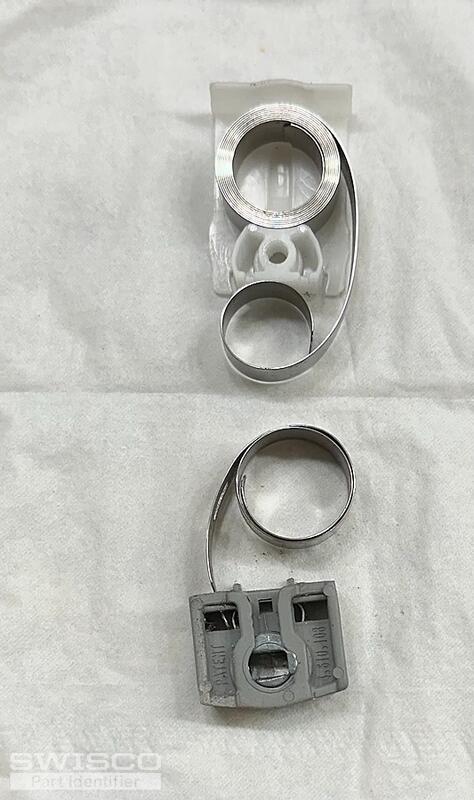

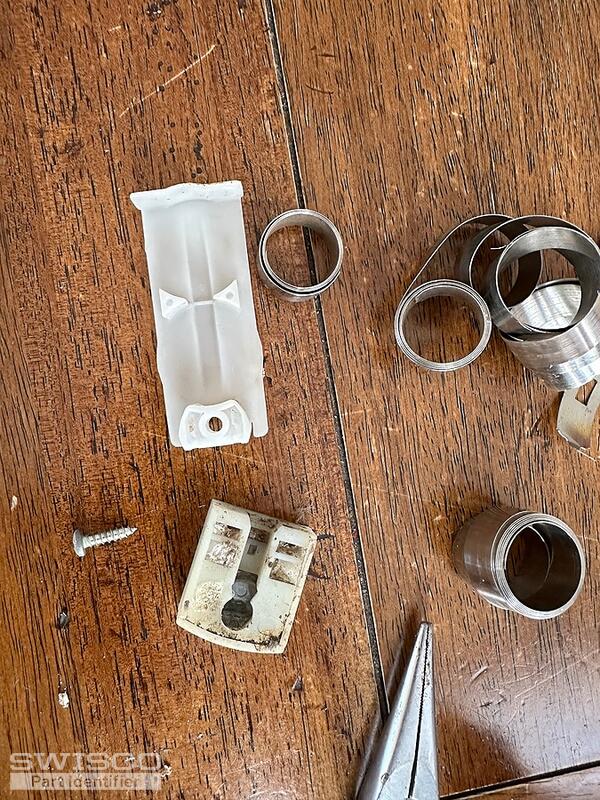

Hi, I would like to buy replacement coil balance hardware for a Milgard double hung window. The coils for the upper sash broke as shown in the attached photos. I figure I might as well replace the coils for the lower sash while I'm at it because they probably aren't far behind. The coils for the upp ... (cont.)

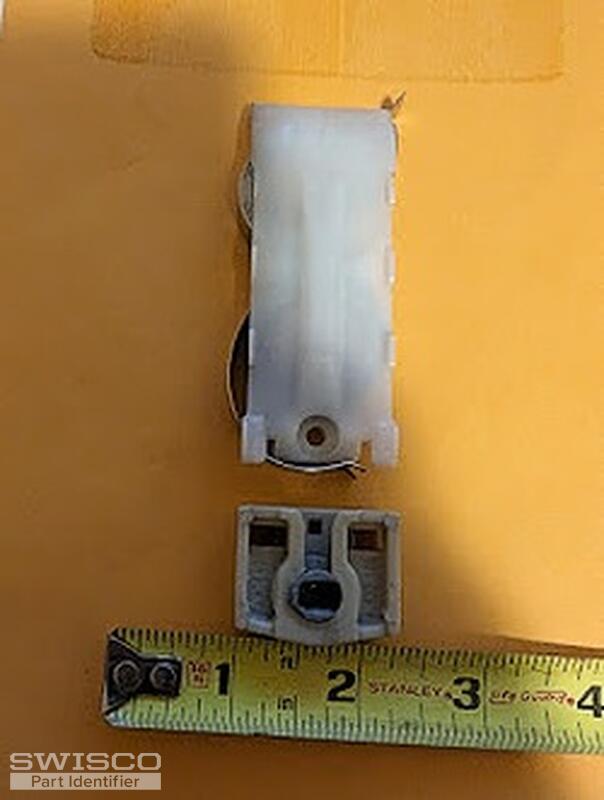

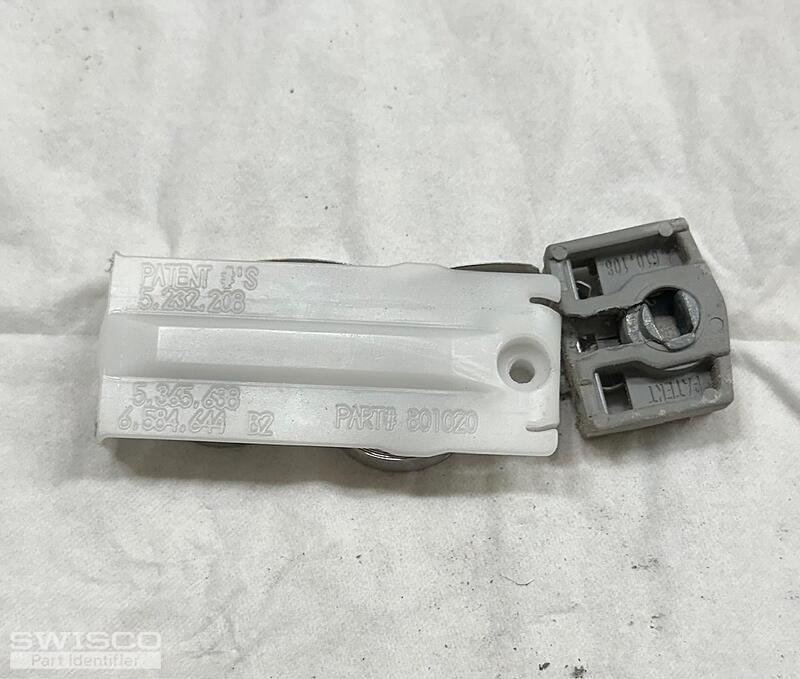

Part size 2 15/16 inch by 1 3/16 inch, not including shoe part in photo. I need two constant force window balances including shoe and coil springs. Window manufacturer is Hayfield Windows, Double Hung Window #800 Part # on photo is 801020 Window weight is 24 lbs., so need to support 12 l ... (cont.)

Can you tell me if you have the parts shown in the attached photos

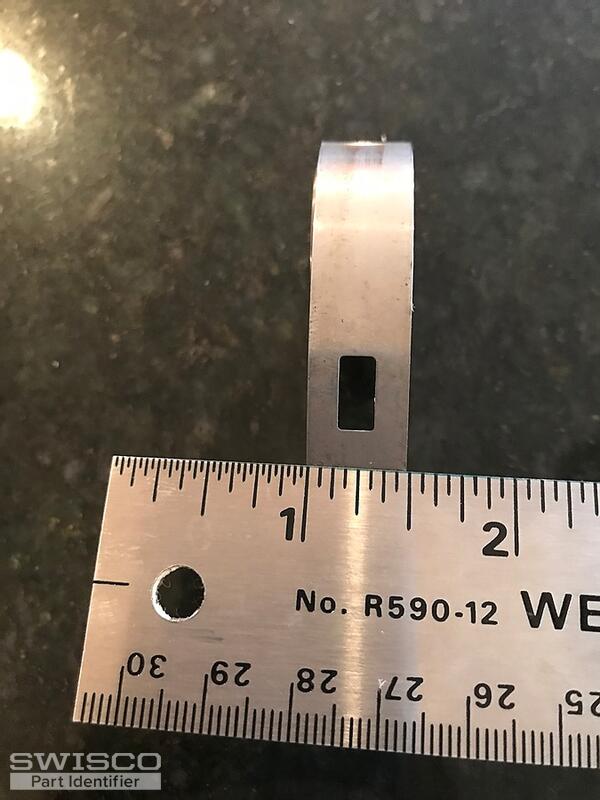

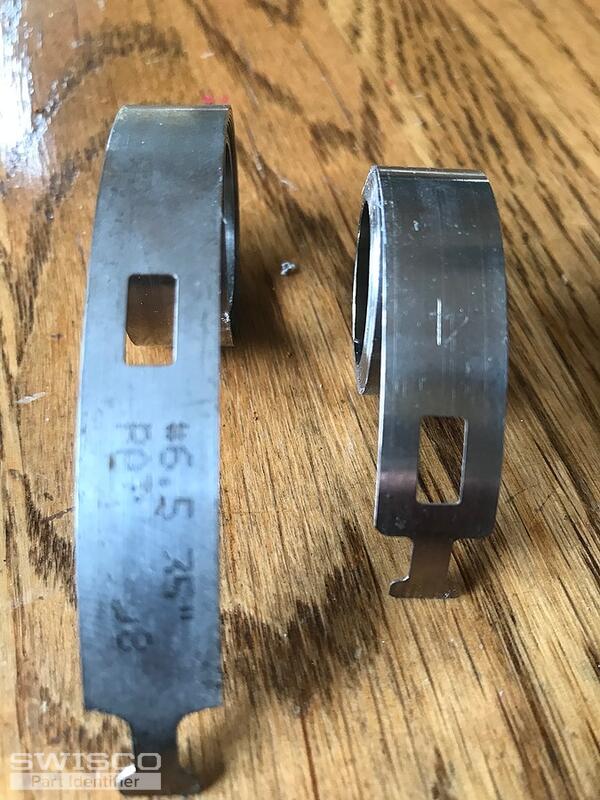

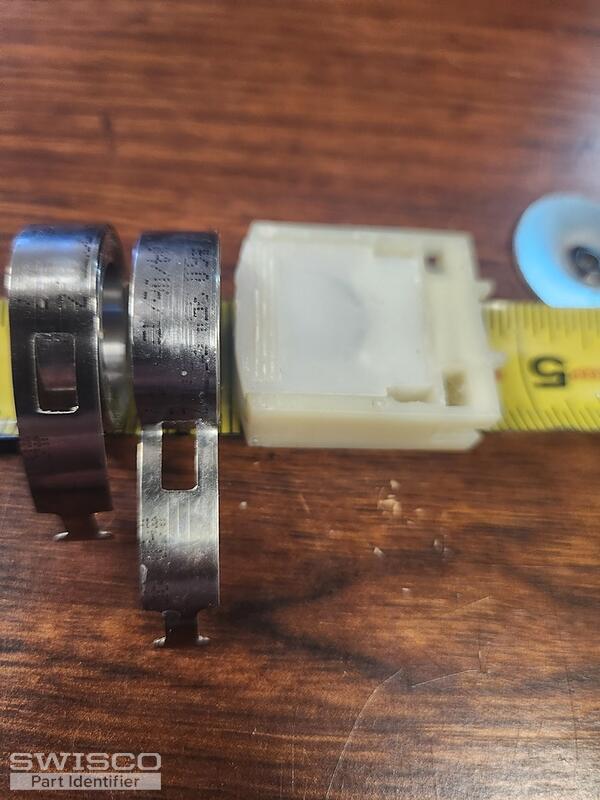

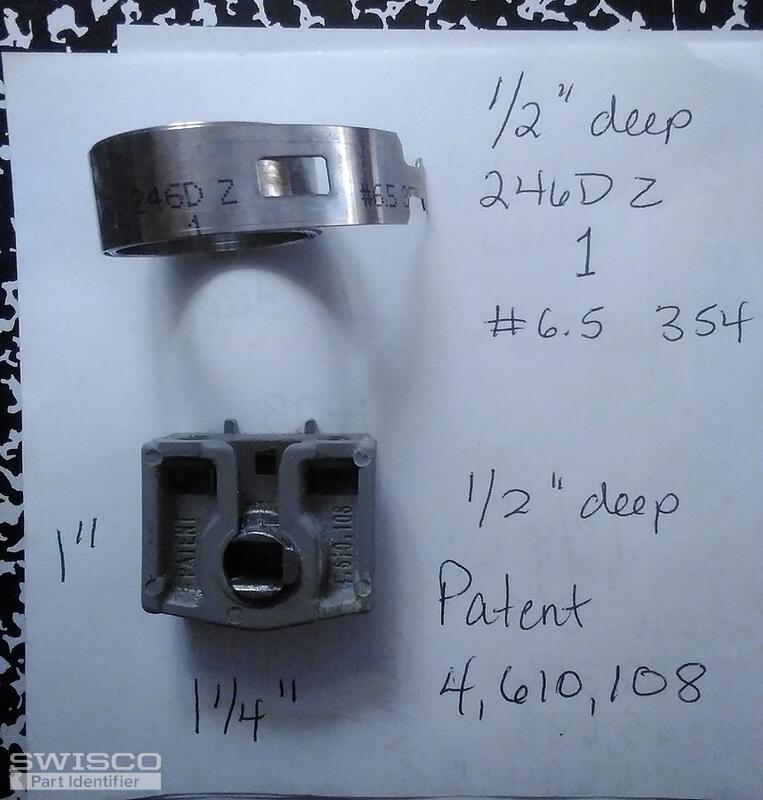

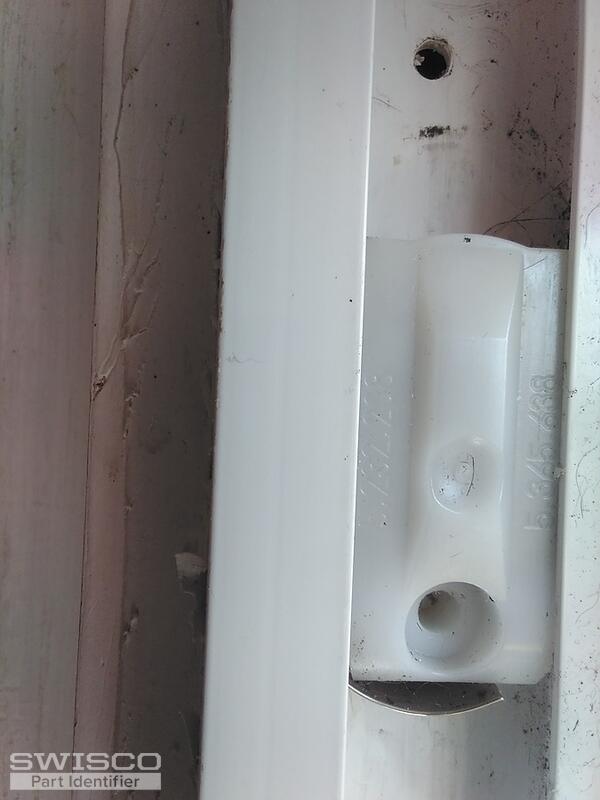

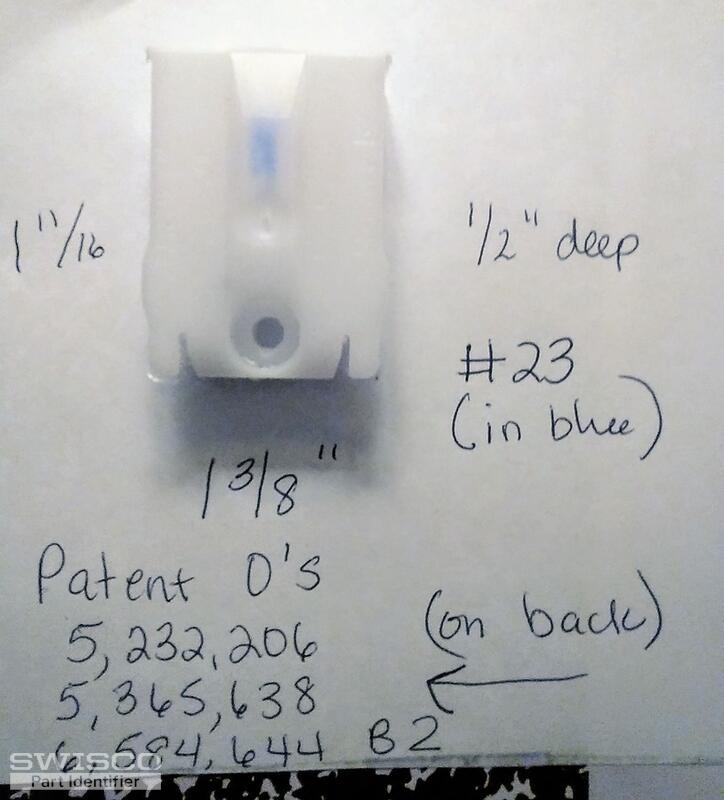

What should we reorder? Metal coil is 1/2" wide and has the numbers 246D Z with a 1 under the D and #6.5 354.The gray shoe is 1/2" deep, 1" in length and 1 1/4" wide and has Patent 4,610,108. The white coil housing is 1/2" deep, 1 11/16 in length at it's middle, and 1 1/4" wide and has the numbers ... (cont.)
