Viewing all customer Discussions for:

15-177 Coil Balance Shoe, Slate Blue

Hi, I need to replace this part. What item number is it?

I purchased part # 15-177.Seems to be a perfect match.I can't get the old coil to go down far enough to line up with screw hole on the new shoe,Not sure what I am doing wrong. Thanks

We have 3 windows that can't stay open. Can you help us out please?

Think I know which ones to order, but rather the experts check

looking to identify and replace several of these tilt shoes. I don't have the name of the manufacturer, but I assume that this is something mainstream from the '90s or maybe early 2000s.

I am looking for about 10 of these if available.Thank You,Brandon

Good morning! Only the bottom half of the window raises/lowers and tilts (single-hung?). The bottom half is 30 inches in length, and weighs 18 lbs. It looks like it uses a double coil balance on both sides, but the coil is narrower than a half inch, but the shoe is wider than the coil. There is ... (cont.)

I need 2 of this can you please tell what part number so I can order it thanks

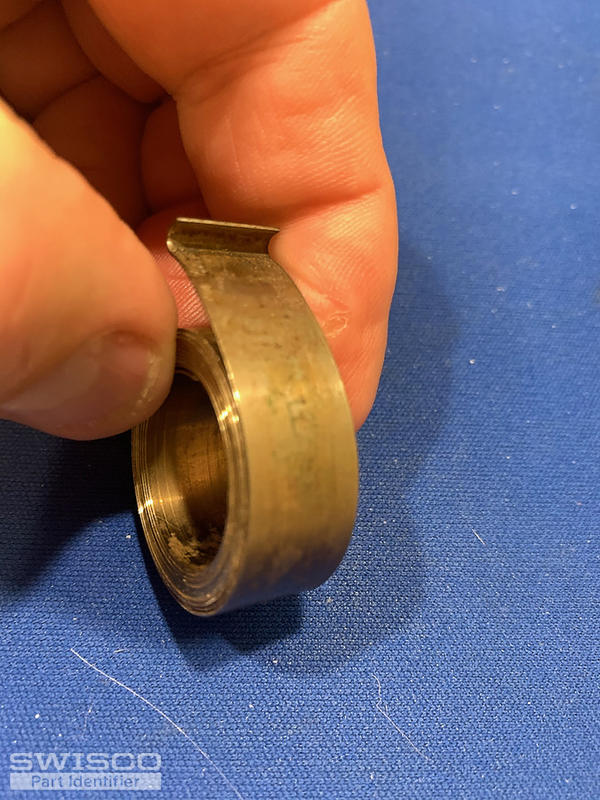

I could only find a 5k imprinted on the top coil. I broke the metal piece the window sits in. If I could just get that replacement part that'd be great.

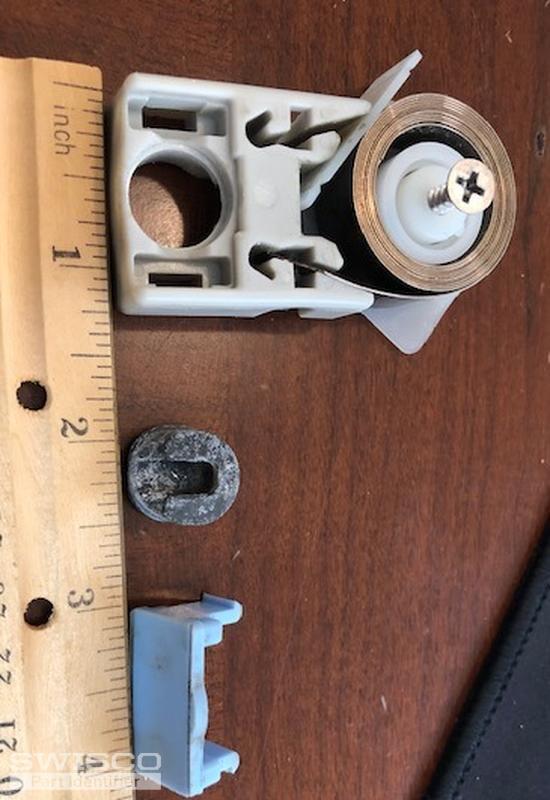

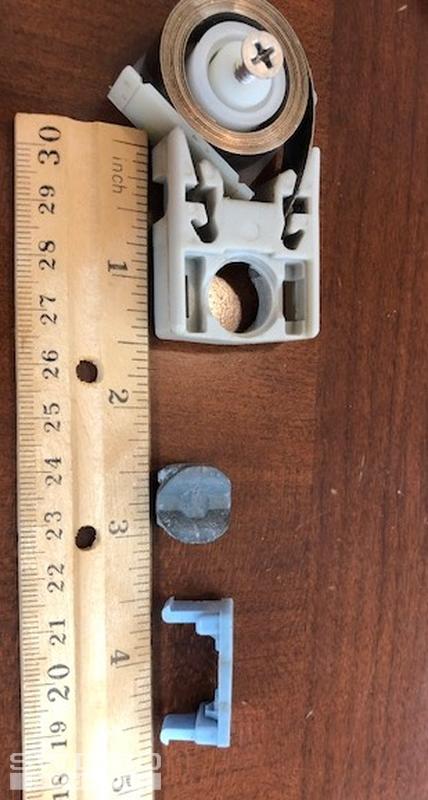

overall length 2 1/4 between screw holes 1" 3/8 diameter of end circle 1/4 inch diameter of I on the end

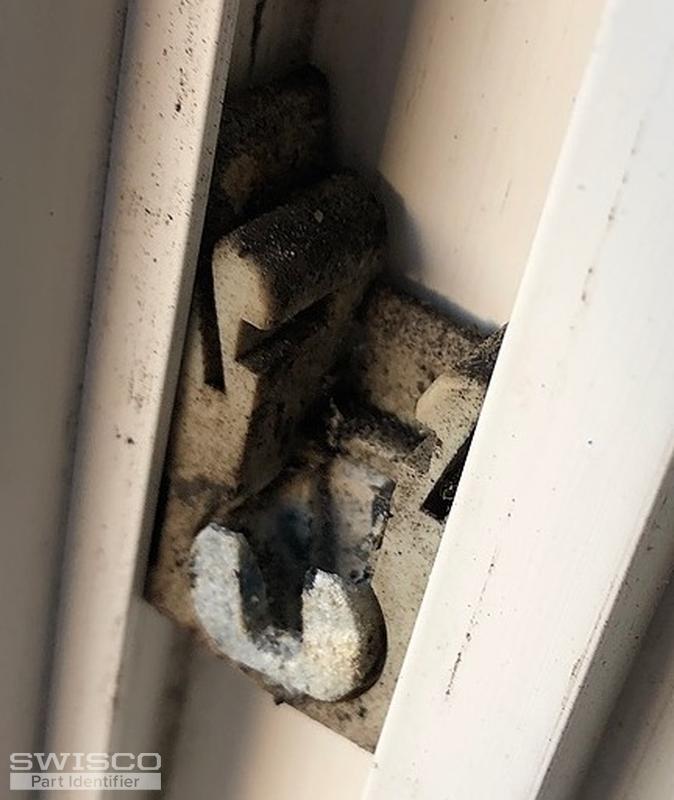

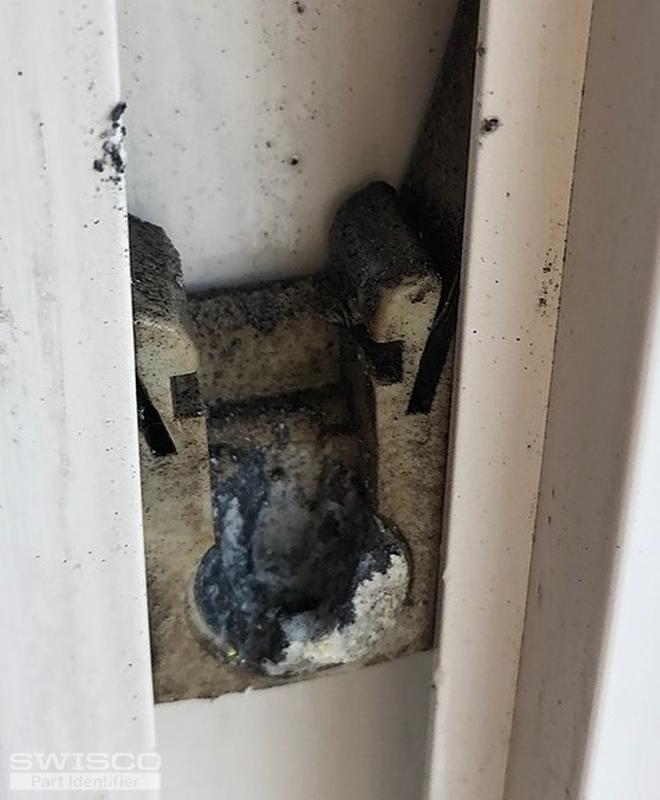

Looks broken

The cam is broken.

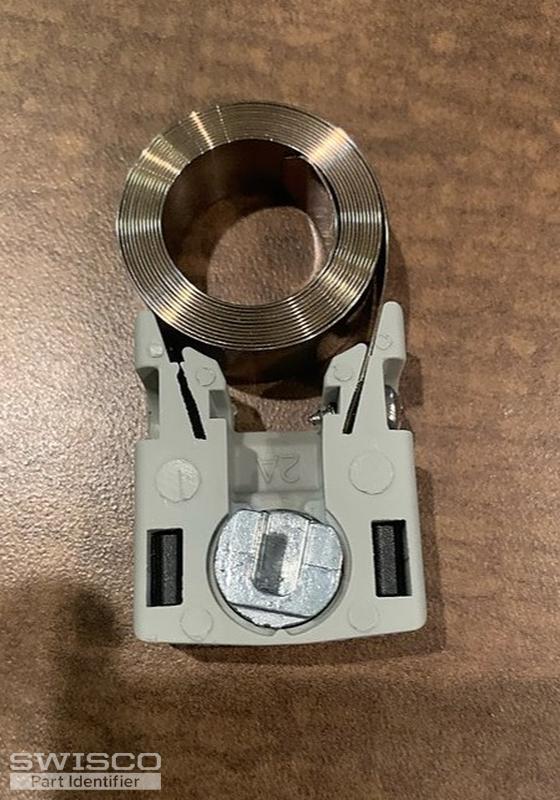

I believe the shoe and coil are Series 152 double coil. coils are 1/2". Coil balance shoe = 15-177 ?? Can not find any number/code on the ribbons other than one has " 5 K " on it. Bottom of shoe is marked red. Can you help identify which coils I need?? Thank you.

Trying to find replacement kit for this type of coil sash

Hello, Could you please help me to get the right coil balance? Not sure which one to order to replace the broken one. Thank you. Kevin.

Hello,Take a look at our expert's recommendations to customers with the same hardware here. Your pivot shoe is no longer being made but our 15-175 or 15-177 could be used as a replacement, which are both used with the S152 coil springs. As for your pivot bar, start by comparing the dimensions and of ... (cont.)

Caldwell. I believe?Roughly 1.25 long be 1.25 wide will I need the spring or just the "shoe"Cant seem to locate right part from your site.

Here's a pic of the pivot boots in my windows.and a pic of the only sticker I can find on the window with any info. Just bought this house and need to replace one. The boot fits your pivot bar 26-030. Going to order the bars now tried looking up the business name based off what I can see on the st ... (cont.)

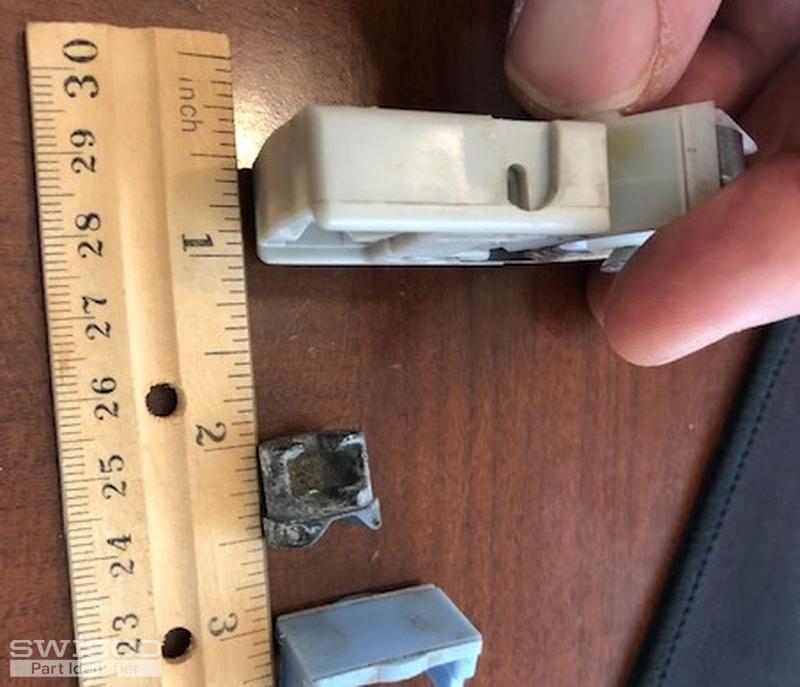

Good Evening,Would you please help me identify this part or which of your products would replace this? I'm measuring 9/16" deep, 2" long, and 1 1/4"wide. The locking latches say Champion.Thank You,Mike

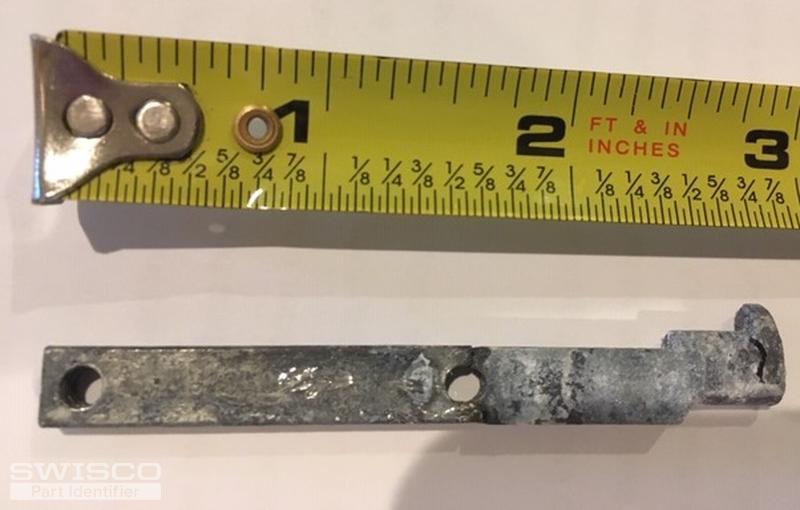

I'm not sure which Pivot Bar to use. The Bar for my window was broken on both sides at the weakest point, the screw hole. I didn't think to actually measure anything with a digital caliper until after I put what remained of the pivot bar back to at least have a window in place. I did take a picture ... (cont.)
