Viewing all customer Discussions for:

15-177 Coil Balance Shoe, Slate Blue

overall length 2 1/4 between screw holes 1" 3/8 diameter of end circle 1/4 inch diameter of I on the end

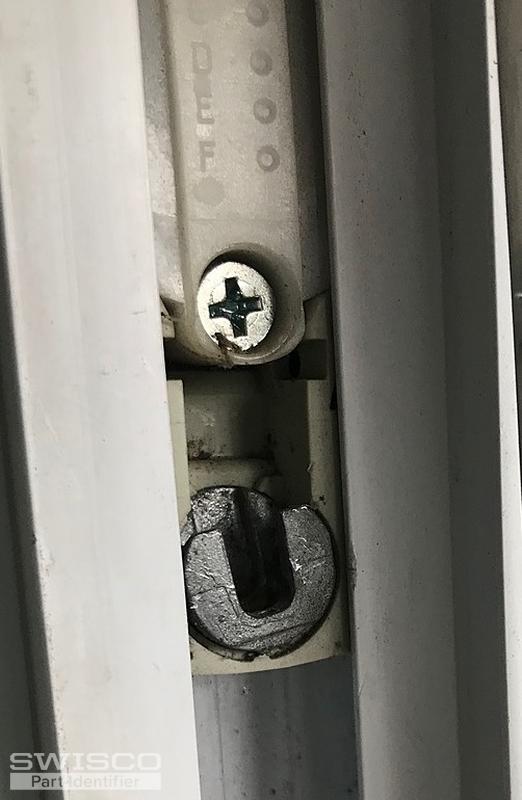

Looks broken

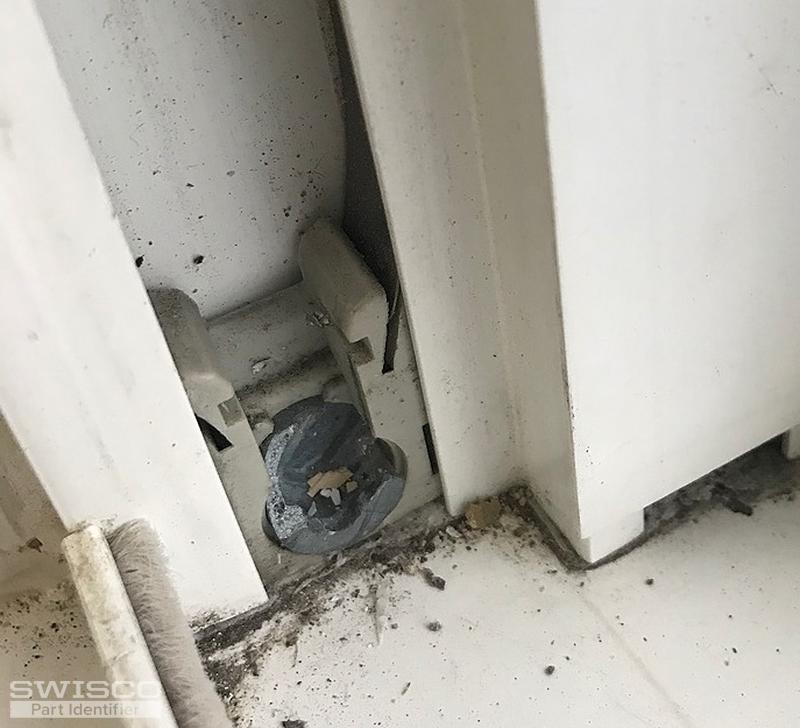

The cam is broken.

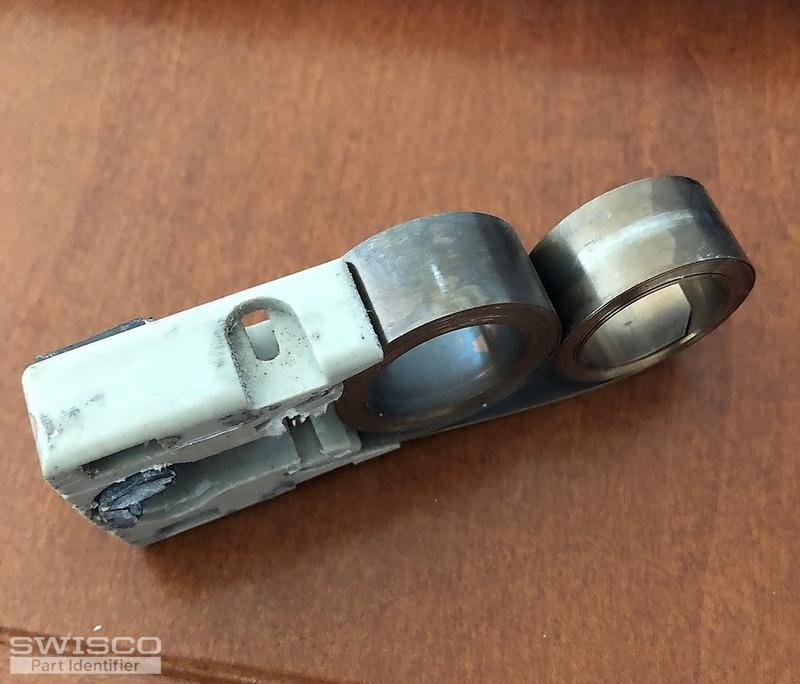

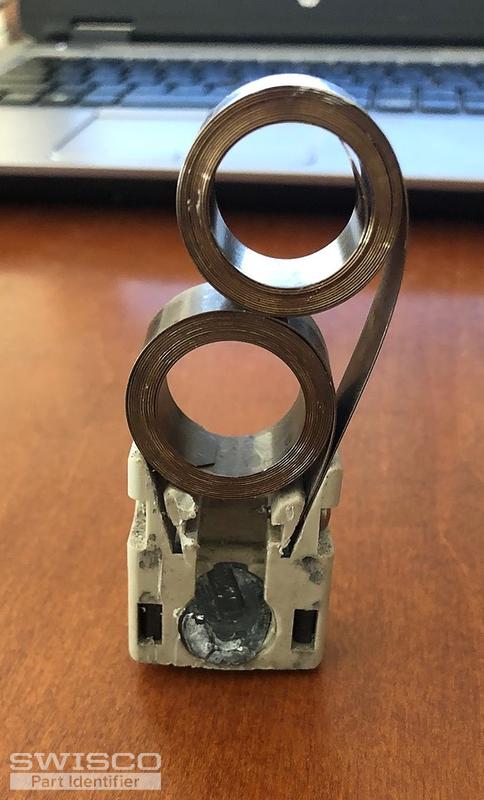

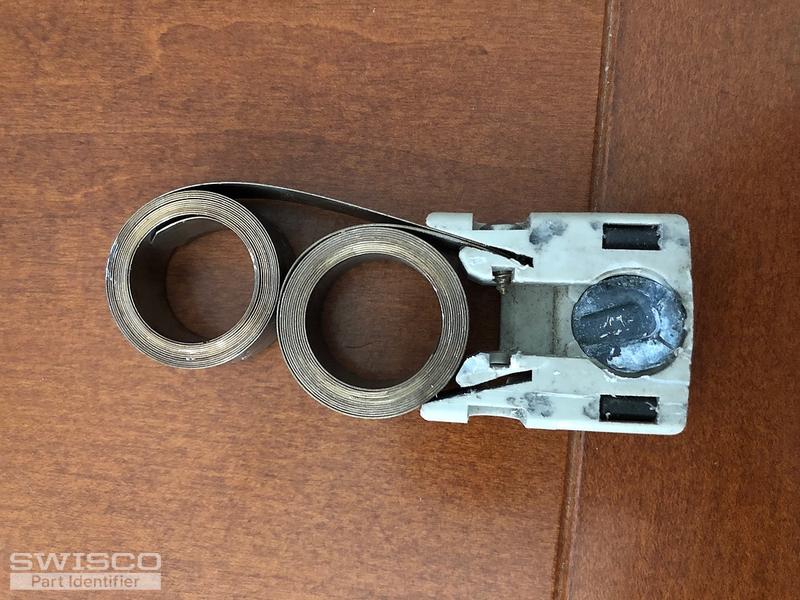

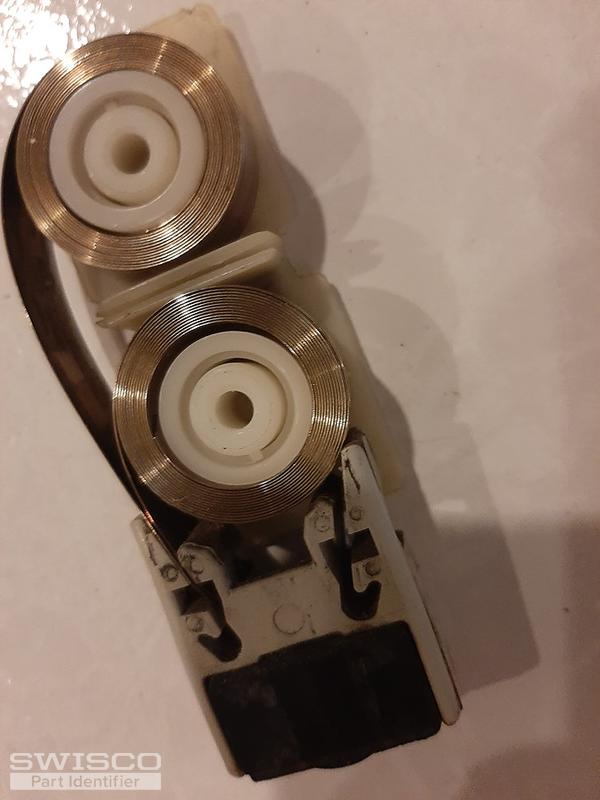

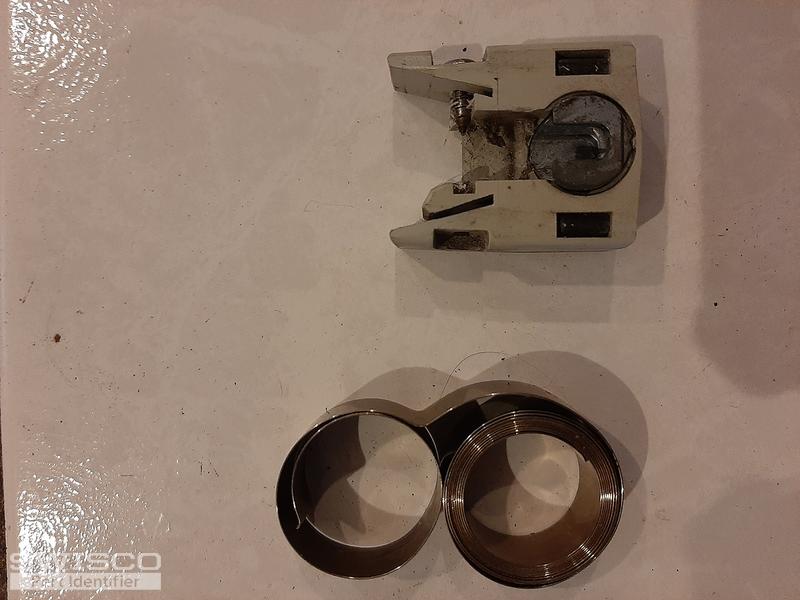

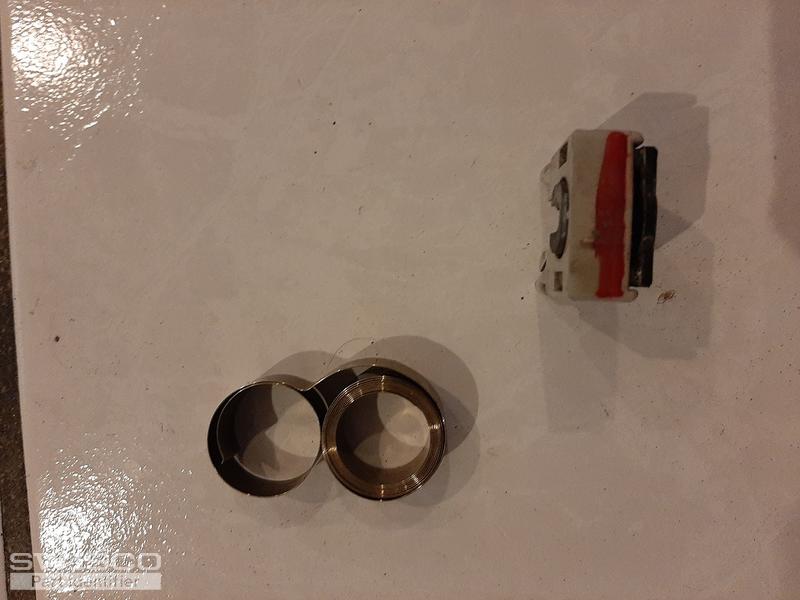

I believe the shoe and coil are Series 152 double coil. coils are 1/2". Coil balance shoe = 15-177 ?? Can not find any number/code on the ribbons other than one has " 5 K " on it. Bottom of shoe is marked red. Can you help identify which coils I need?? Thank you.

Trying to find replacement kit for this type of coil sash

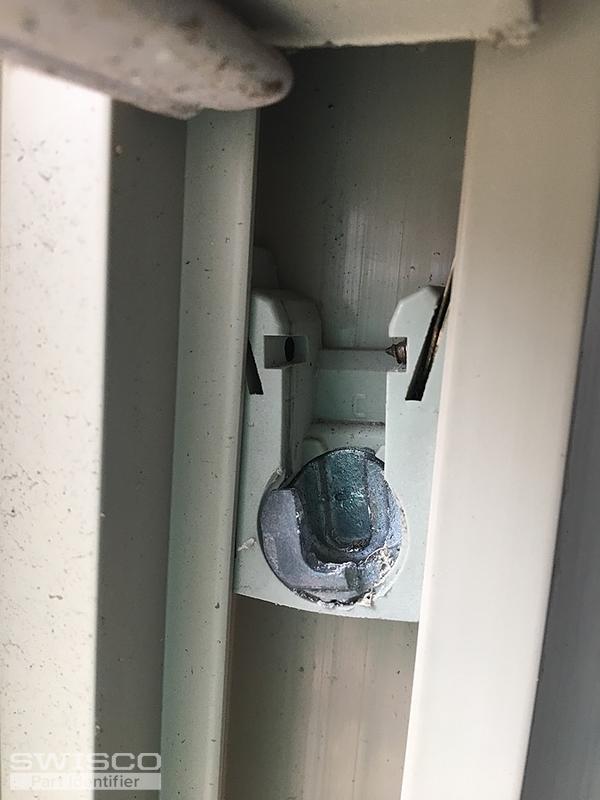

Hello, Could you please help me to get the right coil balance? Not sure which one to order to replace the broken one. Thank you. Kevin.

Hello,Take a look at our expert's recommendations to customers with the same hardware here. Your pivot shoe is no longer being made but our 15-175 or 15-177 could be used as a replacement, which are both used with the S152 coil springs. As for your pivot bar, start by comparing the dimensions and of ... (cont.)

Caldwell. I believe?Roughly 1.25 long be 1.25 wide will I need the spring or just the "shoe"Cant seem to locate right part from your site.

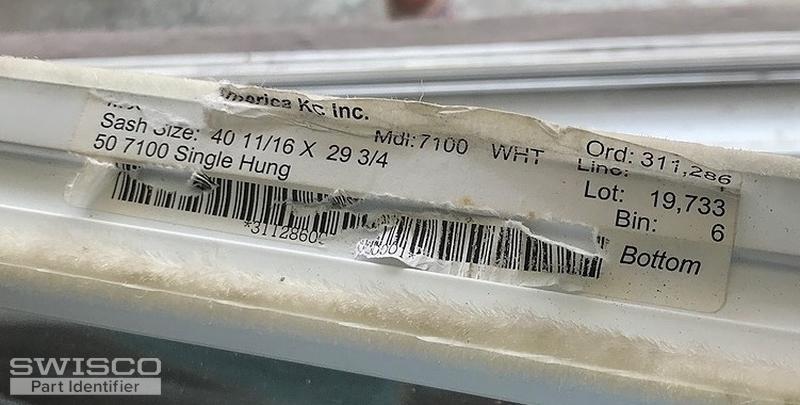

Here's a pic of the pivot boots in my windows.and a pic of the only sticker I can find on the window with any info. Just bought this house and need to replace one. The boot fits your pivot bar 26-030. Going to order the bars now tried looking up the business name based off what I can see on the st ... (cont.)

Good Evening,Would you please help me identify this part or which of your products would replace this? I'm measuring 9/16" deep, 2" long, and 1 1/4"wide. The locking latches say Champion.Thank You,Mike

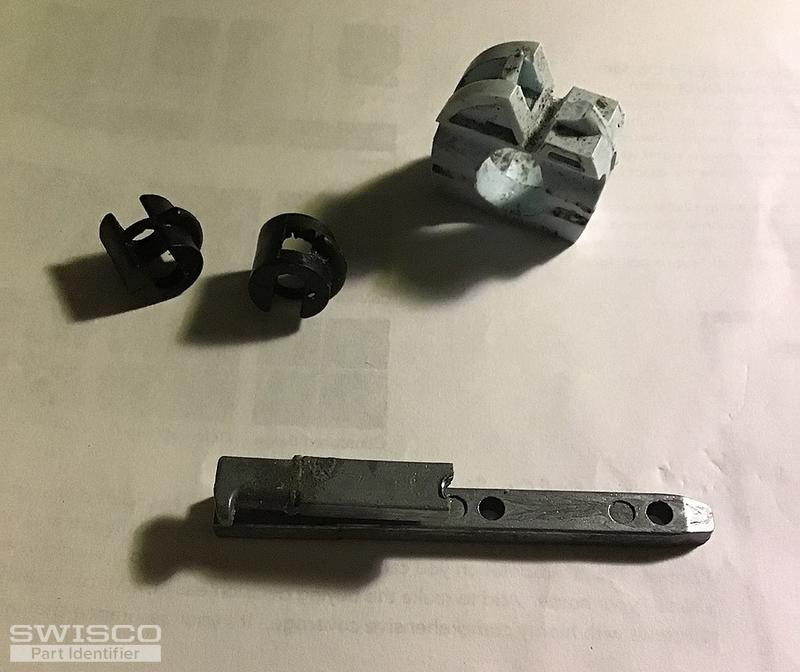

I'm not sure which Pivot Bar to use. The Bar for my window was broken on both sides at the weakest point, the screw hole. I didn't think to actually measure anything with a digital caliper until after I put what remained of the pivot bar back to at least have a window in place. I did take a picture ... (cont.)

Hi, looking for a window balance replacment.Windows were installed 2001. Also do i need to purchase metal band also Thanks

Looking for 10 replacement cast parts that have broken in my vinyl windows.

I need the the shoe assembly for my vinyl tilt in window. The no. at the top of the window is: 113-712642 The window will not stay up because a piece of the "shoe" came off and the pin on the window will not stay in the shoe to move up and down.

I bought the Coil Balance Shoe (15-177) and the suggested 6 lb 152 Coil Balance (S152-6) as replacements for my window. I don't understand how the Coil Balance attaches to the Coil Balance Shoe. Is there a pin that is inserted thru the side of the Coil Balance Shoe thru the hole in the end of the Co ... (cont.)

I need help identifying correct replacement part, please

Hi I am looking for the silver metal cylinder like sticking out of the side in the second picture and I believe it's called a balance assembly in the first picture. Thank you

I have no clue how to fix this or where to get the part. This is a alside window. I have 2nlike this. Any help would be appreciated thank you

I need to replace entire set for double hung window.....what do I order please? Thanks

Associated materials incorporated impact windows installed 3/19/2008Sash hardware to attach window. To frame, plastic insert with ring where window attaches and tilts out for removal.and aluminum stem to attach sash into this plastic fitting4 windows have these broken partsThank you Elmer ... (cont.)
