Viewing all customer Discussions for:

15-177 Coil Balance Shoe, Slate Blue

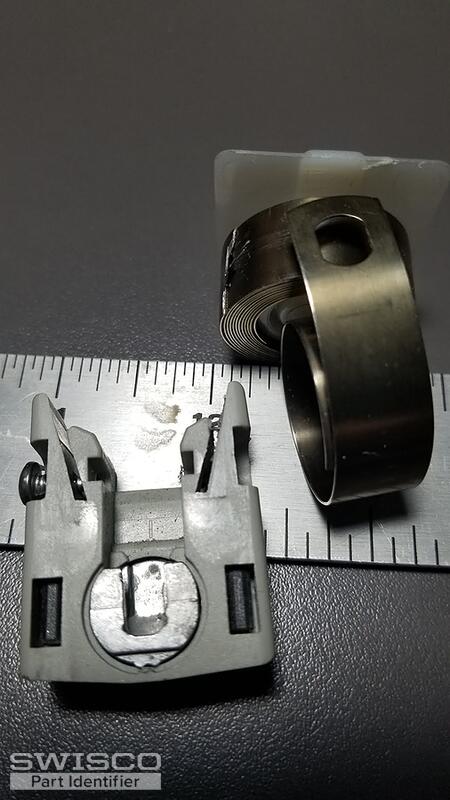

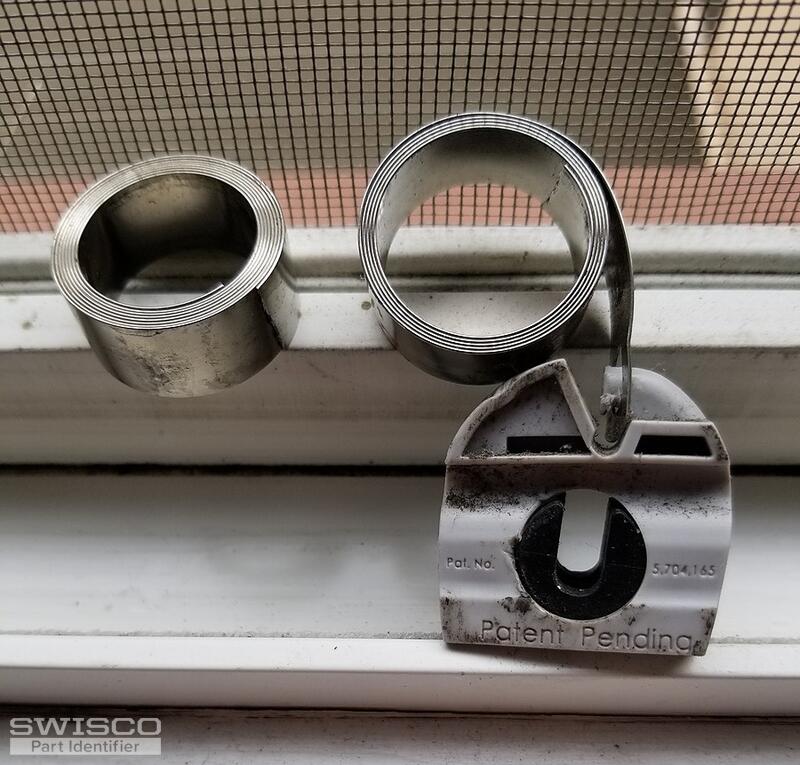

Both Balance coils on my sash window broken. Not sure about the coil lb size. Thre's a part number on the shoe: 5.704,165 The size of the sliding part of the window is 27"w by 20"h. The width of the shoe is 1.25". Thank you for your help

This picture of the small 1 1/2 part that is in the the track . The piece that hold the part is broken and the part falls to the bottom of the track. The window will fall without resistance. Attached to it is a length of metaltjat sits in the track.

Hello, We have put together a hardware order but have one part that we can not seem to identify. Please see photos of drum roller attached that we need to ID. We would be looking to order Thirty (30) of these. These would be used with Swisco series 152 coil balances for 9 lb. sash. ... (cont.)

Panel is 33 1/4 wide and 17 1/2 high . K8 is stamped on the coil. The locking shoe is 1 1/4 wide and 1/2 inch thick.

Both sides snapped

No #'s on parts.

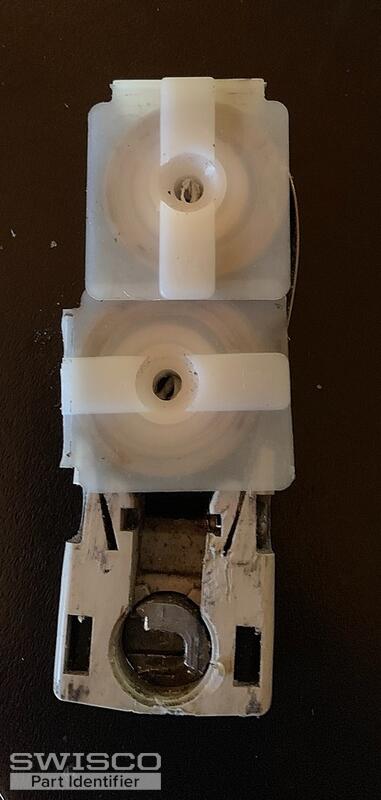

The balance pictured is the one that came out of the window. The only markings I could find are "15," and "13," on the upper and lower coil covers respectively. I did order a couple of the s140 balances and they fit dimensionally, but two 8-pound balances are too weak for this window. I believe a 3 ... (cont.)

Looking for part identification and place to purchase the parts for Alside double hung tilt windows.

Have a coil I am trying to identify weight it has either a 6 or a 9, from the screw hole on top it's a 9, if I were to hold it with the tab pointing up.

what replacement part to buy

I broke a coil spring support removing from the frame. I would like to get a replacement. I have a 15-177 pivot shoe and an S152-8 coil spring. Thank you.

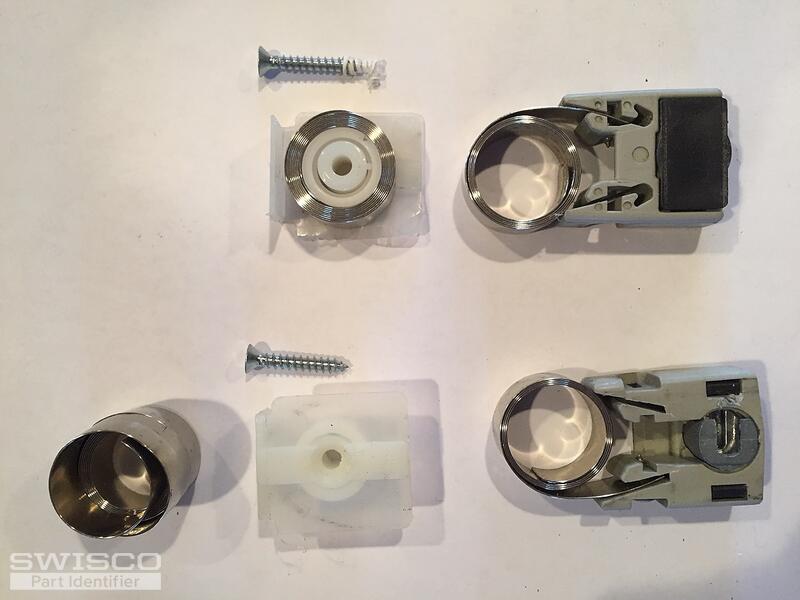

Please see picture. Is there a part(s) that can replace this? I'm looking for quantity 6.

For Kolbe & Kolbe double hung windows. The most common of the window sashes weighs in at 18 lbs. The dimensions of the parts are shown in the photos.

These pivot locks are for a Pro Series 3000 double hung window. I'm not sure about the manufacturer. Any info you could provide would be helpful.

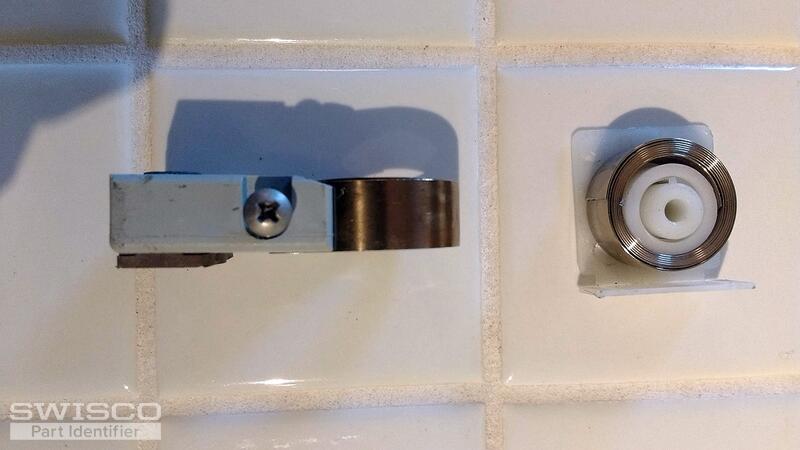

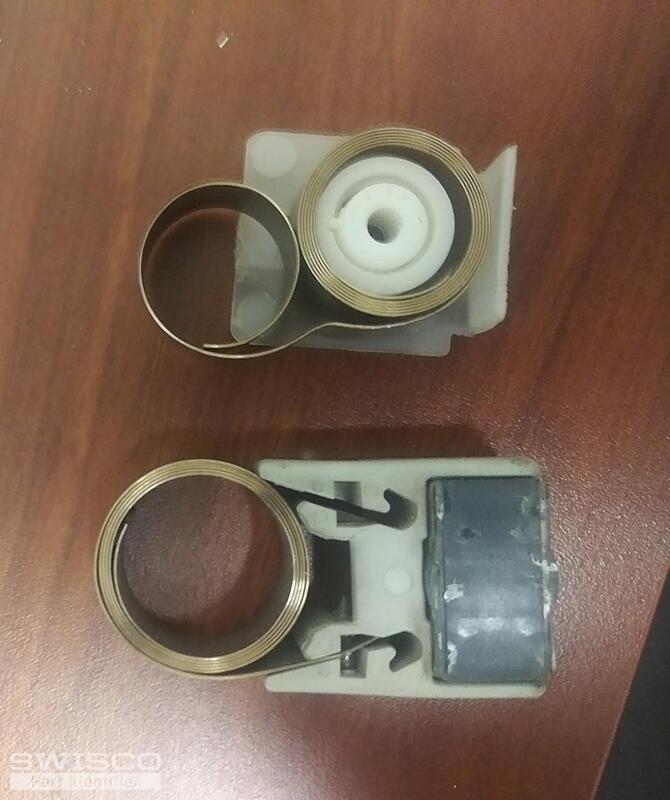

The attached photos(Coil Balance Sash II and I) are the parts I need. I ordered part #S152-7 7lb Series 152 Coil Balance instead but it is incorrect. I also need to know if you are able to identify the tilt latch PAT.#5,139,291(7B).

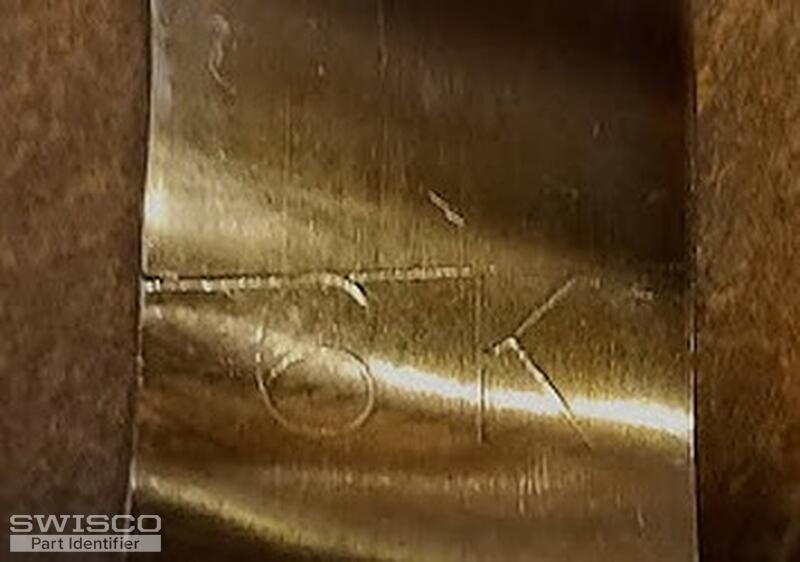

6K is stamped on the coil

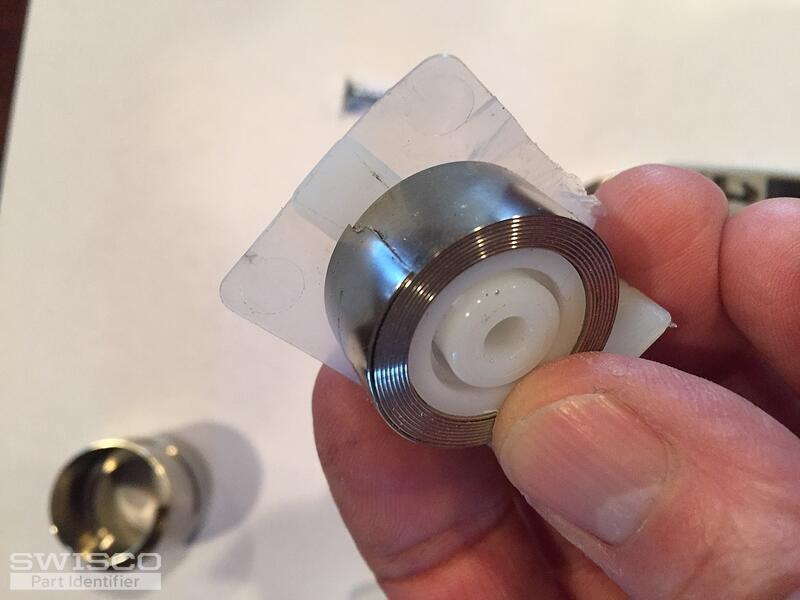

I have an RBS Performance Plus window made by Alliance that has a broken coil balance. The coil is 1/2 inch wide and has what I believe is a "9" stamped on it (see photo). Not sure if it's a "9" or "6" - depends on how you orient the coil. The number matches the orientation of your 9 lb Series 152 C ... (cont.)

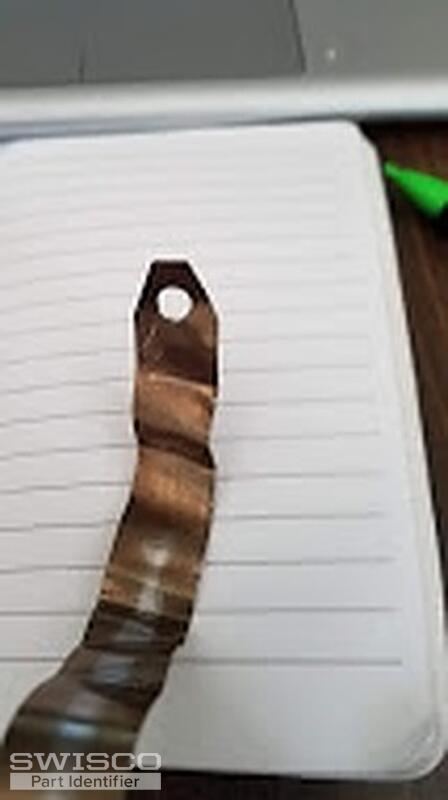

Good Afternoon.I got called in to fix a Comfort World vinyl window. The steel spring on one side was broken and mangled. The serial number on the window is longer legible. Looks like S152 coil. But I don't see a stamp on the coil. What more info do you need? Weight of window? Height of window?The sa ... (cont.)

Both springs on my double hung window broke within a few days of each other, looking to replace them but they are stamped with "10" which does not match any of the descriptions. Which should I choose?

My Prestige home built in Canada came with Kohler Windows. The bottom pieces that fit into the side metal springs, that slide the window up and down, have broken. The window no longer slide, but can be shoved, up and down and held open with a piece of wood. The window numbers are: KV 376 821046 ... (cont.)
