Viewing all customer Discussions for:

15-177 Coil Balance Shoe, Slate Blue

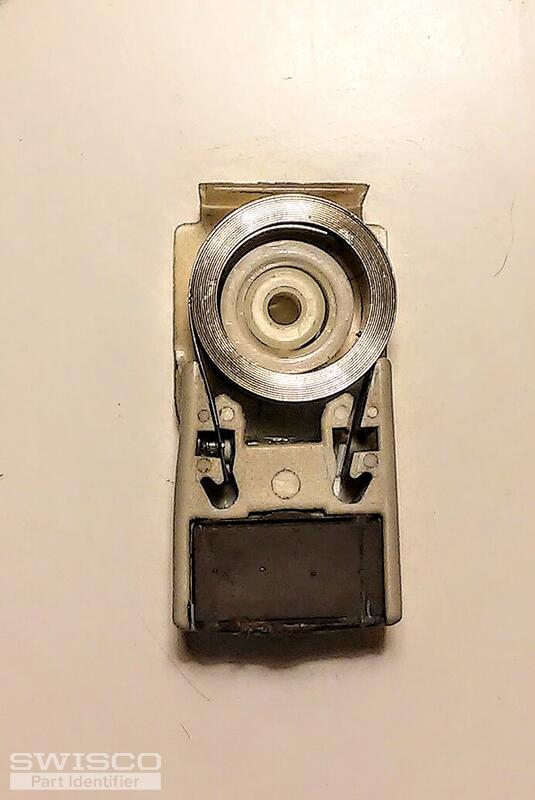

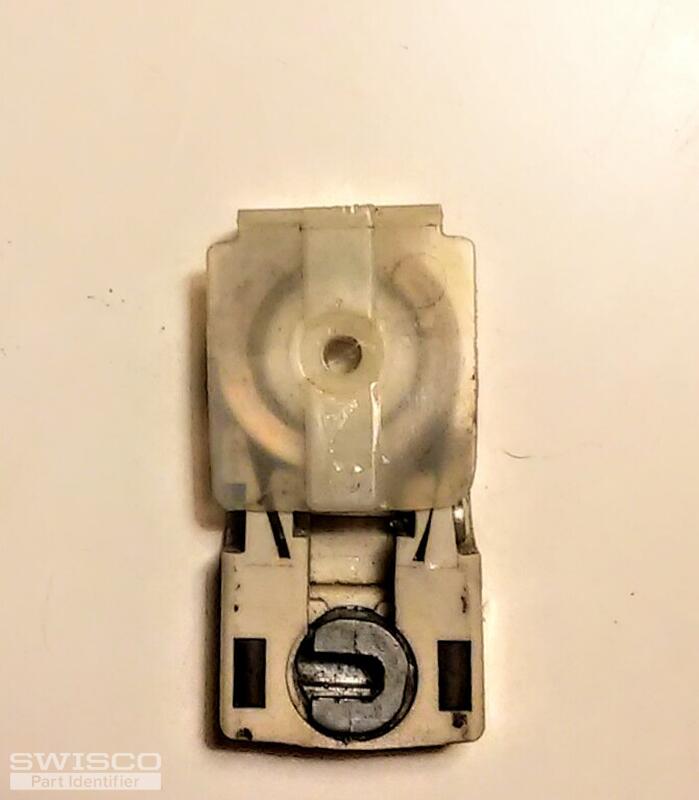

need both right and left side cams or clutches (not sure what they are actually called) for a double hung vinyl window. Did not disassemble as I wasn't quite sure of the procedure. Additional photos provided to assist in identification.

Hi, the coil balance of our hung window is broken. Which parts do I need to replace it? Thank you.

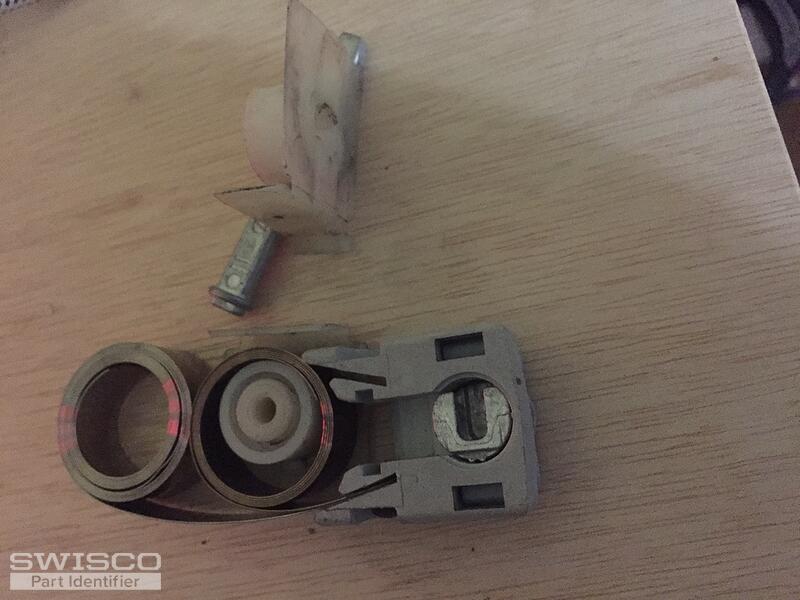

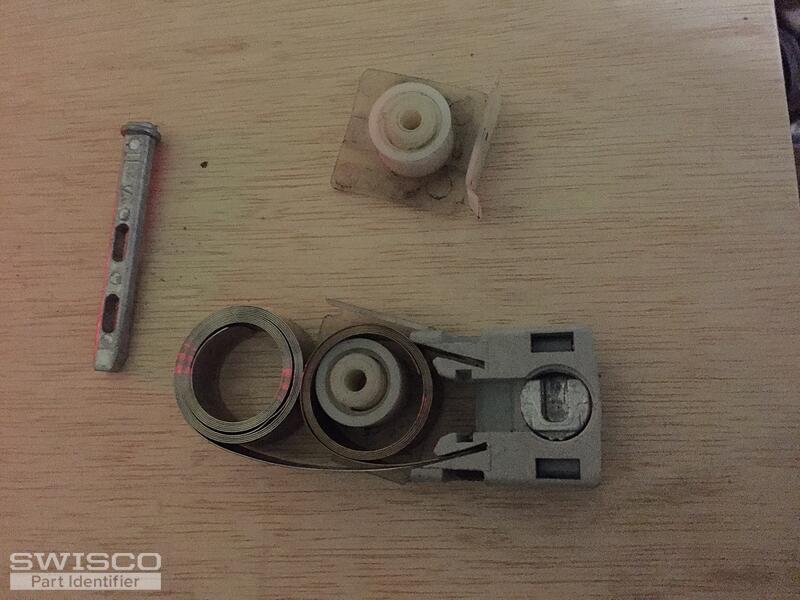

Moved into a house with multiple windows broken as seen in the first photo. Determined it to be a coil balance, but it was in pieces when I got it out. I'll be honest - not sure how they got them in in the first place as there is no distinct opening in the channel to pull them out, had to pry out wi ... (cont.)

Hi All, I need to replace the coil balance shoe in my window. I purchased a replacement shoe (15-177) and a set of replacement coil balance springs (S152-6, see photo). The old springs have a notch that causes them to connect to the shoe. The new springs have a hole, but how can I fasten the new sp ... (cont.)

Looking for Window pivots Qty(12)

Please kindly help me to check 6K on the original spring, how many Ib shall I buy? 6lb or 7lb Best regards

Unknown window manufacturer. Need 2 coils for bottom sash window, both cracked off and window won't stay open. I possibly could use the part the coil goes into on the bottom of the track. I'll send pictures of the bottom part as well

Hello , I need appropriate pair of pivot shoe and pivot bar for all 3 windows; Please help , thanks . Kyle

Hello there. See our 15-177. Compare the dimensions listed to your old pivot shoe and see if you think this could work for you.

Both Balance coils on my sash window broken. Not sure about the coil lb size. Thre's a part number on the shoe: 5.704,165 The size of the sliding part of the window is 27"w by 20"h. The width of the shoe is 1.25". Thank you for your help

This picture of the small 1 1/2 part that is in the the track . The piece that hold the part is broken and the part falls to the bottom of the track. The window will fall without resistance. Attached to it is a length of metaltjat sits in the track.

Hello, We have put together a hardware order but have one part that we can not seem to identify. Please see photos of drum roller attached that we need to ID. We would be looking to order Thirty (30) of these. These would be used with Swisco series 152 coil balances for 9 lb. sash. ... (cont.)

Panel is 33 1/4 wide and 17 1/2 high . K8 is stamped on the coil. The locking shoe is 1 1/4 wide and 1/2 inch thick.

Both sides snapped

No #'s on parts.

The balance pictured is the one that came out of the window. The only markings I could find are "15," and "13," on the upper and lower coil covers respectively. I did order a couple of the s140 balances and they fit dimensionally, but two 8-pound balances are too weak for this window. I believe a 3 ... (cont.)

Looking for part identification and place to purchase the parts for Alside double hung tilt windows.

Have a coil I am trying to identify weight it has either a 6 or a 9, from the screw hole on top it's a 9, if I were to hold it with the tab pointing up.

what replacement part to buy

I broke a coil spring support removing from the frame. I would like to get a replacement. I have a 15-177 pivot shoe and an S152-8 coil spring. Thank you.
