Pivot Shoe Removal Question

I have some Silverline 1000 series double hung windows that I would like to replace the pivot shoes. They appear to match your 15-046. What tool do I need to remove the pivot shoe? I've looked at your various videos on your website (which are very helpful), and think I might need our 75-069. Can you ... (cont.)

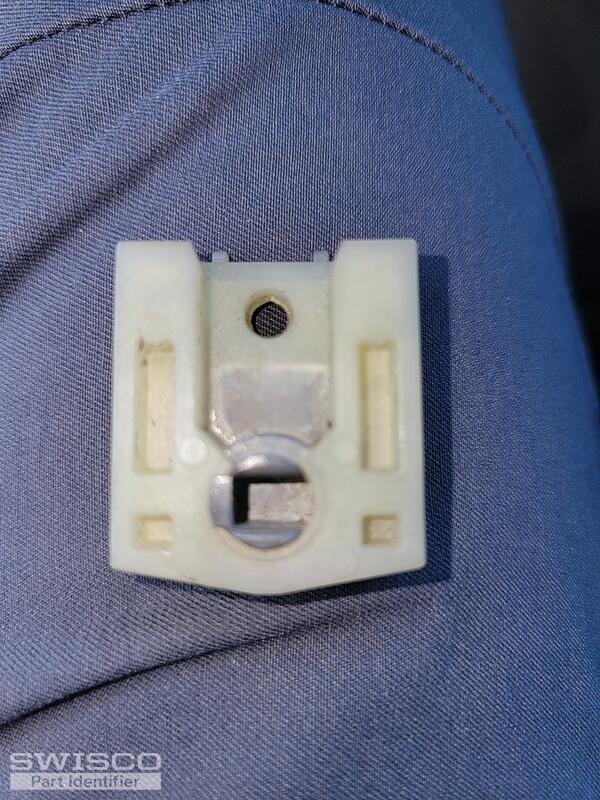

Pivot shoe

Do you have this pivot shoe

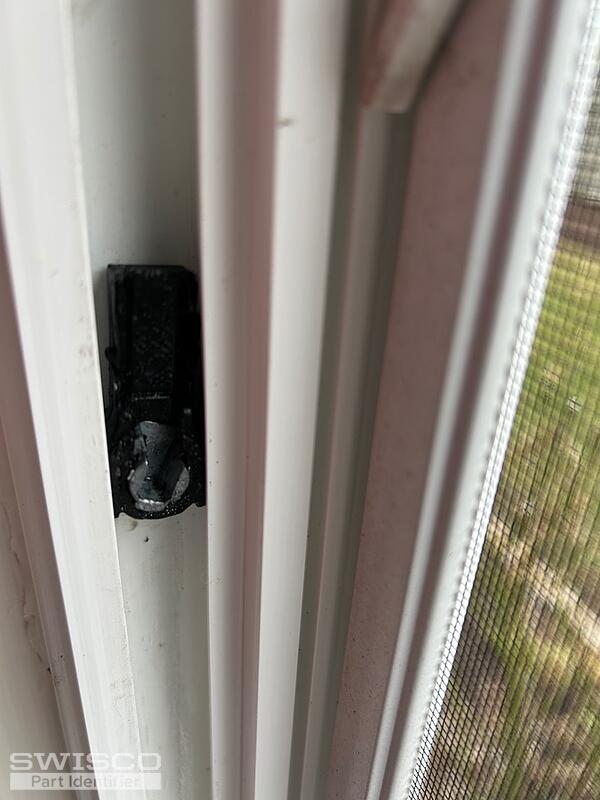

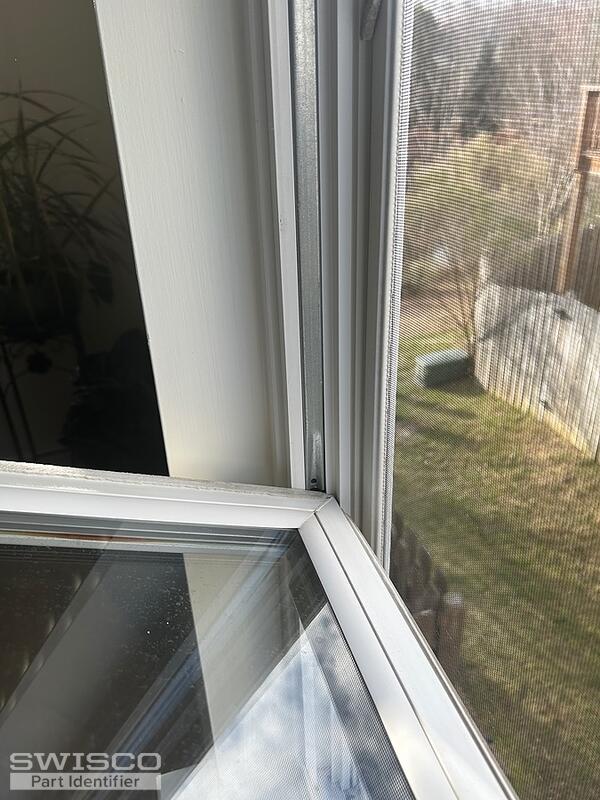

Tilt window pivot shoe

One tilt window in home identical to this one is missing its pivot shoes. No visible markings or branding could be determined anywhere on the window

Small tilt window

I'd like to repair with an understanding of how this #7 spring attachment. I would also like to purchase the spreader tool also hence the broken plastic.

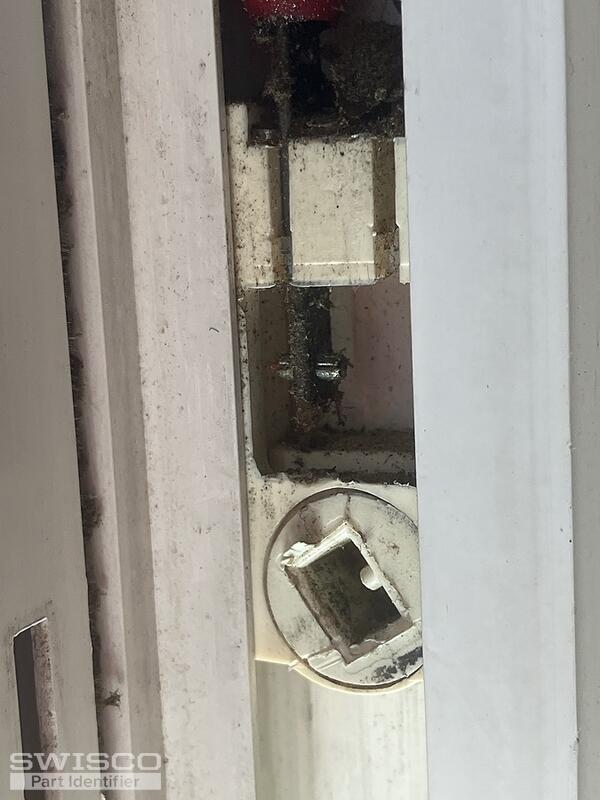

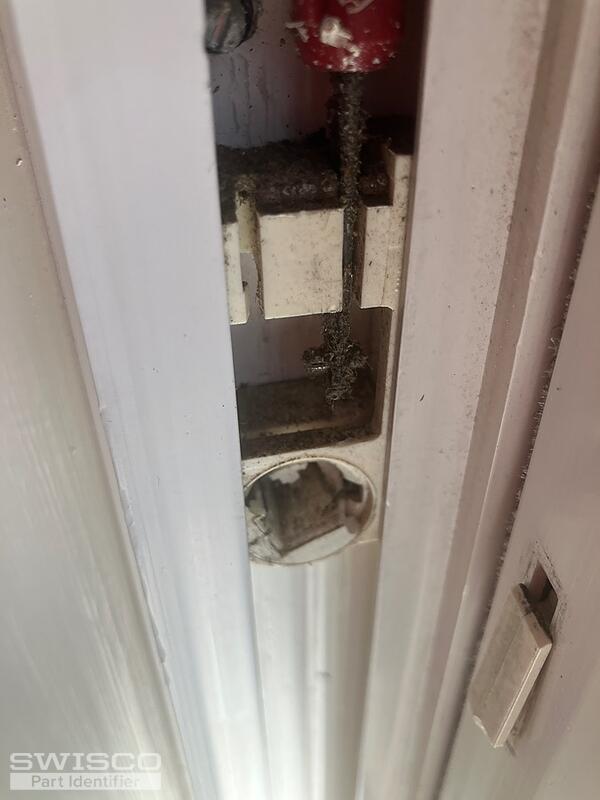

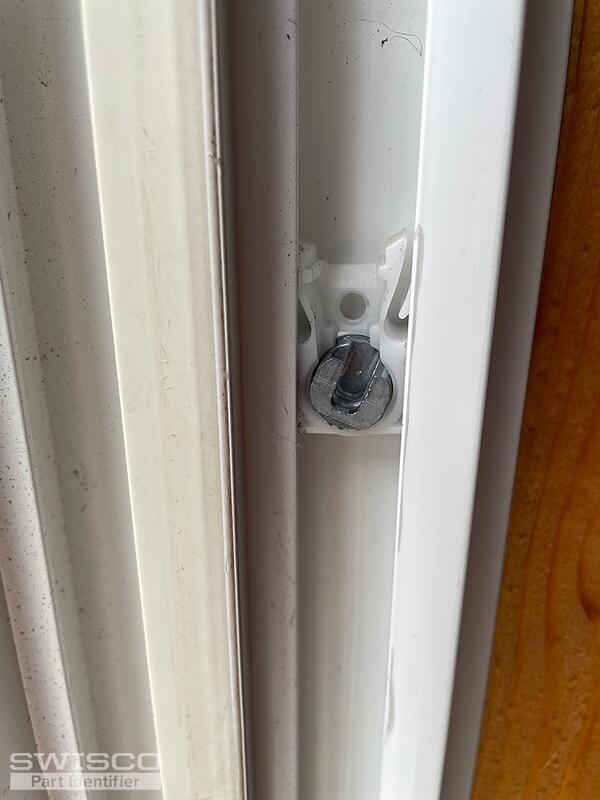

Windows Pivots

Looking to match which part i need. I watched a video and a guy was able to turn the gray part or lock and twist the actual part out. Didn't see how to Get this one outto actually measure it. The reason i was trying to replace them is because my window won't stay up. This happened when i had a cont ... (cont.)

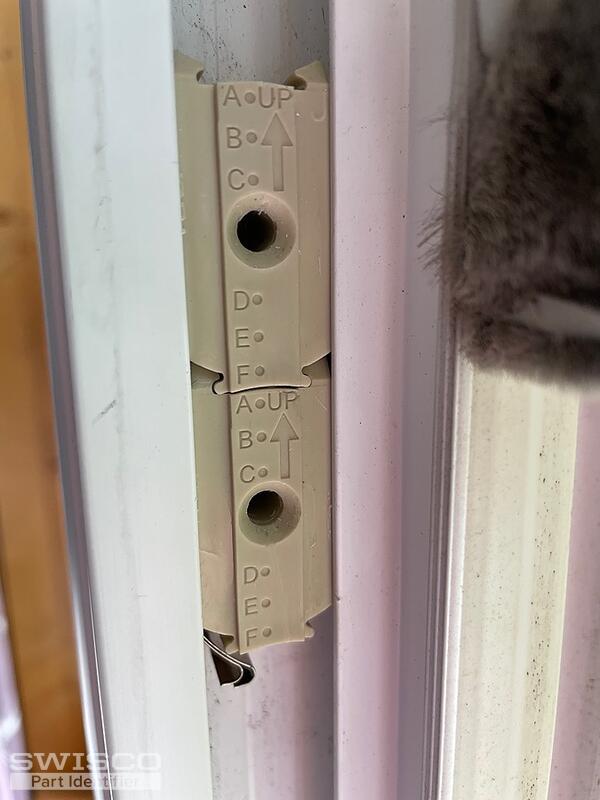

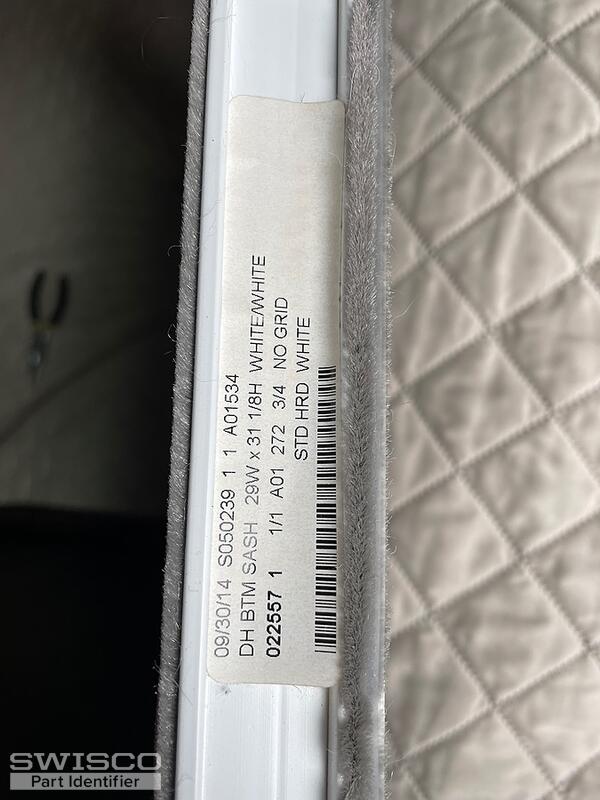

Replacement parts for American Craftsman B50 Series Window

I need two of the following: pivot shoe, coil balance, and support. As you can see in the provided photo of the manufacturer label, it appears to be a B50 Series (American Craftsman) window. There is no open notch in the track for installing replacement parts, but I can cut one out with a Dremel to ... (cont.)

+2

Pivot pin lock shoes

I can't find these on your page of shoes. Are you able to get these? I have for that have evidently broken at the tops where they won't stay in the spring channel

Block and tackle pulley system

I have several 23 year old windows (same brand) with lift failure, unknown brand. The top pulley is broken, as is the metal channel (5/8 inch wide) is stripped at the top. Springs are OK. The entire vinyl channel where the shoe fits is about 1 and 3/8 wide and 5/8 inch deep. The present shoe is abou ... (cont.)

+2

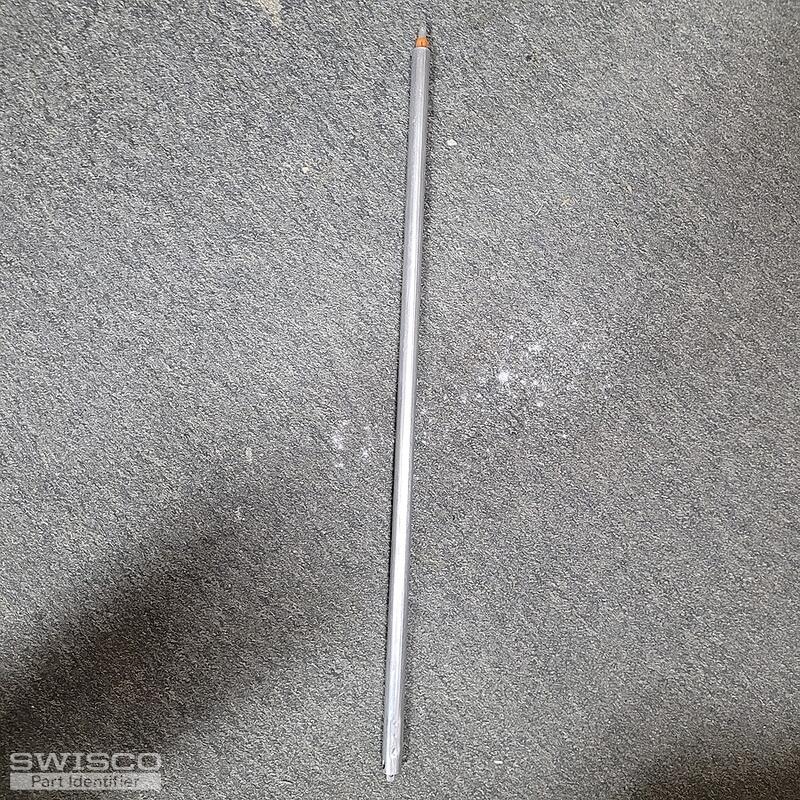

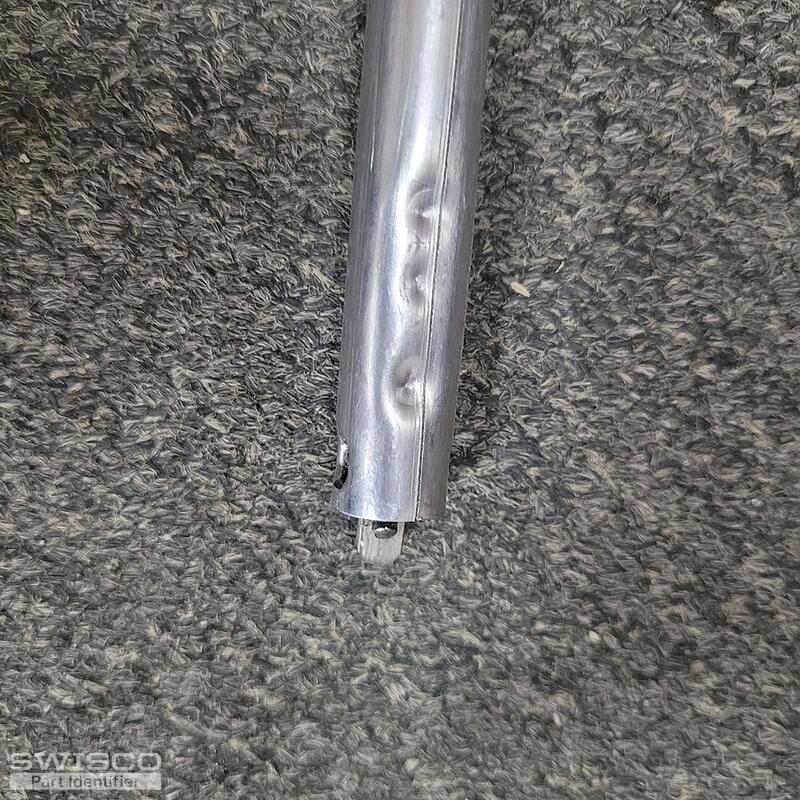

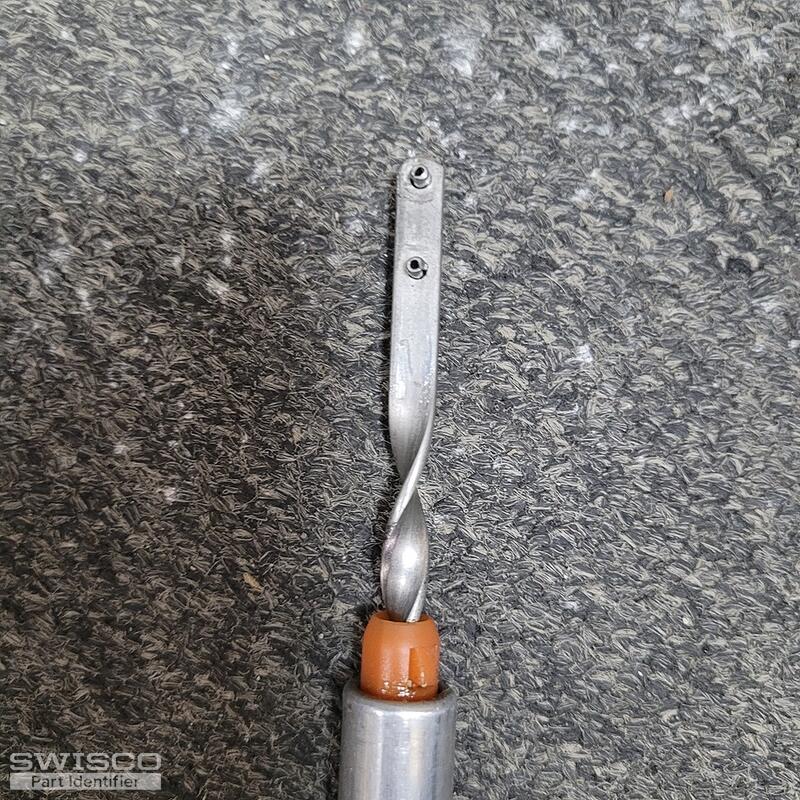

Spiral balance for single hung tilt sash. 5/8" diameter tube 22-3/8" long.

8 windows with all the same balances. Also need to identify the tilt slider shoes will need removal tool and spreader tool

Need Window Parts

I wonder were the pictures I sent enough to decide which model I buy. My sash is 17Lb. heavy and 26” high. I also would like to know how much the spiral bounce tool and the shoe are where the spiral bounce is attached. I need 2 spiral bounces, 2 shoes (if price is within few bucks), one tool ... (cont.)

+1

Kinco window balancer

Do you have any of these? I need 27" length.

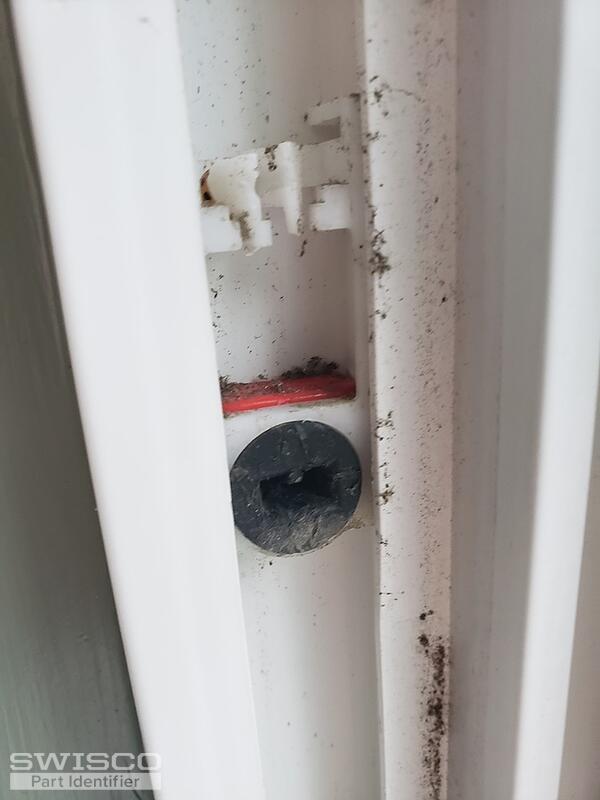

Window tilt broken

I need to get the part that I would assume is a metal pin for the window tilt. I have attached the photo of what it attaches to but as you can see, it has rusted away. I am not sure what is suppposed to attach the part shown to the window. It currently does not stay in on that corner when you open t ... (cont.)

Harvey Broken Part

Any idea what this is and where it can be found

Need assistance identifying correct coil balance please

Hello, Can you please help me identify the correct replacement for what looks like a tanden balance (shown in photo). The broken coils are marked "4FC" and "5FC" (shown in photo). The coils are 15/32" wide. Can I replace this with one Series 161 9 lb single spring on each side, or do I need to re ... (cont.)

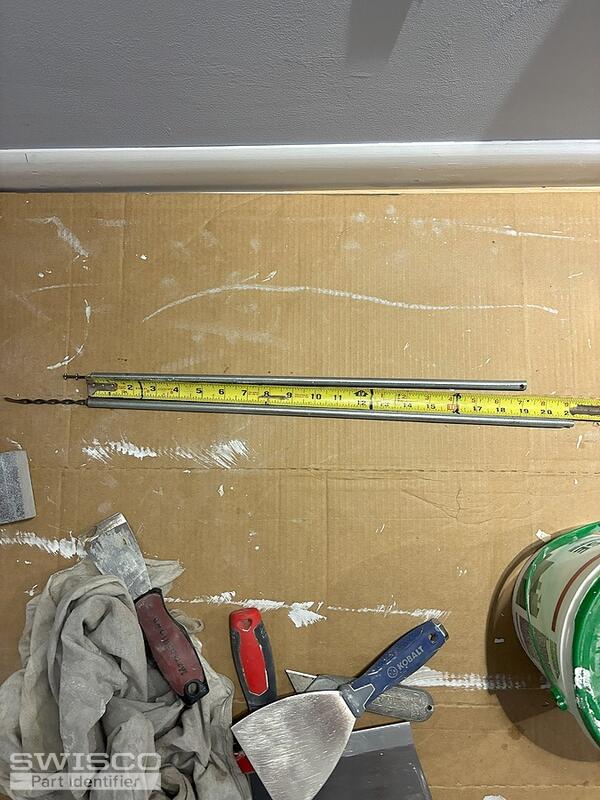

Replacement spiral balance and shoe

Hi, I just bought the house and discovered some window problems. I don't know the window brand, but I suspect Ashland. The spiral balance does not appear to follow standards: it is 35" long, the tip is faded but I think it's yellow, but the diameter is 53/128 (almost 7/16"). I cannot remove the s ... (cont.)

+1

Channel Balance

Good afternoon, Looking for this part in 18", couldnt find any names or markings on the part. Thanks

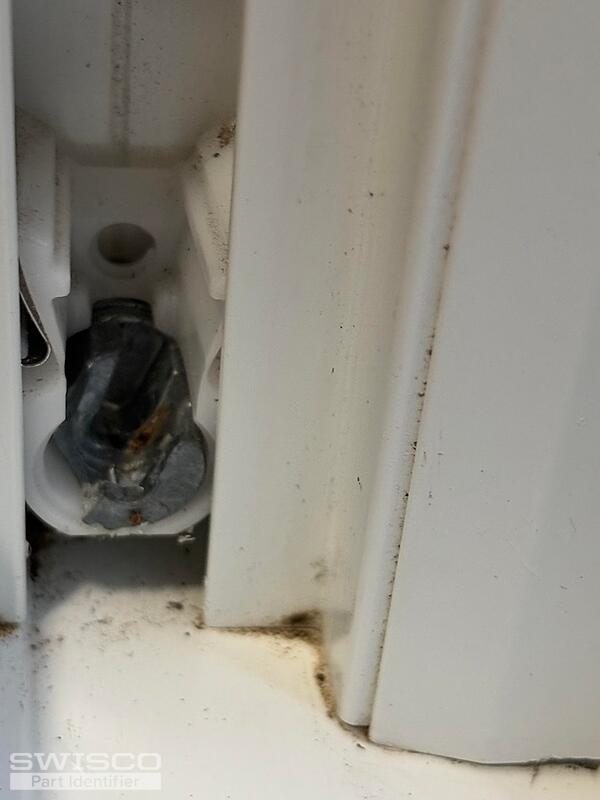

Window part

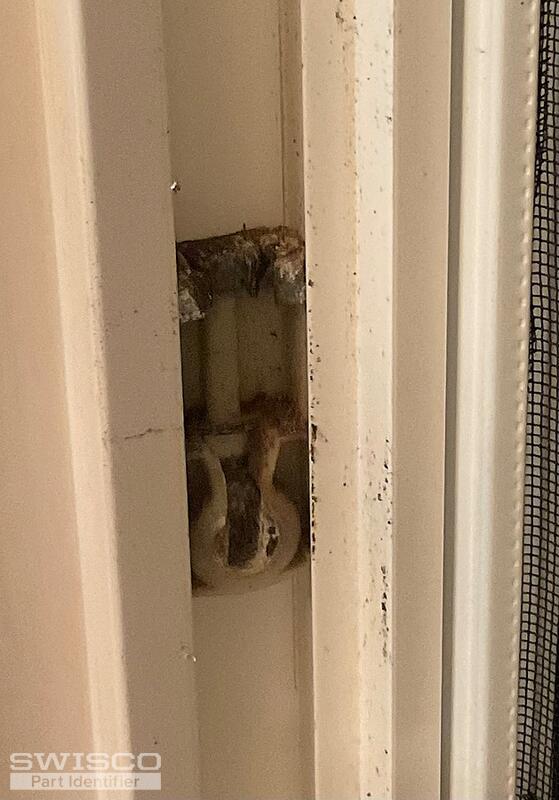

Am trying to find what I think is the pivot shoe for my window

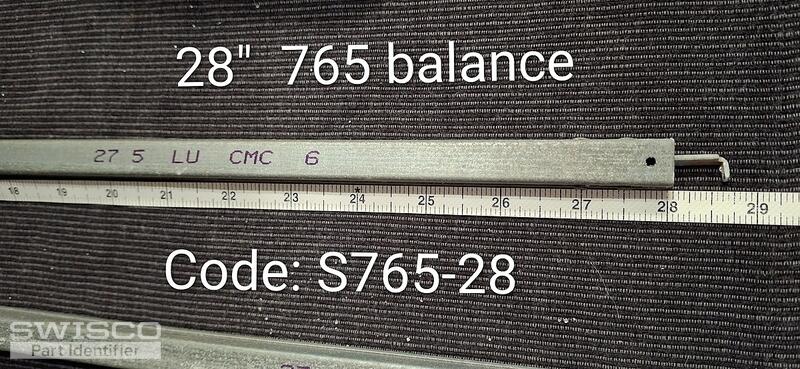

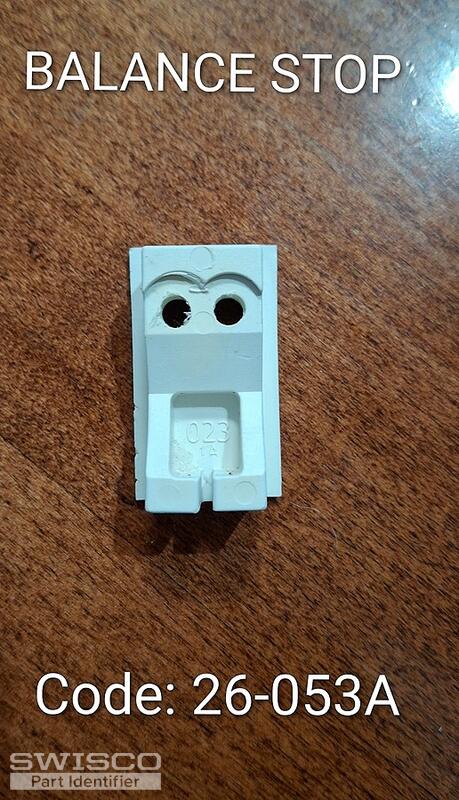

25yo window parts

I am almost positive that the balance & balance stop pictured are exactly what I need. I do not see the shoe. Needless to say I am freaking out. Obviously, cannot complete the work without the shoes. I am replacing all seven sets in our home. One snapped this morning. Going to replace all. Bette ... (cont.)

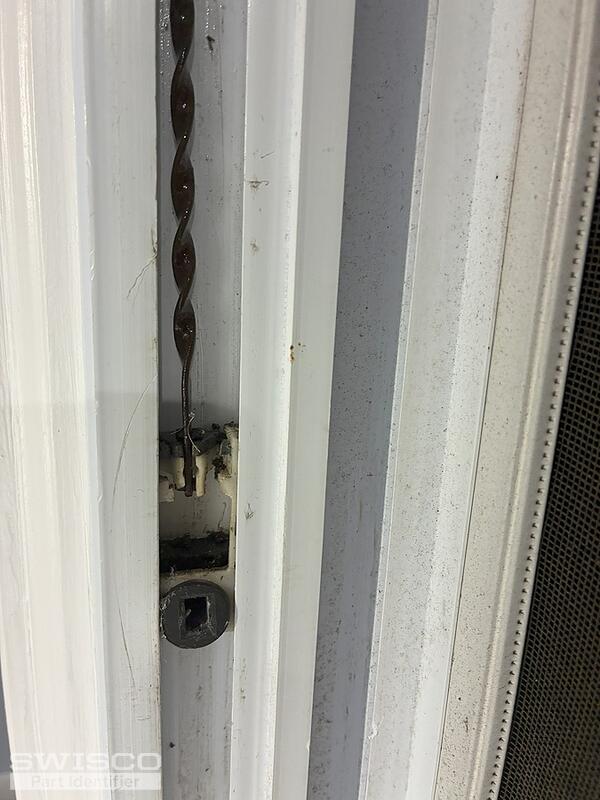

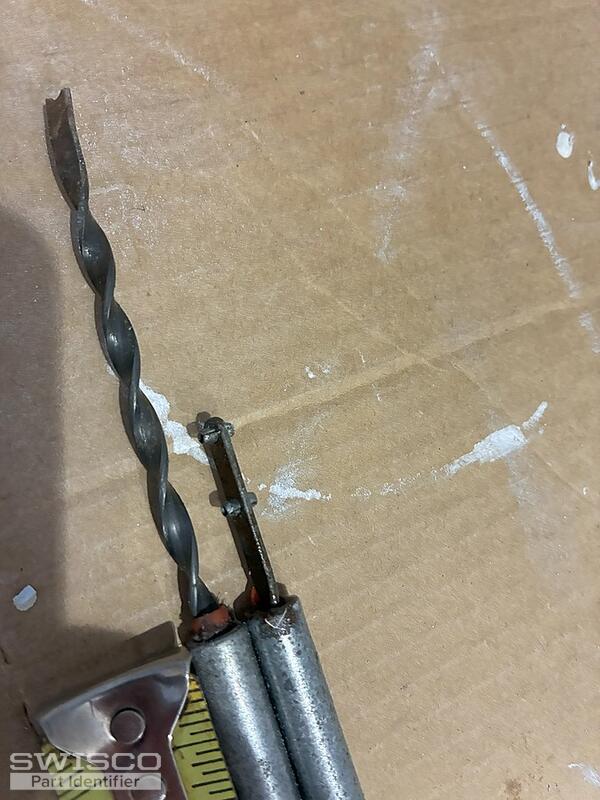

Vinyl window spiral balance shoe

The slot in these shoes is molded in vinyl, which has embrittled I will probably need to consider new balances at the same time for these windows.

+3

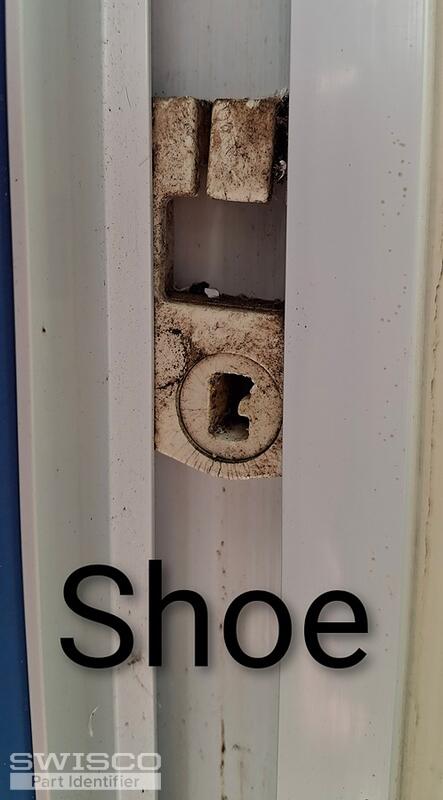

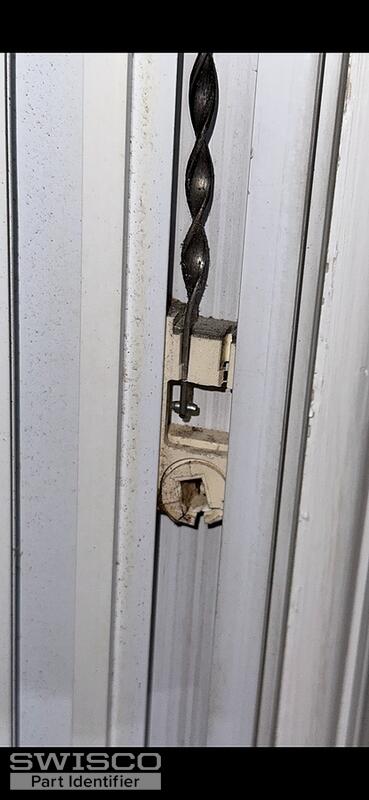

Tilt Shoe Broken

Hello, I need help identifying the correct Tile Shoe to replace the ones that have broken in the slides of the windows. I am not sure if I need to replace the coil as well.

+2
