Viewing all customer Discussions for:

18-009 5/8" Top Sash Guide

I ordered a couple of sash guides, 18-009, and balances, S390-29 Option 2810. I thought I was ordering the correct replacement parts but there are some differences. The 18-009 sash guide looks like it’s 55/64”w x 11/16d x 1 11/32h. The original sash guide is 7/8”w x 11/16”d x ... (cont.)

I need replacement Sash Cams, the existing measure 1-1/2" Long. 1/2" Deep and 7/8" Wide. Thanks

If i need more pictures i can go back and take more. Thank you

Plastic part with imprint M 513

I need 22 Top Sash Guide. The Picture is attched for size.

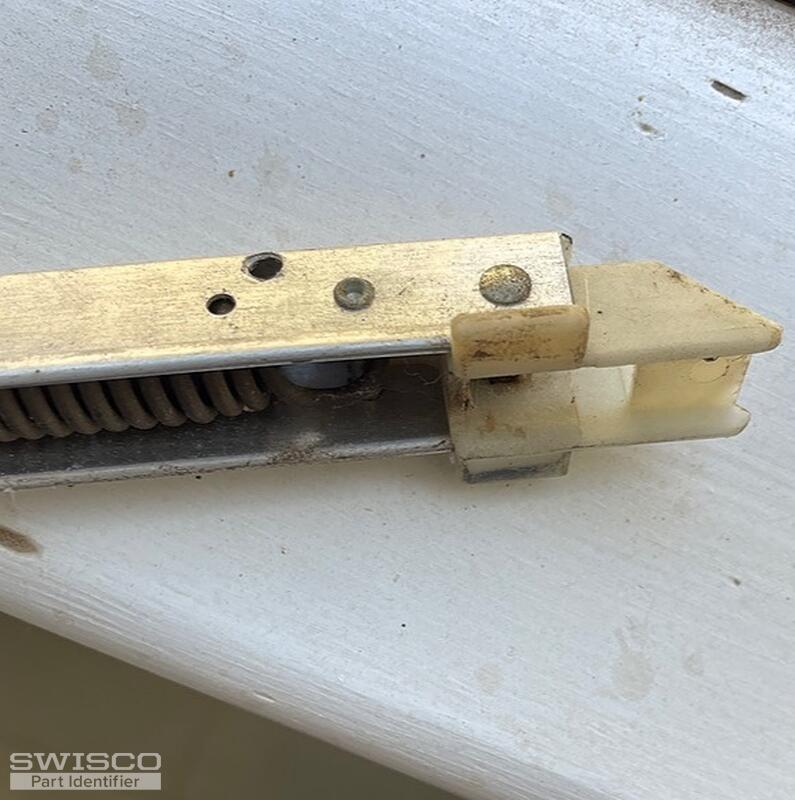

I need to replace several balances on 3 windows (so far). The metal channel 28 inches long, and it is not a swinging window. It is stamped 27C. I do not know the weight strength needed. I do not have photos of it installed. I was only able to upload 4 photos but have more if needed. Any direction wo ... (cont.)

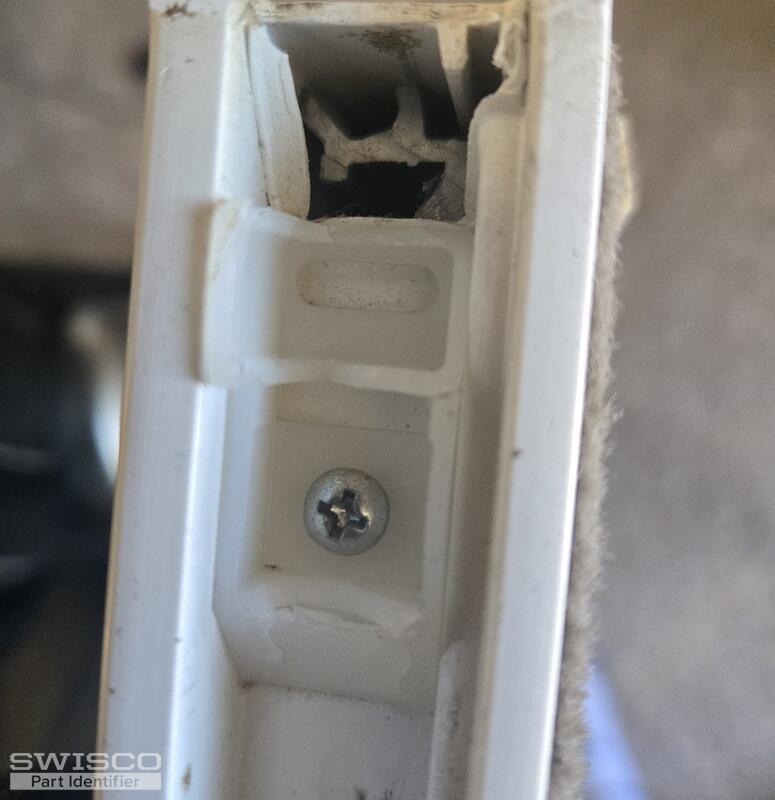

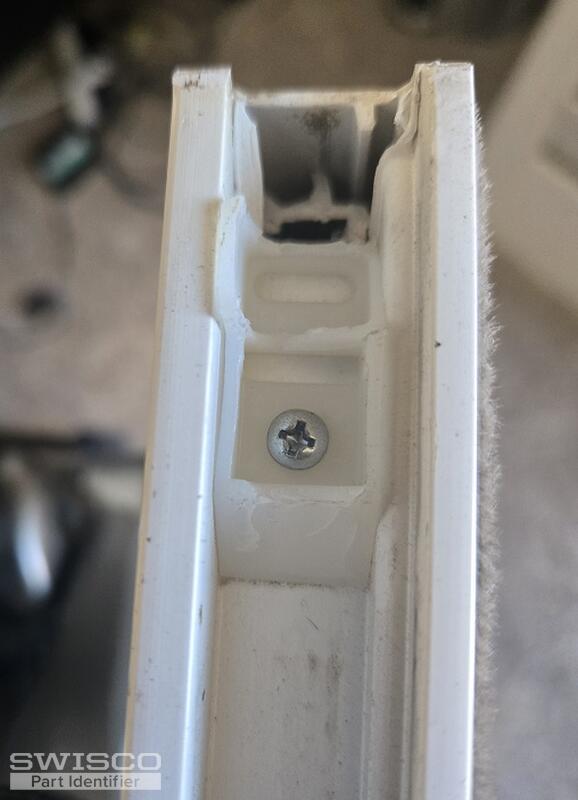

I need to know what part # for these. They attach directly to the window sash on both sides.

1. Replacing the Channel Balance, and I believe I need S385-25. Existing Channel Balance parts are 1/2" x 25", and the bottom piece measures 1 3/32" deep. Could you please confirm or suggest an alternative? 2. The last picture showing my sash guide measures exactly as part 18-009. My question is, i ... (cont.)

Hello, I'm pretty sure I found the right channel guide(s) (22" Series 390 Channel Balance, 2140 strength) but am having a hard time identifying the sash guide. I don't have great measurements as I had to put the window with the remaining sash guide back in but I believe it's 1 3/8" tall. Thanks! ... (cont.)

width is 5/8 legenth 1 1/2

25.5" 25 5 Milgard 2002 10 balances and 10 of the window mounted bracket the matches up with the top of the balance since some have cracked.

I researched all you top sash guides on your website and cannot find one with the dimensions I need. The CWS windows are 23 years old.

Attached is a photo of a plastic clip I am needing to replace for a sliding window. The window is approximately 48 X 29 weighing 35 lbs. The slot size is approximately 3/4 inch wide. Please advise.

Can you help me identify which channel balance replacement parts and top sash I need for my windows? The length of the balance is 28"

From your mesurment photos this appears to be a 28 inch S390 with a 2740 stamp. However, the 1 1/8 width is 1 3/32. This could be from wear. I'm getting these parts from the floor that fell out during operation of opening the window. The sash guide found, in the pile of parts, does not match any of ... (cont.)

1/2 inch non tilt window balance 29 inches long Engrave with number 28 4 t BSI

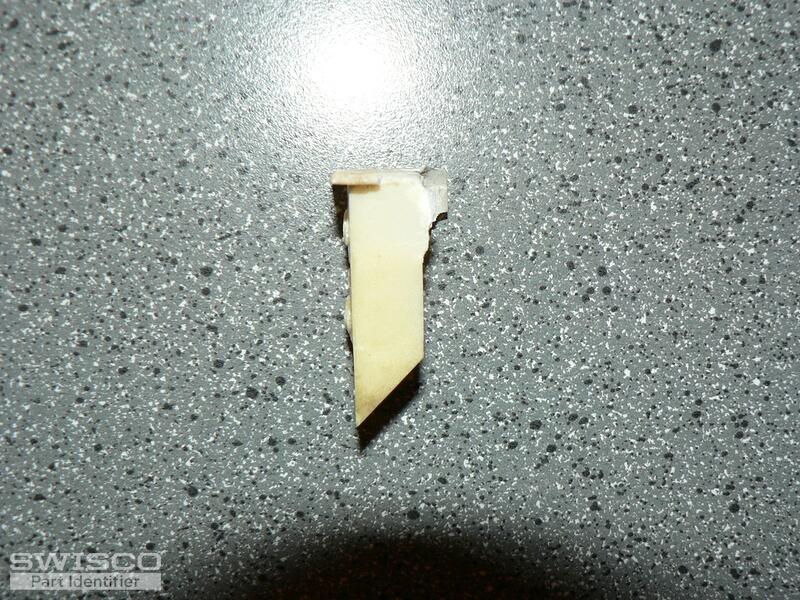

I need this piece

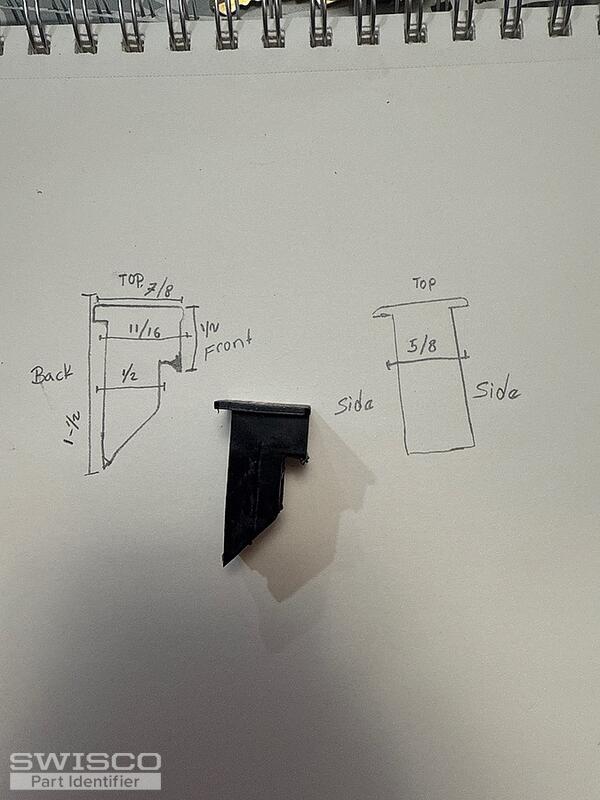

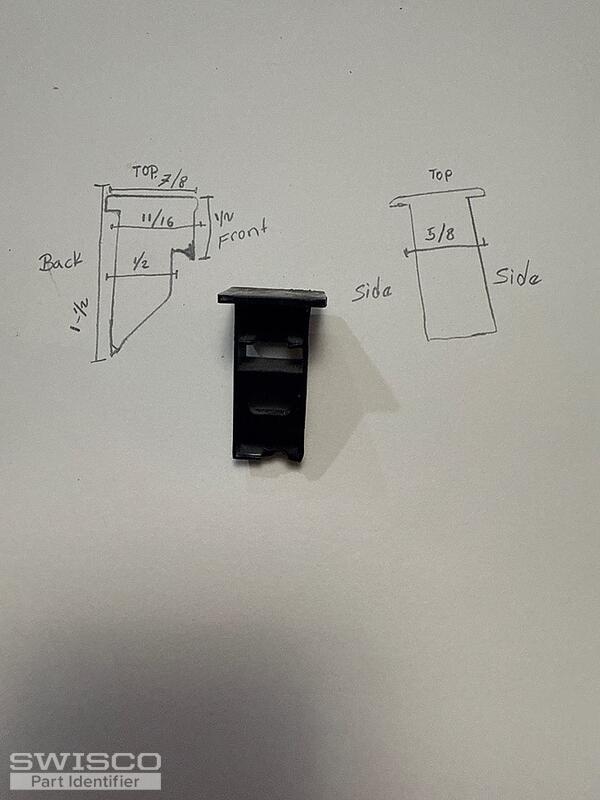

I am looking for sash guides with given measurements in the pictures.

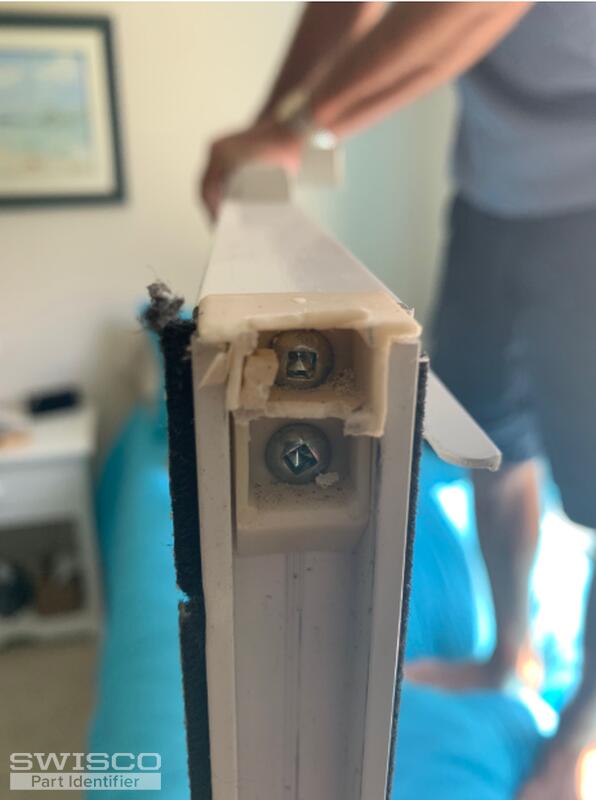

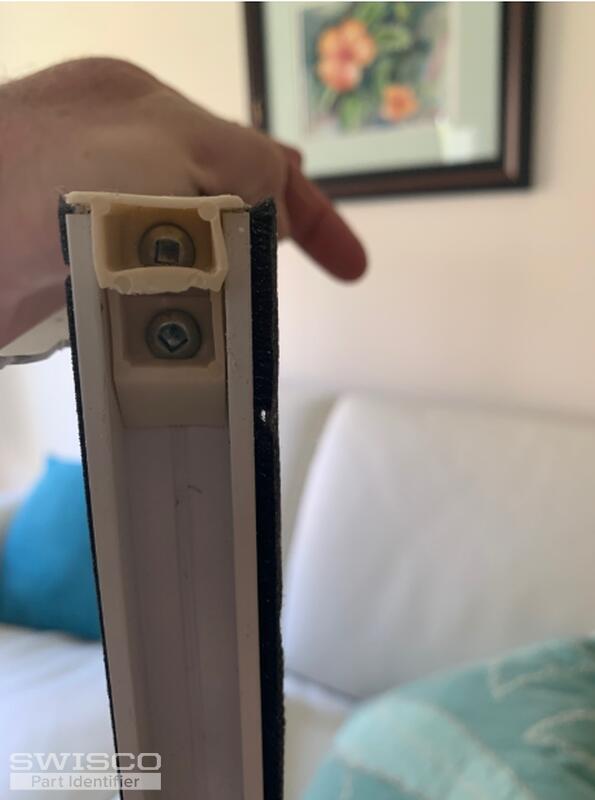

Good morning, I have Milgard aluminum single hung windows. The white plastic clips on each side of the top of the operational windows are broke. if I could get six of these hardware parts please. in addition, I need six of the metal take out clips. Thank you for your assistance.

These are the plastic parts that attach to the actual window that the spring system pushes against the spring I have is a 1610, also have a 2220 x
