Viewing all customer Discussions for:

S600-28 28" Series 600 Spiral Tilt Window Balance

We have Patriot windows that were installed in 1996. The two bathroom windows will not stay open. The pivot shoes are broken on both windows. The Casing where the coil is stored has a red tip. The length of the tube casings are 28 1/4" and 23". There is also the color blue on the pivot shoe jus ... (cont.)

Looking for spiral balance 28". 3/8"dia Pivot shoe with matching pin

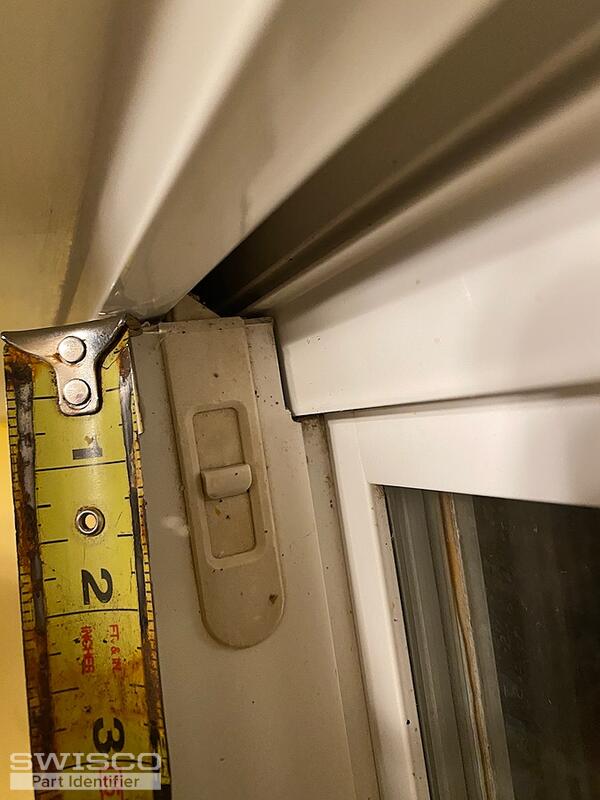

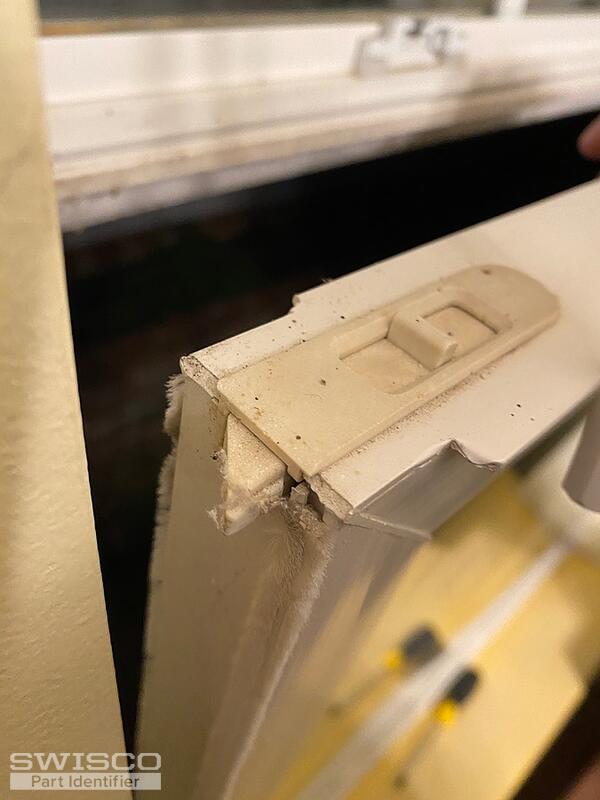

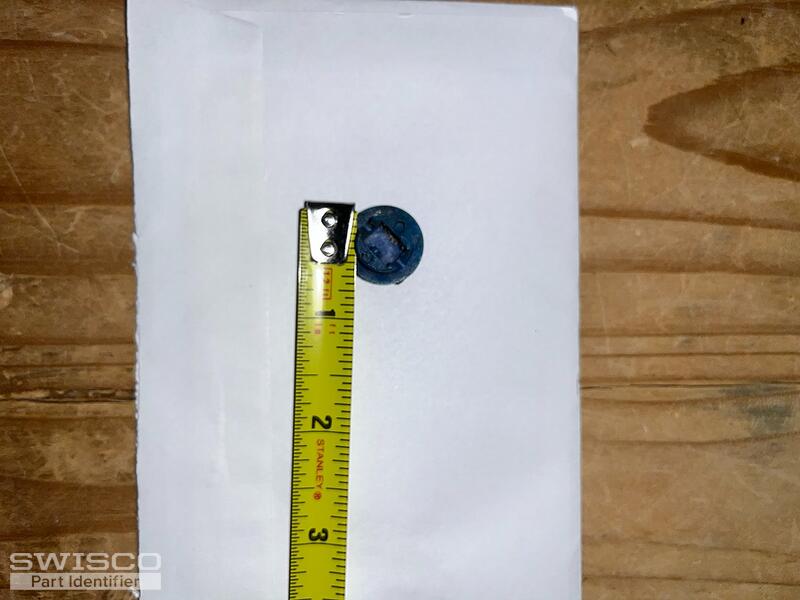

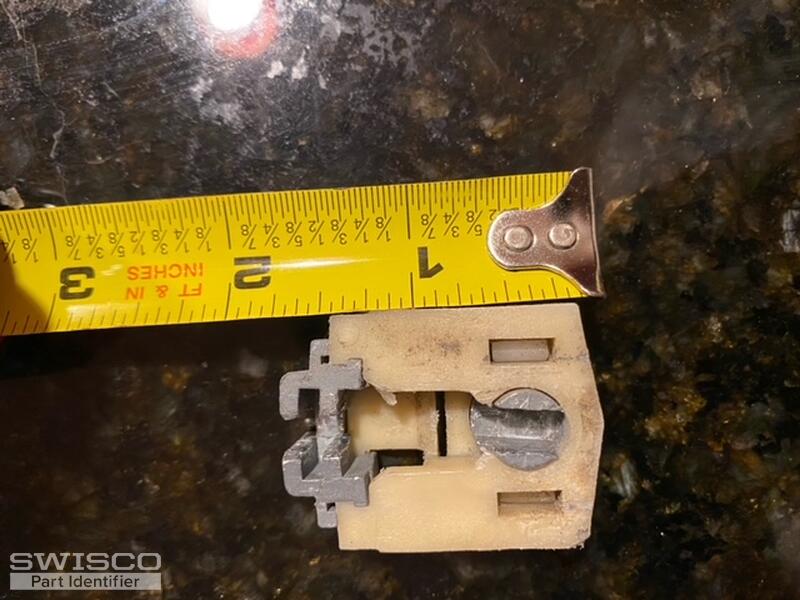

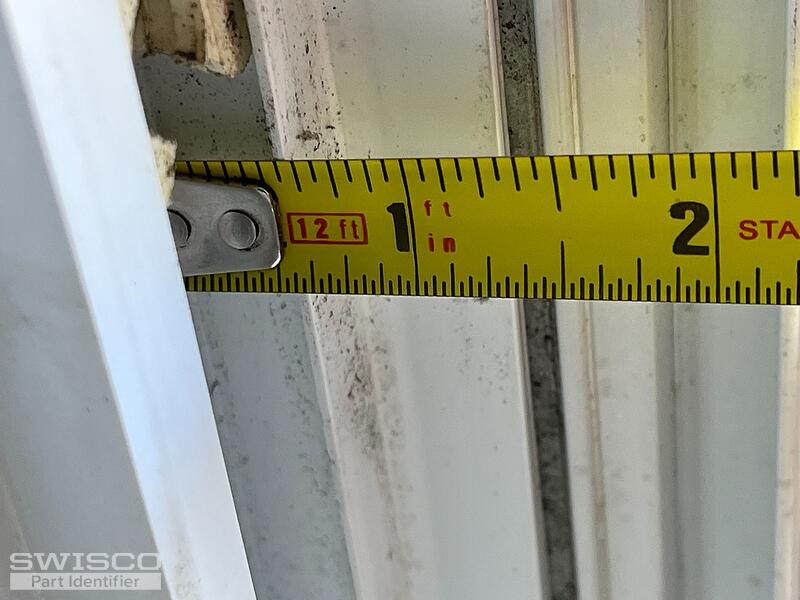

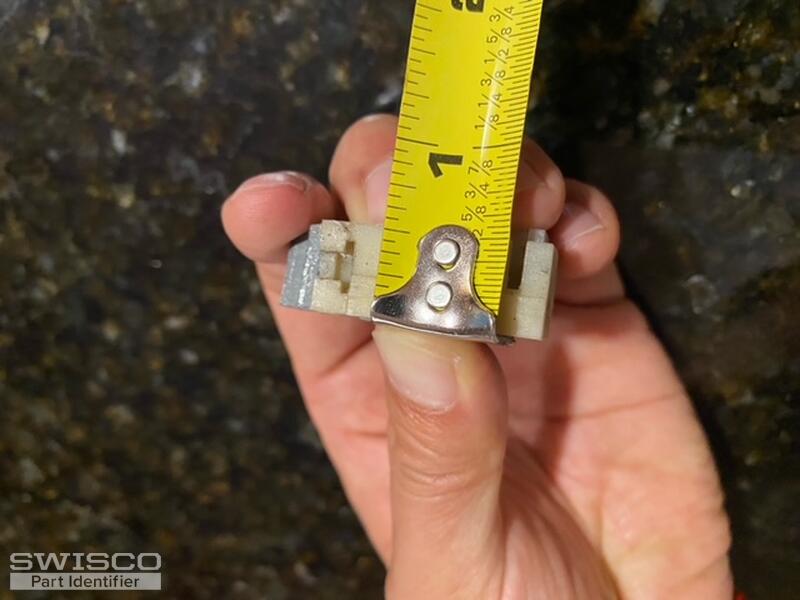

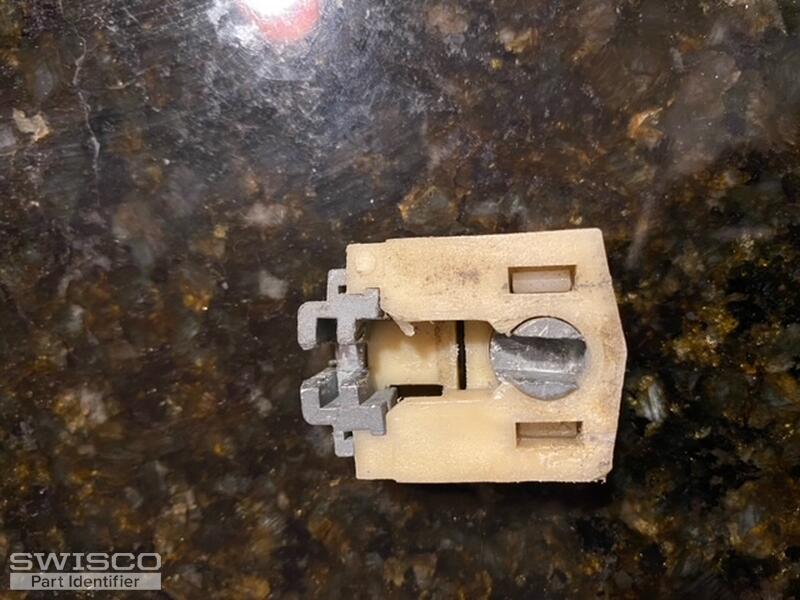

Attached are 3 photos of a broken top window lock shoe, a blue insert and measurement of the channel holding the lock shoe. Please recommend a replacement lock shoe (2 are needed, left and right) for this application. Thank you for your assistance.

Looking for this replacement part, it's for a smaller bathroom window, it's the mechanism that keeps the sash in place/open. Approximately 28" long, total. Looking for the entire mechanism, wound part, stopper and metal sleeve. Thanks

How do I determine whether to order series 600 or 900? My existing balances only have one "t" at each end. The tip is red. Thank you for your assistance.

Hello need the following: note this is for Marvin windows 2 of the pivot shoes part number is seen on one of the photos 2 spiral balance (see pictures) 28.5" long 2 tilt sashes ( see pictures) 2 replacement latches and replacement bases Thanks, Todd

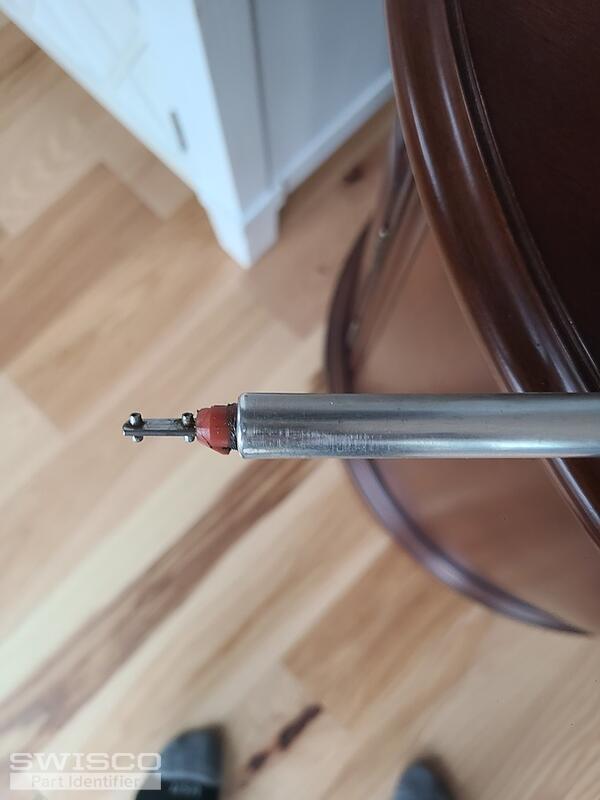

I have two windows that need new spirals. The spirals have red tips and measure 28"x5/8".

Thickness 17/32" Width 1 1/4" pair with spiral tilt window balance Could you please find a replacement for me? Thanks.

I have two 47" x 47" windows with a 23" spiral balances & two 35" x 59" windows with 28" spiral balances (all the lower windows tilt). Should I get the pivot shoes as well? Not sure what the size and part would be if needed? Does it matter that my spiral balances are encased in a plastic housing not ... (cont.)

"Pic 1" shows the broken balance (pictures out of order). There appears to be a red tip, but that was inside the balance. If you see "Pic 2", that is the balance on the opposite side of the window - it does not have a colored tip. So I assume you should ignire the broken red piece in "Pic 1". The sa ... (cont.)

The tilt window balance measures 28 inches, 5/8 diameter and looks to be orange. In needed of the correct part number to order.

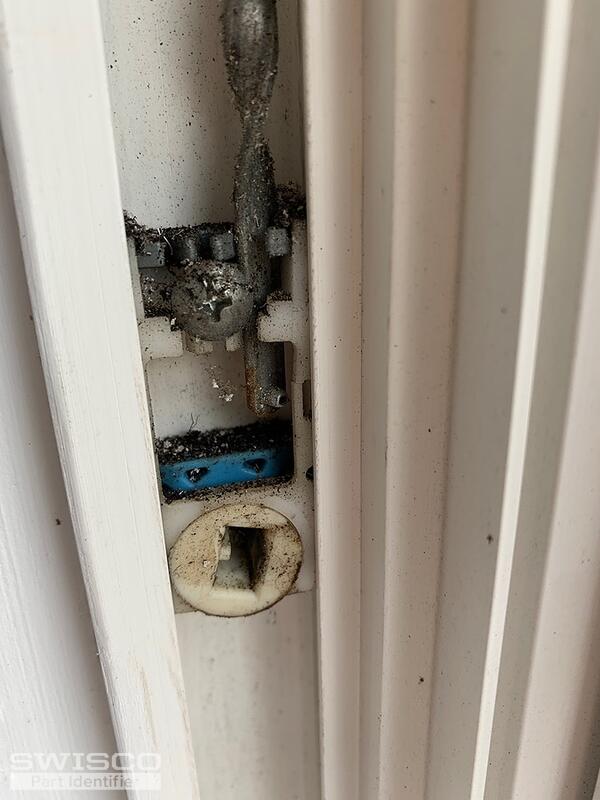

I need to replace some spiral balances in Better-Bilt aluminum windows (tilt), circa 1995. Looking for guidance on which balance will work. These are 28" length but no color on the tip but the cam on the shoe is blue. It's a heavy window, with the sash measuring 45"W X 30"H. Without the vinyl co ... (cont.)

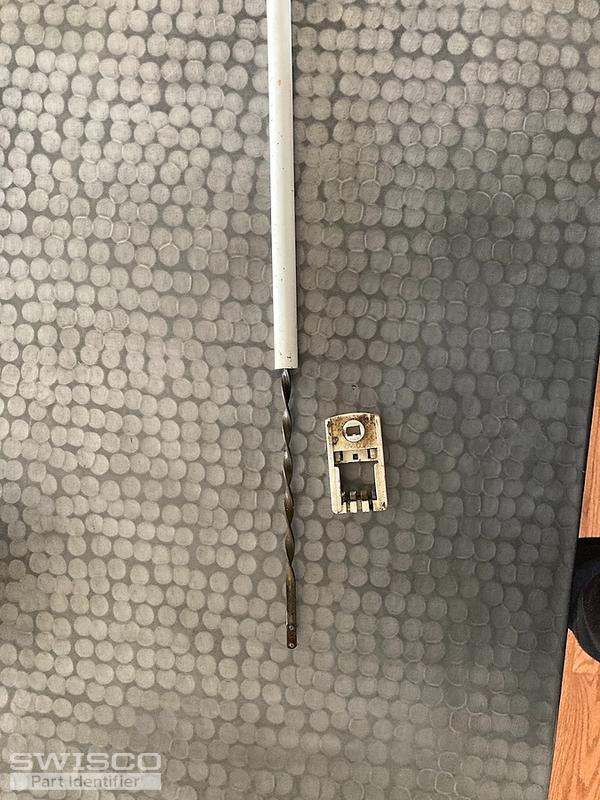

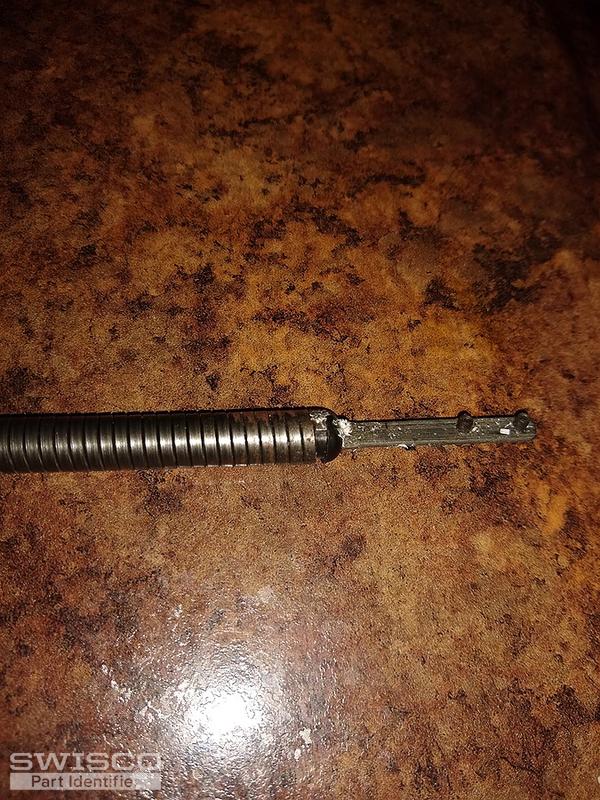

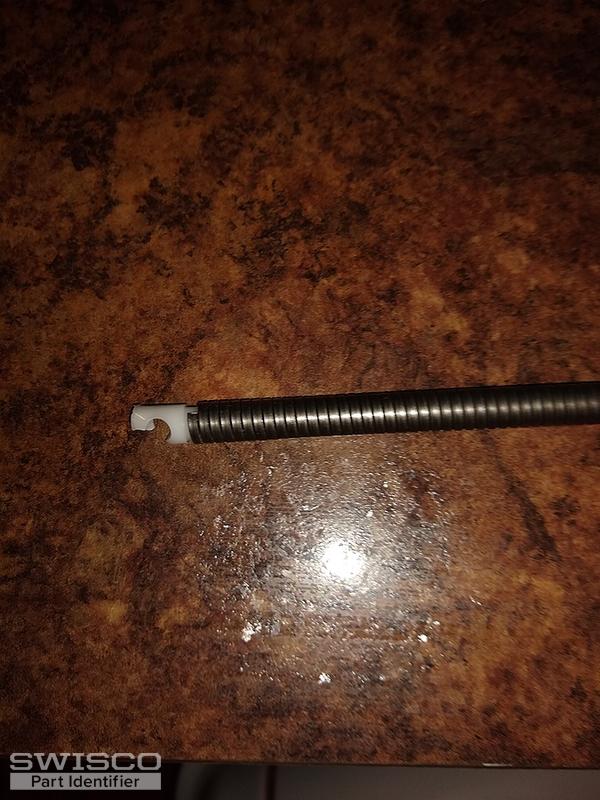

This is a spiral balance, 3/8' dia, 28"length, looks like yellow tip. The top of the balance had a hole where the screw held it in place. It is the broken part. You can see from the pics that the tube is not a solid pipe but is a coil type tube. What do I need to order?

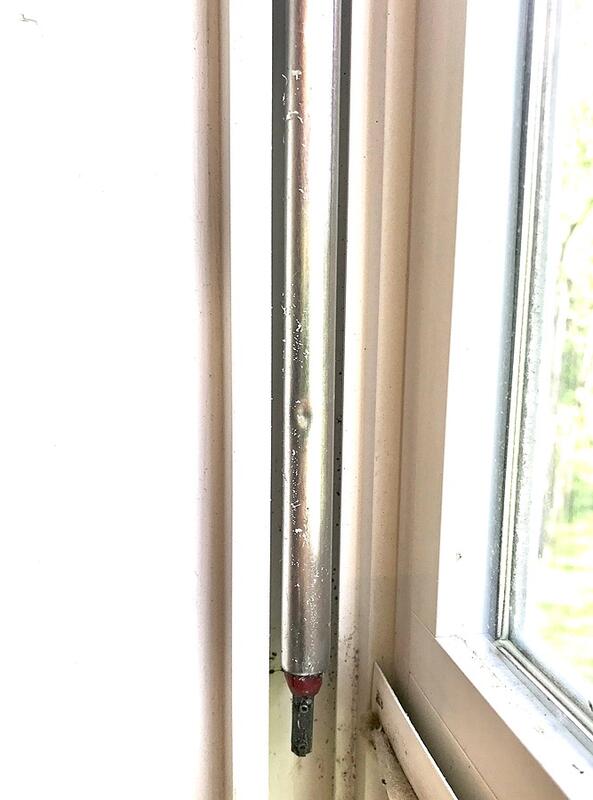

28" spiral balance, Red tip, 9/16" wide tube. No markings on the tube. Windows are 22 years old, were from a company in New Jersey, and sold to Hovnanian builders and installed in new home construction. Definitely contractor grade windows at best.

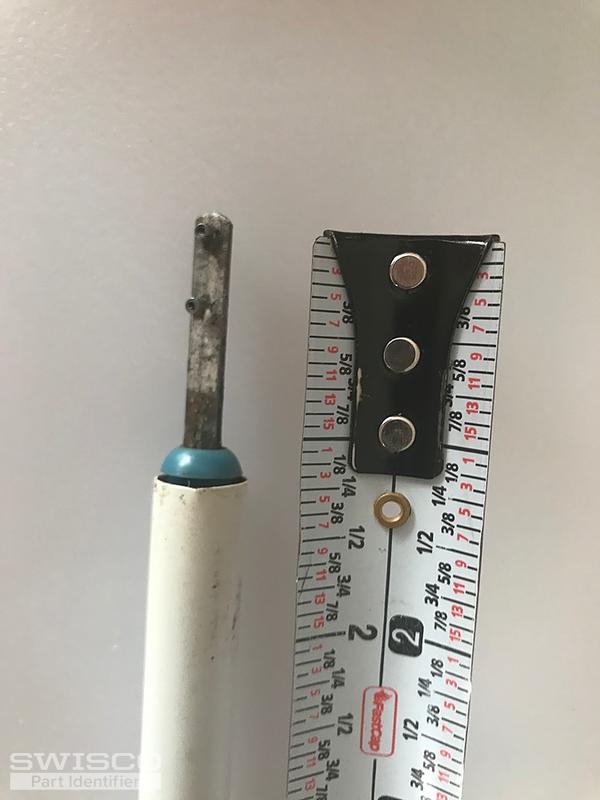

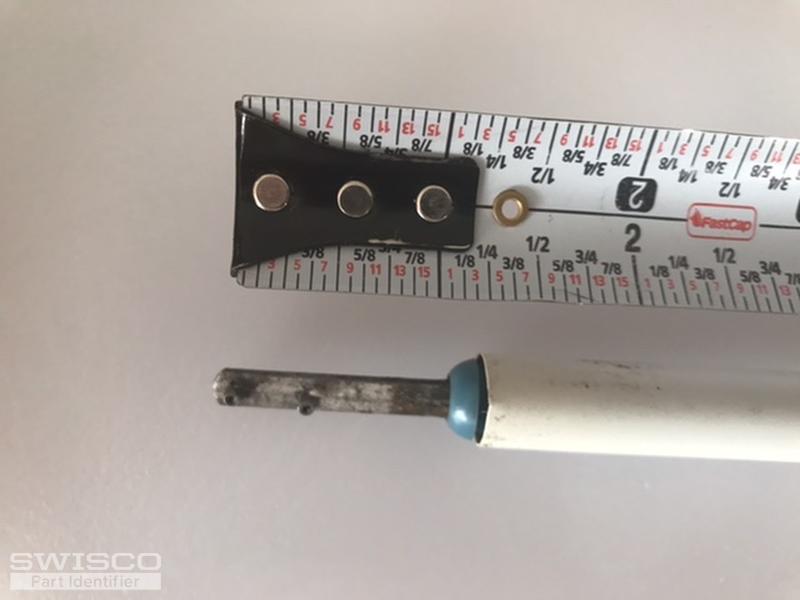

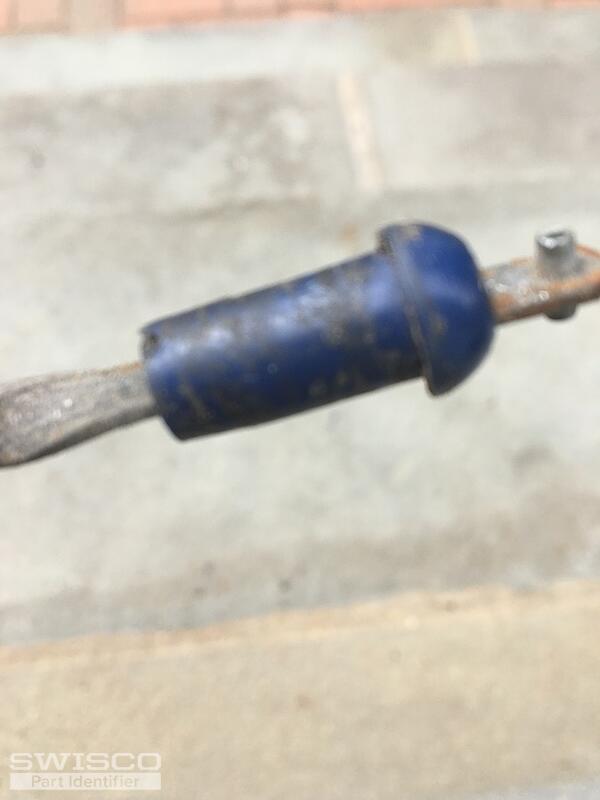

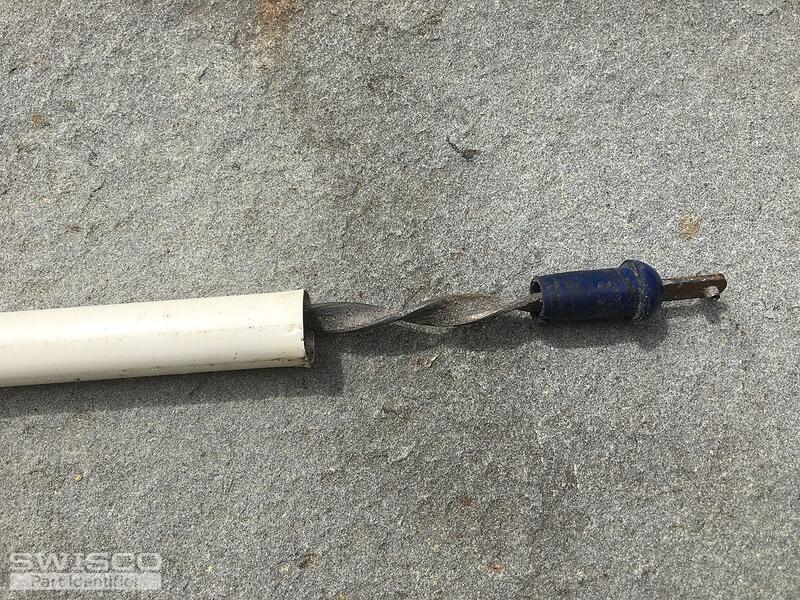

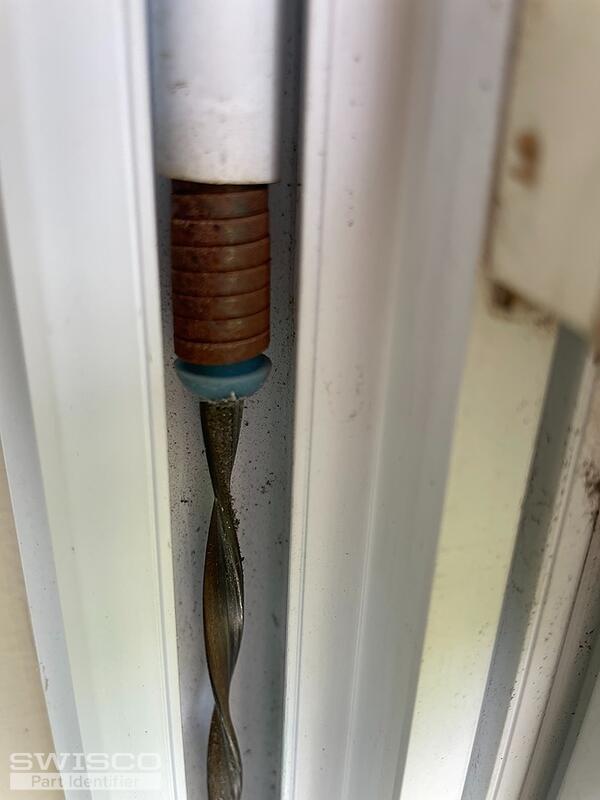

Hello, our spiral tilt balance tube measures 28"x9/16", and has a dark blue tip (see images I uploaded). Your blue tips are much lighter in color. Do I still order blue tip?

Hi Swisco, I am thrilled to find this form where I can submit my photos!!! Amazing. I have what I think are Sears Windows that are probably 20 years old. My house is a not too distant tear down so no point in replacing the windows but I would very much like to repair them. I do not see any mark ... (cont.)

I am trying to replace this balance I need 4 they are for a tilt window do you carry these the ones I ordered from you are to wide around

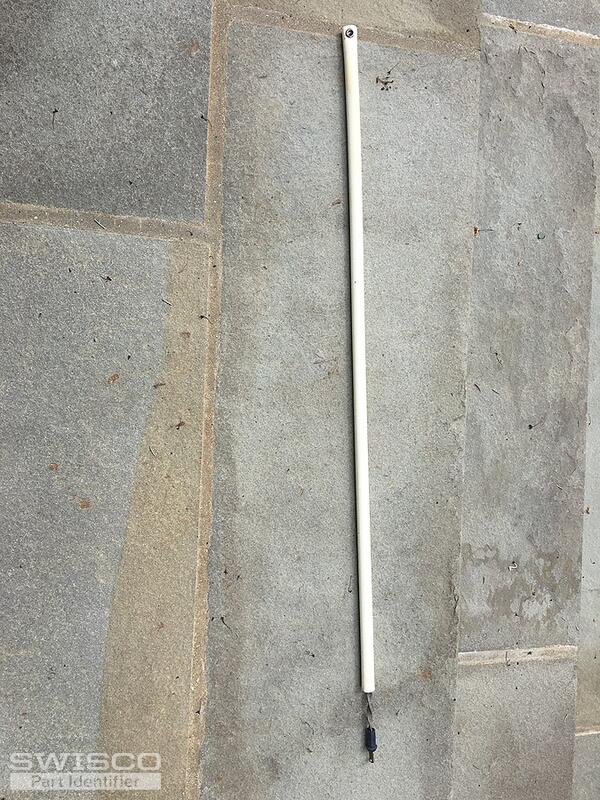

Need information on replacement. Tube length is 28" and diameter is 5/8"

I have attached a photo of the parts that I need replaced for my tilt out window. The spiral balance has an outer plastic tube that measures 28" in length, 9/16" in diameter and has a blue tip. The locking shoe measures 2 1/8" tall, 1 1/4" wide and 1/2" deep. It has the number 530C as an identifi ... (cont.)

916/5/8 spiral balance, tilt window Tilt carrier for same Key Balance tool Limit stop
