Viewing all customer Discussions for:

S900-25 25" Series 900 Spiral Balance

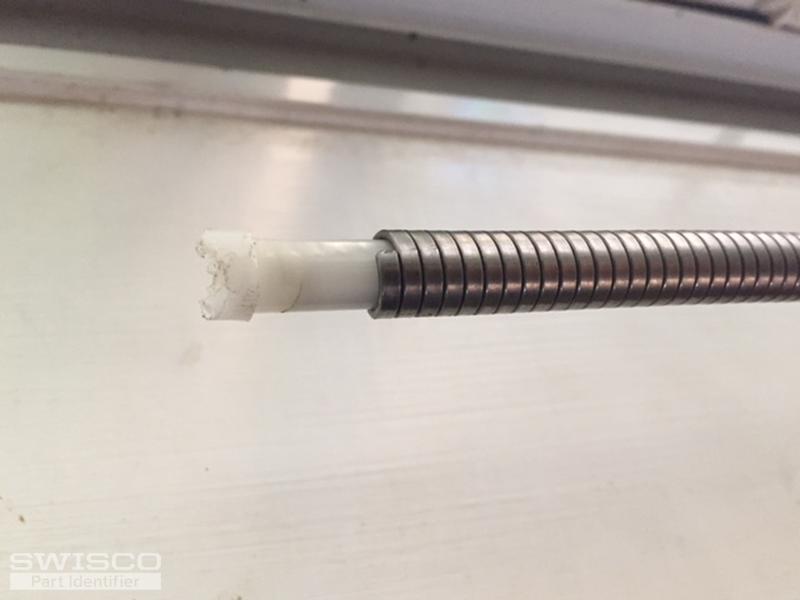

Hi Team, I need to replace a few spiral balances for my windows (see attached photos), and I am not sure which of your products is the correct one. None of mine have colored tips on them, and I don't know the window manufacturer. After searching your site, I believe the S900-25 model is correct, a ... (cont.)

This is my first time replacing spiral balances, so any help you can provide is greatly appreciated.My broken balances are 3/8 X 25 inches with a green tip. It looks like you only offer this size with a red (7 - 21 lbs) or blue (11 - 22 lbs) tip. My sash weighs 19.6 lbs, so theoretically either sh ... (cont.)

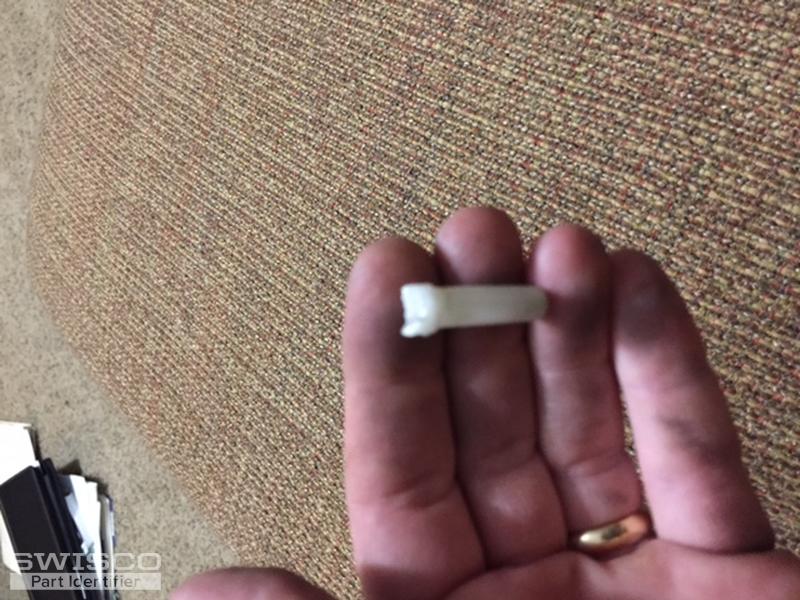

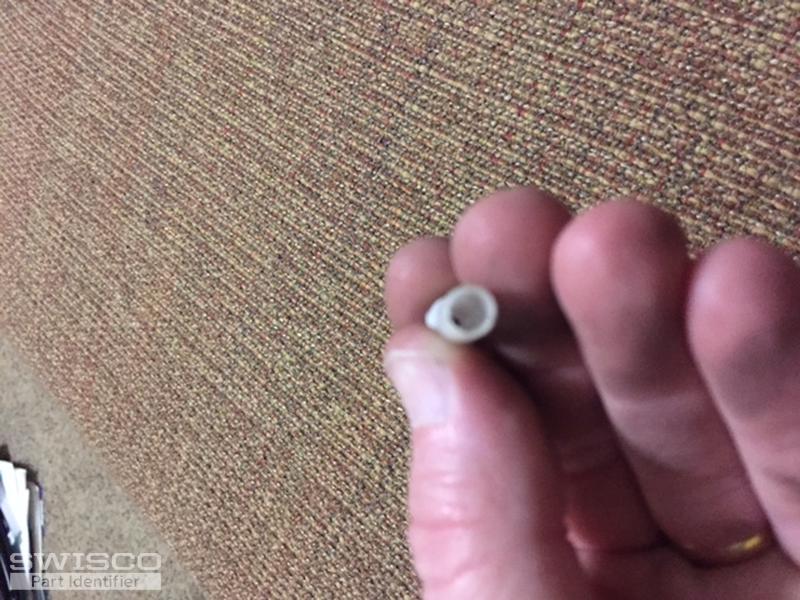

Would you happen to have this plastic piece? The top broke off that the screw went through. Thanks Richard

The spiral mechanism I removed is enclosed in a white plastic tube. The tube length is 25 inches and the width is 3/8 inch. The plastic tip is a white color, but the color choice for a S900-25 is either red or blue, no white is offered. The weight of the window sash is 17.9 pounds. Which color ti ... (cont.)

My banlace is 3/8 in diamiter and 25 inches long...The release latches say acorn on them . I am looking to replace all parts . Thanks Ed

Looking for the replacement parts

I have a blue tip that measures 3/8 inch od, 25 Inches long tube. I need the pivot shoes that go with it. Do you sell these?

Hey there my name is ira. From mobile Alabama i need 8 sets of spiral balances for a total of 16 pieces. These little jokers are 25 and1/8th inches long. 3/8 in. Inch in diameter. can I purchase them from u?

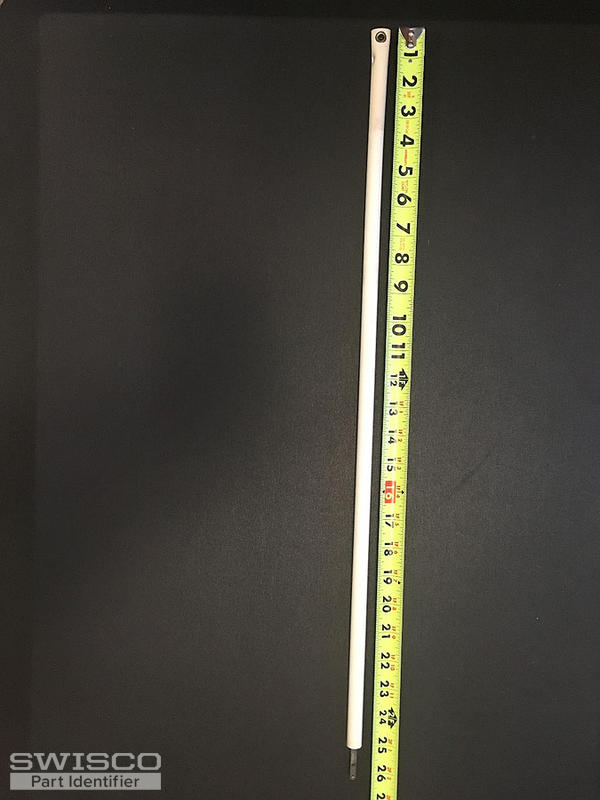

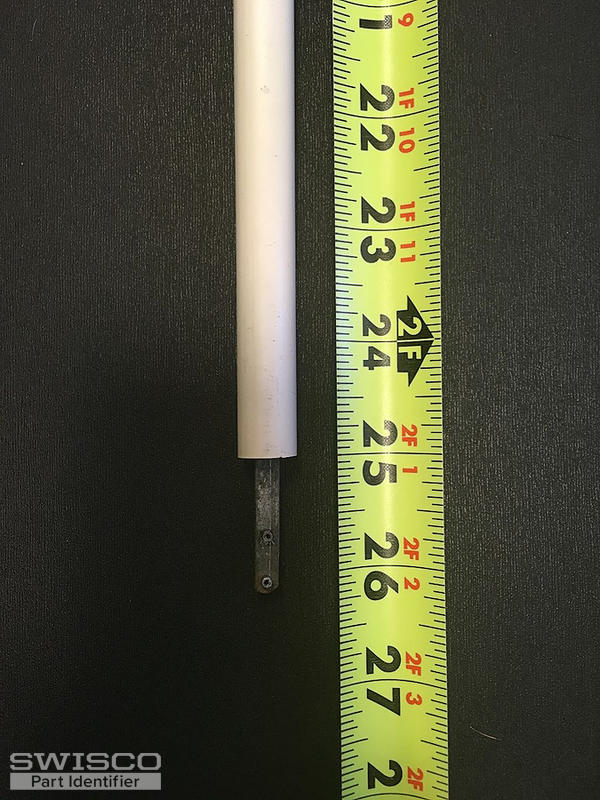

I need to replace 4 window balances, but I've found sizing them is really difficult. I believe it is 3/8 in. across, but do I measure the interior spring or the plastic covering as shown in the attached picture? Also the length is an issue. Will it be 24 in., the length of the interior spring, or ... (cont.)

which part you recommended for tilt windows

I have Champion aluminum frame double hung tilt windows with 3/8 red tip balances (25"). I want to replace the balance for a single window that is 35" wide. While removing the old balance the charging tool slipped, and I was unable to record how tight the balances were charged. In general, how many ... (cont.)

I have a 25" 3/8" yellow tip window balance with 0300 on it. What do I need to order?

Hello, I am looking for Acorn tilt out window replacement parts. I believe they are the original parts when out townhome was built in 1978. The spiral balance are 3/8" and 25" long. There is no color indicator at the mouth but the windows seem greater than 22 lbs. Pivot shoes are 5/8' thic ... (cont.)

Hey guys, I just ordered 6- S900-25 spiral tilt window balances from you. I just noticed they should be 5/8. Will they still work if I install both of them? or should I return them and order the 5/8?

I need to know if you have this size spiral balance 3/8 by 25" long? I looked on this site but didn't find the right size dia.

I need 2 spiral window balancers. The style I have/need is a 25" long, 3/8" diameter aluminum tube, with a red tip, with markings that read "ET A 3". I will also need the inexpensive tensioning tool. Thanks, Marc

Does it really matter whether I use series 600 or series 900 balances? The 900 series looks stronger in the picture. I understand the 900 series has a smaller diameter but does that matter? I am going to order blue bushings. Thanx

Click on the 'Spiral Balance' section in our sash support replacement hardware catalog. From there follow the steps to determine the proper replacement balance. Swisco is located in New Jersey.

Old balance is half rod and half heavy spring. Top half is rod and bottom is spring. Total length is 24 1/2" to blue bushing. I replaced it with a 24" solid rod, but it is not long enough. With window in the closed position, I have 1 1/4" gap at bottom of window. Do I need a 25" rod or 26"? ... (cont.)

We do not stock the White Tip because the weight range is so close to the Red Tip S900-25 White tip will carry a window sash weight range of 6 through 14 pounds S900-25 Red tip will carry a window sash weight range of 7 through 21 pounds This information is based on 2 balances per sash. Bal ... (cont.)
