Viewing all customer Discussions for:

15-087 Coil Housing Pivot

Need to purchase replacements parts for windows, are these standard or I need particular size, cannot find any part number

I believe I have an American craftsman (HD brand) 50 series window with multiple broken coil balances. Need some help with the correct replacement. - thanks

On a double hung Wincore window. Has a 6R stamped on it. Need to know what part number I need to order and what pound it is. Thank you.

Can you please tell me if these parts could be replace

The coil strap on my vinyl window has snapped. The window is an LbL vinyl series 2600 SH 24"x42". The strap channel is 9/16ths of an inch wide and @ 1-3/8th inches deep.

My window right side of coil balance was broken, and I need to replace it. Here is my window model info- Silverline CPD# SIL-N-5 8501 double hung vinyl dua glazed 18892216*1*5*1.2 It was installed in 2011. If you could help me to ID the replacement part, that will be great. Thank you so much!! XG ... (cont.)

The balance shoe is damaged. The part in the photos is 2.25" tall. The window no longer stays open, even when connected to the balance shoe. There is no spring cover nor any visible spring mechanism. I'm not sure what the mechanism was. - which balance shoe should I buy? - I don't see any spring ... (cont.)

Wanted to find out how many pounds of the coil balance. Sash is about 21x21 inchesThe original coil spring has "4BC" stamped on it

Hello i need help finding a replacement for the above broken pivot shoe. I am unsure maker of the window. Other windows in the house are Regency.

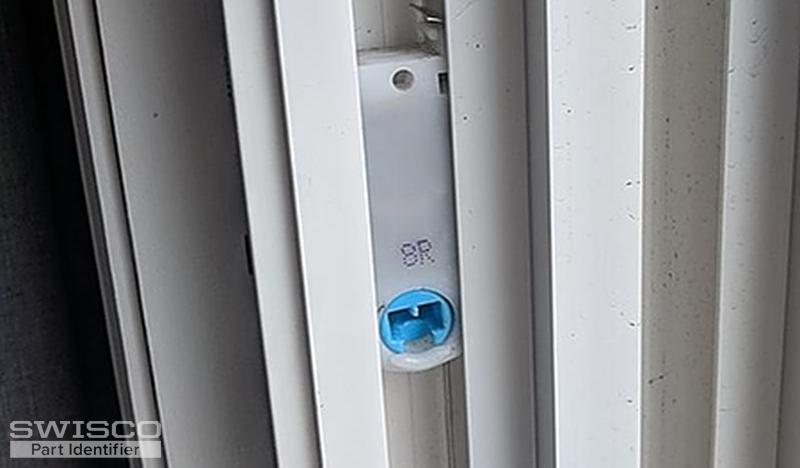

no mark on spring have on mark on lock wherepin from window locks in. (8R)

these are tucked in a very tight space. We have to separate the 2 pcs in order to change them out.

How can I know which springs to order for my window? It is a vinyl replacement 24 x 46 in size. Both coil springs are broken.

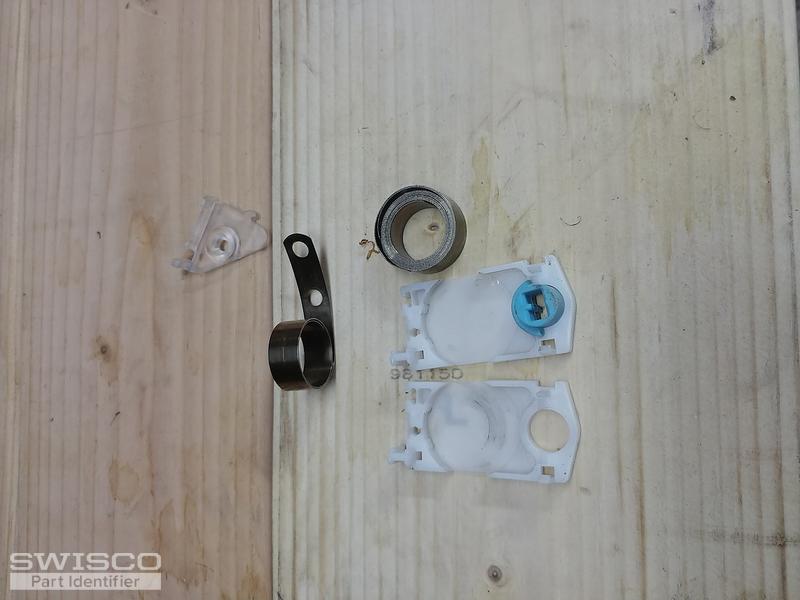

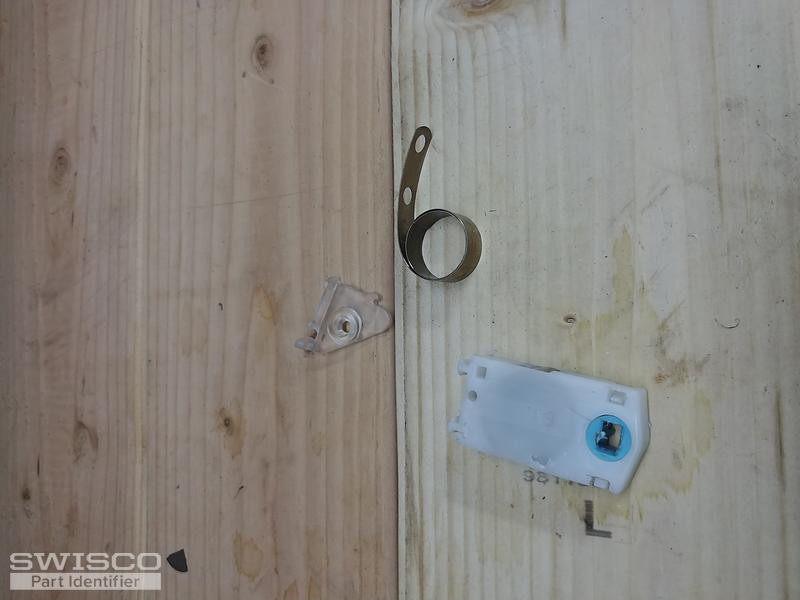

I got the shoe and coil spring out. The case has either a 6 or a 9 on it (there's no determination on what side is up). The coil spring itsself snapped and attaches to a clear plastic tab that the shoe clicks onto when the window is all the way up. The shoe came apart easily, so I should just need t ... (cont.)

Hi, need help replacing the constant force spring assembly. The window weight is 30 pounds, so I'm looking at the 15-lb/pd/series-140-quick-tilt-balance which looks totally different from what I have I also need the rounded pivot bar. Is there any parts I need for attaching?

I believe this is called a constant force spring.It is broken in one of my other windows and I need to replace it.

Hi, I attempted to go in and remove the window balance hardware but ran into some issues. As you can see from the photos, the spring has snapped off from the main slider/balance and needs to be replaced. The springs were attached to the hooked aluminum piece (set with philips had screw)...I disattac ... (cont.)

Hello, I have a Traco bathroom window from maybe the early 1990's. The spring has broken. Replacement cassettes might not be a bad idea either. The window measures 27 3/8" wide X 20 15/16" high X 1 1/2" thick. Using my bathroom digital scale it weighs 14 lbs. Any help would be greatly appreciated, ... (cont.)

Hello hope all is well I'm looking for this part for both side R &L with spring . Thank you Exp-pro glass

I have a window can not find name on . the balancer is broken the metal cam . It doesn't look like it will com apart to replace the cam not sure ? Want to know if you have a good idea which will work
