15-087 Coil Housing Pivot

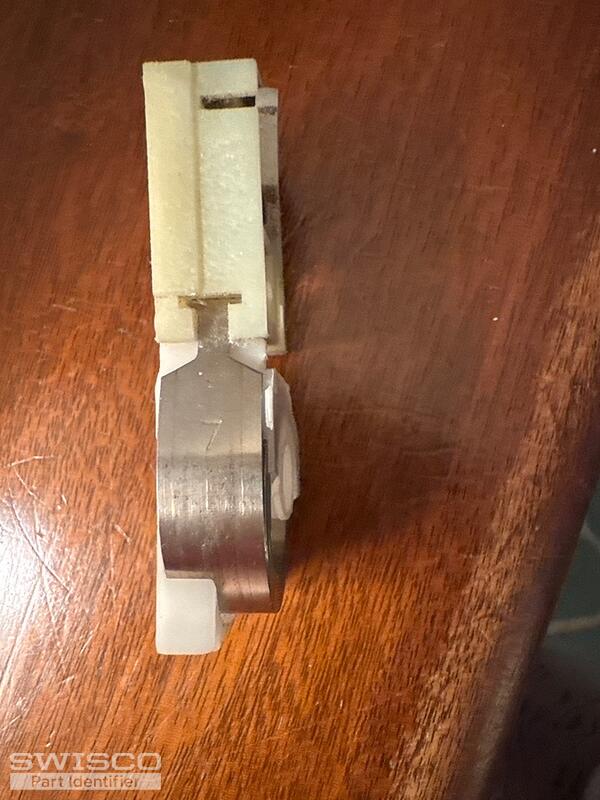

Hi, the coil springs broke, wondering if you can tell me what the replacement is. The sash is 15.2lbs. I did find a number once I got a flashlight. Looks like 8 B 7

Hello team. The marking on casing is saying 5R and on spring it says 5FH. I need both left and right side casing along with coil. Hope you will be able to help

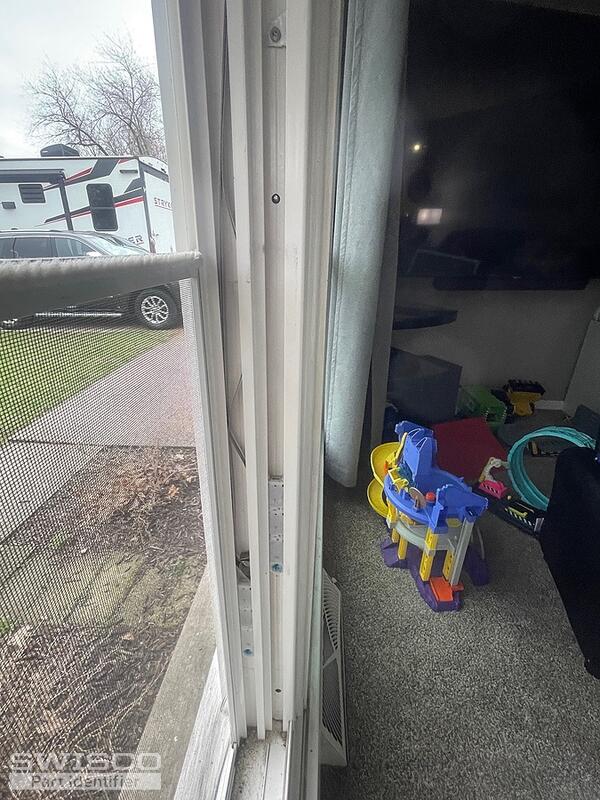

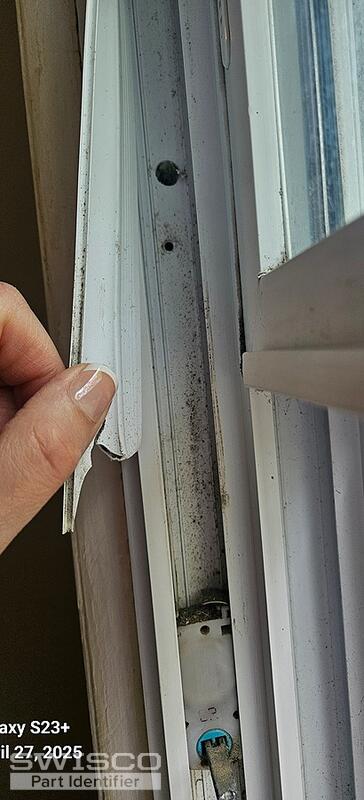

The window will not stay up. Opened the window and tilted in and on the left side very bottom of the window jam was broken plastic. looked at the right side and is in one piece. I have a picture of the right side that is not broken. Looking for the part in the picture for the left side. Everythin ... (cont.)

Need Two replacements

I am looking to replace two coil spring balances on a window that is 24 1/2 x 36 and three-quarter tilt in double hung. The sash size is 22 1/2 x 18". I would see the approximate weight is about 15 pounds. This coil spring wraps up inside the pivot shoe. I don't see any stamps on the spring. ... (cont.)

Hi I am looking to replace a broken window tilts and balancers on a window 8501B. I would appreciate any help you can give me with this. I can remove the sash but do not know how to remove the balancer. I have included pics of the window header marker and the tilt and balancer. Please help me wi ... (cont.)

Need to replace 4 coils for two windows.

I need to replace L and R window tilt balance what parts do I need? Do I also need a Jamb spreader?

Hello, I have not been able to remove this constant balance sash, but hoping you can help me out with a removal tool (I think there is a jamb spreader that might work?) and replacement part numbers. I believe, from searching, that it is 15-087 & 2x 15-086 parts, but want to be sure. I have to ... (cont.)

number on window 19880903 size 39.5 x 44.75

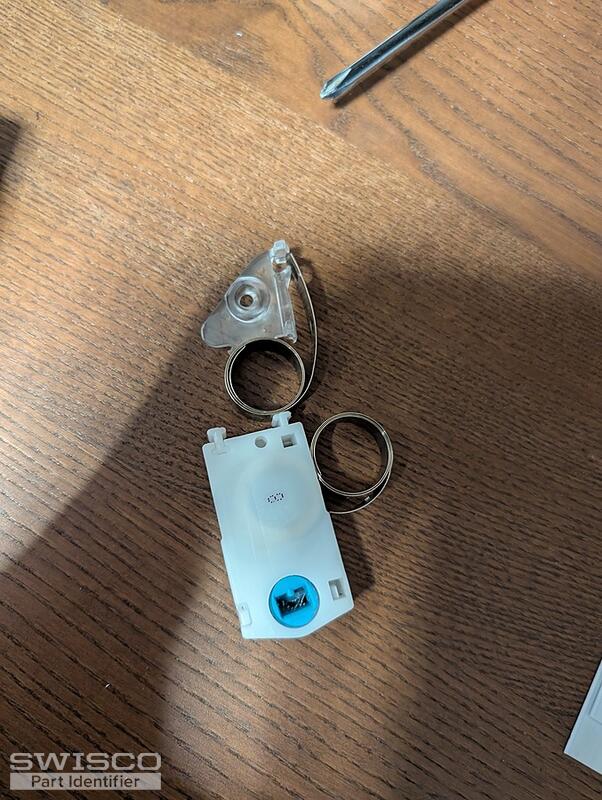

Please advice me as of what model can I get to replace the pivot shoe and coil from the attach picture. This window is double hung from American craftsman or Argon. Thank you.

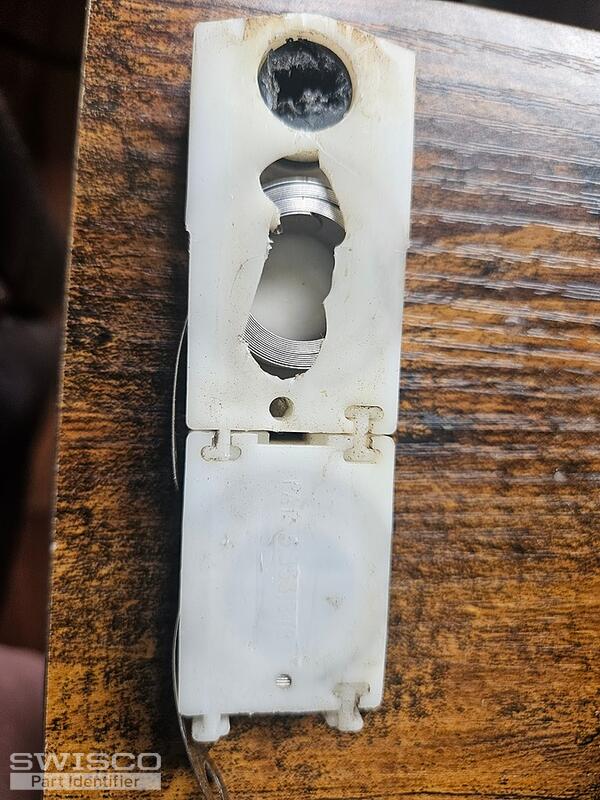

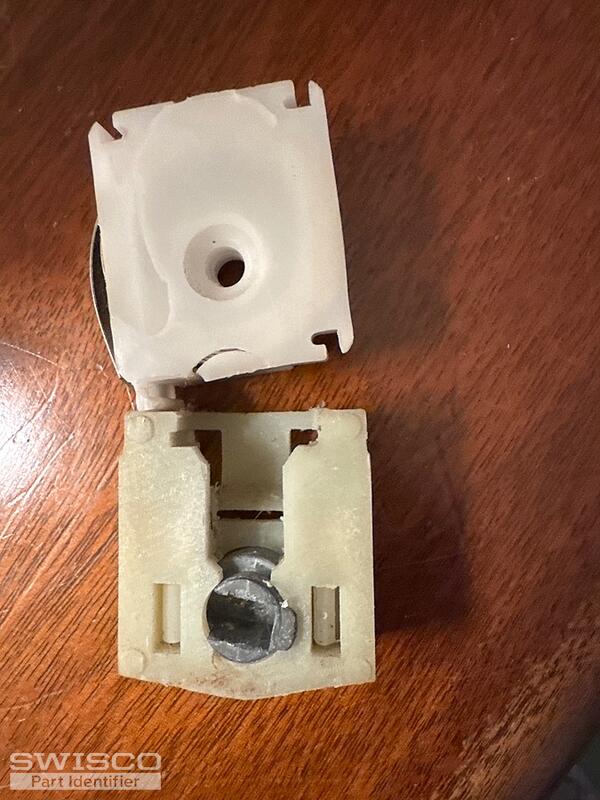

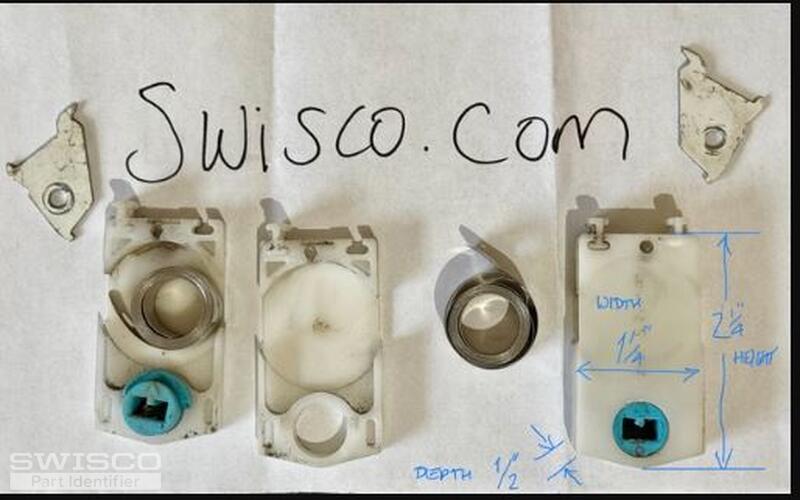

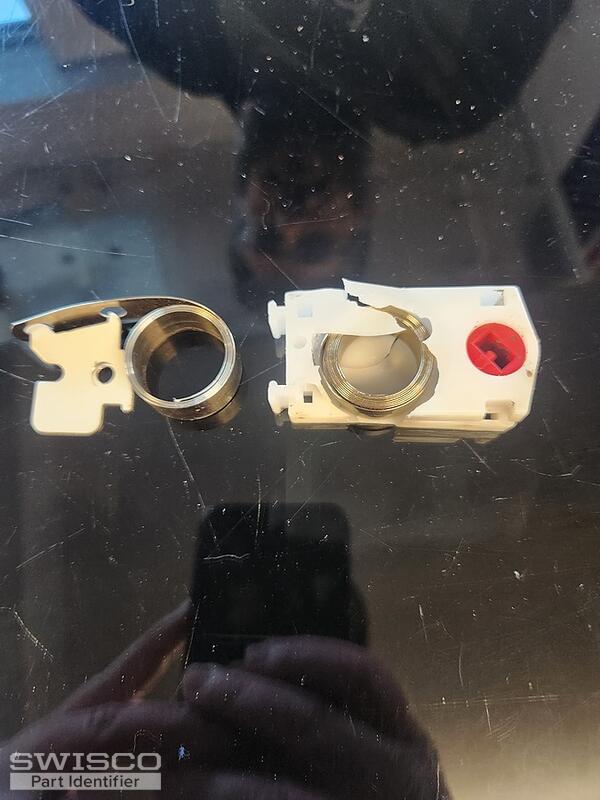

I was able to remove the balance with the broken spring. I attached additional photos with measurements of my balance. No manufacturer name on the part. Just a patent number. The number is 5.353.548. There is no screw or clip that holds the two half together. It looks like H shape “dovetail&r ... (cont.)

We have a 48x48 window that is very heavy and doesn't stay up. The springs seems to have sprung and no longer hold the window up. Looking for the springs and the pins that hold the window to them.

Hi, I took out the parts from my window, and they have patent number 5.353.548 on them, which I saw on another post are your parts 15-086 and 15-087. The markings on the springs are: 4 38W 7 30W The windows itself weighs 21 pounds. Can you help me with what springs I need? I've attached pictures. T ... (cont.)

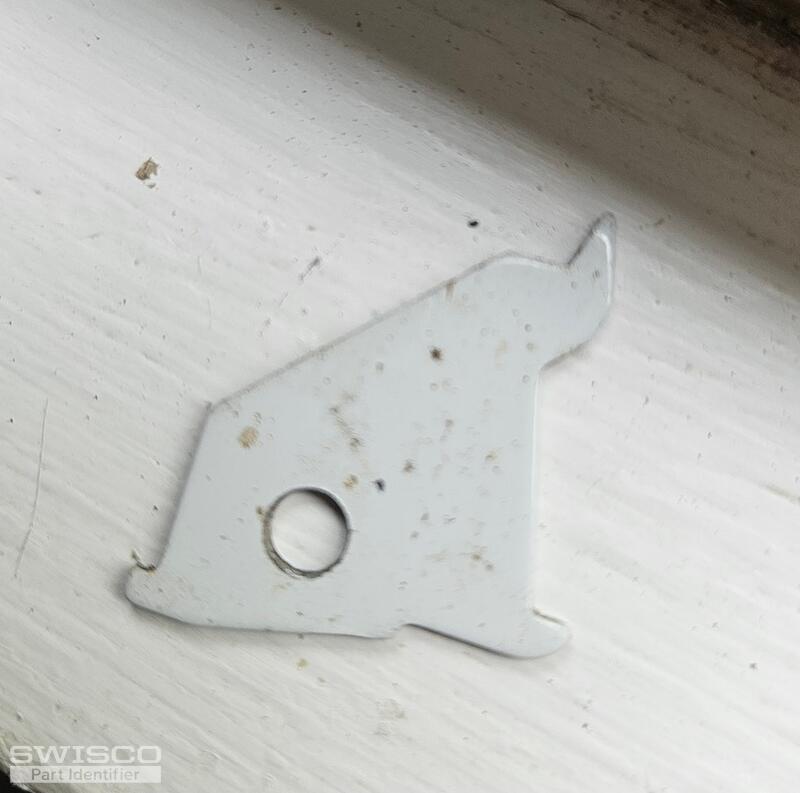

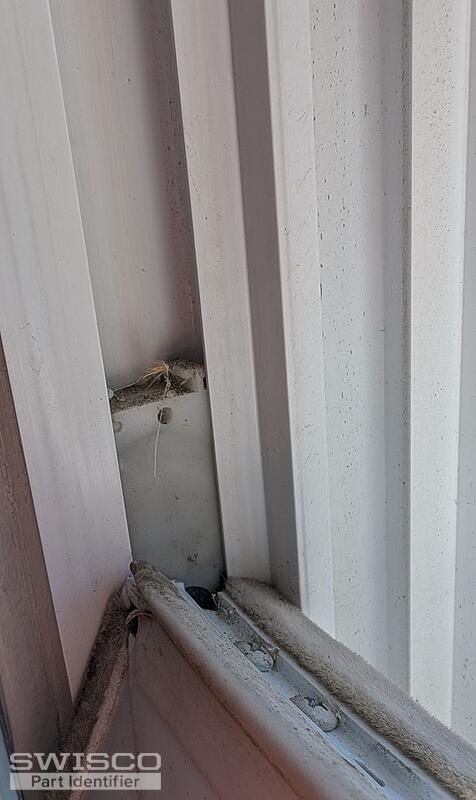

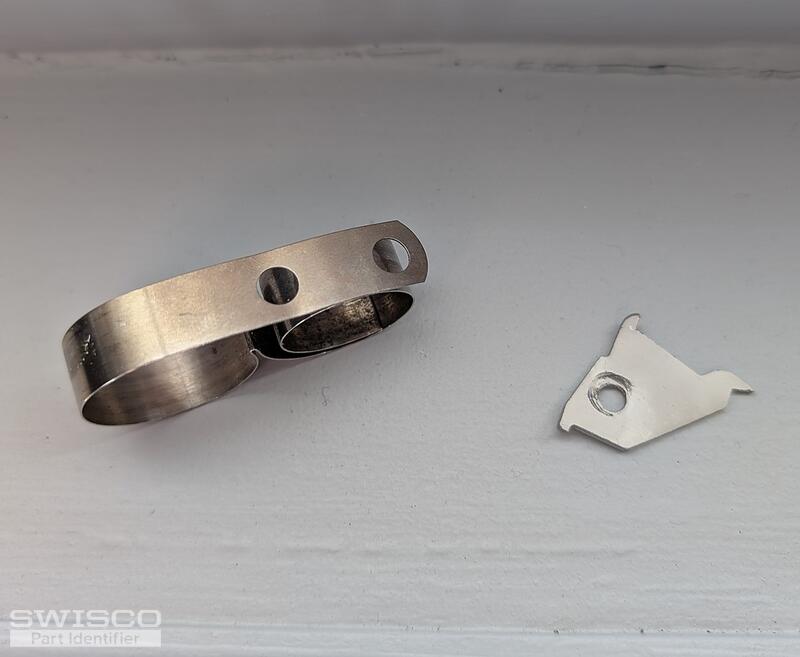

Need a replacement for the spring and/or lock. The metal triangle holds the top of the spring.Channel seems to be 1 or 1-1/4" x 1/2"Spring is 1/2" wide.When spring broke it blew out the pivot stop at the top. That should be replaced too.I'm ok with replacing both sides when I do the work. ... (cont.)

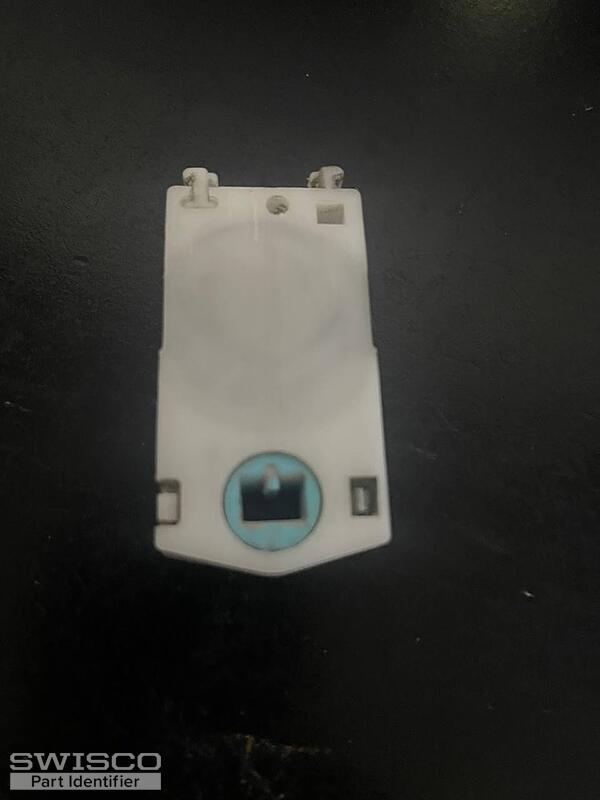

Hello, I think the coil balance has broken on one window. The picture is from the one out 3 that works still. The other info I found is as foloows: 8501 31 1/8x 64 3/4. Argon Half Sc..SillAngle Table2 HeadExponder LowE3 White 22686776.1.2. Silver Line. The coil holder has a blue part in white ... (cont.)

I have no idea what this is called but l broke it last night and really need to order this part x 2

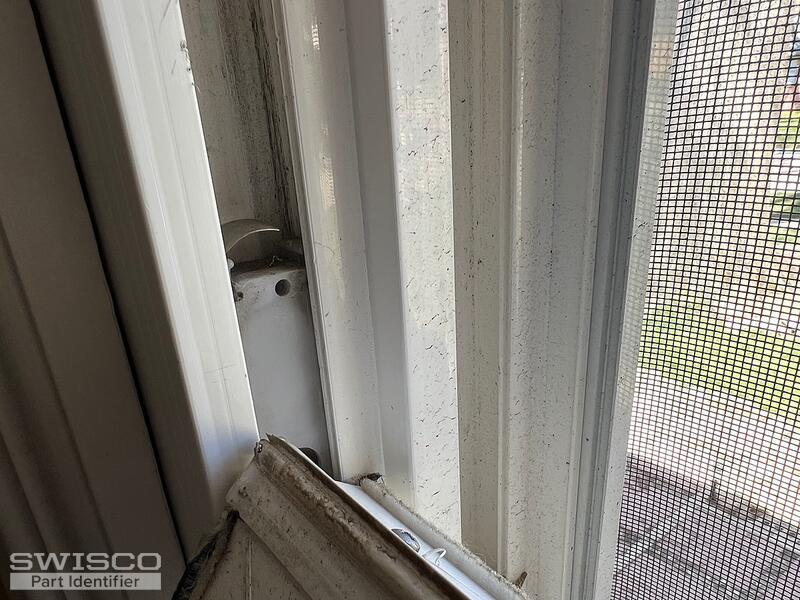

Right side of window has a coil system. Window won't open unless I use tilting function, tip window out and then move it and replace tilting lock. Won't stay open on it's own sometimes and doesn't glide smoothly. Makes a cracking sound when I close it. Left side of window seems ok. ... (cont.)

Have 2 windows where this has come apart from tilt out window. Can it be replaced if broken? What would a good replacement for it be?

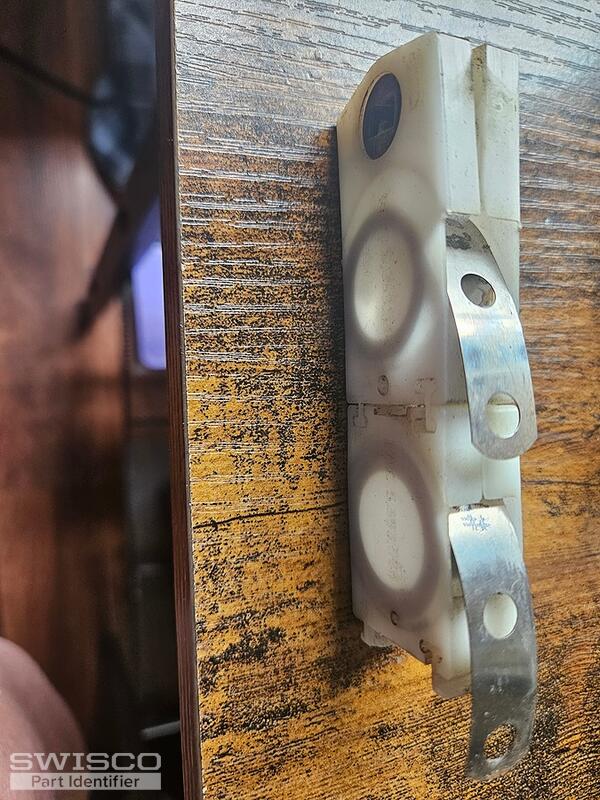

Hello! I have one that needs to have balances replaced, the size of the sash is 30x30 in, 2 tapes, the total height of the shoes is 4 in, the width is 1 in, please help me choose the necessary parts They also have the marking Pat. 5.5353.548 Thank you!
