Viewing all customer Discussions for:

15-087 Coil Housing Pivot

Hello, I have not been able to remove this constant balance sash, but hoping you can help me out with a removal tool (I think there is a jamb spreader that might work?) and replacement part numbers. I believe, from searching, that it is 15-087 & 2x 15-086 parts, but want to be sure. I have to ... (cont.)

number on window 19880903 size 39.5 x 44.75

Please advice me as of what model can I get to replace the pivot shoe and coil from the attach picture. This window is double hung from American craftsman or Argon. Thank you.

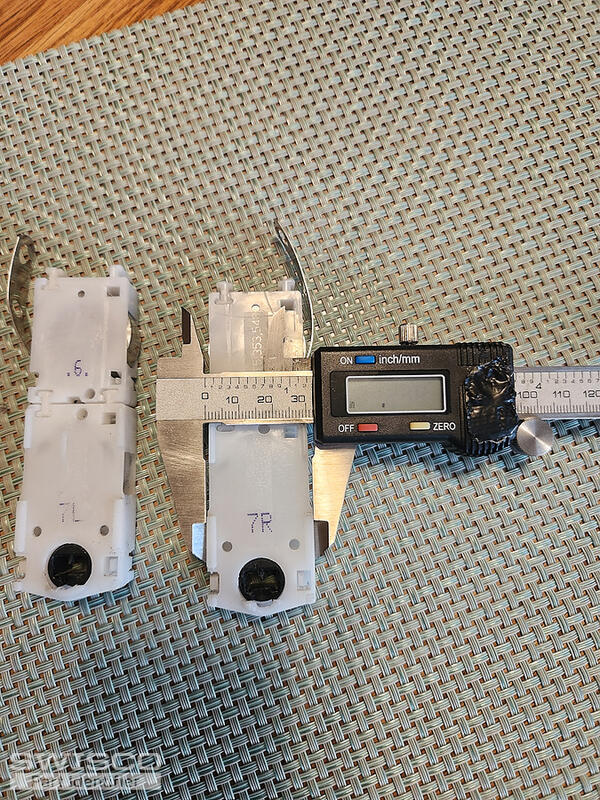

I was able to remove the balance with the broken spring. I attached additional photos with measurements of my balance. No manufacturer name on the part. Just a patent number. The number is 5.353.548. There is no screw or clip that holds the two half together. It looks like H shape “dovetail&r ... (cont.)

We have a 48x48 window that is very heavy and doesn't stay up. The springs seems to have sprung and no longer hold the window up. Looking for the springs and the pins that hold the window to them.

Hi, I took out the parts from my window, and they have patent number 5.353.548 on them, which I saw on another post are your parts 15-086 and 15-087. The markings on the springs are: 4 38W 7 30W The windows itself weighs 21 pounds. Can you help me with what springs I need? I've attached pictures. T ... (cont.)

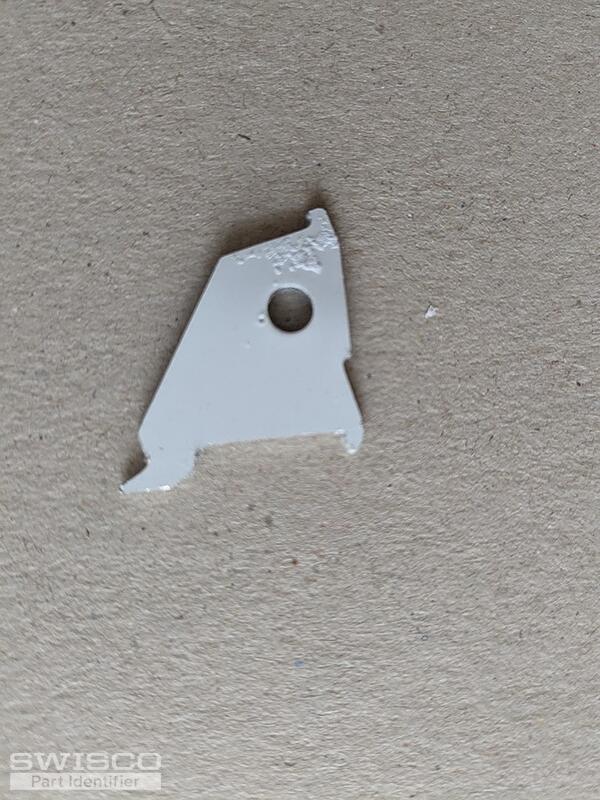

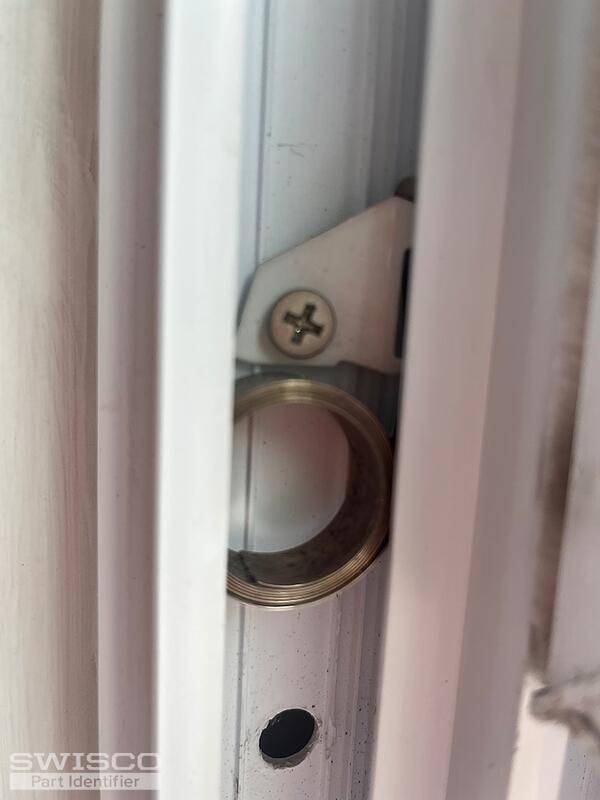

Need a replacement for the spring and/or lock. The metal triangle holds the top of the spring.Channel seems to be 1 or 1-1/4" x 1/2"Spring is 1/2" wide.When spring broke it blew out the pivot stop at the top. That should be replaced too.I'm ok with replacing both sides when I do the work. ... (cont.)

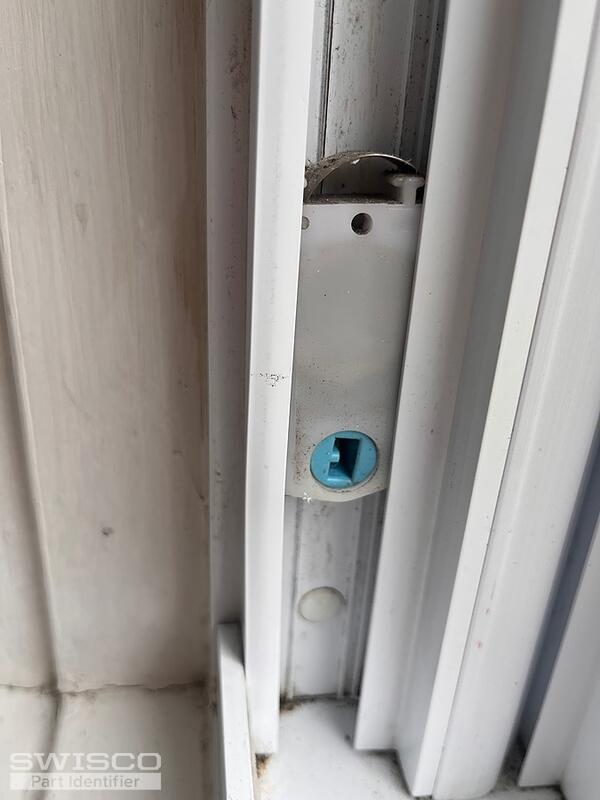

Hello, I think the coil balance has broken on one window. The picture is from the one out 3 that works still. The other info I found is as foloows: 8501 31 1/8x 64 3/4. Argon Half Sc..SillAngle Table2 HeadExponder LowE3 White 22686776.1.2. Silver Line. The coil holder has a blue part in white ... (cont.)

I have no idea what this is called but l broke it last night and really need to order this part x 2

Right side of window has a coil system. Window won't open unless I use tilting function, tip window out and then move it and replace tilting lock. Won't stay open on it's own sometimes and doesn't glide smoothly. Makes a cracking sound when I close it. Left side of window seems ok. ... (cont.)

Have 2 windows where this has come apart from tilt out window. Can it be replaced if broken? What would a good replacement for it be?

Hello! I have one that needs to have balances replaced, the size of the sash is 30x30 in, 2 tapes, the total height of the shoes is 4 in, the width is 1 in, please help me choose the necessary parts They also have the marking Pat. 5.5353.548 Thank you!

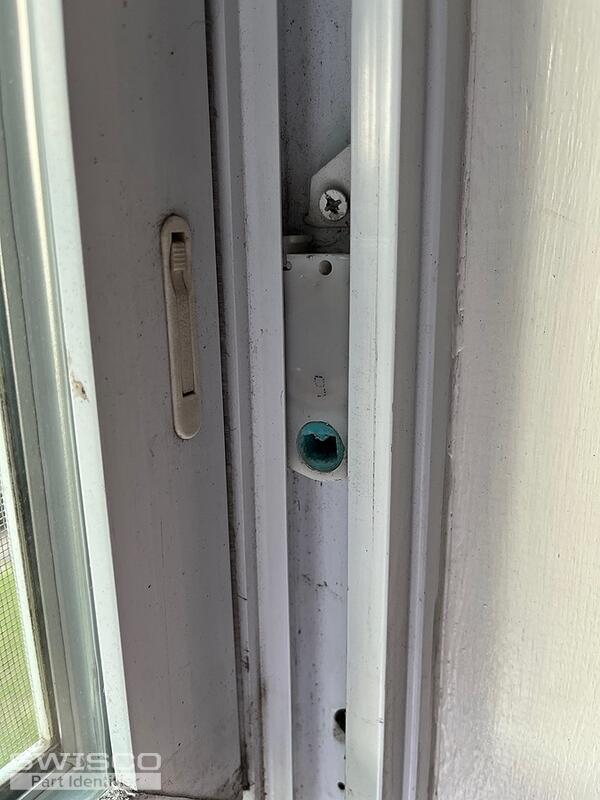

looking for this part, I think a window coil and pivot shoe, jeld wen window.

Attached is the OEM part from a very old Andersen window front tilt. My question is the following: will the swivel (light blue center) work with you replacement part?

Vinyl window will not stay open and makes a loud screeching noise. Any help with which part or parts I need would be appreciated.

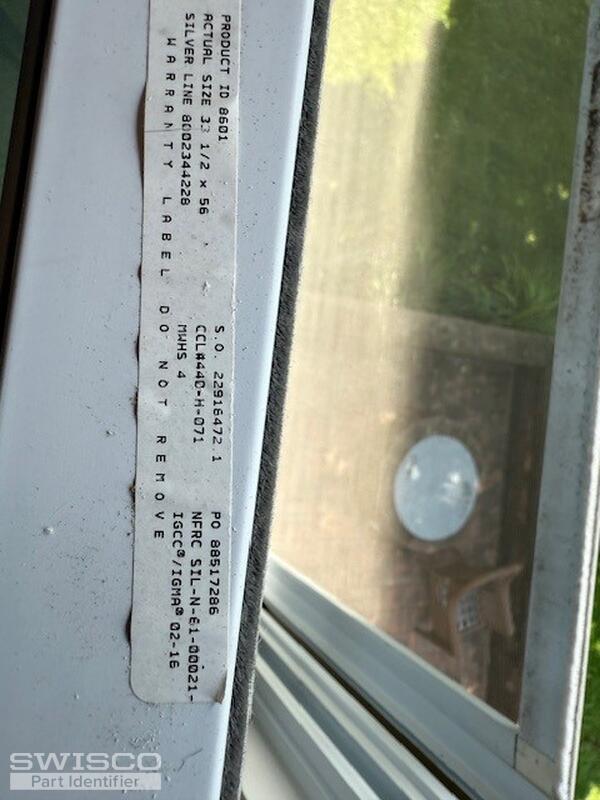

Silver Line size 33 1/2 x 56. bottom window will not stay up

Spring and balance seperated. Need replacement (2) both sides of window.

Hi, Not sure about coil and pivot shoe needed here. Label not to helpful to me. This is a small bathroom window and a coil on one side broken. Thank for your help, Craig

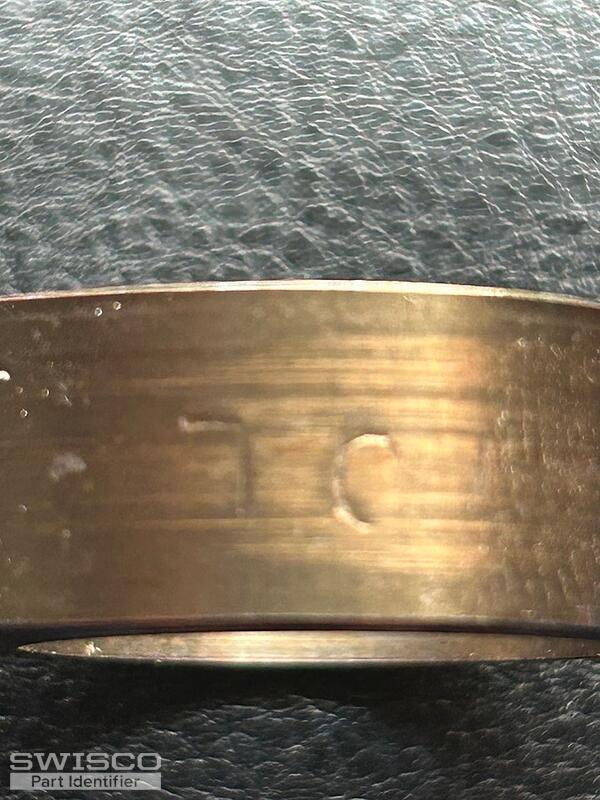

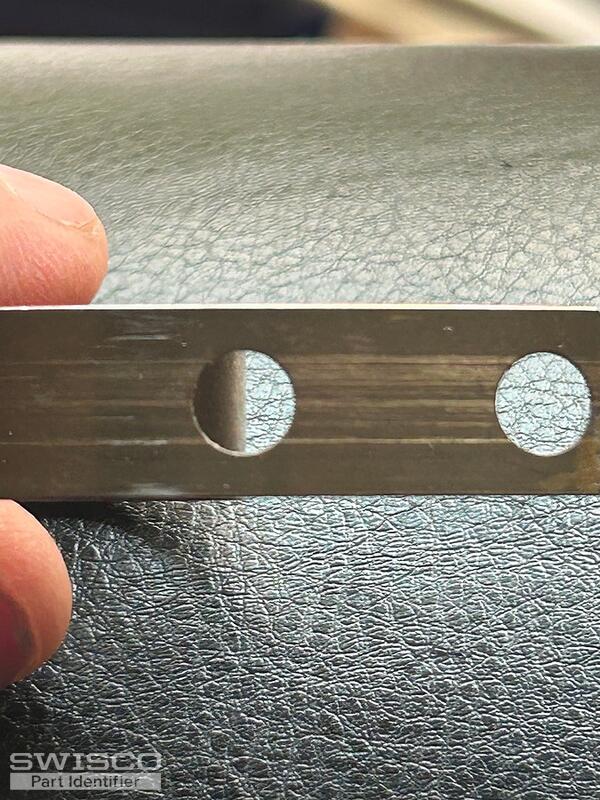

Need to verify if this is a 7# balance spring. The marking looks more like a letter L than a 7 the spring appears to be 15/32" wide and the center of the hole spacing is 3/4" I do not see any markings on these windows to indicate manufacturer they are vinyl single hing tilt windows.The spring atta ... (cont.)

Can you tell me which parts I need to order to replace these coil balancers? The window is an LBLseries 2000 HLC2548X77. Thanks.
