Viewing all customer Discussions for:

26-366 Vinyl Window Sash Pivot Bar

I can't remove the part then the window will fall completely out. Its the spring that is inside the frame to make the window go up and down. The window is 64" long and the spring measured at 53" not sure what else I can do? Let me know if this will help to get a replacement part. Thank you ... (cont.)

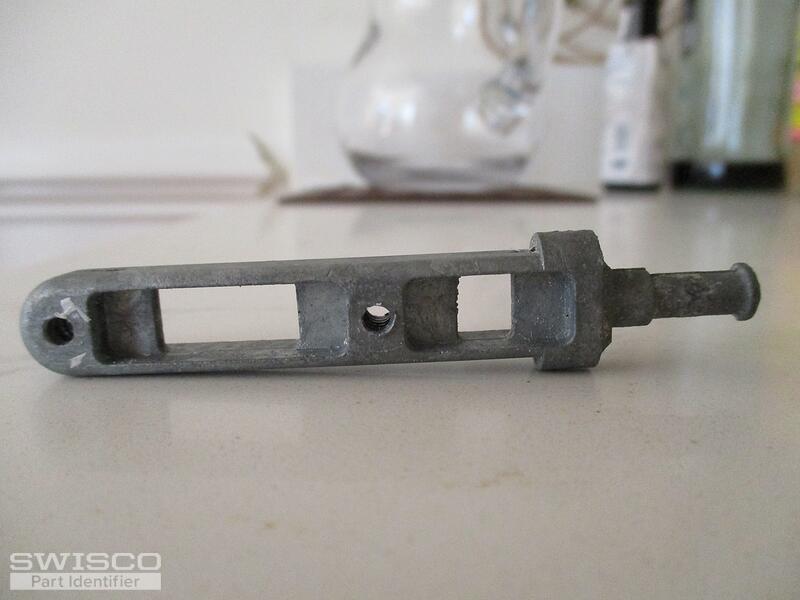

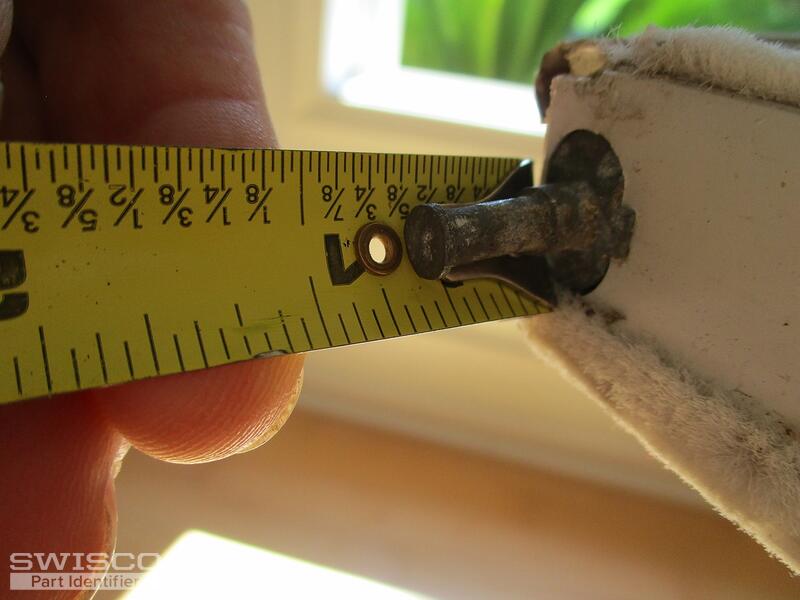

Updating my old crossbow balances. The hole spacing of the pivot bar 26-366 is a match with old pivot bar. However, the new bar doesn't stick out as far; it's about 1/4" short, so it doesn't reach all the way to engage the balance. Any suggestions? Thank you.

Goes in bottom of sash into balancer. Sash pin?

Phil

Please see attached pictures. I could not find a single balance still functional and measuring process seems unique for these. Please see attached pictures for assistance in sizing for your product. This is for single hung windows with a lower sash height of 30 inches.Thank youShane ... (cont.)

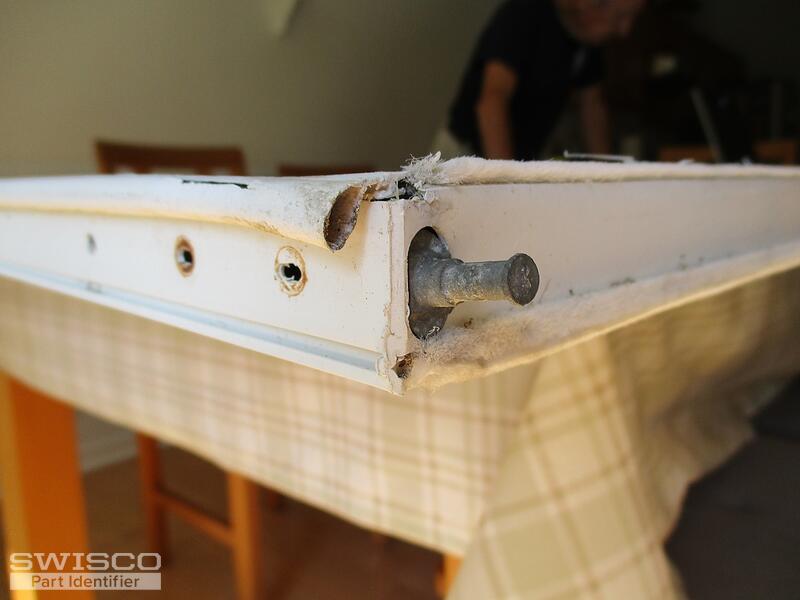

Located at bottom of the window and inserts into the shoe to prevent fallinf

I've attached an imagage of the part I'm on the hunt for. It's 3" wide. Thank you, Alex

Thanks for posting. Take a look at the 26-366. Review the dimensions and see if you think this could work for you.

I have previously order replacement window balance hardware S850-34 with black 1 1/4 width shoe. I think the S850-34 is discontinued. Can you give me the list of replacement hardware that is now available.

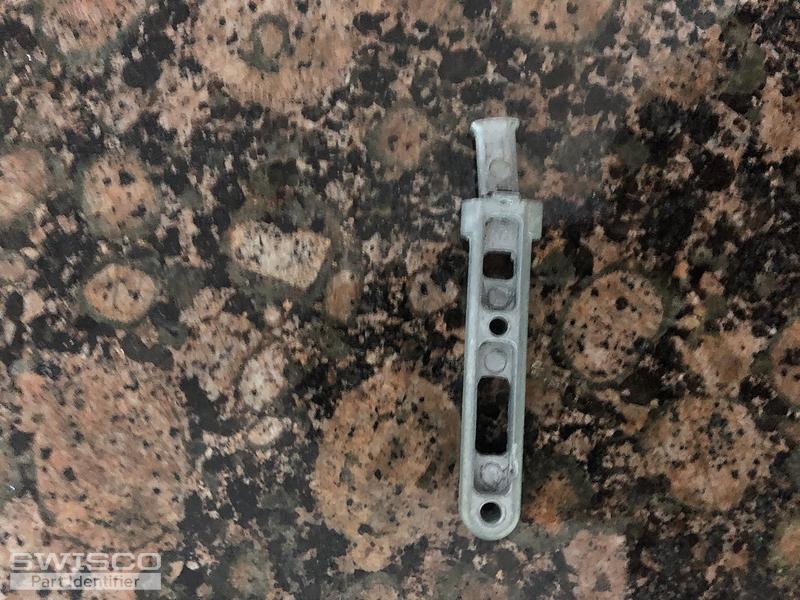

I'm unable to find markings on the window. The bar in the pic is 3" long.

I need a few sash balancer for MW window. That MW is stamped on the window lock. I have sent 4 photos so you could get a better feel for the detail.Label says MFR code MW-1Series: Twinseal double hungH-R15-46x77H-R25-46x65H-R25* 42x77I would love it if you could give me info on (3) of these. ... (cont.)

I have two Better Bilt tilt windows from about 1996 that have broken pivot bars. The bars are 2 1/2 x 5/16 x 3/16. The shoes are 1/2 x 2 1/4 x 1 1/4. The nylon housing has become damaged due to the rusted bar. What would be the best replacement parts for these window parts?

Hi,I have a customer that has 6 window sashes with what appear to be Series 850 block and tackle balances with black shoes and plastic clips at the top. These are at least 15 years old. They all measure approximately 28.5 inches from the base of the shoe to top bracket and I didn't see a match for ... (cont.)

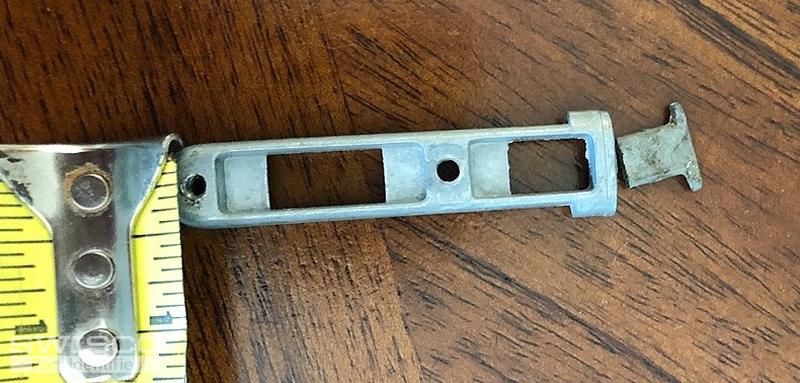

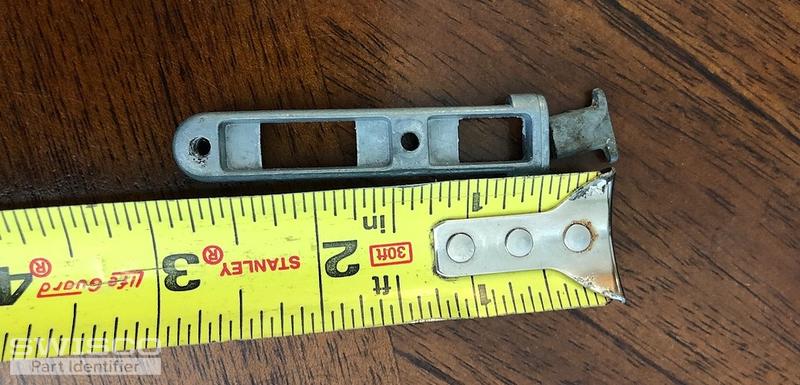

i need a pivot bar for a tilt out window. no markings on the window to tell what the manufacture is. the pivot bar is 3 1/4 inches long and is stamped 6247. attached are some images of a good one.

Have purchased these parts before, but now the 34.5 inch size not listed. Can I still get these?

I have about 10 windows all with failing Balance and cracking shoes. I would like to repair the windows with new hardware. Can you let me know which parts I need? Thank you

I purchased 15-118 to replace the pictured pivot shoes. The new pivot shoe will not allow me to hook the spring tip without modificatio. The pivot bar when I have to replace two of them, will allow my window to slide out of one or the other of the pivot shoes . I am using a 900 - 29 spiral balance ... (cont.)

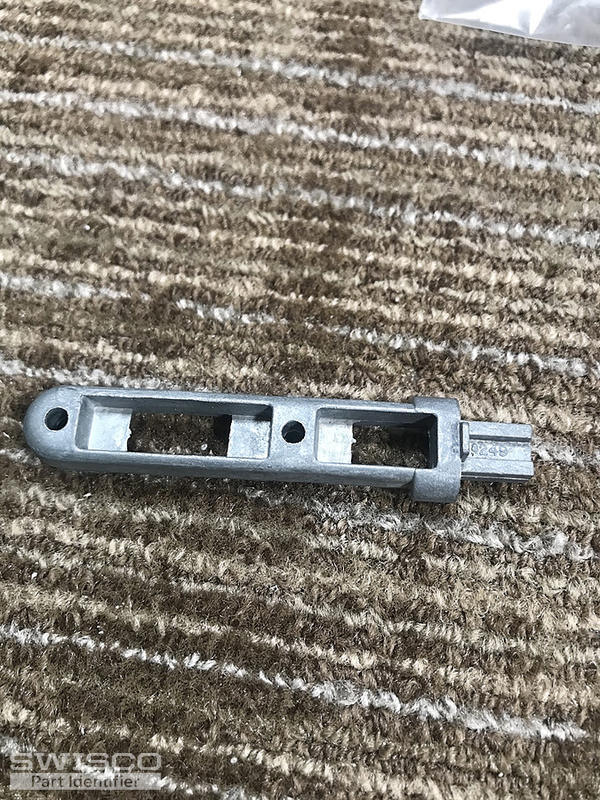

your no.26-366 looks same and good but short .the one i have is 3 1/4 long no on it 6247 i need 4

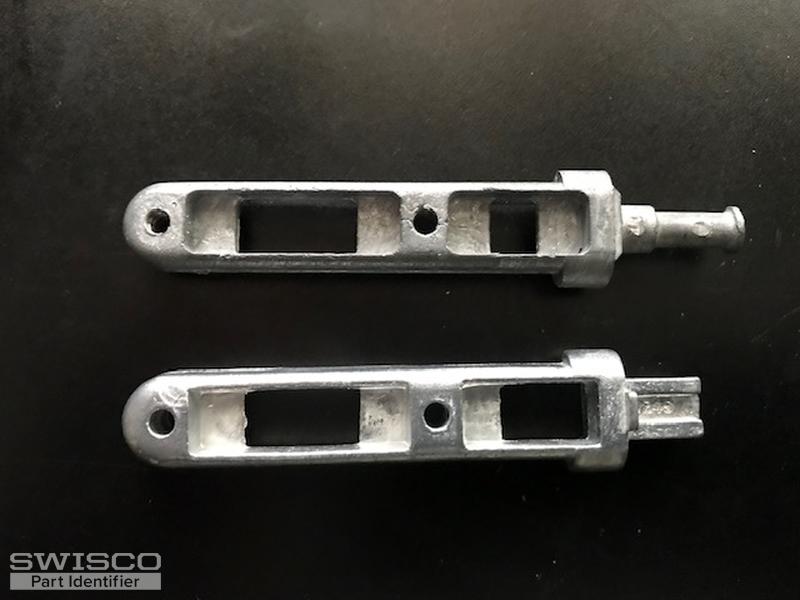

I bought 8 28 inch series 795 Channel balancer but the old pivot bar doesn't work with the new shoe. The bar is a little too long and the round tip a little too big. May be I have to cut it off. The bar doesn't look like your 26-318. I think 26-021 may not fit. But I need to order 8 new bars. ... (cont.)

Hi,I am hoping to get some help identifying the complete coil balance and sash guide parts for this window. The upper part of the coil balance is 3 1/2" high and 1" wide. We will need the bottom portion as well where the window sash hooks in.Please let me know if you can assist. If there are a few o ... (cont.)
