Viewing all customer Discussions for:

15-195B 1-1/4" T-Lock Balance Shoe, Open Cam

I have 2 sizes of Ply Gem windows, the broken parts are the shoes attached to the metal channels in the pics, with the green plastic.Is there any chance you can help me with these parts? I'd really appreciate some feedback.Thank you,David

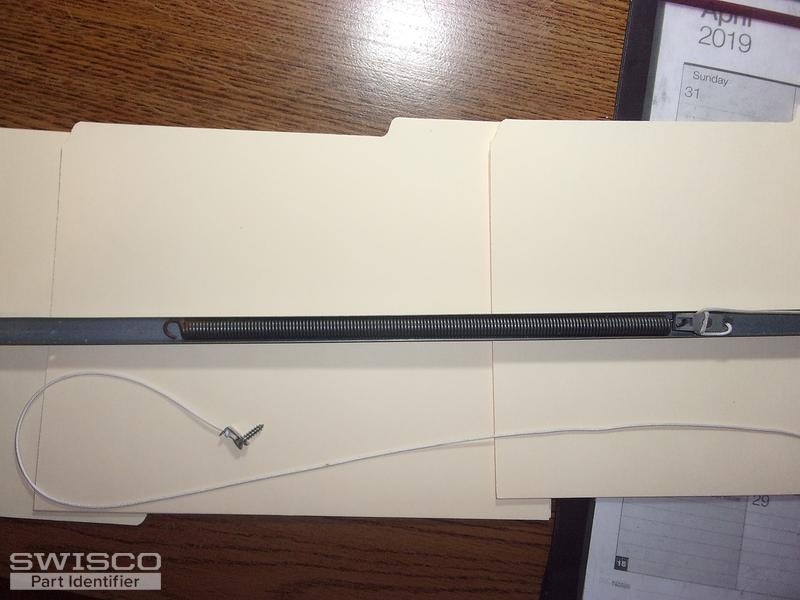

I have 5 windows that have broken pieces that connect to the balance spring, they have two set of numbers on them: PAT 4610108 PAT 6,679,000 The balance spring they connect to has the numbers 32-5 on it and is 33 inches long, not sure if it's sold as a whole set.

Need this replacement part. Part and is located on the bottom of the spring and block and tackle assembly. Located in Channel on left side of single hung tilt in window.

What is the difference between a 15-195 shoe with a closed or 15-195B open cam? Does it make any difference which I select?

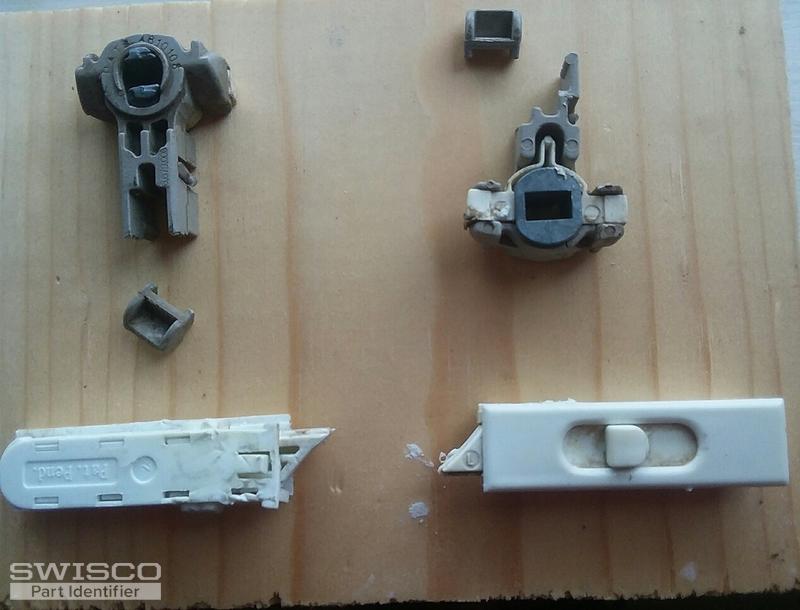

I have two windows that were closed for an extended period of time. When I opened and then closed them the grey items in the photo broke. As you may be able to see, the tops broke off which were, apparently, what held them inside the bar in the track (see photo). These windows are a little over ten ... (cont.)

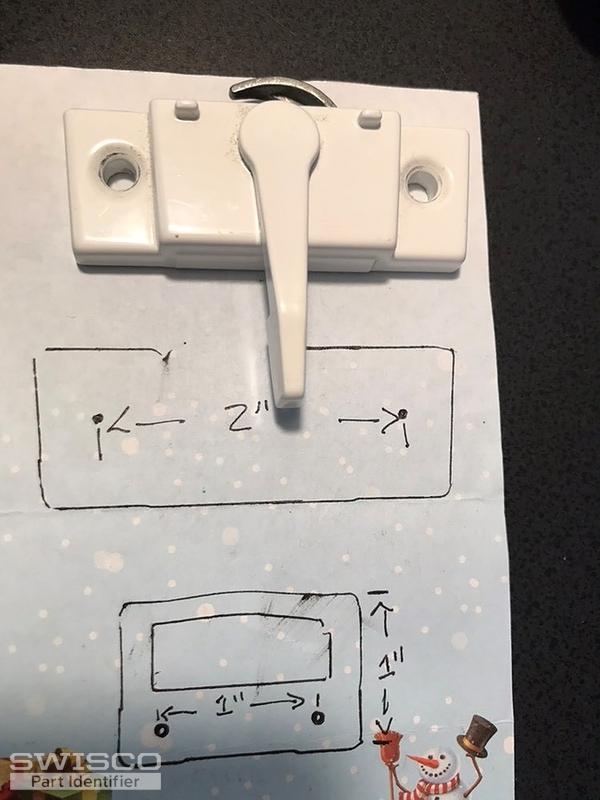

Tilt latch 2 3/8" x 3/4"/3/4" approximately, beige slide in out i believe. Channel Spring approx 33-34", appears that the actual part needing replacement is the cylindrical metal component that is turned to lock in place. printed with 33C and AO 198 3 more pictures but can only upload 3 of this ... (cont.)

Need new balancer shoes and the complete balancers for 30" and 36". The windows have a firm clip on bottom that goes into the indented balancer rod. I do not know how the window would go into your 30B or 36B without the indentation for the firm pin to slid into. Can you help or tell me who may sell ... (cont.)

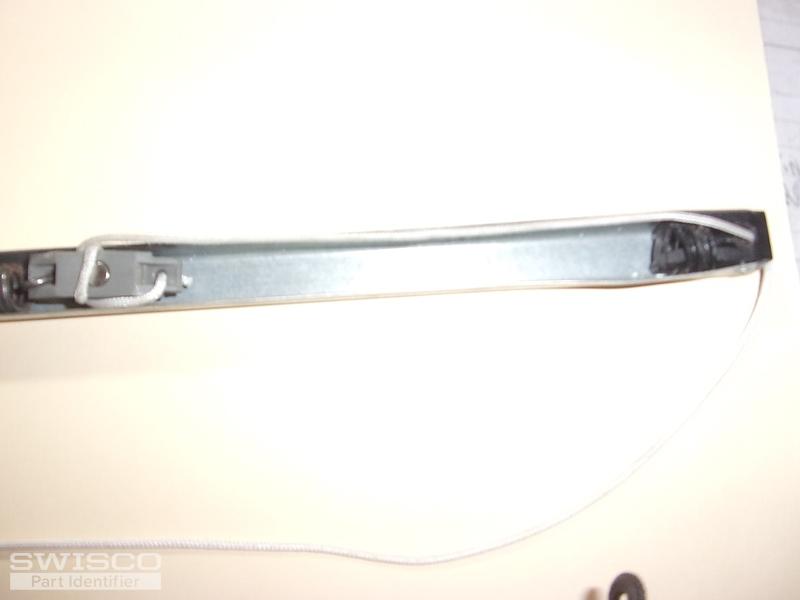

This is the show at bottom of a block and tackle channel balance. The best I can tell is that the part number is 05-156.

How do i know if I have an open or closed shoe cam? Ref 1 1/4" T-lock balance

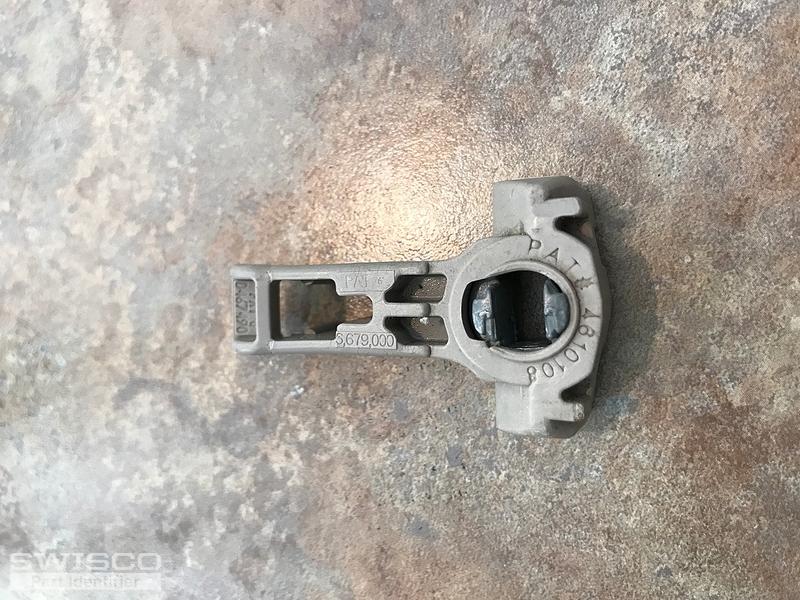

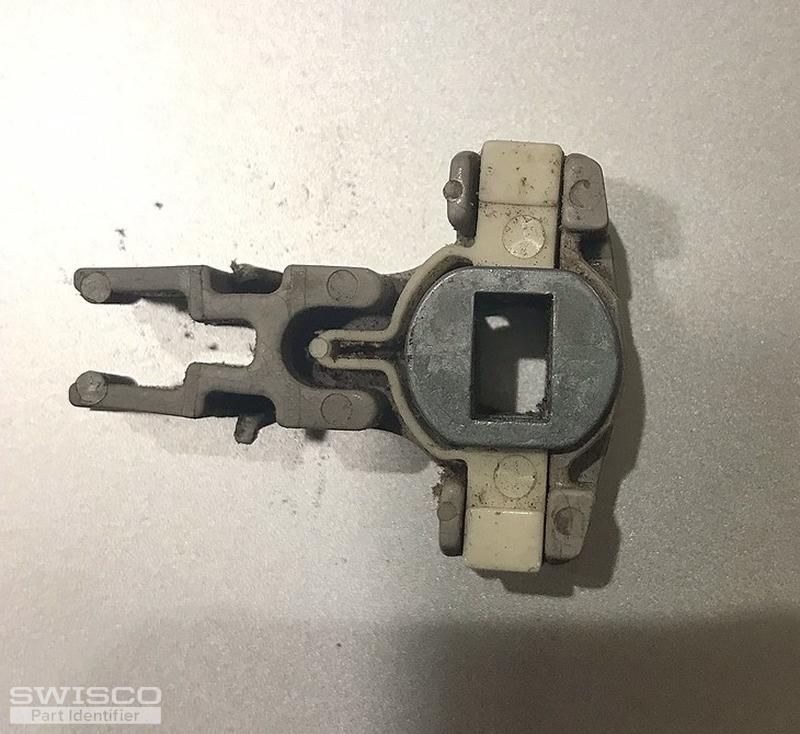

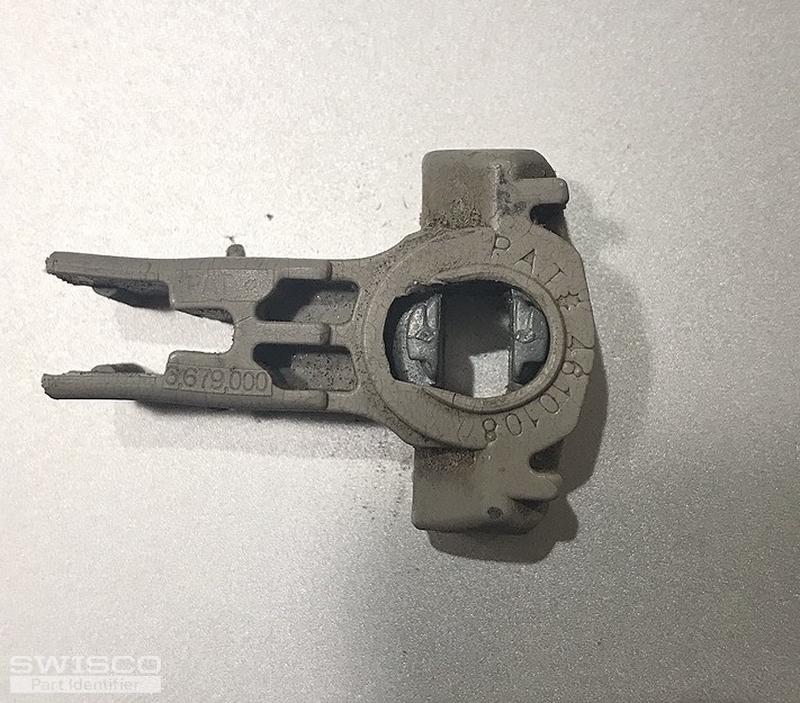

PAT AB10108 0467490 3,679,000 Those are the markings that I can see. Trying to make sure I get the right parts for my single hung windows to pass inspection.

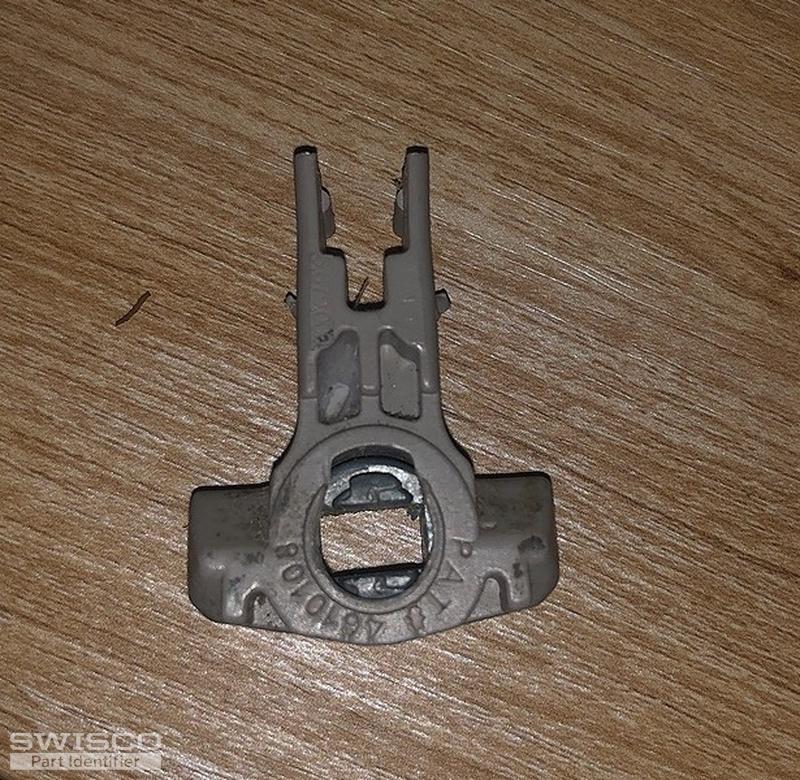

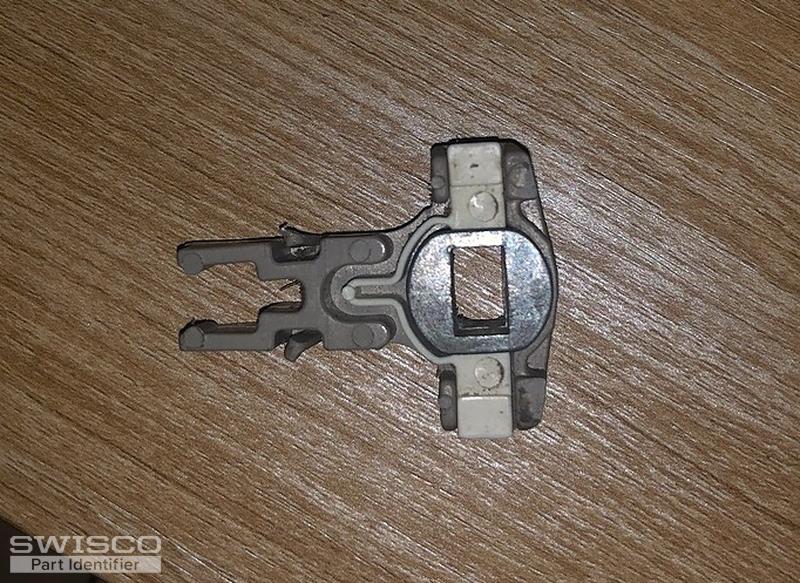

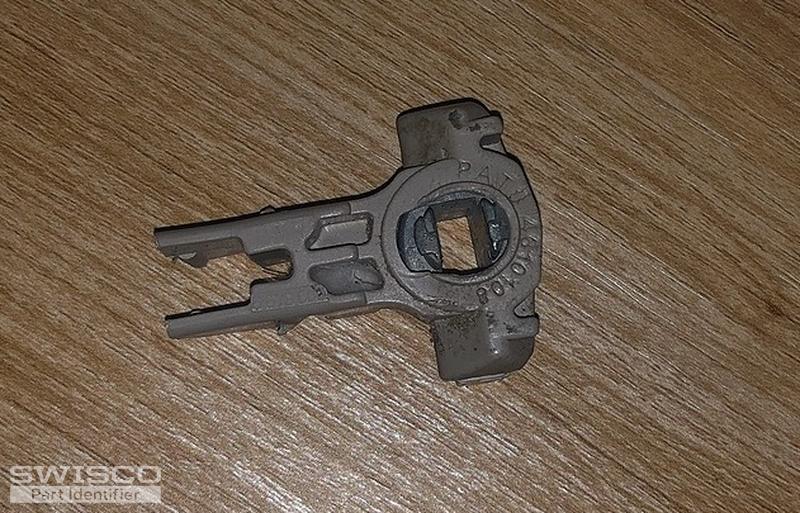

15-195B looks like replacement part that I am looking for but would like you to confirm. I have Ply Gem series 1100 windows.Part has Pat # 4610108 on it.Top hook part is broken off. Thank you.

Our house was built in 2004, and is fitted throughout with "Vinyl Single Hung Tilt Sash" windows. Three (if you can guess why ONLY these three, I'd be interested to know?!) adjacent North facing windows have failed Channel Balances. None of the windows have any manufacturer marks on them. I'd like t ... (cont.)

Hello, I wanted to confirm that I have selected the correct replacement balances for my Patriot brand tilt windows. From looking at your website it appears I have tilt window plain channel balances. It looks like I have the S795 series, and the channel length (metal to metal) is 30" From the marki ... (cont.)

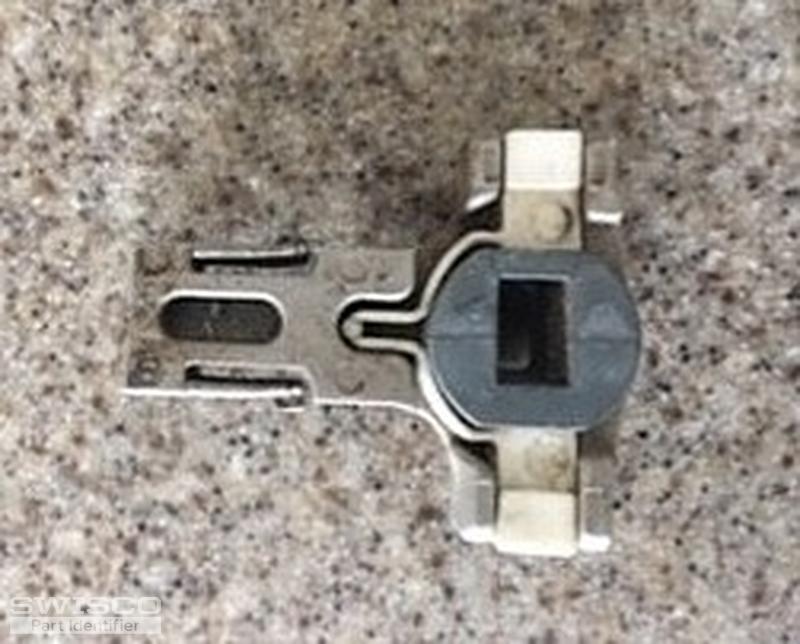

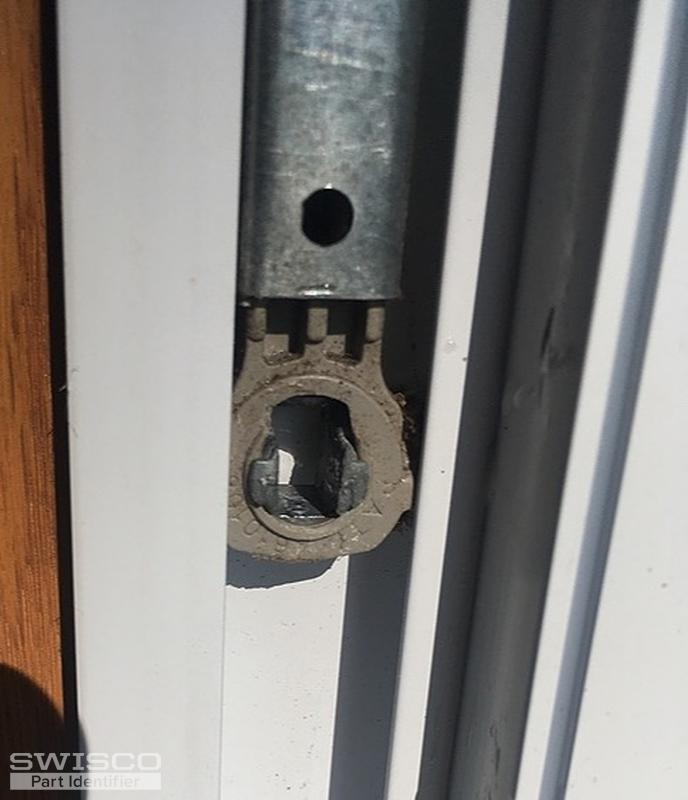

I need to find replacements for the pivot lock shoe in the photo.

Thanks for writing in. This actually looks like a 15-195B T-Lock Open Cam Shoe. However, your old T-Lock Shoe has a groove in the stem that our replacements lack. This means our T-Lock shoes won't be able to fit into your old channel balances, so you'll have to replace them anyways. See our Series 7 ... (cont.)

The plastic (about 1 1/2 inch long) V-shaped part that slides into the tensioner spring, on side of window, has broken . Windows are hard to open & wont stay open. We need 4 of these now, but should probably get 10 for future possible breaks. Windows are 12 years old & came with a log cabin kit. ... (cont.)

Is it possible for you to send us pictures of the entire balance that this shoe attaches to? Our parts experts believe that if the shoe looks as bad as it does that it stands to reason that you will need to replace the channel balance as well.Take a look at our Series 795 channel balances, as well a ... (cont.)

Hi I believe the windows are Silverline 2900. I think this is called a T-Pivot Balance Shoe. ThanksJoan

it is 69 inches not counting the clips approx 1/2 inch wide I found the numbers 26 5 BSIN on the balancer

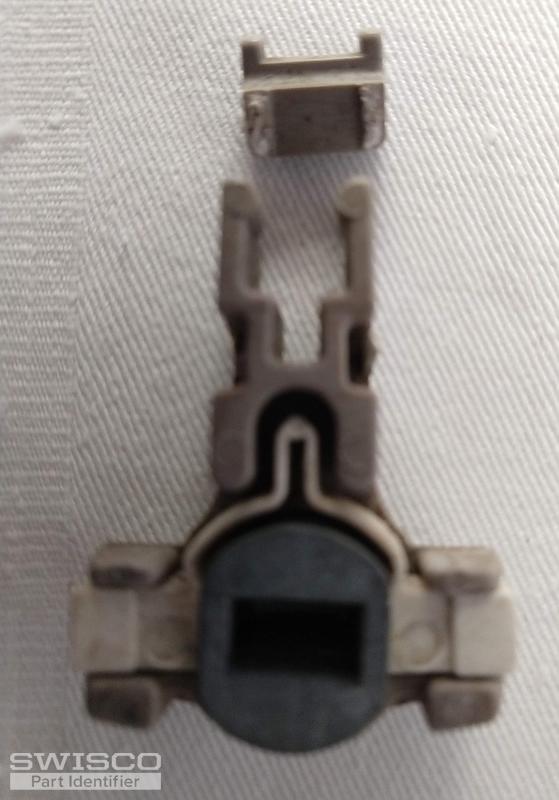

Picture #2 - Is the correct part #15-195B??Also need information on Pictures #1, #3, and #4. Need to know what part# this is.
