Viewing all customer Discussions for:

39-025 Awning Window Crank Operator

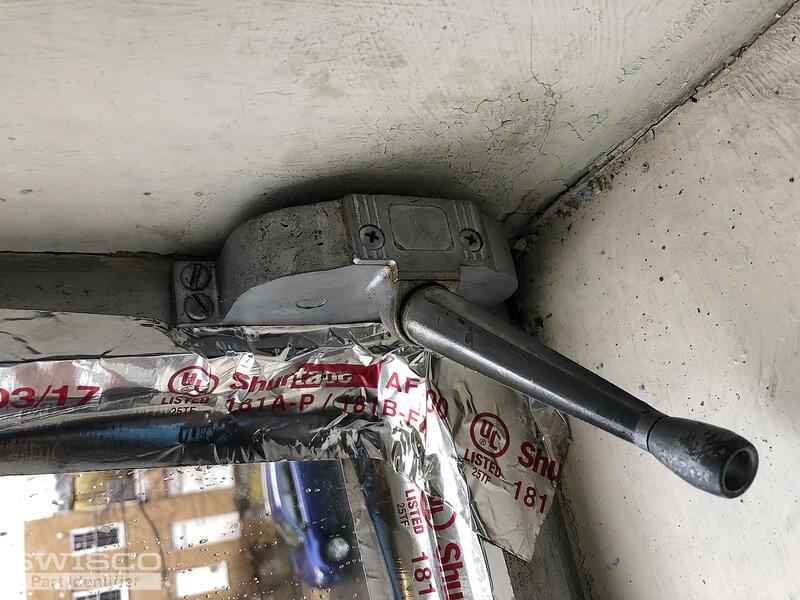

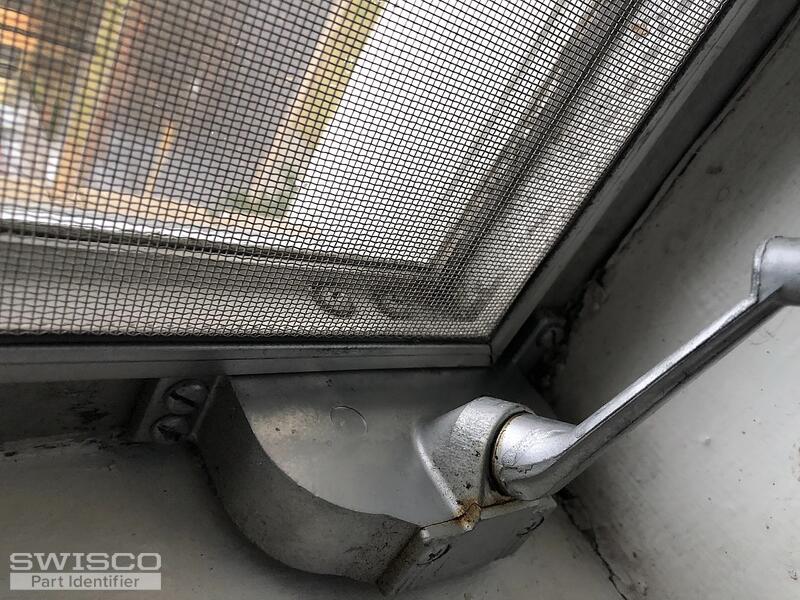

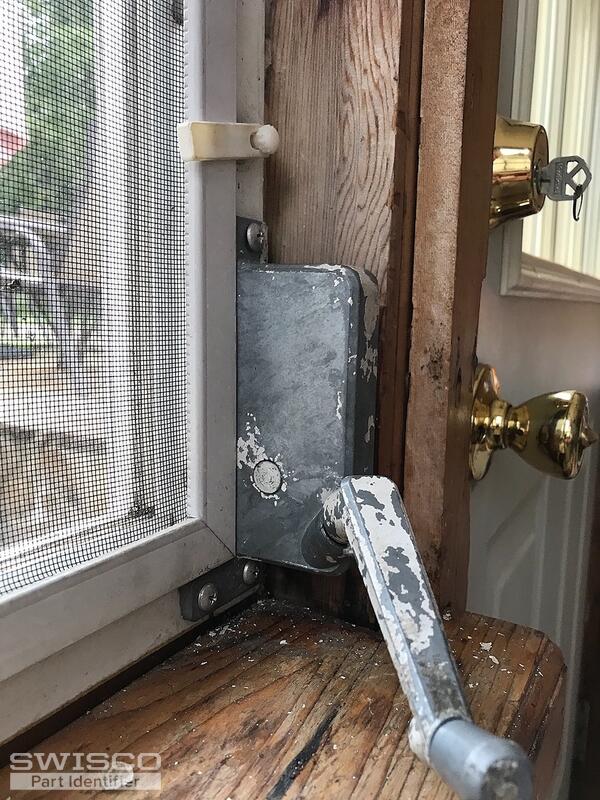

This is from an awning window to a breezeway. We could not find and name or numbers.

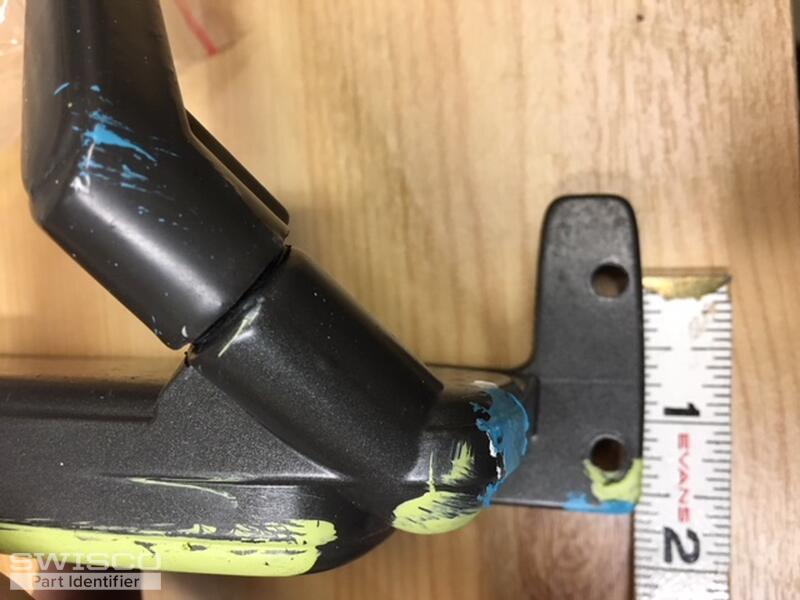

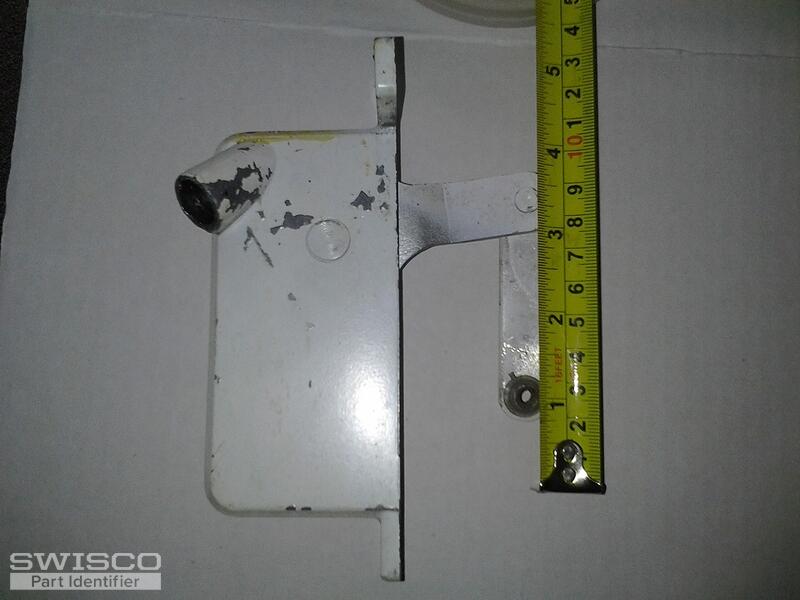

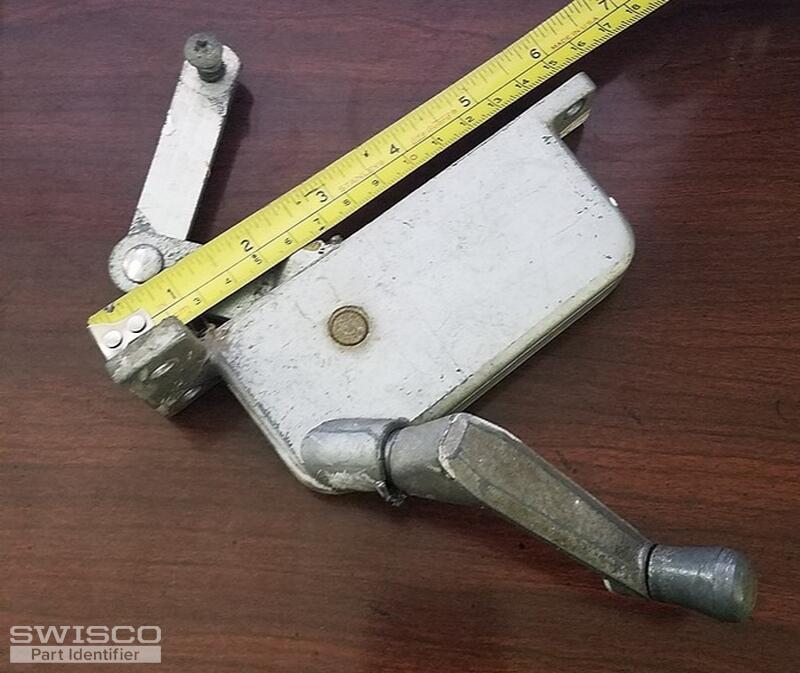

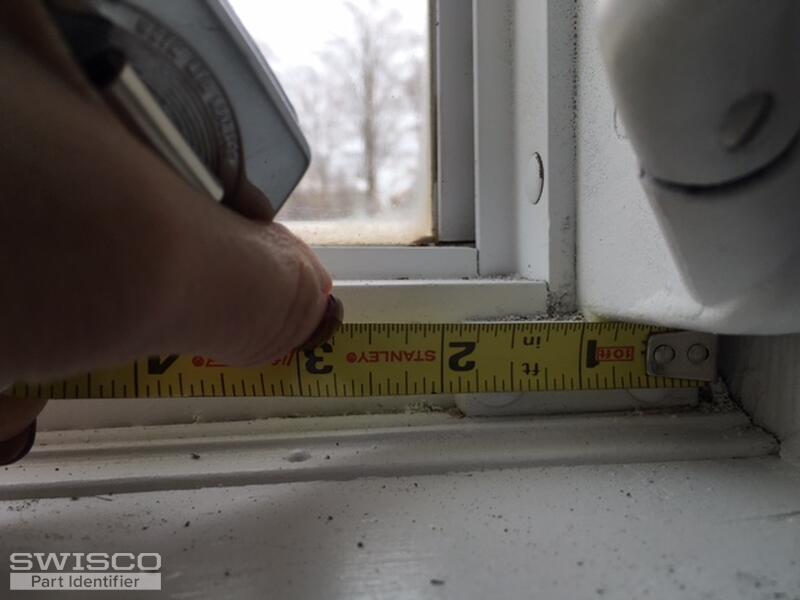

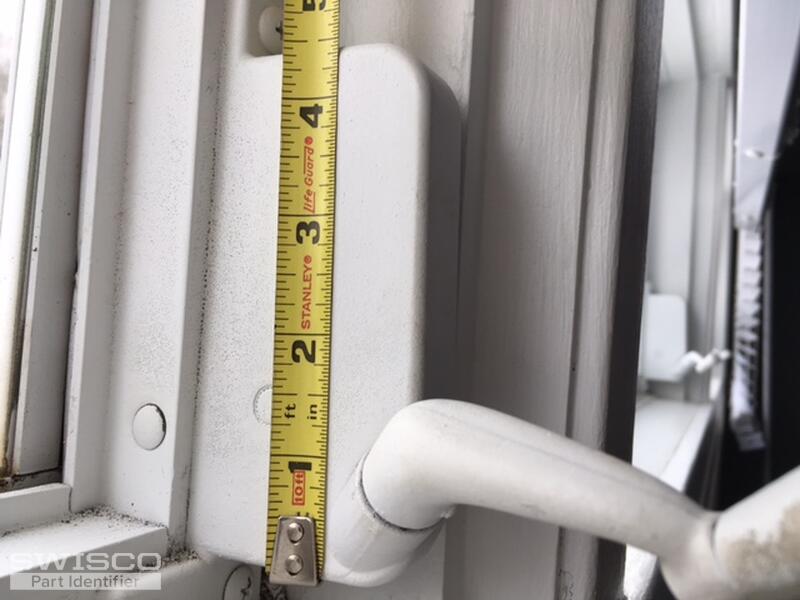

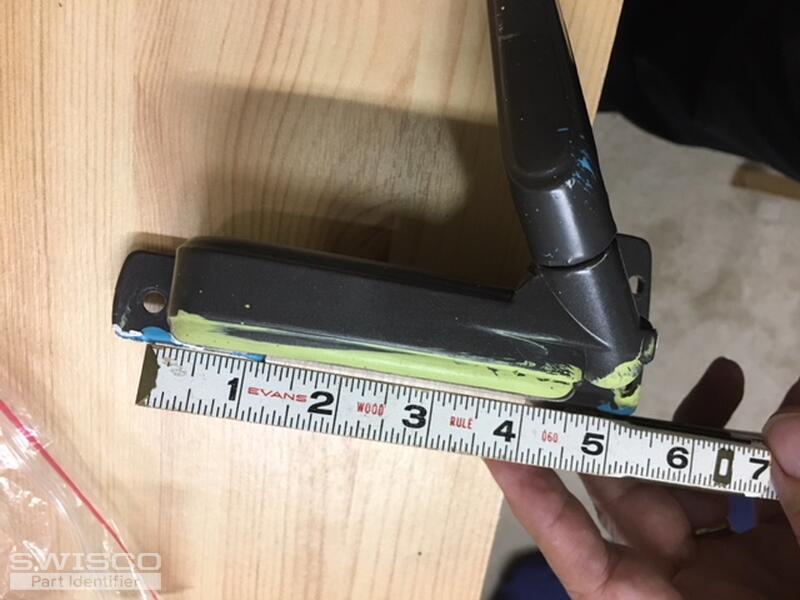

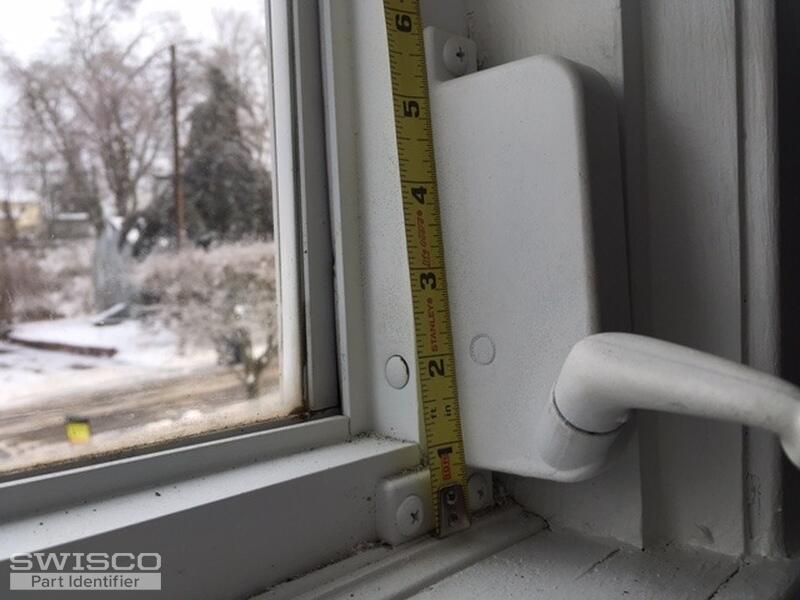

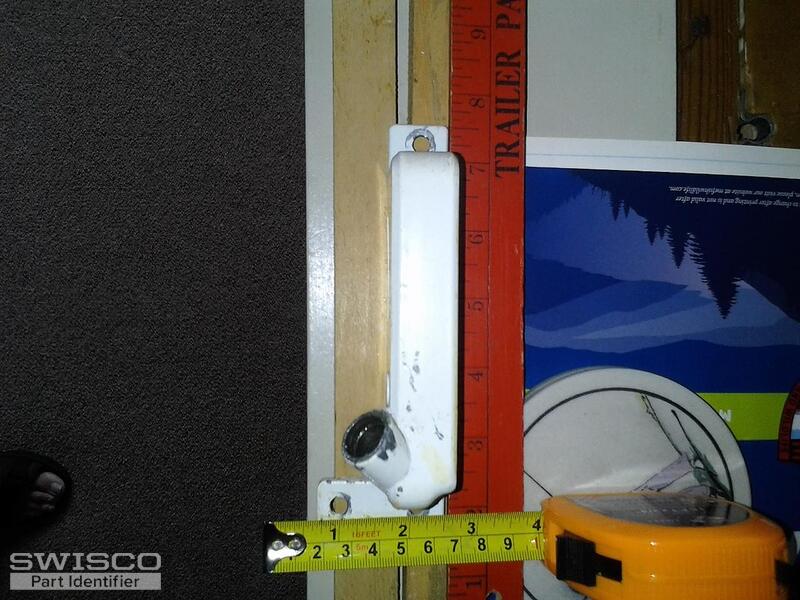

Looking for replacement hardware that I need for some of my awning windows in my house. I took some pictures and held a measuring tape so you can see the sizing

I am looking for a few cranks that, There is no product company names, numbers, or markings. There are a few in which there are 4 screws in total and some that have one on top and two on the bottom. If you can provide me with information in which there could be a similar product in your store. ... (cont.)

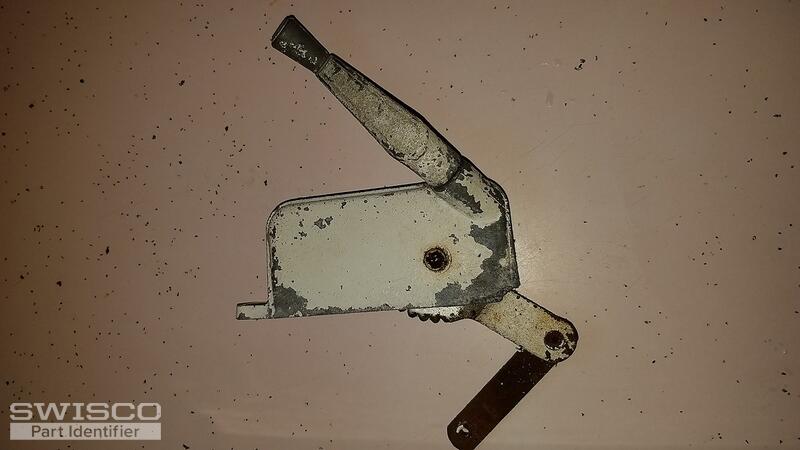

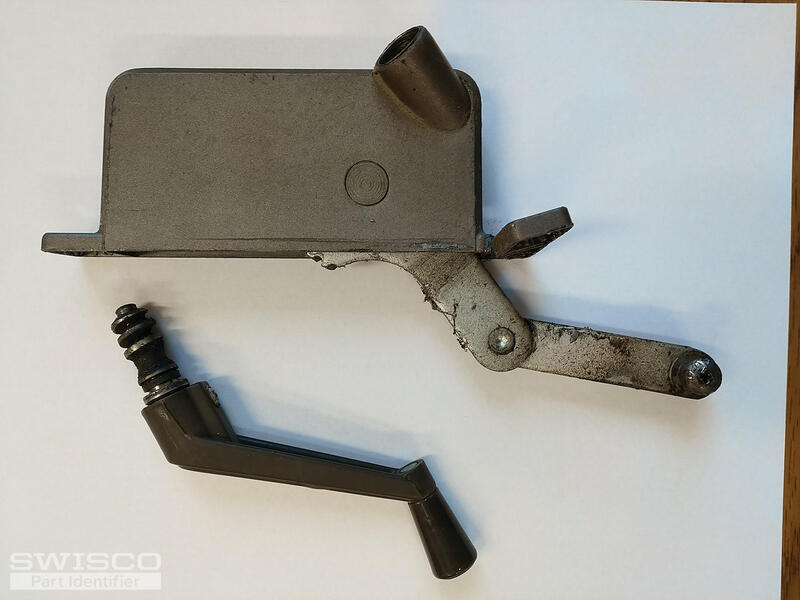

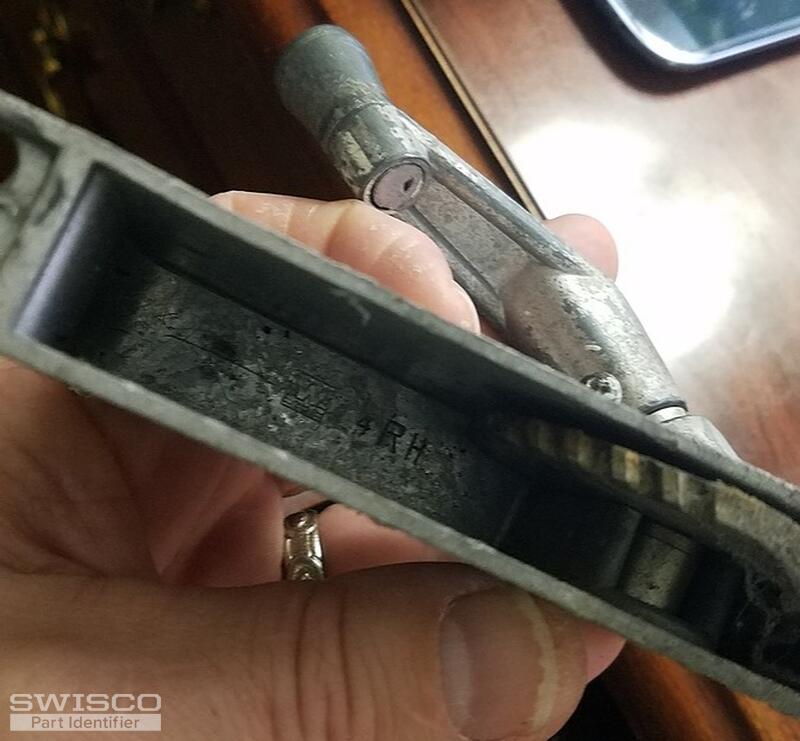

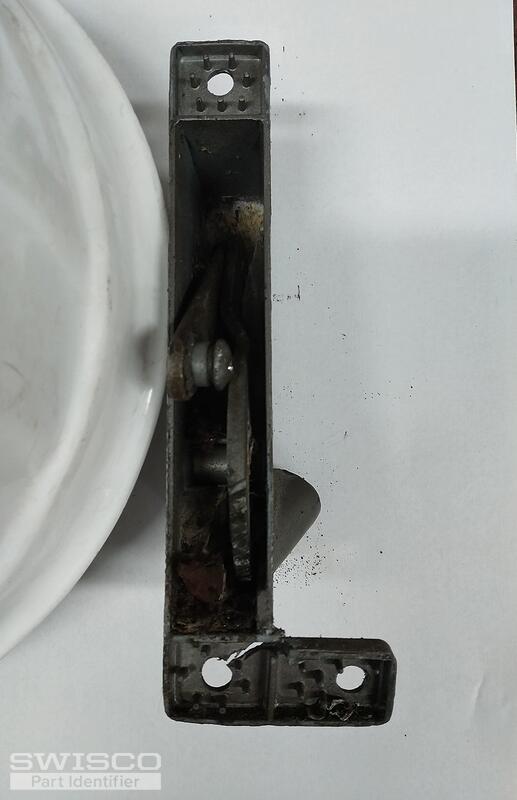

Hi, This is from a Florida 50s era home. It is right-hand position. Has a worm gear insert that falls out. The handle crank is attached to the worm gear.

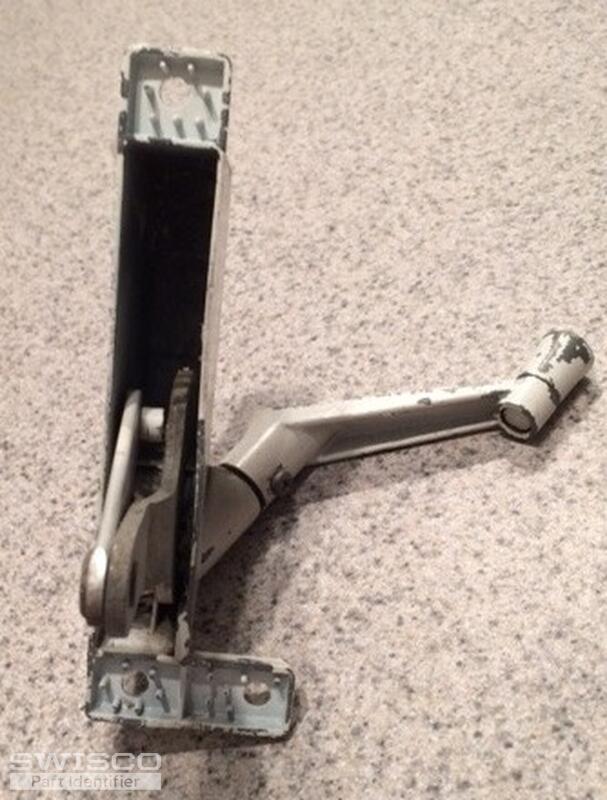

Hi, Can you please let me know if you have or can get us this part? It is an awning operator. I attached some pics, and below are the details I have. Type II Housing - 1 top hole, 2 bottom holes w/ offset Dimension A - 5-1/4 Dimension B- 1 1/8 Dimension C - n/a Dimension D - 2-11/16 OS Link/Arm ... (cont.)

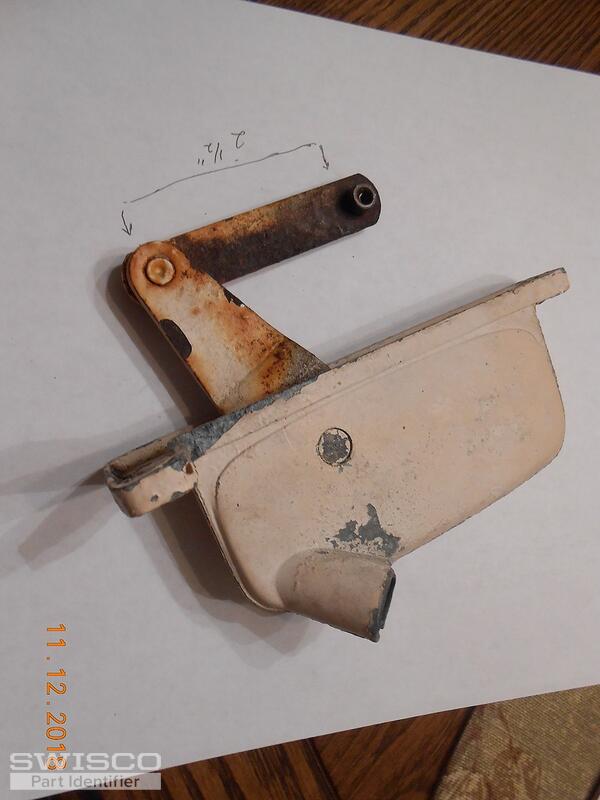

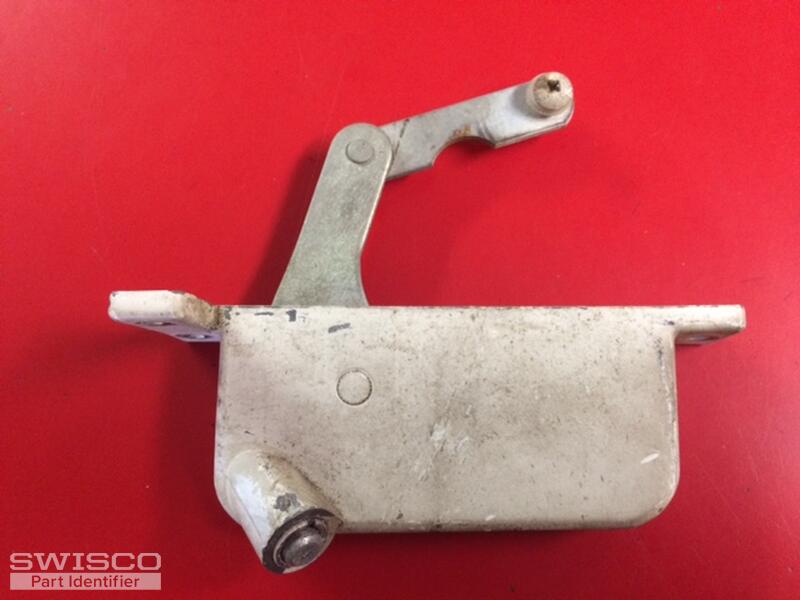

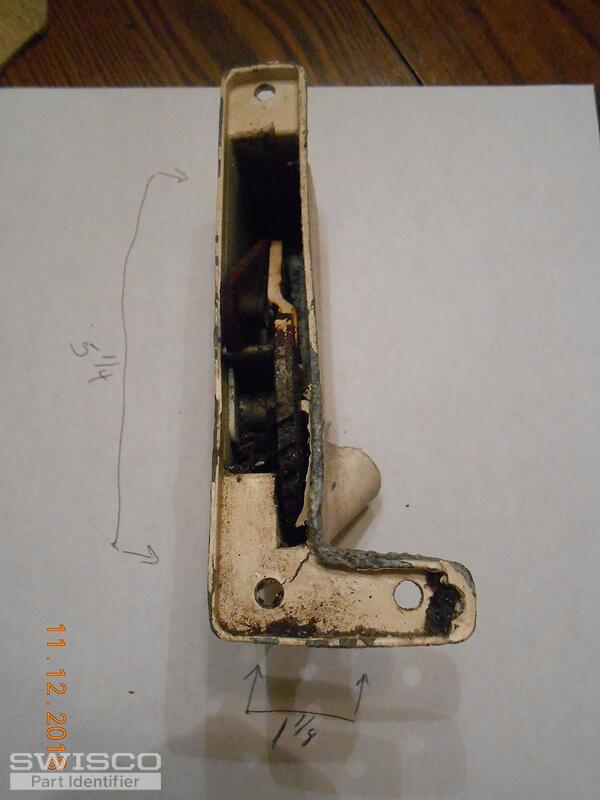

Pat.No 198202 US this is the only number on it. In case you cna't read the numbers written on the paper in the pictures the height is 5 1/4 distance between screws on bottom: 1 1/8 ctr to ctr arm bar is flat and ctr to ctr is 2 1/2

Here are 3 photos and the measurements between holes, so that you can let me know what part number I need to order. The distance between the two bottom holes is 1.125" Center to Center The distance between the top and bottom hole looks like 5.25" Center to Center My first guess was that I need ... (cont.)

My window crank operator looks similar to this one, but my dimensions are 2 3/8? instead of 2 1/4? and 1 1/8? instead of 1 3/16?. Do you know if it will still fit? Is there another operator that will work better? Thank you.

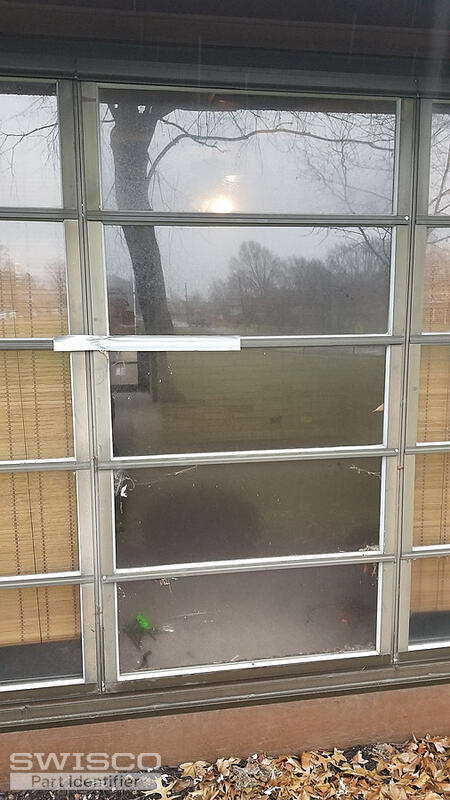

I just bought a house full of awning windows. Several have stripped handles. I think your site might have the right size. Could you please look at these photos and tell me if the 39-025 and 026 are the right ones? If so I might start with two of each (in bronze) to make sure they will work. I?m not ... (cont.)

Purchased part but doesn't fit correctly. Need operator that works. This is a Silverline Awning window. The park I ordered was 39-194

The window crank unit in this window has stopped working one-way. The handle can be inserted and turned to catch the gears to open but not to close. When turn the other way, the handle un-threads And comes out of the unit. The window cannot be closed and comes out of the unit.

I trying to figure out which one to order. The Part measures 6" in height.

On your website it seems a customer was happy with your 39-025. This took me to 39-259. Would you be able to tell me if there is any difference between them except color. He used the same patent number which led me to you.https://www.swisco.com/discussions/WINDOW-CRANK-PAT1982022-RHRD-1963-CAN-77-88 ... (cont.)

We need to replace 7 of the Awning operators. We think the awning operator is the same as your Nu-aire RH awning operator 39-278 (based on the patent numbers found on the old operator (see attachment photos). Question:1. Do you have the dimensions of the 39-278 so that I can compare?2. The end of th ... (cont.)

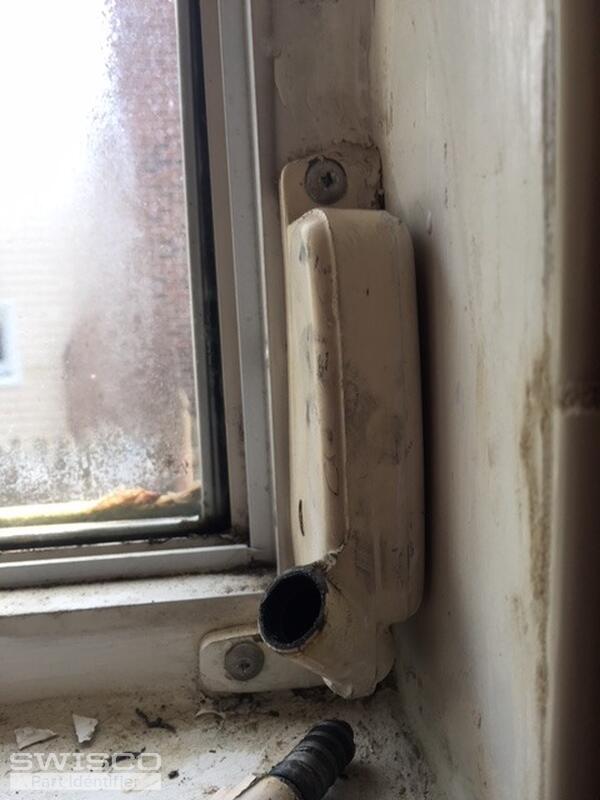

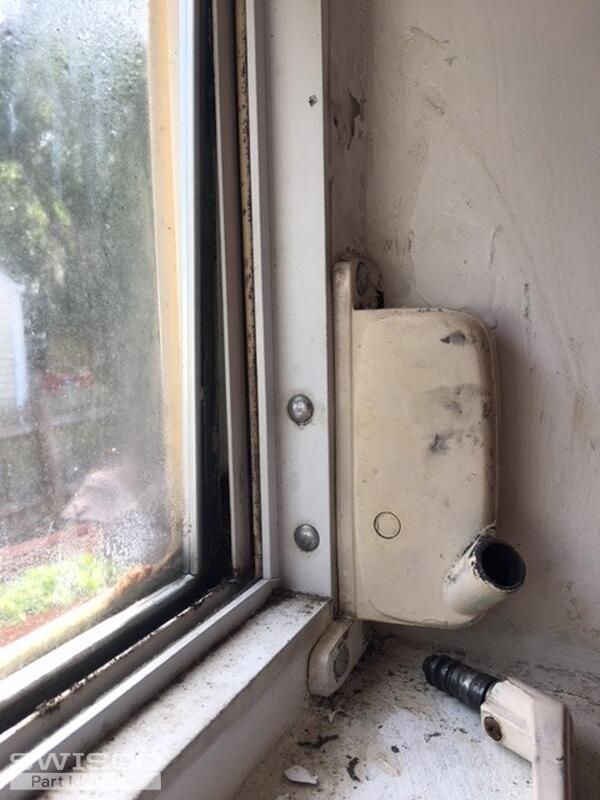

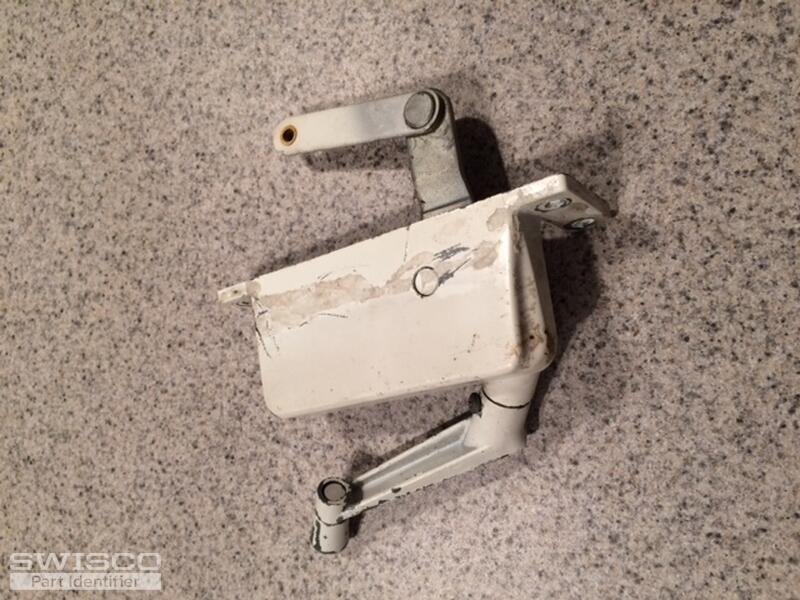

The subject operator is depicted in the attached photos with the handle removed and sitting beside it on the windowsill. These are awning style windows from a house built in Broward Count, Florida in 1968. I noticed the window was slightly ajar and when I went to close it, the screw mechanism that t ... (cont.)

Looking to replace an operator. The 39-025 is close. Except 1 1/8 between lower holes. Arm is 2 3/8 between pivot and hole. Also, top hole is slightly off center to the outside. Manufacturer is unknown.

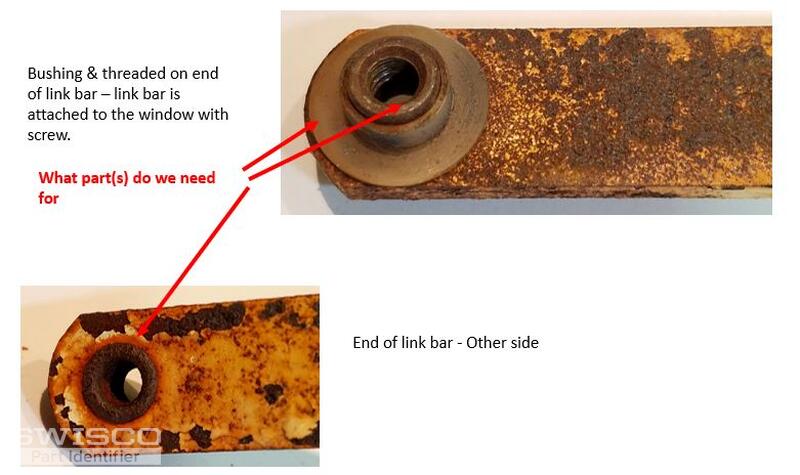

Can you supply this operator? May need several each right & left. Vertical hole spacing 5-1/4", horizontal 1-1/8", end link is 2-3/16" c-c w/10-24 stud, uses screw with shouldered plastic bushing, bushing OD 3/8". Main gear arm is 2-5/8" c-c, end link is flat. Prefer white housing. Could probab ... (cont.)

These are markings on the operator and the operator handle on the inside.Letters and numbers are:WYNN 63.5LAI can't find these anywhere. Not in any hardware store ,not even in Home Depot.Please help.Thank you, William O

I need to Replac an operator need to know what model number it is.

We need to replace the window crank mechanism for an old awning window in our bathroom. See attached pictures. No name on window. number on crank handle is 11-100-11 patent pending. Patent number inside mechanism is 198202US 2RHRD 1963 CAN. Also the arm extension is 5 1/2" inches and has a 'grommet' ... (cont.)
