Viewing all customer Discussions for:

39-025 Awning Window Crank Operator

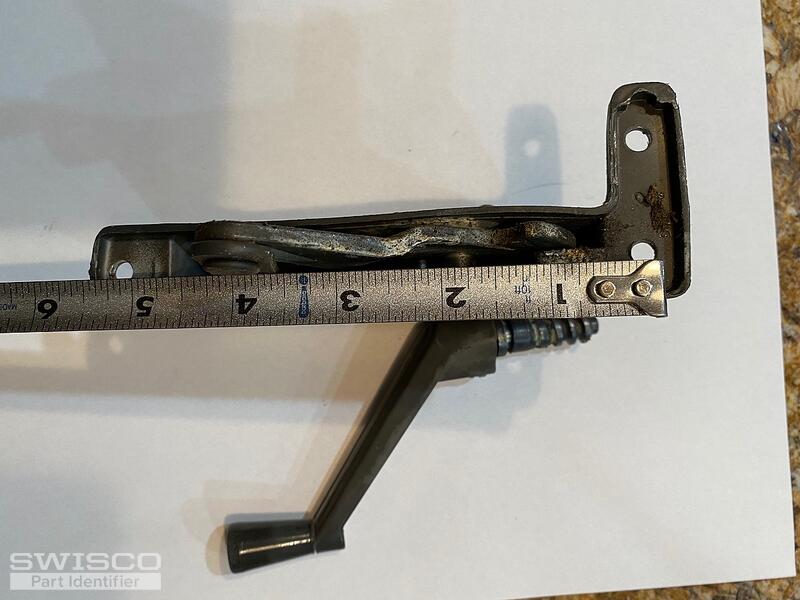

The arm measurement is 2 5/16 and the screw hole is 3/16 threaded The distance from top to bottom hole on center is 5 1/4 Distance between bottom 2 holes on center is 1 1/8

Hello, I'm looking to confirm these are silverline windows and order parts for refurbishment. Is this a 39-025 operator? Also, looking to identify the vinyl. 3/4 width. 5/16 height.

Hello My name is Ken I need both LH & RH vertical rollera. Isee no name or numbers on window or rollers, but here are the measurements. The roller has 1 hole in the top-- two holes in the bottom.Overall length-5-3/4in . width-2in.c-c top hole -bottom hole-5-1/4 in, ( not aligned) c-c bottom hol ... (cont.)

Hi experts, I'm hoping you can help me identify the replacement parts for these crank openers? I'm thinking it's likely the Pan Am/Daryl Window Crank, Product Code: 39-017. But would love to get confirmation as I need to order several replacements. Thanks much, Elizabeth

Not sure what brand I need it has one mounting hole at top two mounting holes at bottom

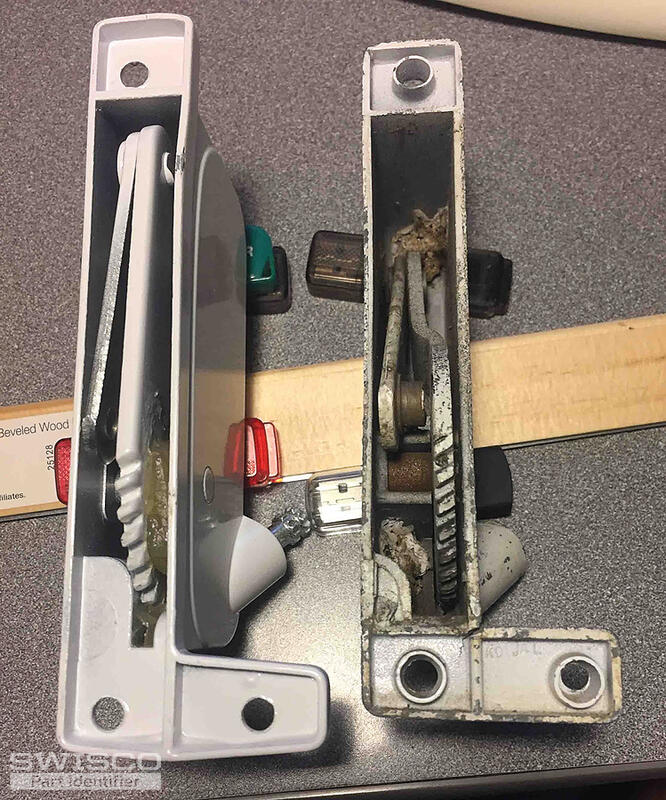

Order : 1948474Hello,I am trying to replace window cranks that have a KD JAL marking. I live in the Northeast.I purchased Keller Window Cranks (39-061). As can be seen in my photo, the installation holes pattern is identical to my old original, but are offset to the left by approx. 3/16ths. It won't ... (cont.)

There are no names or part numbers on the existing crank. I ordered 39-060, the Keller window crank, hoping it was the right part. It is not. The case appears the same, but the arm is shorter on this one (~5cm) and the hole that attaches to the window arm is wider in diameter (~1cm). Serves me r ... (cont.)

Hi can you help me locate which window crank I need to purchase there are no part numbers engraved in it. Its the right side window crank that's needed. There is a screw hole at the top is in the center and there is a hole on each side at the bottom. I hope the photos help let me know what else I ca ... (cont.)

I was hoping to replace the window cranks on a few windows in a sun room at my house. I've attached pictures to hopefully narrow down what parts I would need. I can't find any part numbers or manufactures names in any of the windows or existing cranks.

hello, could you help me find a replacement for the crank that's in the pictures? Am I correct assuming it's part #39-017? would I need 33-067 to attach it to the arm inside the window since the flat spring won't do anymore? thanks! Jack

Hello - was hoping you could help with identifying a crank. The interior markings are: Pat. No. 198202 US 2 R.H. RD. 1963 CAN 93 Thanks for the help.

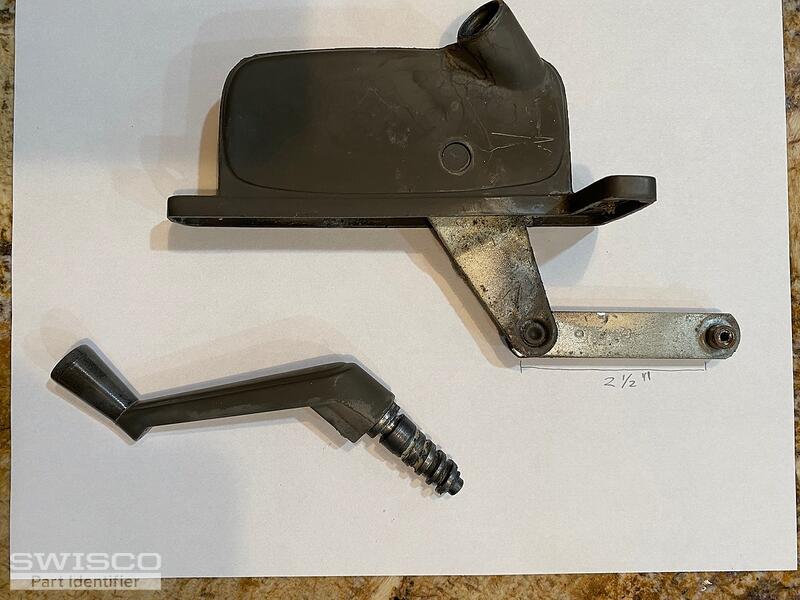

Jalousie Window OperatorMeasurements:Between top and bottom holes - 5 1/4"Between bottom holes - 1 1/8"Arm length - 2 1/2"Width - 15/16"I am in need of 6 units of each of the parts listed in the Subject l

Dear SWISCO Customer Service: I bought and received a 39-025 Awning Window Crank Operator replacement from SWISCO. At the end of 2-3/8 tongue on the crank operator, you provide a shoulder type screw. The shoulder screw diameter is too big and I cannot insert to the existing hole at the window. ... (cont.)

Hello Swisko I need this crank -operator Bronze Thank you.

Hello!I'm looking to replace my awning window operators in my sunroom. Out of our 8 windows in the sunroom, I believe only 3 work OK. The rest will open but not shut. I've been searching trying to find my replacement parts. Could you please direct me to the right type of replacement operators? I hav ... (cont.)

Molded into the bottom of the housing are the following: PAT. NO. 198202 U.S. and below that 2 R.H. RD. 1963 CAN.Distance from top screw hole to bottom screw hole: 5 1/4".Distance between bottom holes: 1 1/8"Length of operator link from joint to window (center of post to center of post): 2 9/16"Wind ... (cont.)

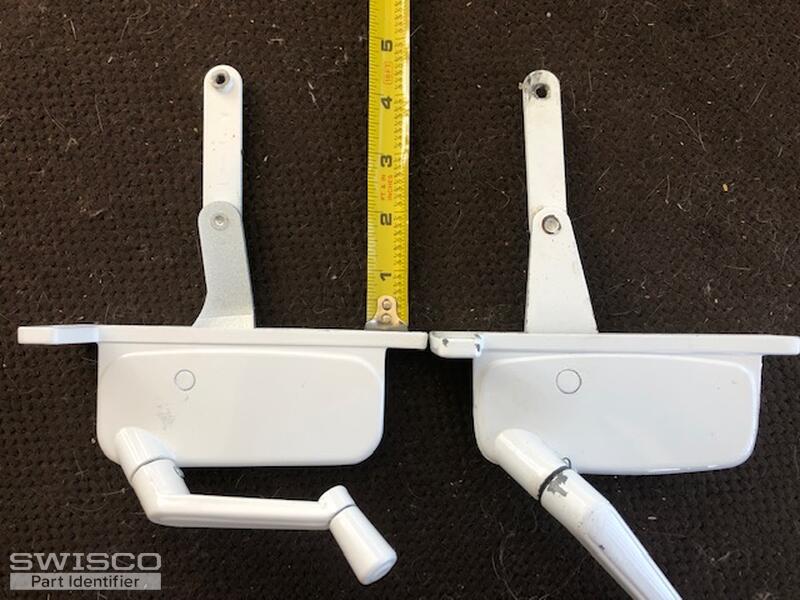

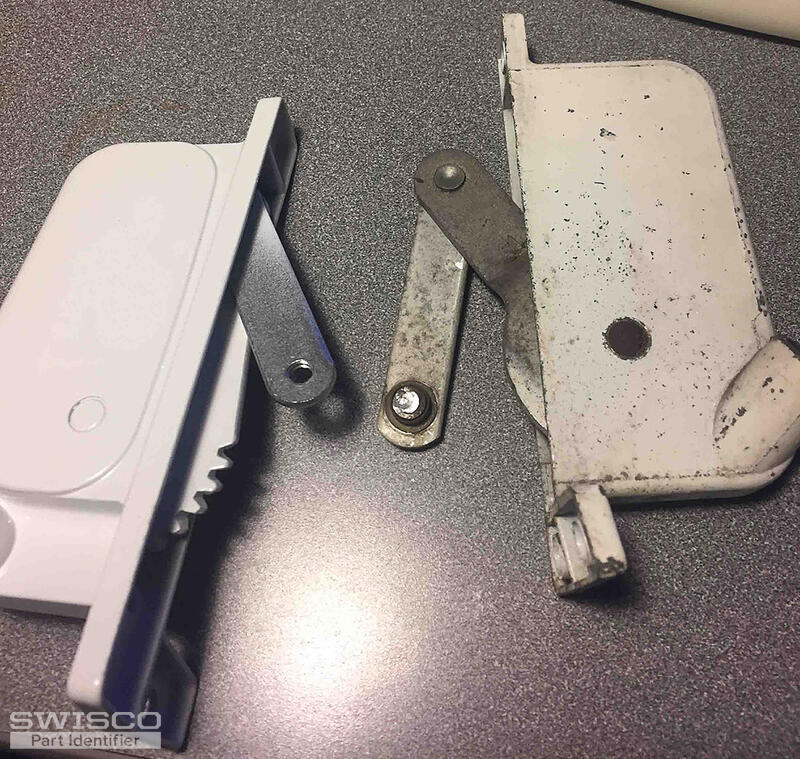

See old operator and new. Window won't close all the wayArlen

I'm looking for a replacement part for awning windows. I've found some online, but nothing seems To have that little nob on the end where the crank connects to the window piece. Looking for someone to point me in the right direction! These windows are old- the cottage was built in 1950- and poss ... (cont.)

I am looking to replace my existing crank operator (pictures enclosed). I believe it matches your part #39-025 white. The hole dimensions are exactly the same as your pictorial. I watched the video, and the only difference is where the lever arm connects to the other piece. Mine uses a protruding me ... (cont.)

I chewed two operators on n the parts site but the ones I need have only one screw hole Was hoping you could help me figure this out a you have done every time in the past. Thank you. mrscreenman
