Viewing all customer Discussions for:

39-083 Dual Arm Crank, 21-1/2"

The first 5 pictures is from a semco awning operator and the next 9 pictures are off a semco casement operator. The casement window opens left to right. If you need more info or pictures you can send by email.Thanks Rick

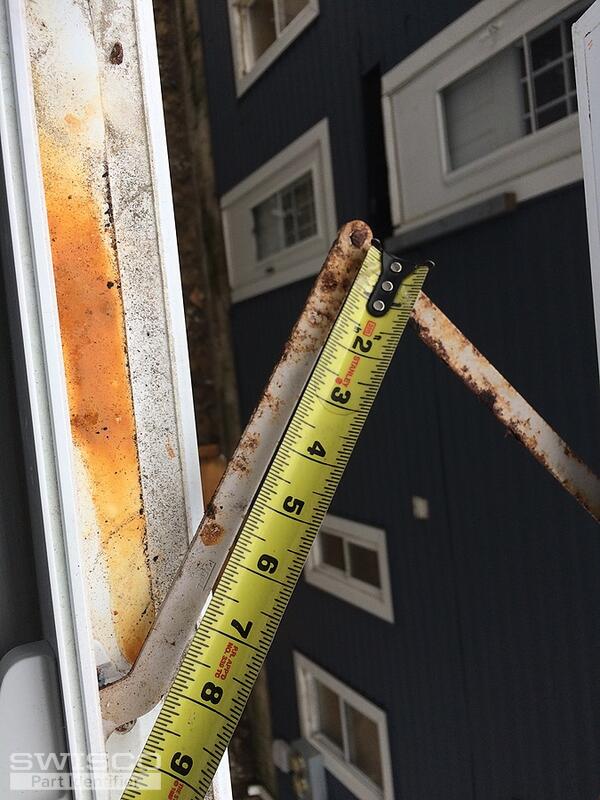

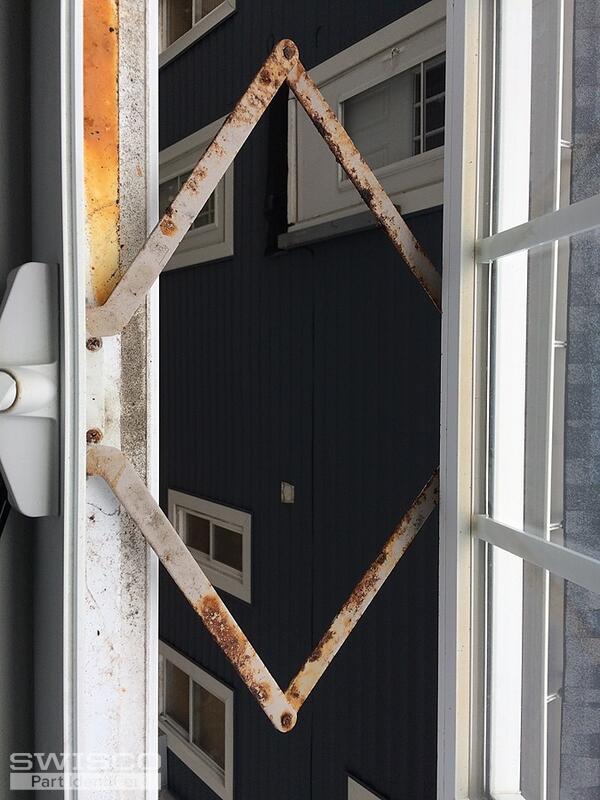

The arms connected to the window are about 9 1/4 inches. The arms connected to the mechanism are about 8 3/4 inches to the bend in the arm, then about 1 1/2 inches into the mechanism. The plate where the arms attach to the window is 4" wide. This is connected to a 12" plate on the window frame.The c ... (cont.)

This window is above the bathtub in the master bath. Unlike regular windows that swings left/right, this window goes down( closed position) and as you crank the handle it opens up. The crank handle has name "SealRite" written on it. Looking to replace this crank since does not work. One of the contr ... (cont.)

I installed two of the Bright Brass Operator Covers (39-322) for the casement windows and they look great.The two casement windows are Eagle (Eagle was purchased by Anderson) and are part of a Bay Window ? two casement and one awning window ? the Awning Window is also Eagle.The brass awning mechanis ... (cont.)

Basement window hardware - opens up and out

Winder keeps pushing out when closing window

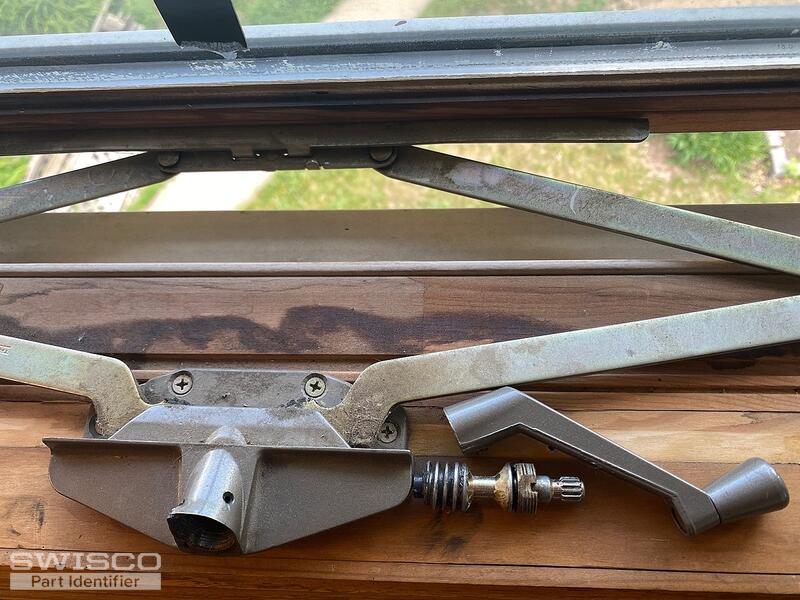

The crank on our awning window doesn't operate - crank won't catch internally and just spins loosely inside the slot. It looks like the previous owner did a DIY fix by drilling partway through the mechanism but if that worked at one point, it doesn't anymore. I think we may need to replace the whole ... (cont.)

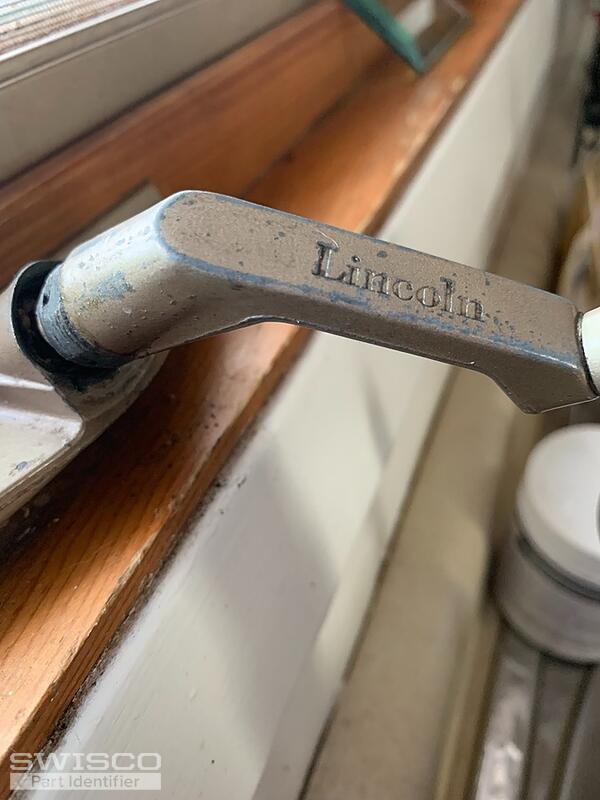

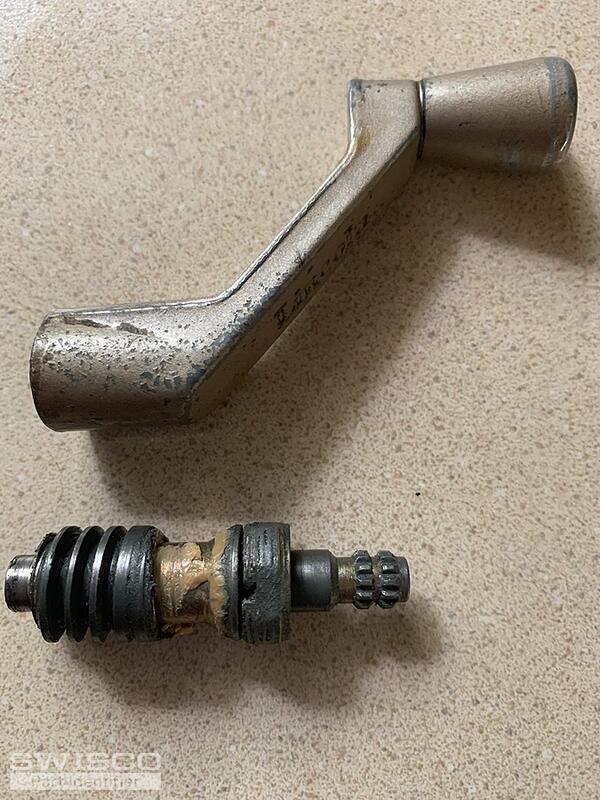

Lincoln Window. Gut of crank seems to be stripped. Cannot close window must manually push shut to close and lock window. Extended double arms measure approximately 17 inches. (my best measurement) Thank you for your assessment!Alice

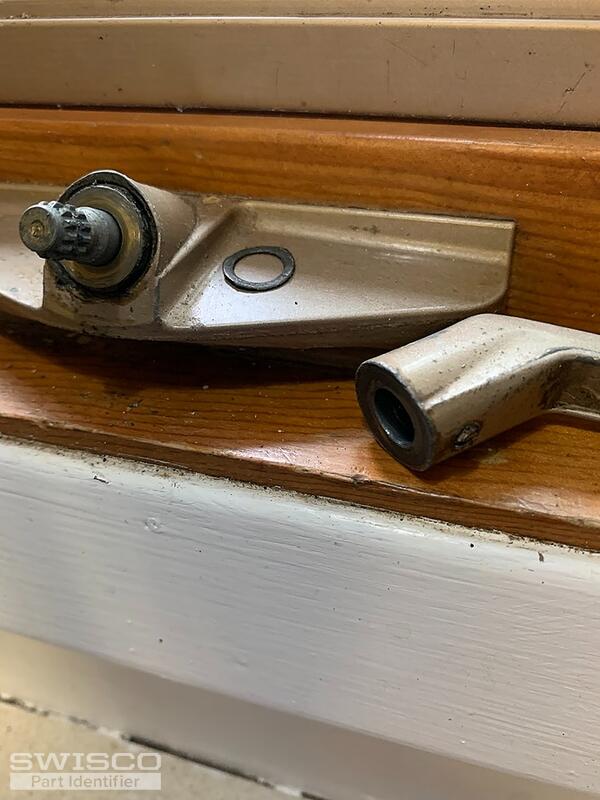

The window crank housing threads for the brass retainer appear to be worn and damaged so will not lock in the main crank stem.

Hello,I'm hoping you can help me identify the correct replacement for the vinyl awning window crank in my bathroom. The visible window opening is approximately 30.5" x 18.25" with glass dimensions of approximately 24 7/8" x 13".Given the window location (inside the shower) it will always be prone t ... (cont.)

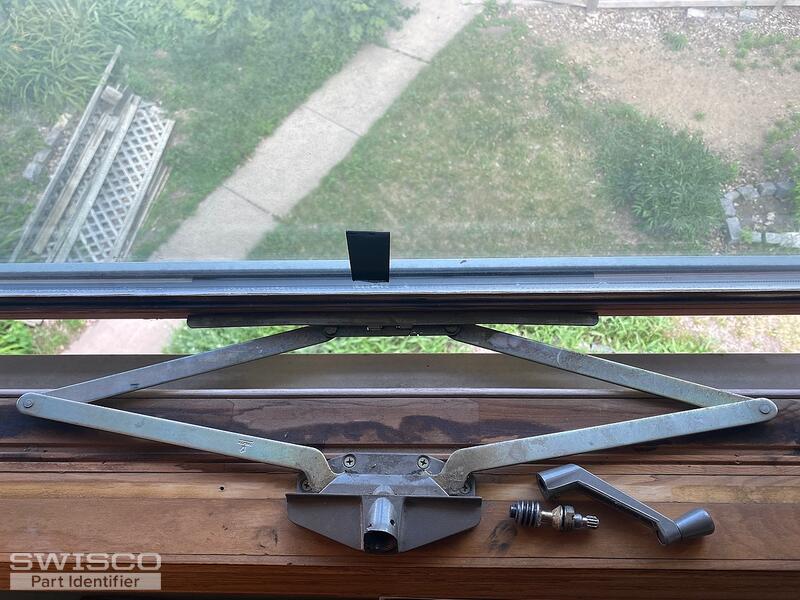

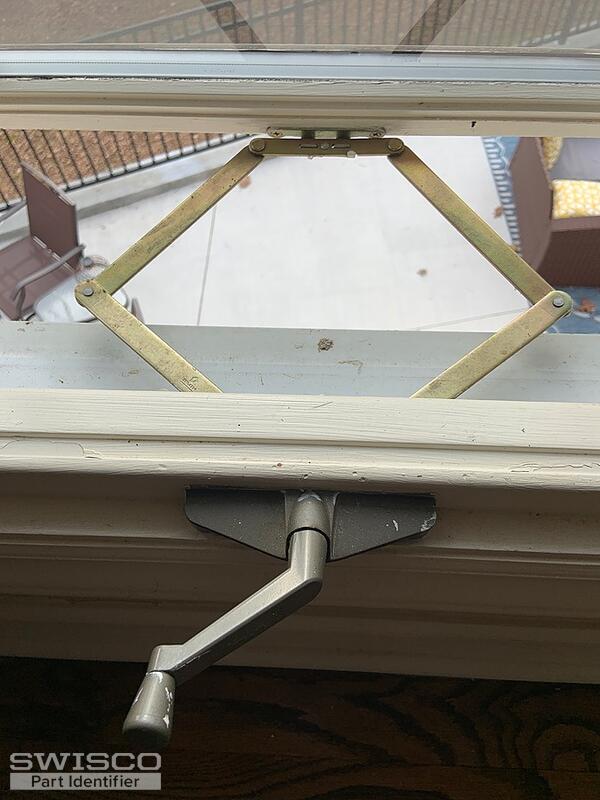

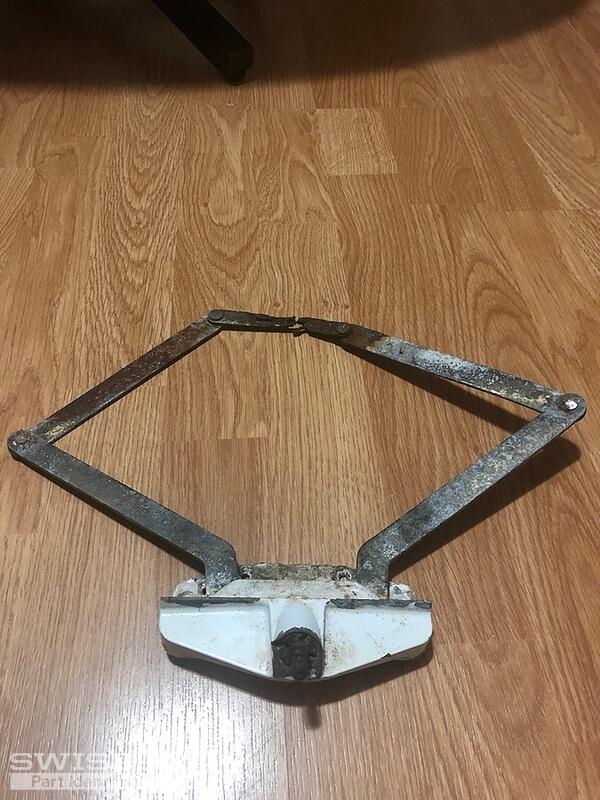

The crank/handle unscrews from the housing when closing the window. The operating system housing inside is 5" wide, and the bar on which the scissor arms attach to the base of the window is 12" wide, and each of the 4 parts of the scissor arms is approx 9" long, so the total opening at the bottom o ... (cont.)

Good Friday morning. Looking to replace/ update old hardware. Old craftline windows. 1994 vintage. Truth vertical locks/Number 45098. T crank handles/Only number is 5. ?- Measures 3/8 diameter opening. Now the horizontal opening devices seem to be connected and not just a cover. Can you help i ... (cont.)

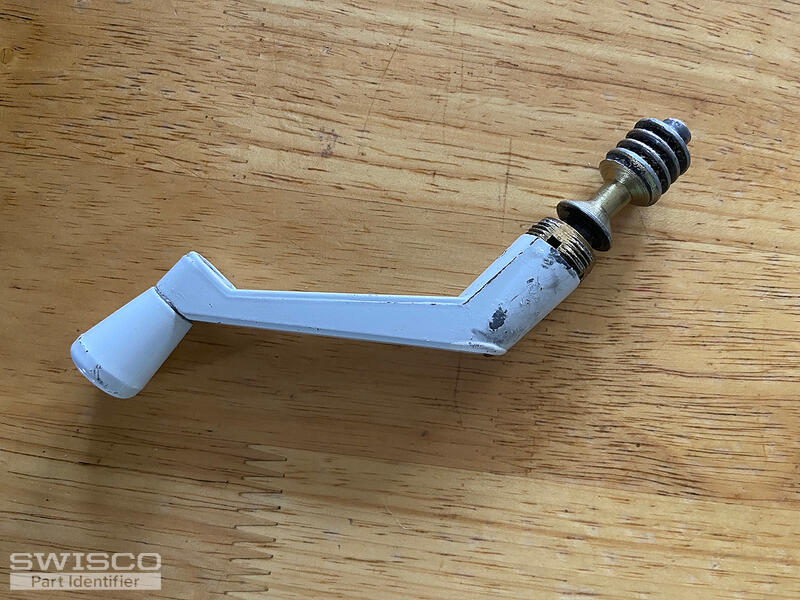

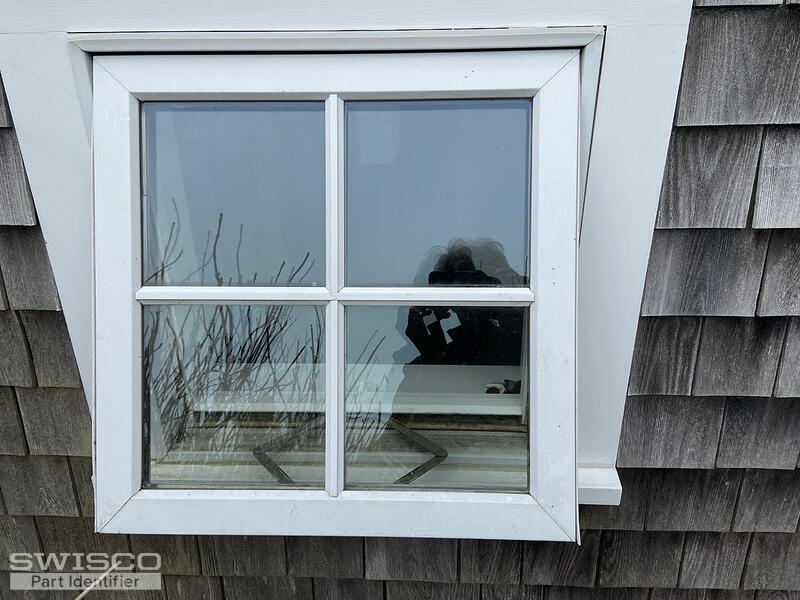

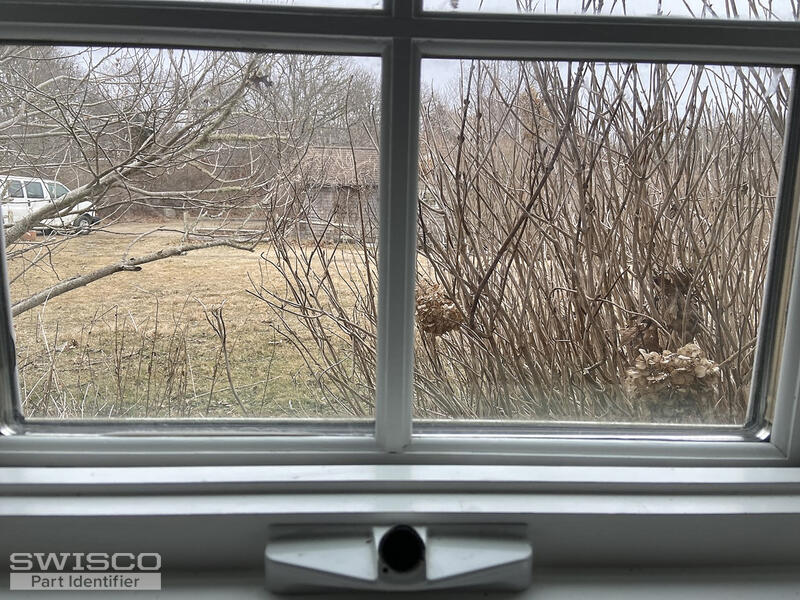

The window is a Kolbe awning. Unit size is 24"x24". The handle opens the window but when attempting to close the window it unwinds itself and comes out of its opening. The hardware on the window appears to be OK. Is it possible to get the handle with the working gear?

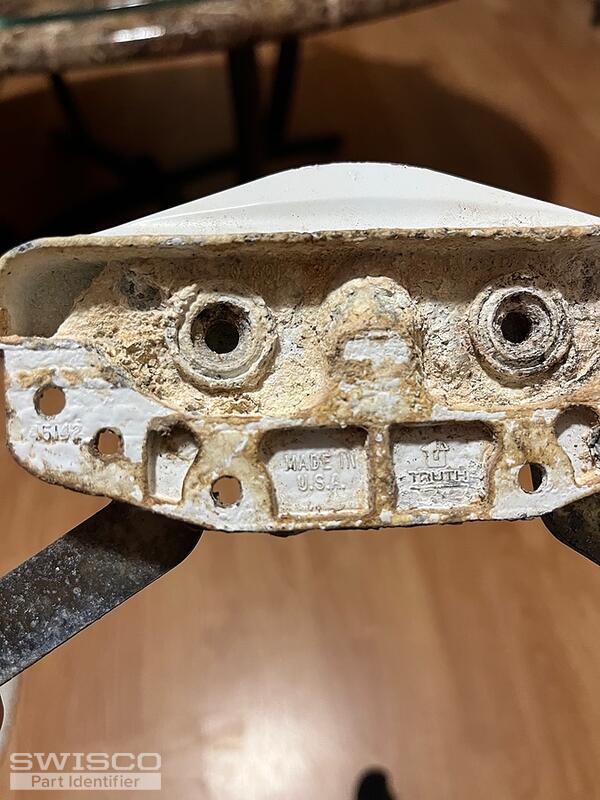

Hello! I was wondering if you could tell me which part I need to order for a small casing/ crank window. I have included pictures of the broken crank. There are multiple part numbers on it. Thank you.

Hello!I have a Truth casement window in my kitchen that is missing the crank/receiver parts. You can pull the window open and closed with your hand.Please help! I will happily provide more photos, a video, etc.Thank you so much.Colin

Bought an older house. Has 3 39x22.5 top hinged casement windows. Crank say "SEMCO" side latches sat "Truth 31705" Latches and cranks are stripped\broken. We need 3 full opening assemble us and 6 side latch assemblies. Thanks

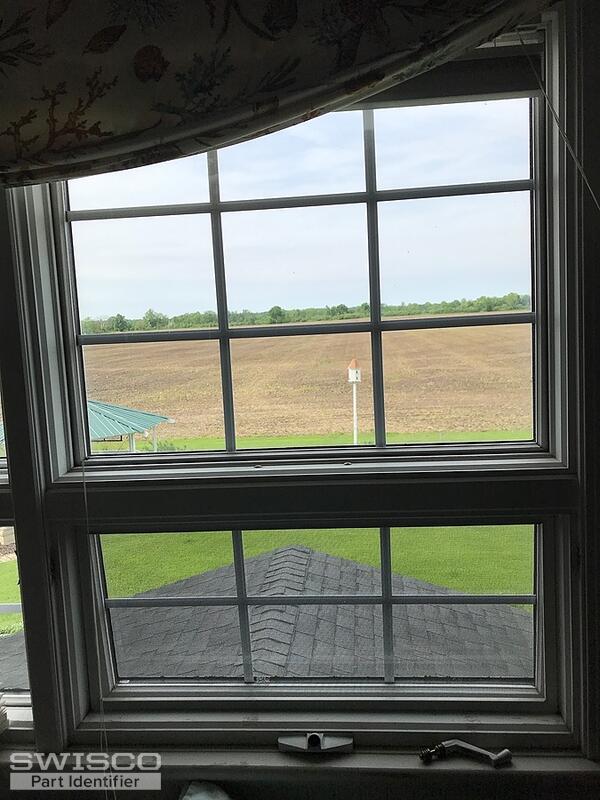

I have side by side windows that open from the bottom outward. One of the cranks is not functional. It appears that the threads on the male insert are damaged. Thanks for any help you can provide.

This is the code I found on the windows i'm looking currently to replace the gold/taupe tone parts, crank, crank cover, lock and screen to a white color. Can you help me? For this purchase immediately will need for 6 windows, but possibly more depending on lead times, costs, etc. I have approximat ... (cont.)

The crank broke and we cannot open or close our window. It looks like it is the bracket that broke off. Do you have the part or a whole crank system that would work with our push out window? Thank you for any assistance you can give.

The crank is stripped. The crank handle says craftline the inner part says truth. There are no part numbers that I can see.
