Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

Spring 21 inches long Shoe 1.25 inches wide 2 inches high 1/2 inch thick blue square 3/8 inch

Checking for best match

I have aluminum replacement windows while cleaning the other day two of the shoes broke and I need to repair them. I measured the size of the shoe and it looks like it is 1 1/4" by 9/16 or 1/2" ? I have the cutouts in the frame from the mfg.

17/32 thick, 1-1/4 wide, 2-1/16 tall.

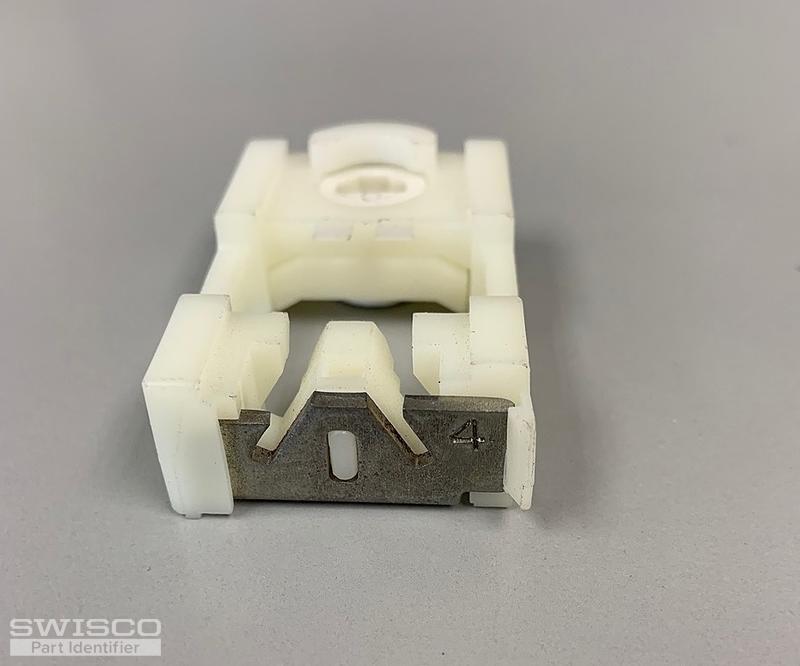

During inventory, I found several of these pivot lock shoes. I am trying to identify manufacturer and part number or a suitable replacement part number. Only marking is "4" stamped in metal.

American craftsman 3500 purchased from Home Depot. Part holds window and the small piece is for the screen corner connector

Its is 5/8 thick and 1 inch 3/8 wide

Windows are double hung and tilt. Pretty sure windows use the 5/8" tube diameter and the length of the cylinder is 31 5/8. (so 32"?) Pretty sure pivot shoe is 1/2 inch. Tip is black.

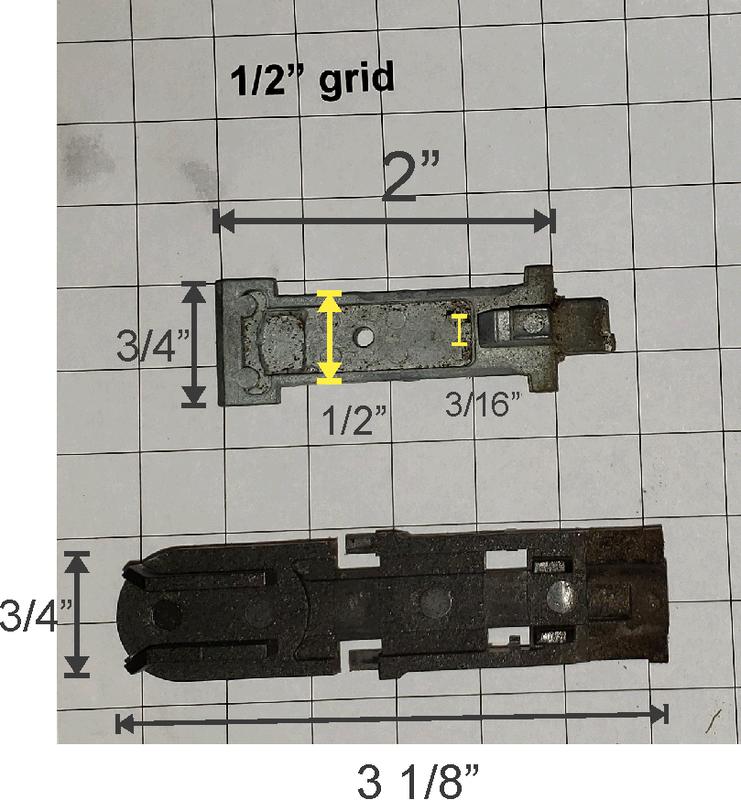

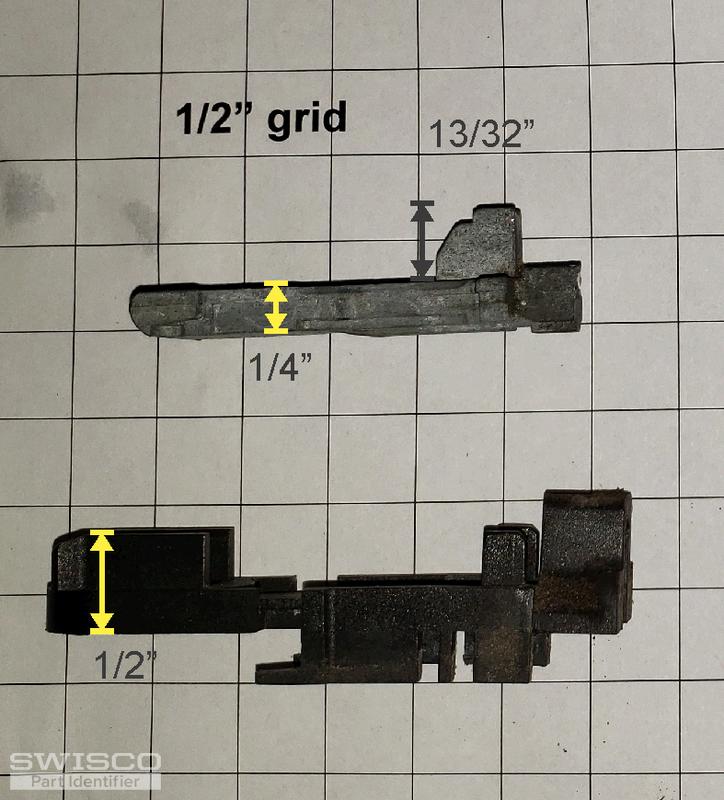

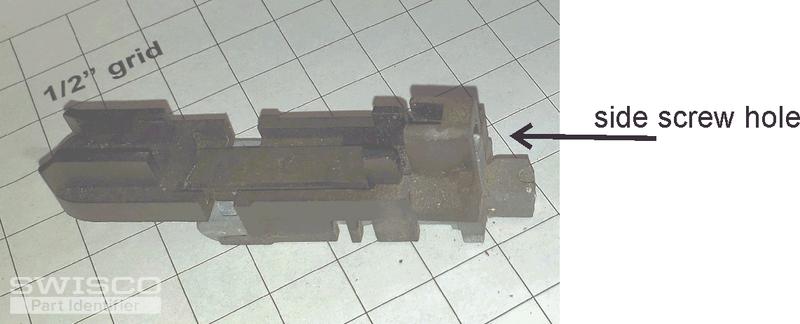

Hi, I'm looking for a pivot bar: 20+ year old vinyl double-hung (generic) windows, no markings pivot bar includes nylon housing; no bottom screw - have to take of side piece (2 screws/stile). Fairly close to 26-425 (no wings) - is it likely that that one would work? Thanks, David ... (cont.)

Hello, my window came out of the balance and the plastic part detached for the metal piece. The window was really tough to pull down on one side. I think both parts need to be replaced.

I cannot locate on your site. Please help. thanks Scott

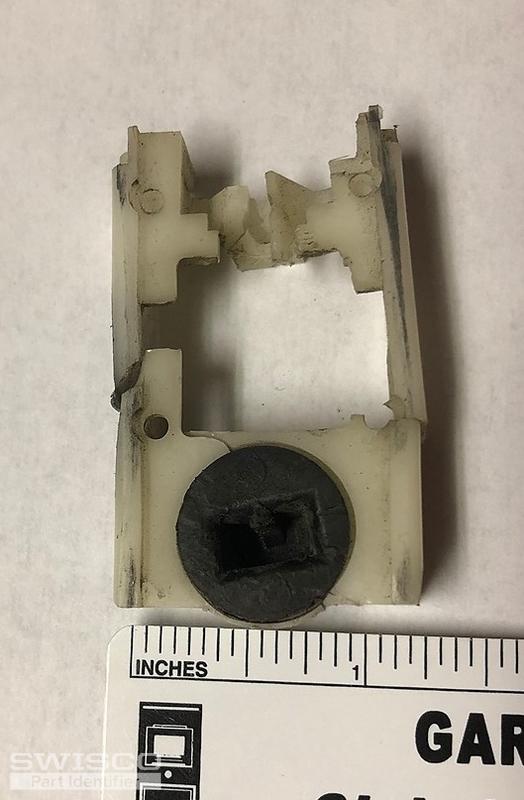

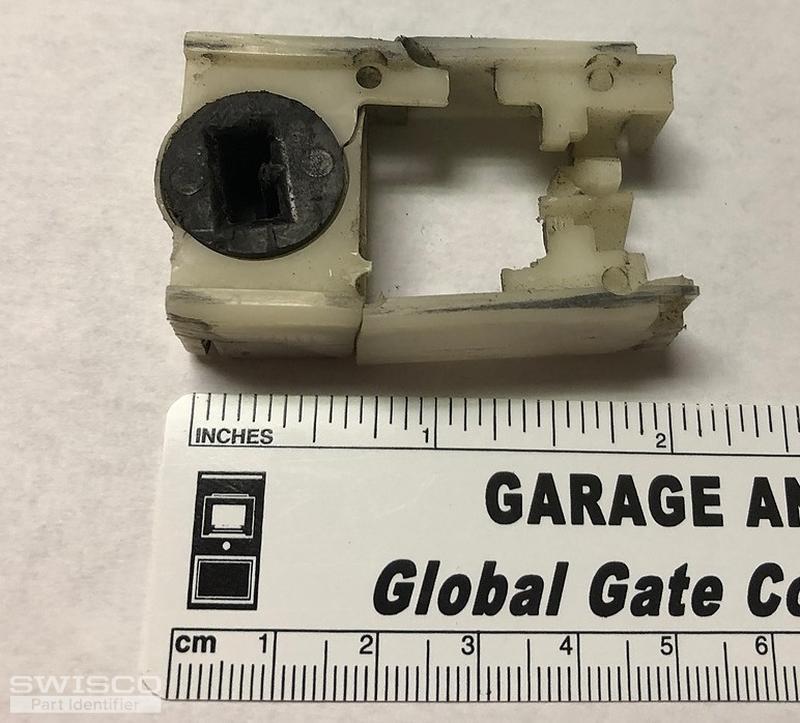

Greetings - I need at least seven pairs of windows shoes. I do not have an intact one to attach, only the broken pieces shown in the attached pics. I do know that the patent number on them is 3.055.062 but I am not sure that only one size shoe goes with that patent number. Can I be confident that ... (cont.)

Hi. All my windows can't stay up. The pivot shoe all cracked (plastic). The RED spiral balance length is 29", the BLUE pivot shot is 2" (L) x 1 1/2" wide (track wall-to-wall). Please see photos for the rest of the dimensions.Thank you in advance for your help and please let me know if you need more ... (cont.)

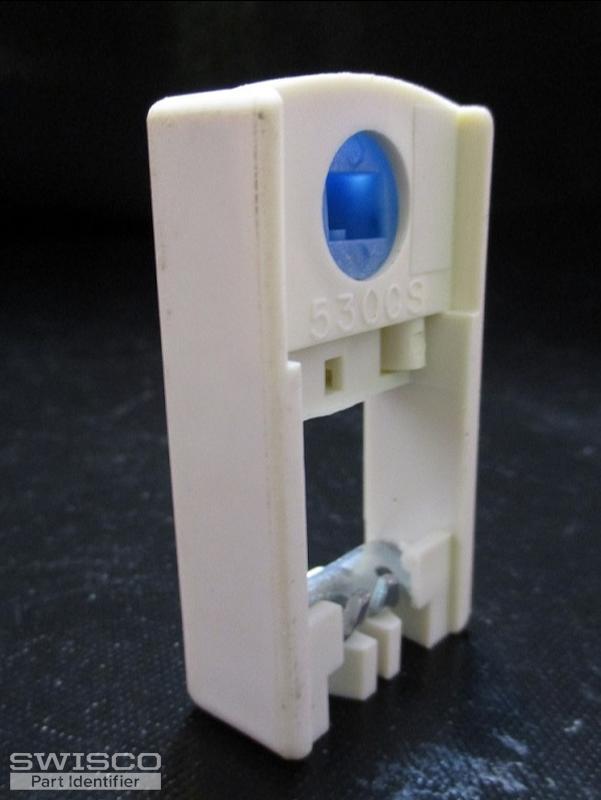

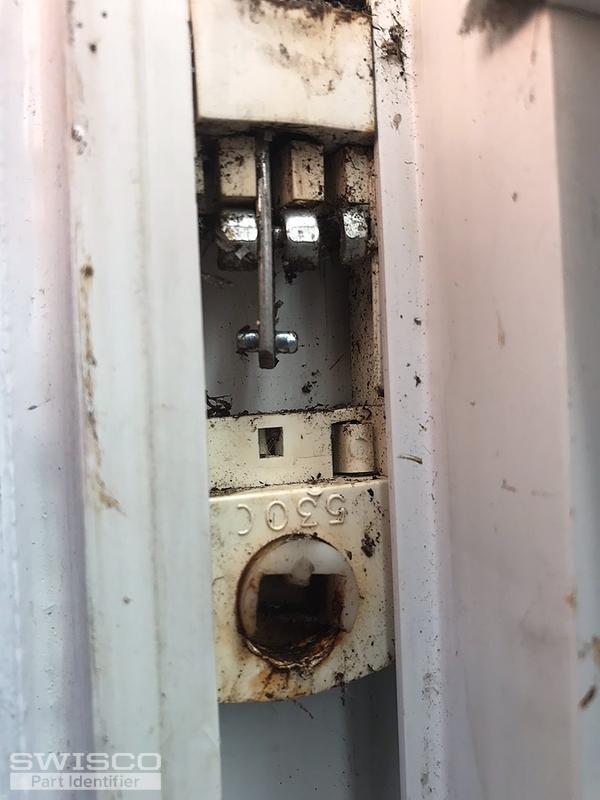

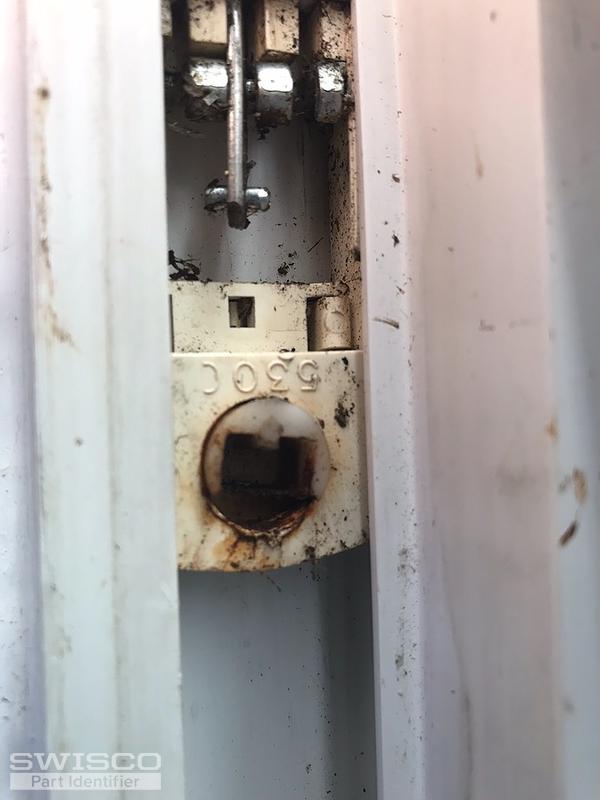

We looking for a balance spring replacement for a Norandex window by Atrium. These balance springs are for tilt windows. Number on the shoe is: 530CS. Number on the balance spring is: 23C. The shoe is slightly curved with the highest point at the top. Should it be a side measurement or in the ... (cont.)

The part the connects to the spiral is broken on on side

1/2x2inchx1 1/4

For dual glazed bottom section of sash, vinyl windows. Measures 33 1/4" wide by 26" high. Spring body is 24" long x 9/16" (on face, 5/8" on base) wide x 1/2" deep. Model number on spring body 23 7 D160 CMC

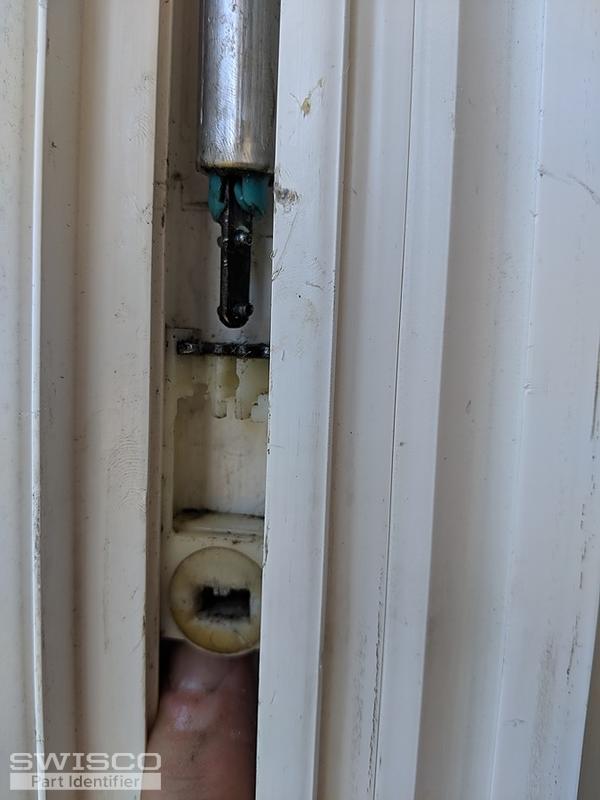

I have a single tilt window that needs to pivot stops. Not sure of the replacement size. The spring is spiral type. Can you tell me which one to order based on the photos? Appreciate your assistance

I recently purchased 2 29" 600 series spiral balances. The old ones measured out at 5/8". They were the Alcoa balances with the white plastic coating. The new series 600 balances were very difficult to get into the slot on the side jambs. I was able to get them in with a little more force than antic ... (cont.)

Hi, I need help with a window. To start, I've attached pictures. I'm sure you'll have other questions to help me purchase the correct pieces. Please contact me by email Thank you, Debbie
