Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

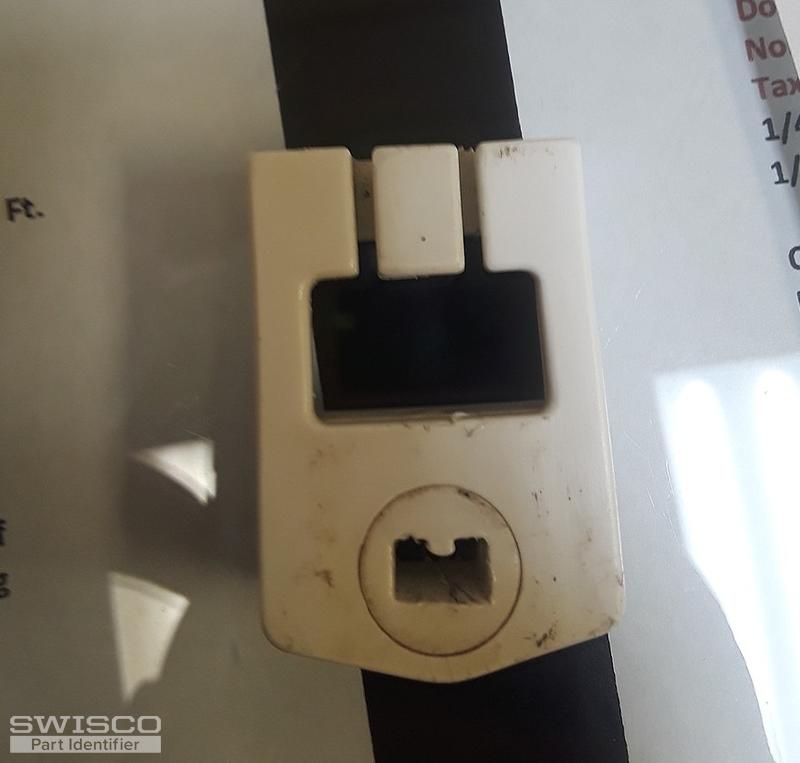

I'm trying to replace my shoe pivots and want to make sure I get the correct one. I've included pictures and was wondering if you could tell me the correct one that I need. I got thrown off by the different colored cams and wasn't sure if that made a difference. I need 16 of theses plus the tool f ... (cont.)

I saw another Benada Window post your website I am hoping you can help me find replacement parts for a double hung (tilt) window spiral balance and pivot shoe. Attached is a zipped file containing pics of the window and parts. I'm hoping you either have similar parts or can direct me where I m ... (cont.)

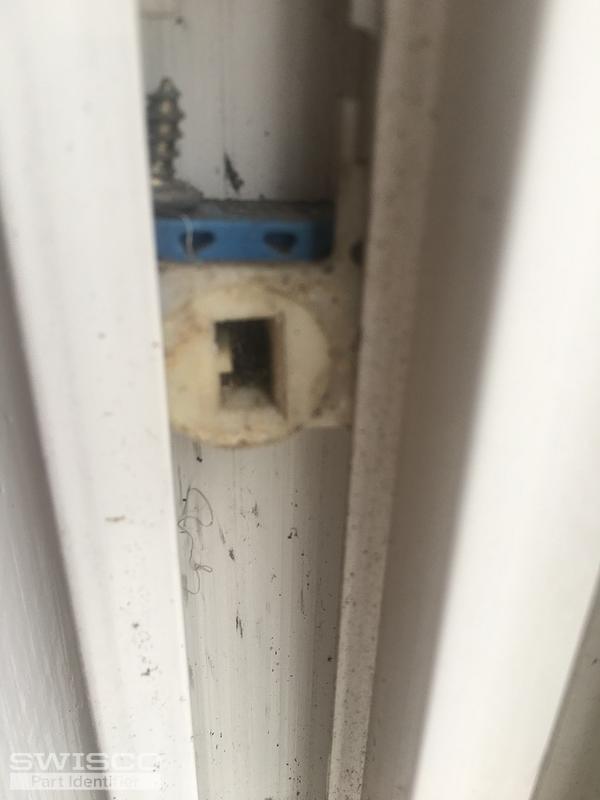

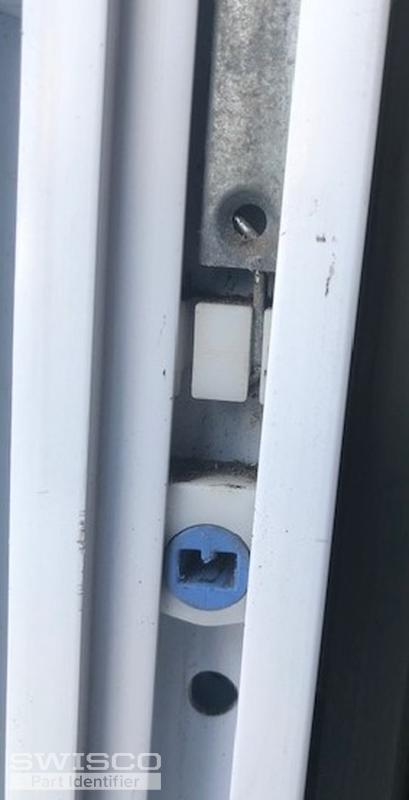

These photos are of the "boot" at the bottom of window. The spiral fits into these boots. I have a number of these broken in my home.

Hi there, I purchased the 15-046 shoes based on your recommendation on what I needed. The size is perfect, however the circle inside that rotates to locking position is upside down for what I need. Do you have an alternative with that inverted or without the small notch? Thank you so much! Kim ... (cont.)

my channel balance is 23" my pivot shoe is 2"thick height 1"3/4 want to get the right size

I was able to find on your website the two Spiral Balances I need (S400-31), the two metal brackets #62 (17-062) and the Spiral Balance Charging Tool for Non-tilt Windows (75-005). I need to order these parts as soon as possible, but I have four small plastic parts that hopefully you can help me fi ... (cont.)

1. I have no way of removing the existing pivot block so I assume I have to make an entry/exit point in the vinyl to remove the shoe. Where is the best spot to create the the opening to install a new shoe? 2.Using the 15-046 shoe, which of the three slots should the 900 balance spring be inserted. 3 ... (cont.)

looking for replacement shoes and Latched. The black latch is what i have ,,,,it does not work good at all, the white one I took off a window it works. I have a shopping cart online. with a lot of parts, but can not move forward untill i find the right show , balance bar and lock. Rodney ... (cont.)

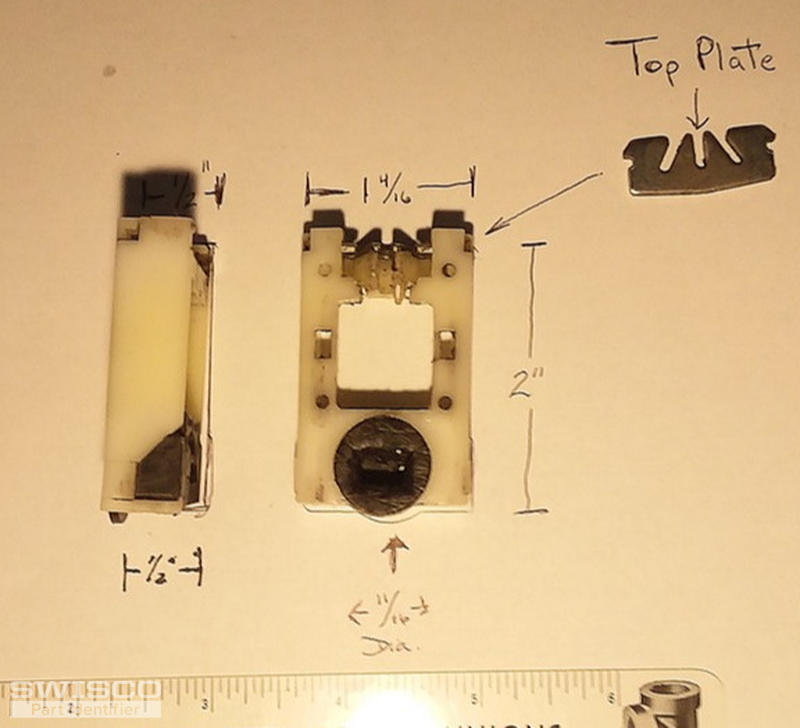

Good day, I am trying to replace the Pivot Shoe in the attached picture. I detached the Spiral Balance ( 22" long tube ) and removed the Pivot Shoe from the window channel. The picture shows the basic measurements of the Shoe and the diameter of the circular window seat. This window is 20 years ... (cont.)

We need help finding the parts for the windows we added over 17 years ago. We believe they were purchased at Lowes. The shoe measurements (the best I can get) 2 5/16"H 1 1/4" W No other markings on the shoe. The pin only # is 1704. I couldn't find the odd shaped head. Not sure if this helps ... (cont.)

Need help with ID of parts. Need confirmation on Window Balance. Looks to be stamped 22-3 GB5 CMC. Length is 23". Think is may be 23" SERIES 765 BALANCE, Product Code: S765-23. Pics are attached. Is there any way the Pivot Shoe can be ID'd as well. Balance is for inside window. Would the o ... (cont.)

Please check your "Contact Us" mailbox for details about the problem.Thank you,Roumen

Hi Tom,I believe your pivot shoe has been discontinued, but either of the pivot shoes you choose could work. You will need to make sure the thickness is accurate so that it will fit in the channel. If you choose one that is too thick, you won't be able to install it. As for the top attachment that h ... (cont.)

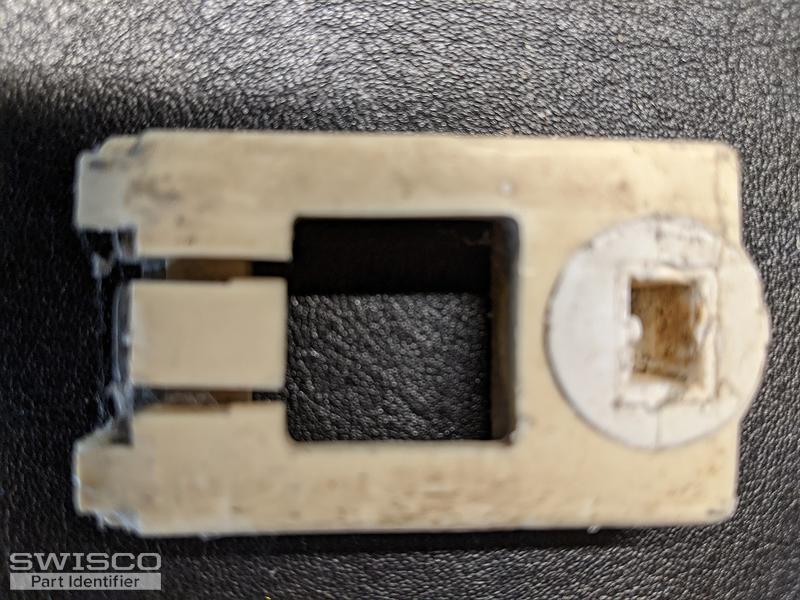

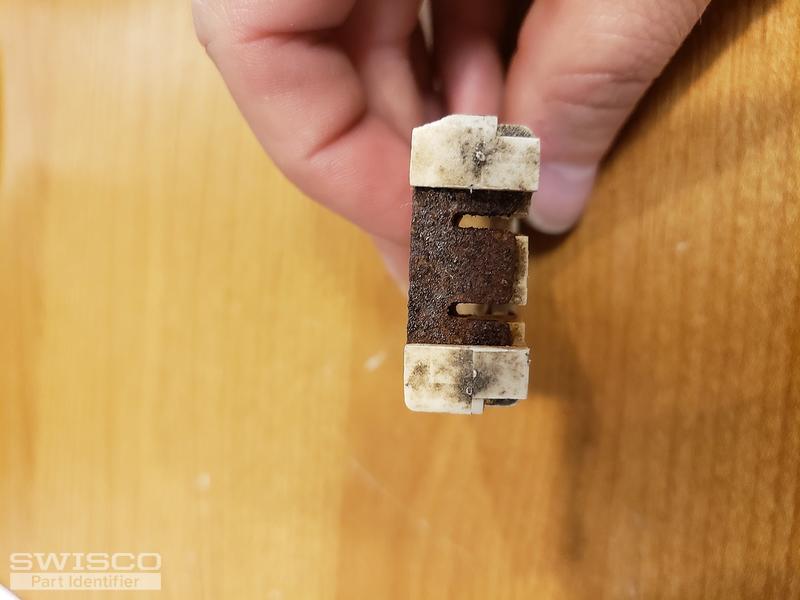

I'm trying to figure out the correct replacement for this shoe. I have one that pretty much crumbled. Trying to measure one that has not failed, it appears to be 2" high, 9/16 Deep and 1 1/4 wide. Suggestions?

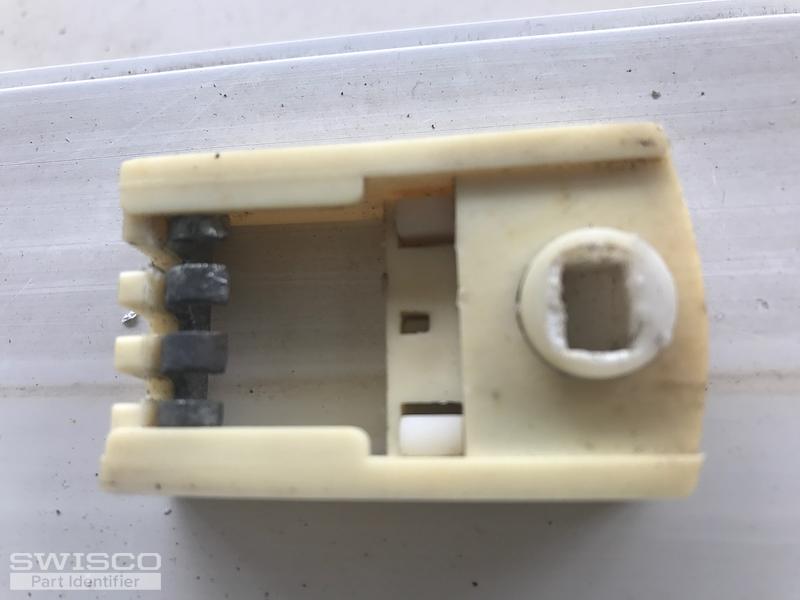

Need the several of the attached pivot shoes and installation tools. Measurements coming shortlyMeasurement of component is 2 1/4" high X 1 1/4" Wide X 1/2" deepScott

Hi - I have many windows to repair but want to start With one . Can you help me with this order? The windows Are about 15 years old Thanks tom

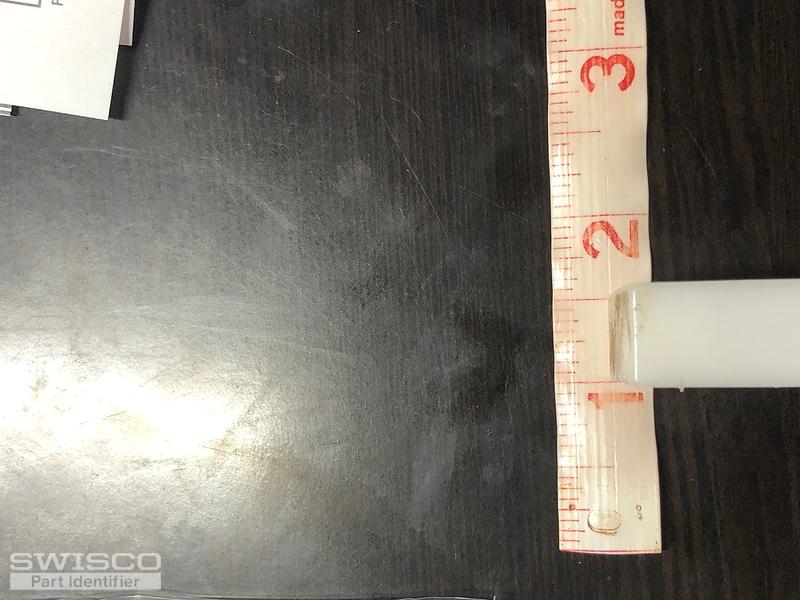

Hello, I have a window that is missing its spiral balances. How do I determine the length of the spiral balance I need to get? Are there any other factors I need to be able to determine the correct ones?

We are looking for a compatible piece for a tilt window. We are not sure, but we're told it should be a Silver Line window and the house was built in 2007. Any help in locating this part would be greatly appreciated. Thank you!

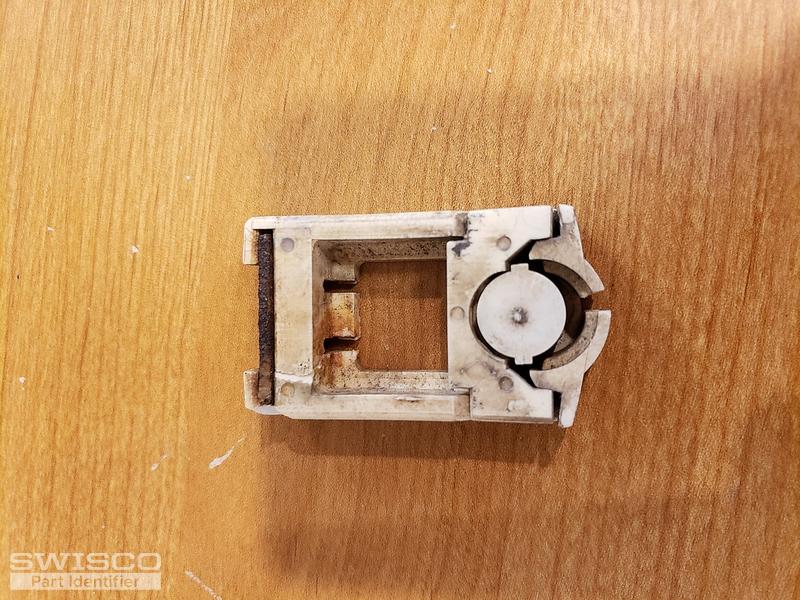

Atrium pivot shoe.

Window tilts to open. Balance is similar to 765 series.
