Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

Hi. All my windows can't stay up. The pivot shoe all cracked (plastic). The RED spiral balance length is 29", the BLUE pivot shot is 2" (L) x 1 1/2" wide (track wall-to-wall). Please see photos for the rest of the dimensions.Thank you in advance for your help and please let me know if you need more ... (cont.)

We looking for a balance spring replacement for a Norandex window by Atrium. These balance springs are for tilt windows. Number on the shoe is: 530CS. Number on the balance spring is: 23C. The shoe is slightly curved with the highest point at the top. Should it be a side measurement or in the ... (cont.)

The part the connects to the spiral is broken on on side

1/2x2inchx1 1/4

For dual glazed bottom section of sash, vinyl windows. Measures 33 1/4" wide by 26" high. Spring body is 24" long x 9/16" (on face, 5/8" on base) wide x 1/2" deep. Model number on spring body 23 7 D160 CMC

I have a single tilt window that needs to pivot stops. Not sure of the replacement size. The spring is spiral type. Can you tell me which one to order based on the photos? Appreciate your assistance

I recently purchased 2 29" 600 series spiral balances. The old ones measured out at 5/8". They were the Alcoa balances with the white plastic coating. The new series 600 balances were very difficult to get into the slot on the side jambs. I was able to get them in with a little more force than antic ... (cont.)

Hi, I need help with a window. To start, I've attached pictures. I'm sure you'll have other questions to help me purchase the correct pieces. Please contact me by email Thank you, Debbie

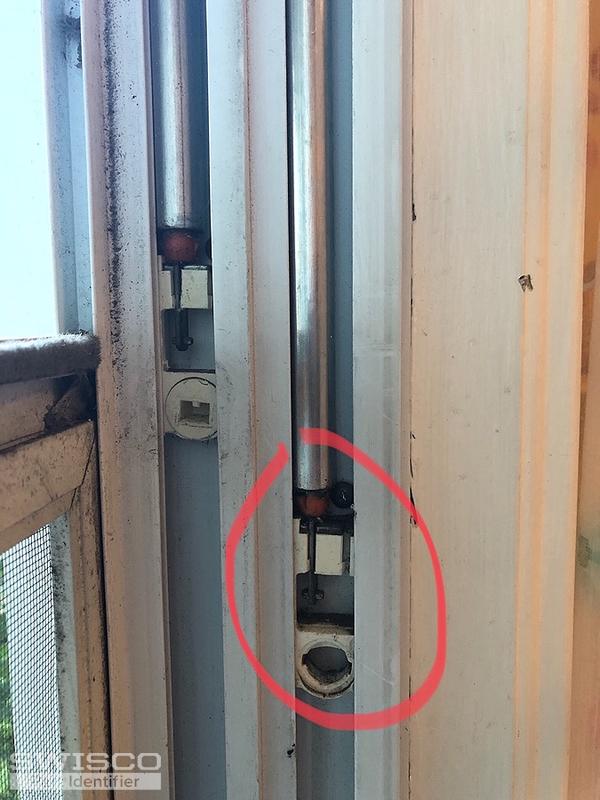

Hello, can you please tell me if available what i halve circled around?

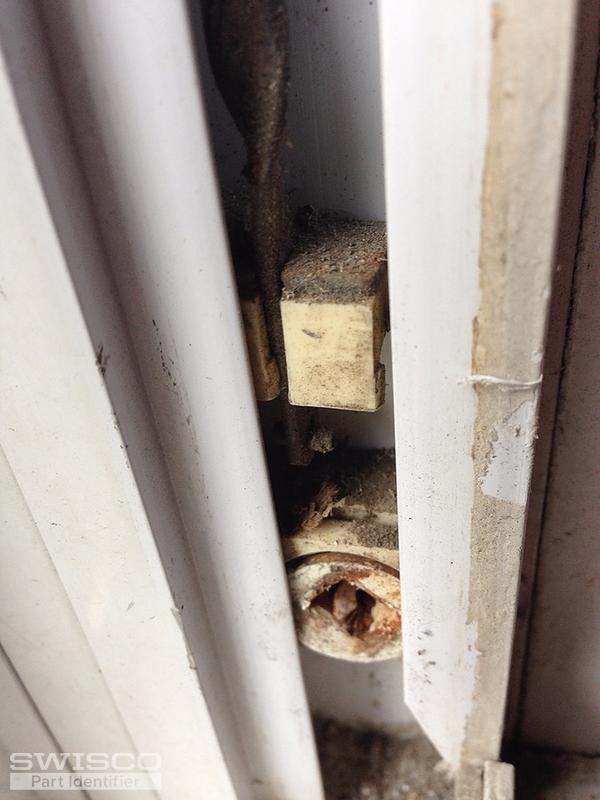

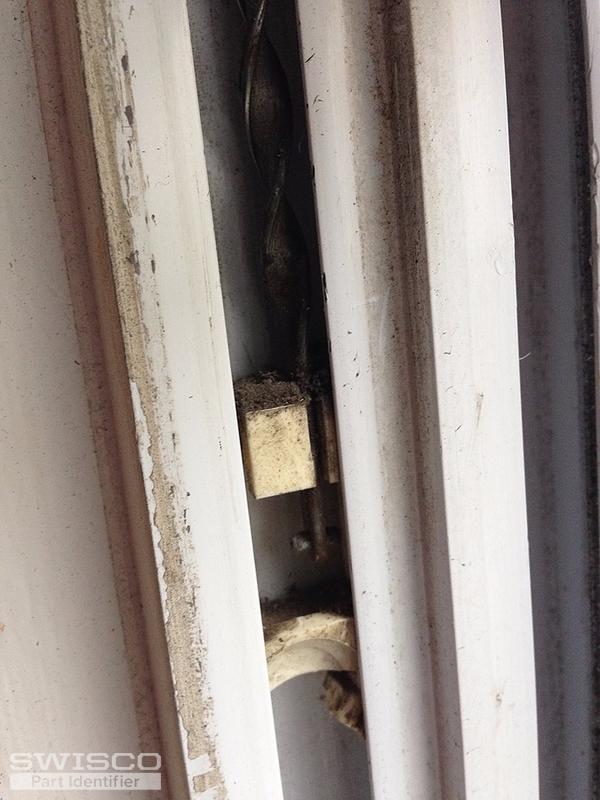

I am having difficulty locating a name on these windows. I have three windows that will not stay up. I found that the small plastic part that the spiral balance goes into is broken on the three windows. I need up to find where I can purchase replacement parts. Can they be retro fitted with another ... (cont.)

Hello, I have ten Alcoa "Magna-Frame Series" signal hung tilting windows 29"W X 49" H The lower sash is 14lbs. The spiral balance tub is 25.75" long with a 1/2" OD white vinyl cover. The inside balance tub without the cover is 24.5" long with 7/16" OD Dia. The pivot shoes seem to be ok. I would lik ... (cont.)

I just purchased part # 15-046 which I think is a American Craftsman double hung vinyl window. Please see if you can confirm the picture I took is that part.

1.Top window track clips 2.Also the "shoe" for these type of balances (Track roughly 1"in wide 3/8" thick) Thx for the help

Sorry, no markings on the windows, only that they are tilt windows. I believe they are Patriot builder grade, circa 1999. they look to be The pivot shoes are beginning to disintegrate.

Hi, I ordered window parts from you last week but was not the correct sizes. I am ordering 9/16 spiral balances of various lengths along with shoe swivels. My old ones shown above have a thickness of 1/2 inch. I notice your blue ones are 17/32 thick, but the white ones are exactly 1/2 inch, which m ... (cont.)

No idea on who manufacture these. Wonder if you guys can help. The channel balancers themselves look ok but bot bottom feet were destroyed. Balancers are marked-29. 5. E07S CMC

HI,Do you sell the item attached?Thanks,Hudis

Looking to find replacement parts

Hi I need to replace these. This is a photo of old one and the side of my window. Thanks

Looking to replace bottom gasket and seals on the side windows also need the plastic part that The window attaches to
