Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

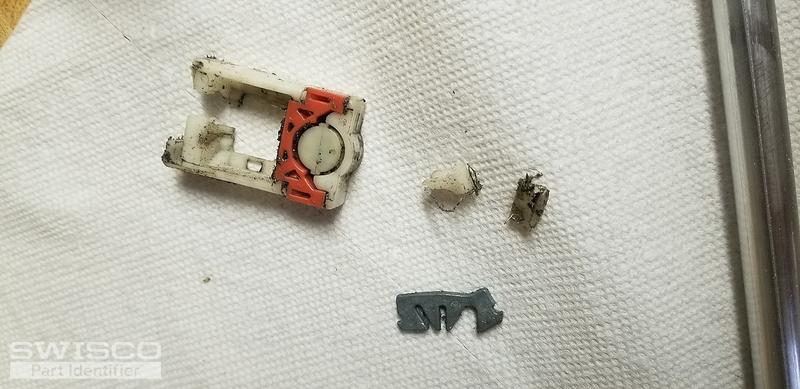

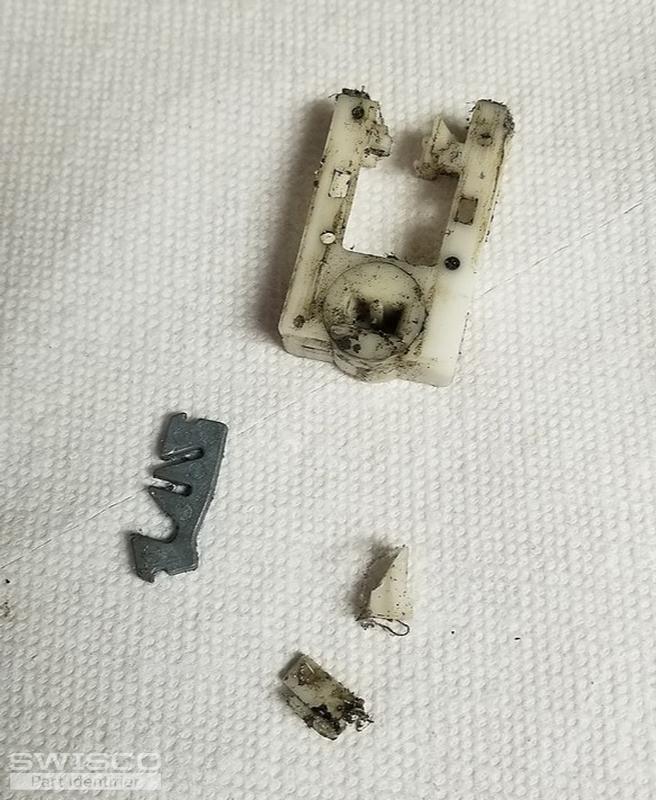

Hello, I have double hung Patriot windows. Recently the window closed abruptly and now doesn't stay up. I removed the window and found plastic parts (all broken). Can you tell what these parts are and where I can purchase replacement parts. Thank you

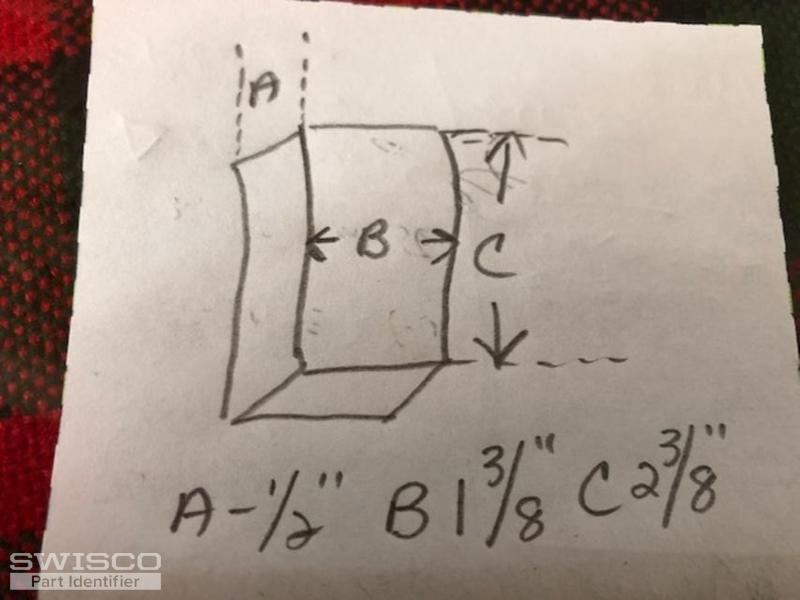

Please help me identify replacement parts for window balance and window tilt hardware. See attached photos. The balance is 27" long. The window tilt hardware is approximately 2 3/8" long by 5/8" wide.

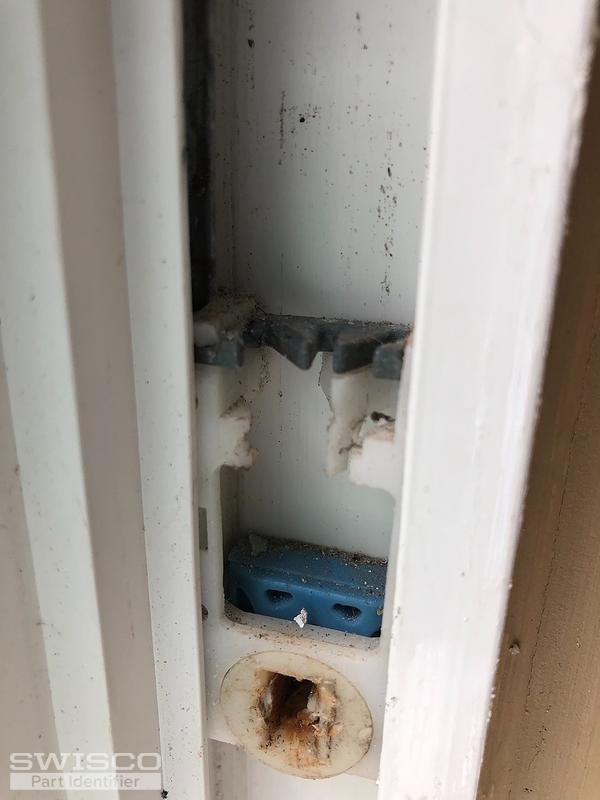

Which part corresponds to this broken pivot shoe for 18 year old Patriot single hung vinyl windows?

hello, i cant seem to find a replacement for the window shoe shown in the ohotos. the overall sizes are close, but this one has provisions for the balancer to connect. can you recommend something. thanks robert

How do you remove and reinstall a tilt sash which is using a 15-046 shoe and a 24-040 pivot bar?

I am replacing the spiral tilt balance, pivot shoes and pivot bars on several windows. I have the correct parts picked out to order but have one question...how do I get the window to sit in the shoes after parts are installed? The Pivot bars were rusted through on both sides of the window so the sa ... (cont.)

I was told that the windows were made by American craft Can you let me know if you will be able to get me more of these shoes.

could not find any markings on glass or window frame. Is a vinyl window replacement that was on the home when I bought it.

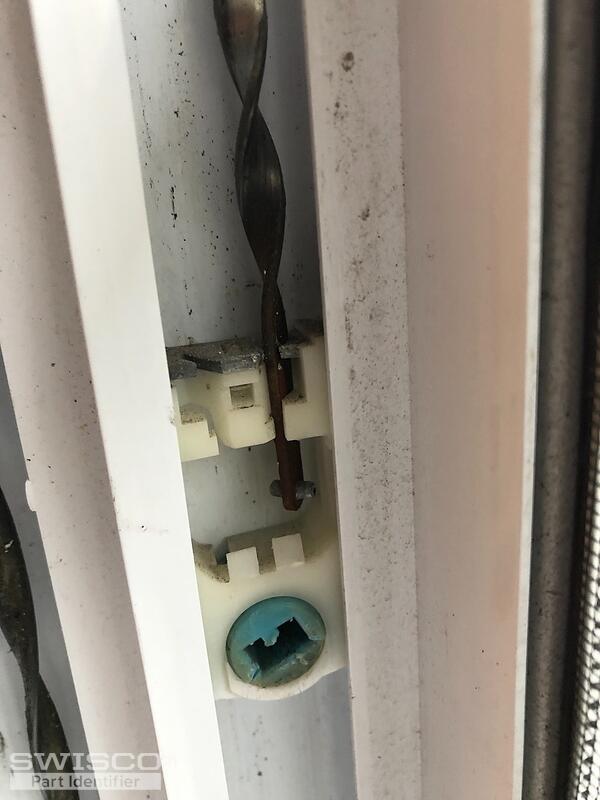

the window wont stay up and it the spiral thing wont hold in the pastic piece since it is cracked. 6 of the windows in the house are like this so we would like to order several replacements.

Hi, I'm in need of several of these sash brakes, can you please help me with replacement parts? Thank you.

Thanks for posting. I'm afraid it's difficult to say what pivot shoe you need without seeing it removed from the window. The width and thickness of the shoe are also very helpful in determining the right replacement. See the first video below for how to remove your pivot shoe. You will need to remov ... (cont.)

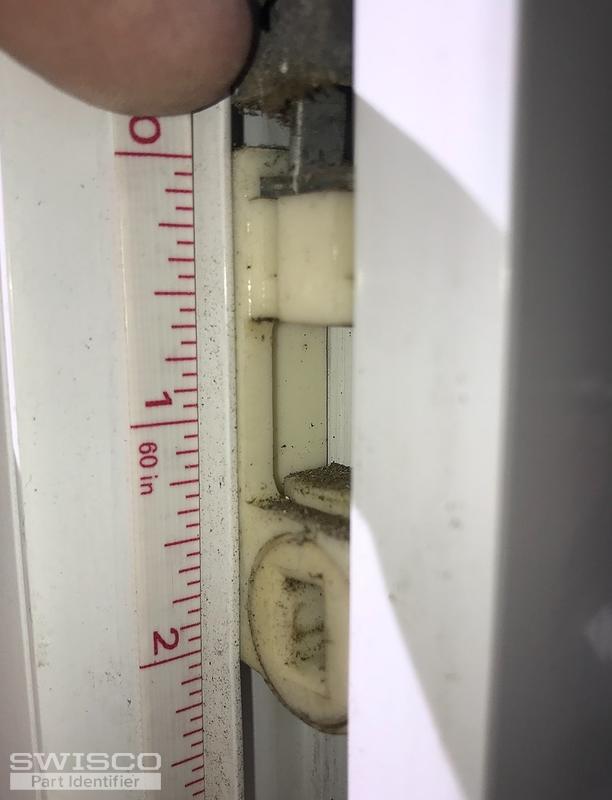

hi. this shoe measures about 1 7/8 in long. 1/2 in deep and 1 in wide Is this type available mark

My name is MarkI emailed you a few weeks ago and have not heard anything.Mark

My house was built in 2003 and the windows installed are Silver Line Single Hung Vinyl windows. The heat from the sun on the front of my house has cause the vinyl and plastic parts to become brittle and the balance on the left side of one window broke loose. The Pivot shoe 15-046 that you provide ... (cont.)

I need a replacement pivot shoe with measurements like your no. 15-118. The only difference I see is this one has a blue cam whereas mine has a black cam. Does that make a difference? I will be using your pivot bar 26-083 and a new spiral balance S600-25 blue tip for a 25lb sash. Thank you ... (cont.)

Patriot windows balances and shoes Measurements. Each window has two balances and two shoes One on each side The length of the hinges or spiral are 41 1/4 I have to make the assumption it's 42 we could not see all the way to the top. The diameter aproximally 5/8 color tip is red The shoes are 1. ... (cont.)

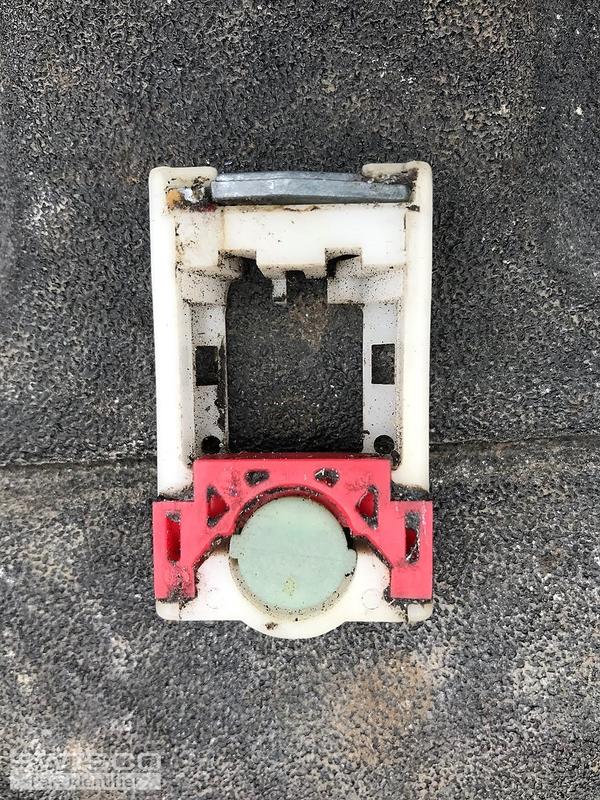

This is a pivot shoe I believe. It goes with my spiral window balance. I need 16 pieces and all.

I have a tilt window and the window does not stay open when lifted. In addition window does not sit in the base of the frame. I measured the bar piece and it is 29" long. What other pieces do I need to orderthank you,Marlene

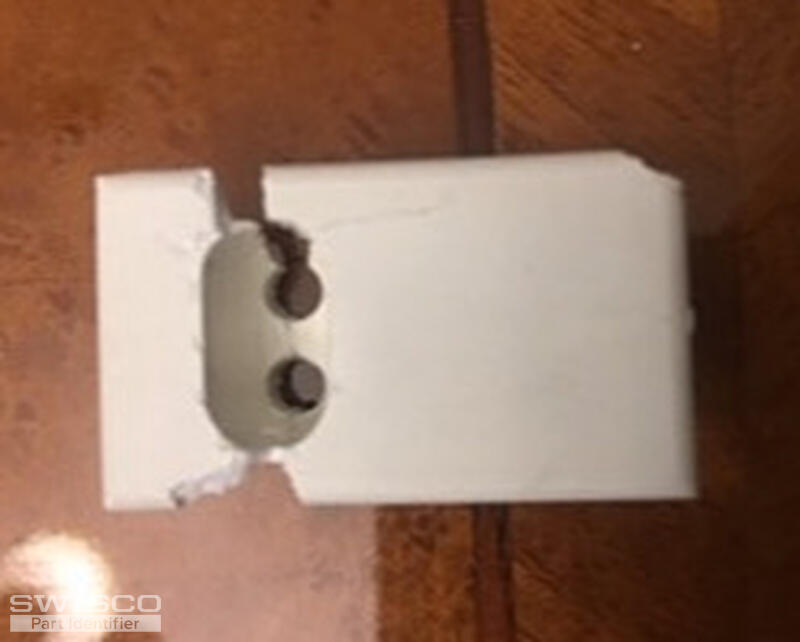

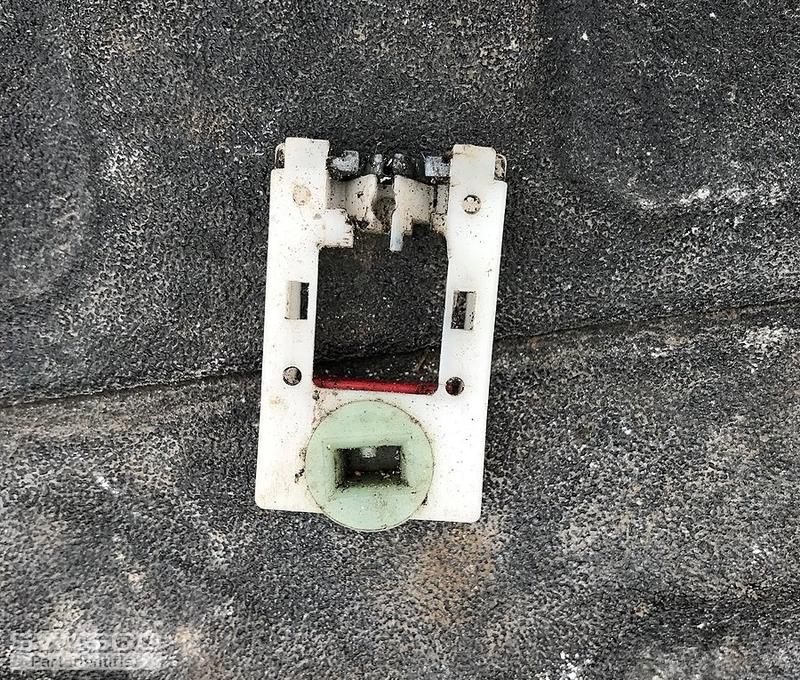

I'm looking to replace a broken piece that I attached a picture of. I believe it is referred to as a pivot shoe. Please let me know if you supply the replacement part?

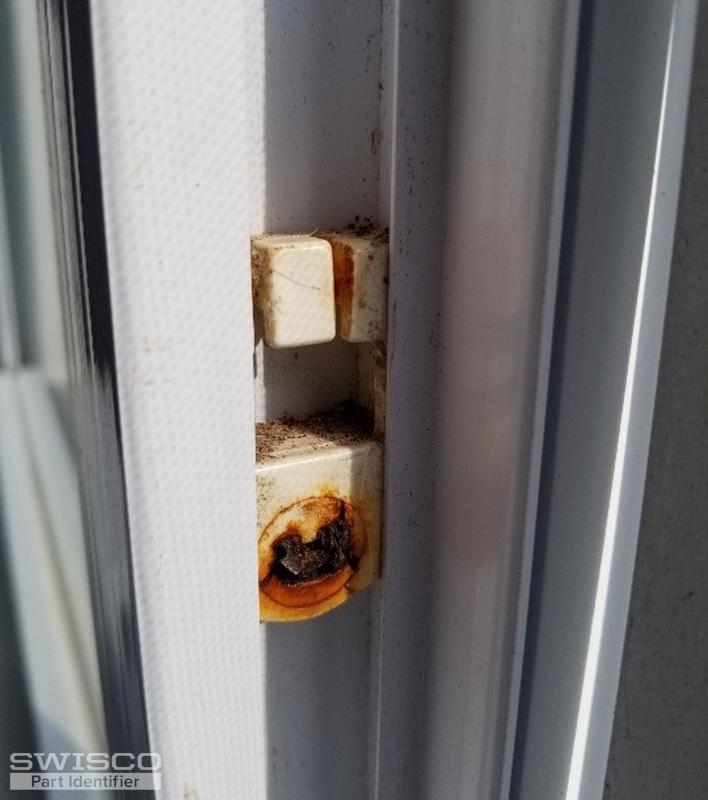

I have two Better Bilt tilt windows from about 1996 that have broken pivot bars. The bars are 2 1/2 x 5/16 x 3/16. The shoes are 1/2 x 2 1/4 x 1 1/4. The nylon housing has become damaged due to the rusted bar. What would be the best replacement parts for these window parts?
