Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

Window post that attaches to sash -slide sag / post in balance shoe . Need posts due to be rotted out . As well as the windows shoes

Ordered and received 15046 shoe. Didn't realize I had locking shoes. I believe I identified the correct part 15135. If you could please confirm that would be great. When I ordered the 15046, I picked the first half inch shoe that matched all my other dimensions not realizing there were locking shoes ... (cont.)

These parts all came from a replacement window that was made on site in a high-rise residential apartment building in Buffalo NY. Need to replace the window, but need to find these parts due to them being broken. Any and all information would be great, and we would also look to get pricing infor ... (cont.)

Hi can you identify the replacement pivot shoe for me please ? I sent a picture and the number on the part is 505C. I was on your site and I need to buy replacement spiral balances, and my pivot shoes seem less than ideal. The metal component has come off ( though I was able to put it back ) but in ... (cont.)

The windows are 19 years old and the majority of them have at least one side broken and it seems to be in the same area. I have no idea from your parts pictures exactly what parts I need. Thanks for your help.

I'm having trouble with Patriot double hung tilt windows Series 2200 that were installed throughout our house in 1996. The windows have become very difficult to slide open and closed. Some of the windows have responded to using WD40 and silicone lubricant on the spiral balances, but some are still ... (cont.)

Please let me know your part number that work in my windows.

the tilt latch measures 7/16" deep 11/16" wide and 2-3/8" long the pivot measures 9/16" thick 2-1/16" long by 1-1/4" wide Please advise on part numbers I need. Also one picture shows that there are no sash stops at top to hide the necessary notch. What can I use to cover this. Thank You, Louis ... (cont.)

I am in need of the following parts. They are part of Jeld-wen vinyl single hung windows. qty- 4 plastic clips at bottom of balance. qty- 4 metal pivot pins qty- 4 plastic pivot pin receivers at bottom of sash Please see attached pics of parts and window label. Thanks- Mike

Unfortunately I?m unable to find any parts identification

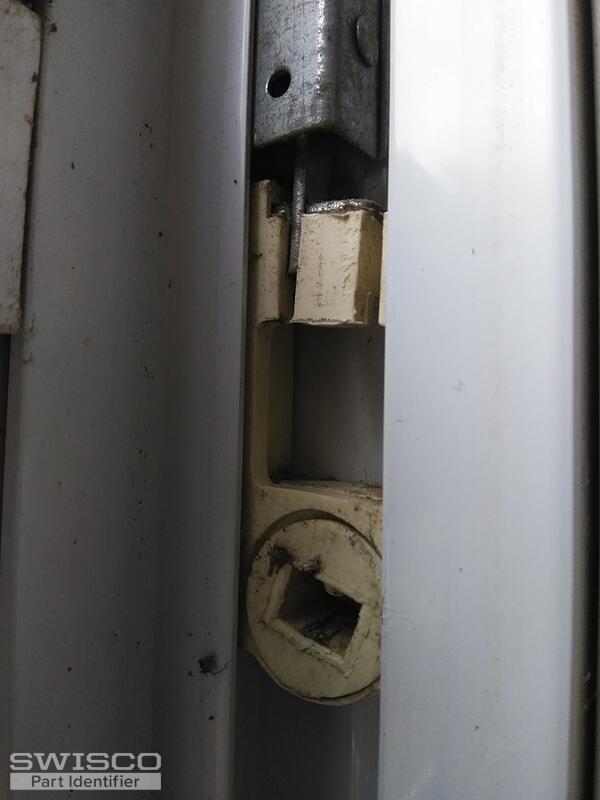

I am looking to replace this plastic part. It slides in the window track attached to the channel balancer. I cannot find any model or brand names on it or the window. I also need to know how to get it in and out of the window track. (It is the one on the opposite side of this window that is broken ... (cont.)

Would like to buy shoe for mastic double hung window.

I have broken pivot shoes on my silverline 1000 series double hung windowsthey are 1/2 inch thick1 3/16 inches wide1 3/4 inches high at the edgethe slots at the top are 10/16 apartthanks for your helpHoward S.

This is Al please look at all the photos and let me know what you think

These are Thermolock windows installed in 1999. Cam measures approximately 1-3/8"wide, 2-1/16" tall, 9/16" deep. Will also need a spiral tensioner tool.

I need replacement Patriot window parts. Can you recommend which ones i need. if you need additional infomation, please let me know.I need the Piviot Shoe and Upper sash Slide latch.I recently purchased several other window products from Swisco and while installing them, i noticed that these partswe ... (cont.)

Having a heck of a time trying to find the right locking channel shoes. The ones I ordered, the locking pivot " receiving hole" is too small. The shoes that came with the windows have a 11/16 receiving hole diameter. The rectangular slot is 3/8 x 1/4 in. This is for double hung tilt out vinyl windo ... (cont.)

Can you tell from the attached photos which pivot shoe I need Thanks Scott

I'm looking to replace these parts on several windows. They are an older style and are still working well other than some wear and tear on these parts. Any help in locating these replacement parts or a suitable upgrade part would be appreciated.

Window parts needed
