Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

I have broken pivot shoes on my silverline 1000 series double hung windowsthey are 1/2 inch thick1 3/16 inches wide1 3/4 inches high at the edgethe slots at the top are 10/16 apartthanks for your helpHoward S.

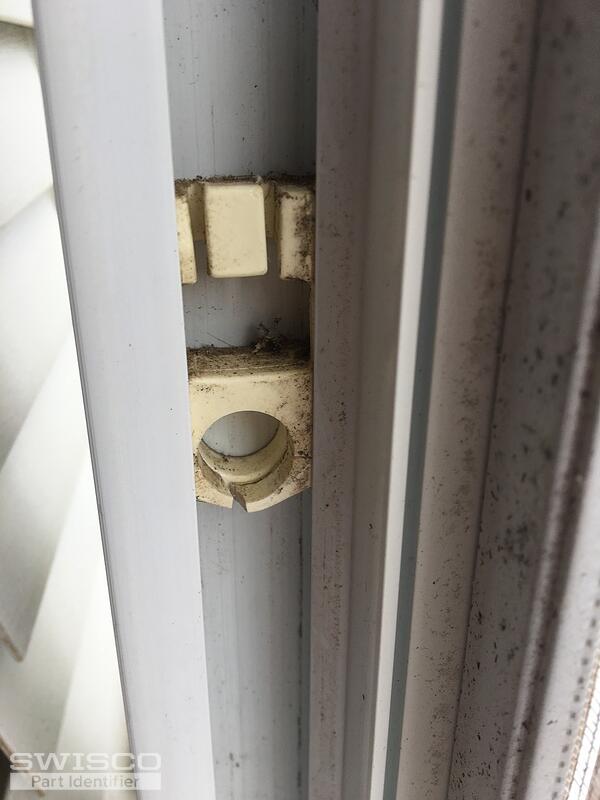

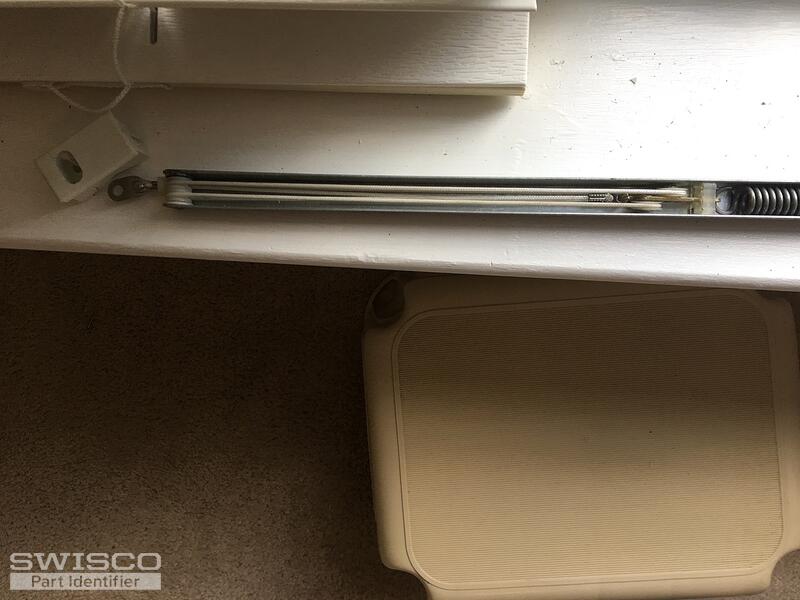

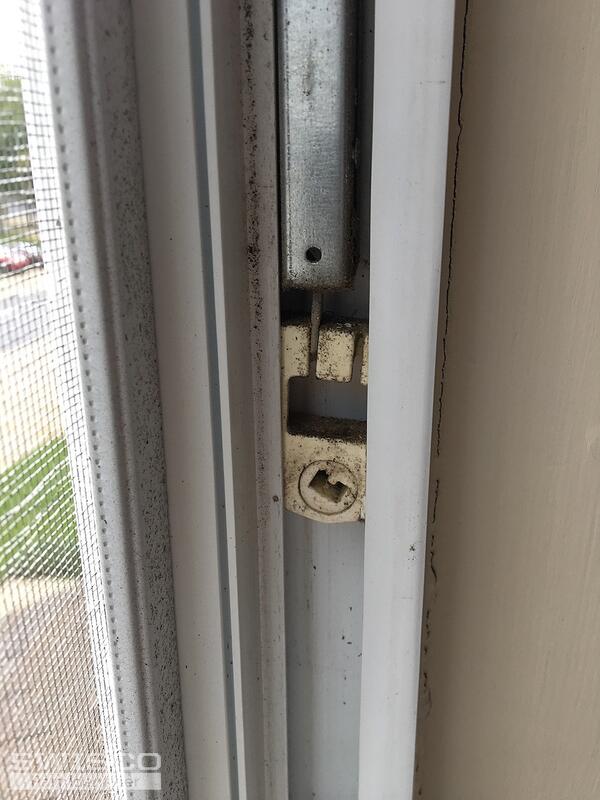

This is Al please look at all the photos and let me know what you think

These are Thermolock windows installed in 1999. Cam measures approximately 1-3/8"wide, 2-1/16" tall, 9/16" deep. Will also need a spiral tensioner tool.

I need replacement Patriot window parts. Can you recommend which ones i need. if you need additional infomation, please let me know.I need the Piviot Shoe and Upper sash Slide latch.I recently purchased several other window products from Swisco and while installing them, i noticed that these partswe ... (cont.)

Having a heck of a time trying to find the right locking channel shoes. The ones I ordered, the locking pivot " receiving hole" is too small. The shoes that came with the windows have a 11/16 receiving hole diameter. The rectangular slot is 3/8 x 1/4 in. This is for double hung tilt out vinyl windo ... (cont.)

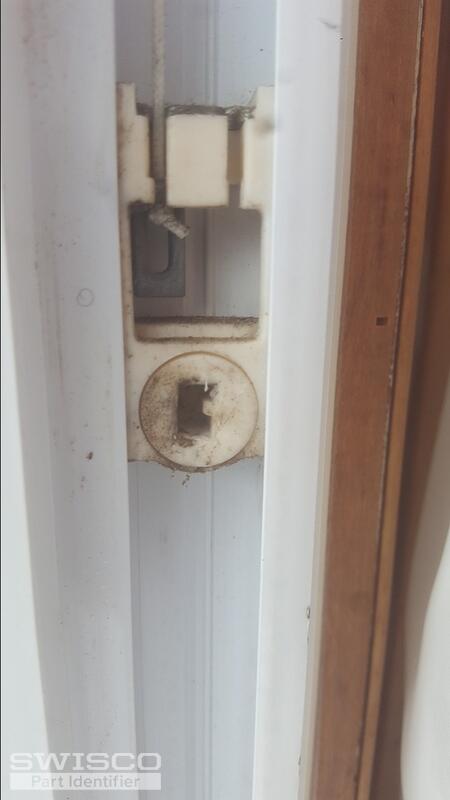

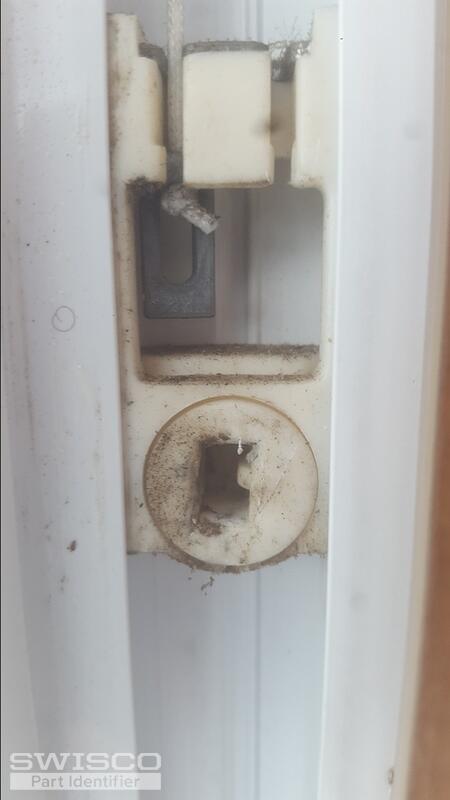

Can you tell from the attached photos which pivot shoe I need Thanks Scott

I'm looking to replace these parts on several windows. They are an older style and are still working well other than some wear and tear on these parts. Any help in locating these replacement parts or a suitable upgrade part would be appreciated.

Window parts needed

I think I can use the S795-27 changing out the shoe to the 15-194 1" T-Lock. The shoe I have on my window now looks to be longer than the 15-194, will that make a difference? I do not see a way to get the old shoe out of my window, unless I cut the old shoe or flange on the window. Is this an accept ... (cont.)

I have large windows with these balances, can you identify these parts and price them for me please? The balances are 34" long. Thanks for your help.

I am looking for the correct pivot shoe. It appears I ordered the wrong ones. I need the pivot shoe that corresponds with 29" Series 600 Spiral Tilt Window Balance, Product Code: S600-29. I have attached a picture of the one I pulled out of the window.

Hello, So glad I found your site... Almost all of my windows wont stay up and its very frustrating. These old spiral balances are so gone if I pull any tension on them the mechanism slips and the metal spiral easily pulls down.. Think its time to replace. I believe I need the 27" spiral 600 series ... (cont.)

I don't have a make or model for my window but this is the shoe. I measured it to be 2 inches tall by 1.25 wide. Can you help me. Thankyou

I'm looking for the pieces with the crew and blue piece that plastic piece that the window slide into with the spring I dont know the make of the window that's my problem tooI need the plastic piece and the spring its 5/8 wide length is 29 1/4 can you help me

don't know the depth of the shoe, hoping you can ID the right part.

I need to replace few pivot boots for windows in my home. I measured the depth and it is between 1/4" and 5/8". It is surely not 5/8",more like 9/16". Looks like I should go for 15-046, which is 1/4", rather than 15-047, which may not go into that slot. Just wanted to confirm that is the right choic ... (cont.)

I need two of these. They are installed in a Huron double hung from 2001

the spiral balance is 12 inches long and has a red tip, the pivot shoes have 530C on them. Can you tell me what I need

Looking to identify all the parts on my window that could be replaced myself. A contractor quoted replacing spiral balances and gear mechanisms?

15" top half, 5/8" wide
