Viewing all customer Discussions for:

15-070 Thermal Gard Pivot Shoe

The windows say thermoguard Season-All

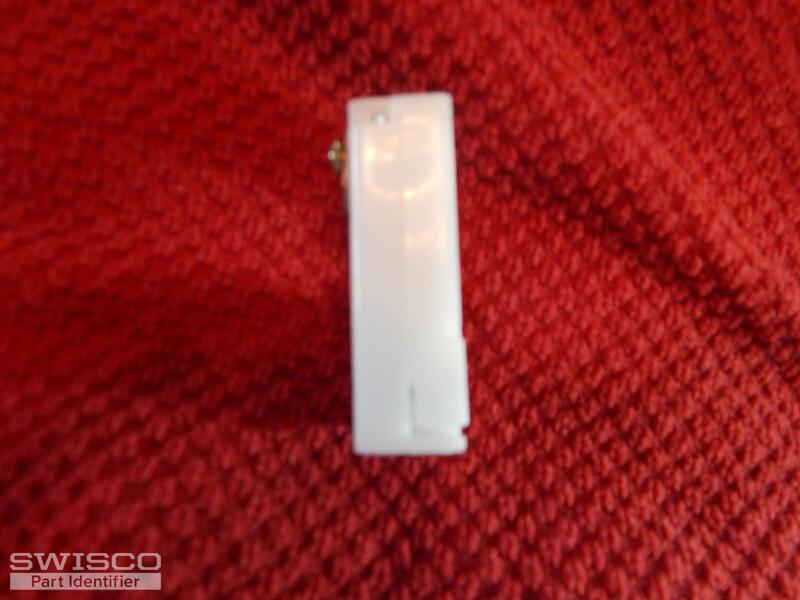

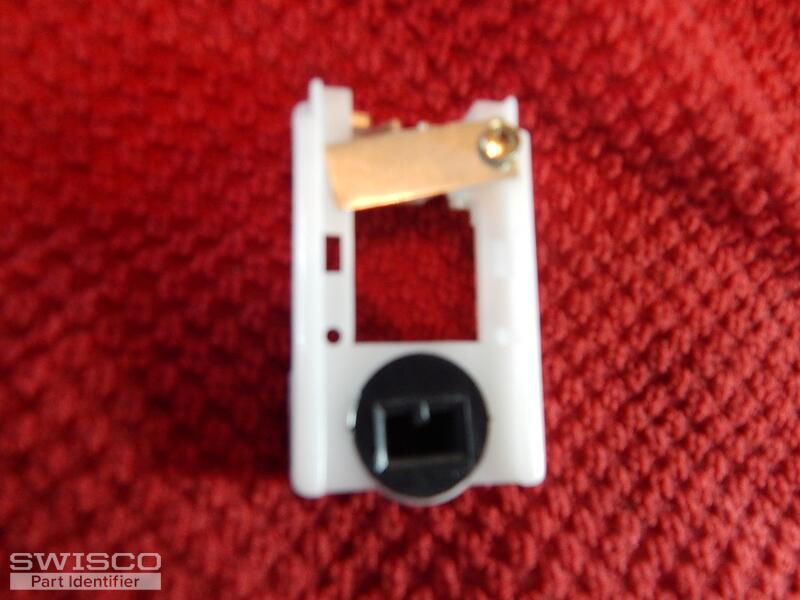

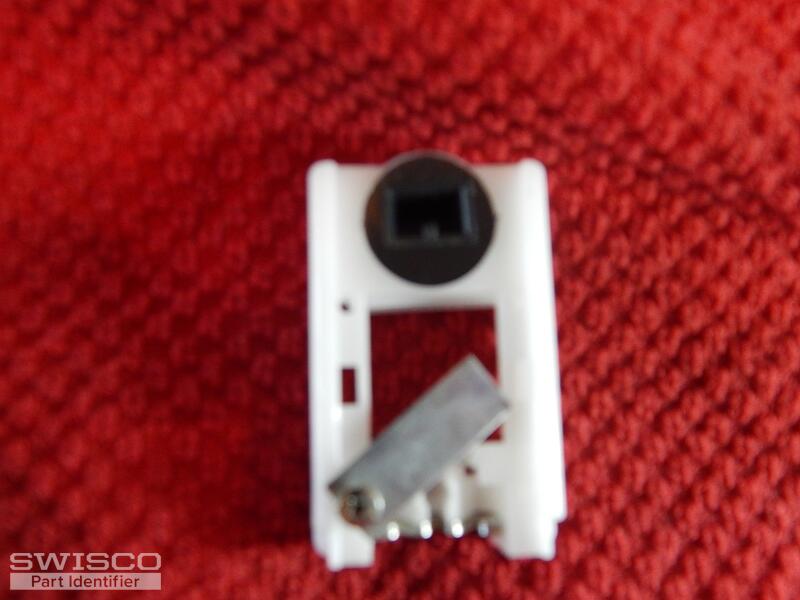

Dear Sirs: Photos numbered DSCN3022, 3020 and 3021 are photos of the part I need. Photos DSCN 3023 and 3025 are comparison of (mine and your 15-070 )parts photos ( the part with the red is YOUR part sent to me, that I am returning).The pivot shoe I need is for a Seasonall Nu-Prime , all aluminum dou ... (cont.)

Please help identify clutch shoe part number for a Thermal Gard Tilt Window. Pictures are front view, back view, right side view, left side view, and top view respectively. PLEASE NOTE THAT THE BACK HAS A METAL CLIP PIECE THAT HOLDS THE CLUTCT SHOE IN PLACE THE DIMENSIONS ARE: 1 7/8 HIGH, 1 1 ... (cont.)

What can be used in place of these original pieces?

I need these parts. 1. Spiral window balancer-blue end, 21? long and 1/2? diameter 2. 4-pivot shoes, 3/4? thick, 1 3/4? tall, and 1 1/4? wide See pictures

I need pivot lock shoe and tilt locking latch. Handles for windows

Hello, Can you help me identify which window shoe I need? Attached, please find three pictures, two of the shoe and one of the pivot bar. The dimensions of the shoe are identical to two parts I found on your site, 15-070 and 15-047. But, the pivot bar doesn't seem to match either of the pivot ba ... (cont.)

The measurement of the Pivot shoe choices do not seem to match what I have. So, I'm including all of the parts I still need to replace. Thank You, Charlie

my windows are replacement thermo guard series 405/455. please see that attached 4 photos of the pivot shoe that I need. it measures 1 3/4" height x 1 1/4" width x 5/8" thick.

is there a video on how to figure out what parts you need to replace and how to replace these parts for a thermal gard window that wont stay up any more

Window latch thingy

Hello I have 3 season-all thermal-guard windows measuring 35 3/4" x71 3/4". All three need new balances top and bottom. I am trying to help a customer sell her house and I need to do this as fast as possible. Can you help? I will also need 8 sets of locks also(16 individual). I can send more pics if ... (cont.)

Hello: The name I found on the windows in my Mother's house is: Thermal

I just bought pivot shoes 15-047. Looks like perhaps I should have gotten the 15-070? There is a nub on the 047 slot that might keep my pivit bar from going into the shoe. I have thermal guard windows. What is the difference between the 047 and the 070? Thanks, Bob

I recently bought my house and notice that several windows no longer remain open without support. When I took the window sash out I noticed that most of them had broken pivot shoes. (A few had issues with the spiral balance.) I don't see any markings on the window to tell me what model it is and ... (cont.)

See Attachment to show you the problem that I am having trying to repair my windows. Can you provide me with a correct Pivot Shoe 5/8" Part with no bump (hang down piece)? Or can this bump be shaved off to facilitate my windows? If you are going to answer for me to shave this bump off, what tool ... (cont.)

5/8 " thick

Assistance with a part. Please view the attached photos.

Hello I am trying to fix some double hung vinyl windows on a house that I have recently purchased. I am missing several pivot bars and several of the shoes are broken. I do not know the make of the windows. Any help would be appreciated.

Can you please help me identify these two pivot shoes?
