Viewing all customer Discussions for:

15-118 Pivot Shoe, 9/16" Thick

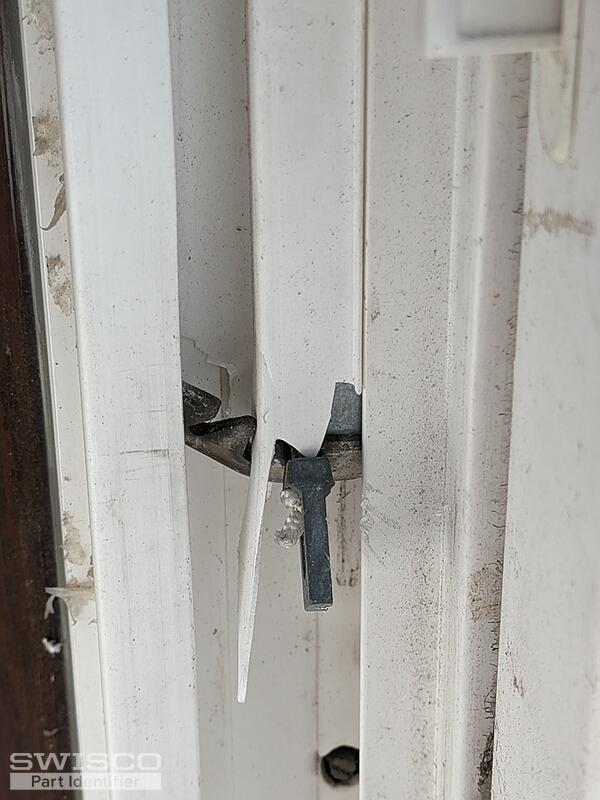

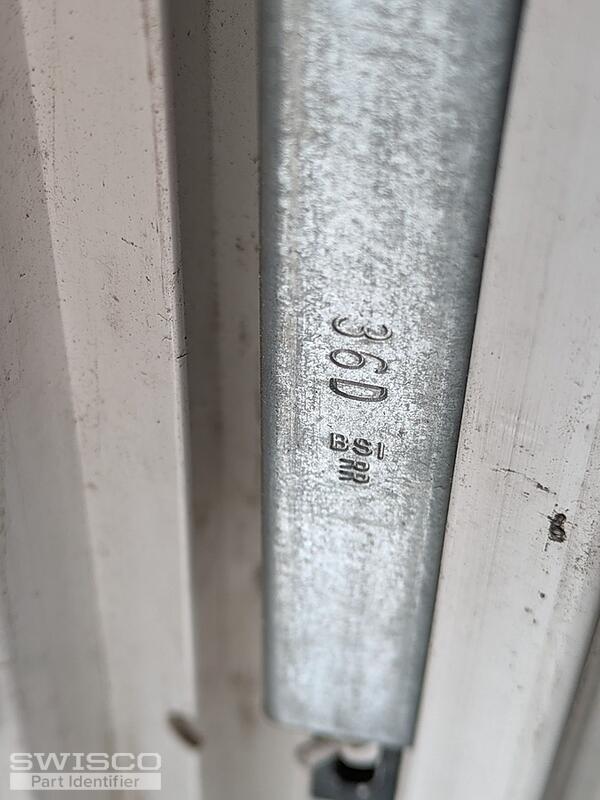

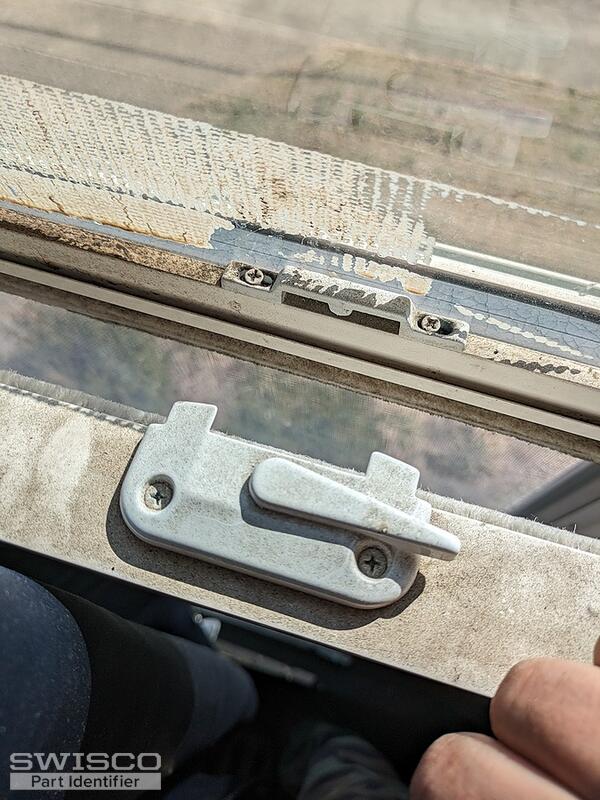

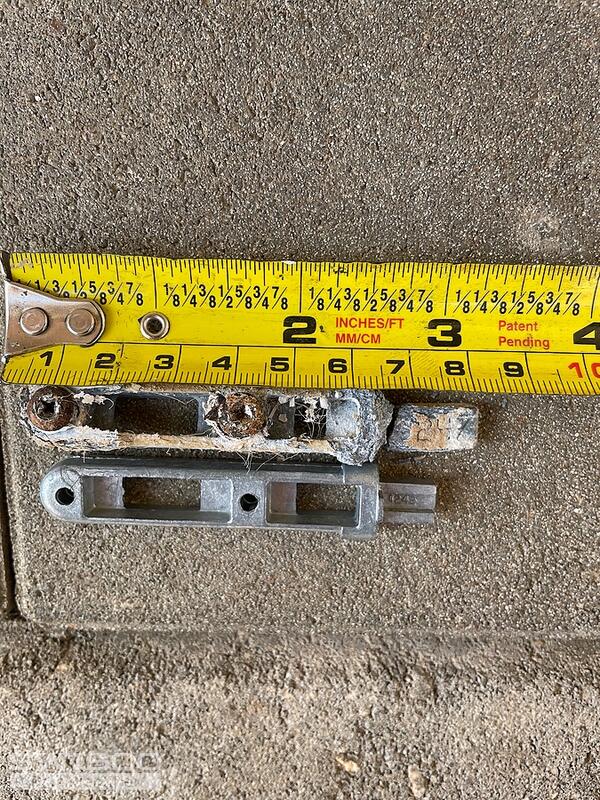

The only potentially useful markings I found are "36D" on the bottom of the channel. They don't appear ribbed. The first photo is from a window that works. The whole rectangular sliding piece is completely disintegrated in the bad window, so I can't really get pics of it. The other 4 are from the da ... (cont.)

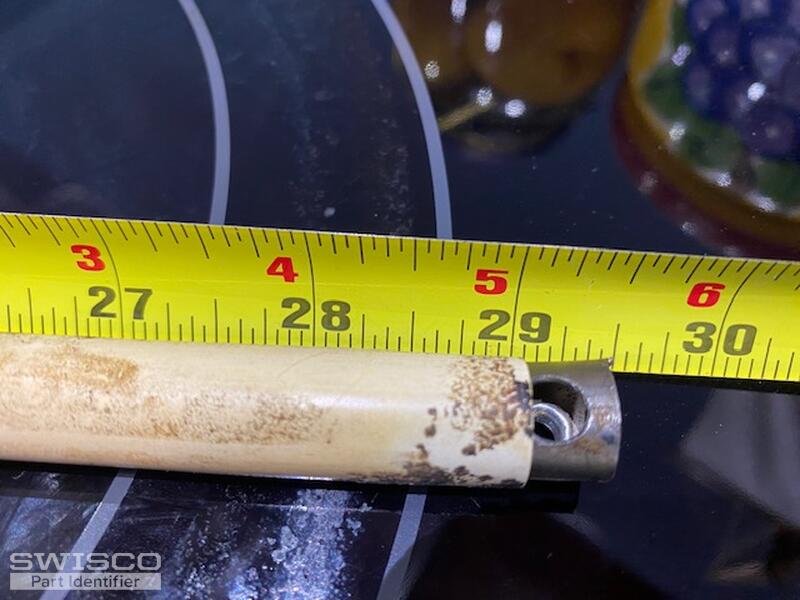

Hello, I need 2 window springs as shown in pictures. The cylinder is plastic and measures 17". Also the window is double hung 21" wide x 34 1/2" length. The spring cap is a tapered blue. Not sure if that matters. Also there is a marking on plastic locking mechanism for spring of 530C. I believe that ... (cont.)

I have an aluminum Traco window. The bottom sash operates. The top sash appears to be somewhat fixed, but it does appear to have a release button on each side on the top the same as the bottom sash. It also appears to have pivot shoes of the same type the bottom sash has. The right hand shoe is ... (cont.)

Hello, I am trying to get two of these pivot lock shoes - they are approx 17/32 thick and 1 1/4" wide by 2" high. I do not know what brand of window it is from. Thank you!

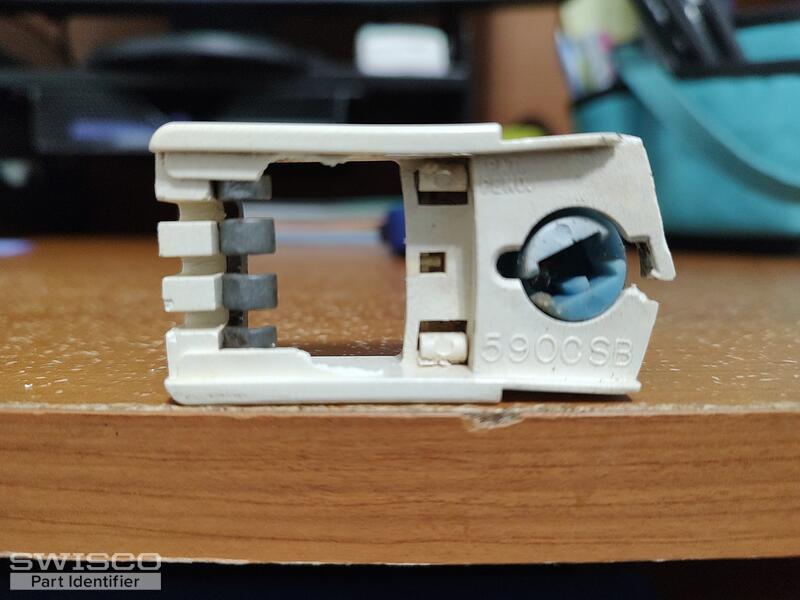

I have some M&W tilt Windows. And on the shoe is a number 5900SB, I think the matching shoe number is 15-118? I measured my spiral balance and it's 3/8 tube. 31" long, NO color tip. So, what would you recommend as a spiral balance?

Dears, I was wondering if you carry attached pivotbar and pivotshoes? If you do not carry same, may you have a replacer? I ordered a pivotbar before, but the lenght going into the pivotshoes is a little short. This is also shown on the attached image. Kindly advice. Thank you.

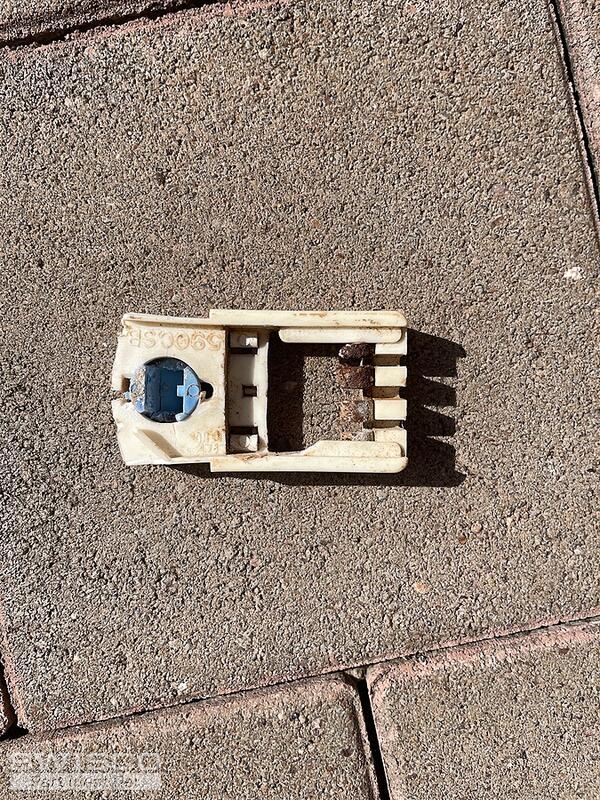

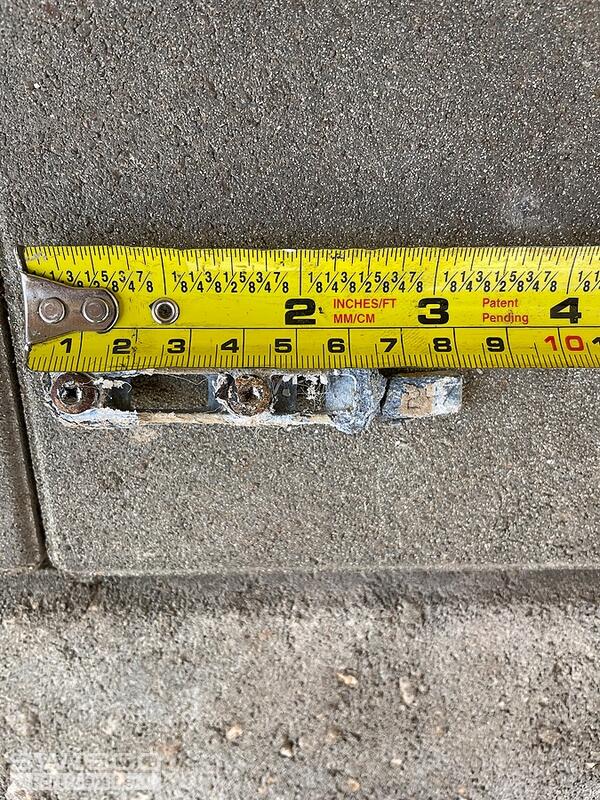

greetings, Just removed this part from my window. After reading a post from another customer whos had the same numbers on the pivot, you recommended 15-118 however the window hardware has two pins that stick out. The photo I sent is the exact number however 15-118 doesn't have the correct opening ... (cont.)

Does Diamond Window Manufacturer ( Massachusetts)use this type of pivot shoe in replacement Windows?

The double hung windows are made by Three Rivers Aluminum Co. I made need parts for the spiral balances too, but I'm not sure. Thank you!

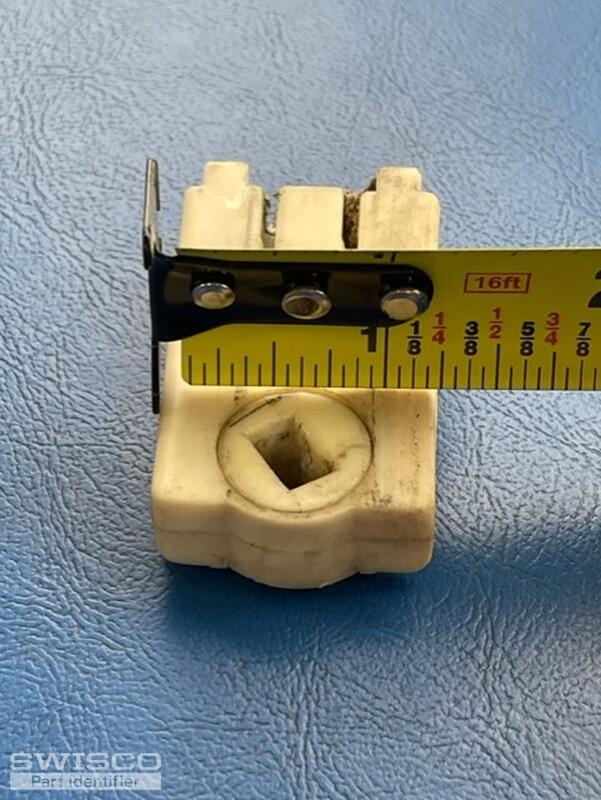

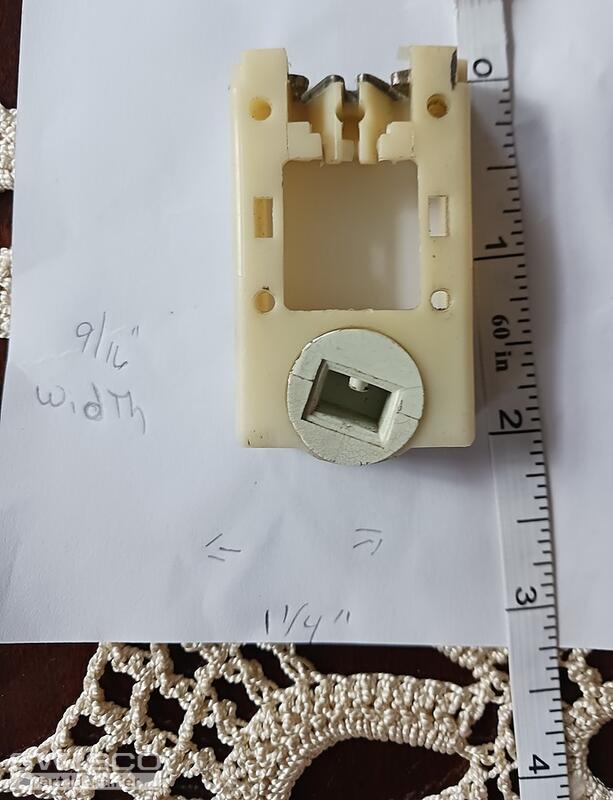

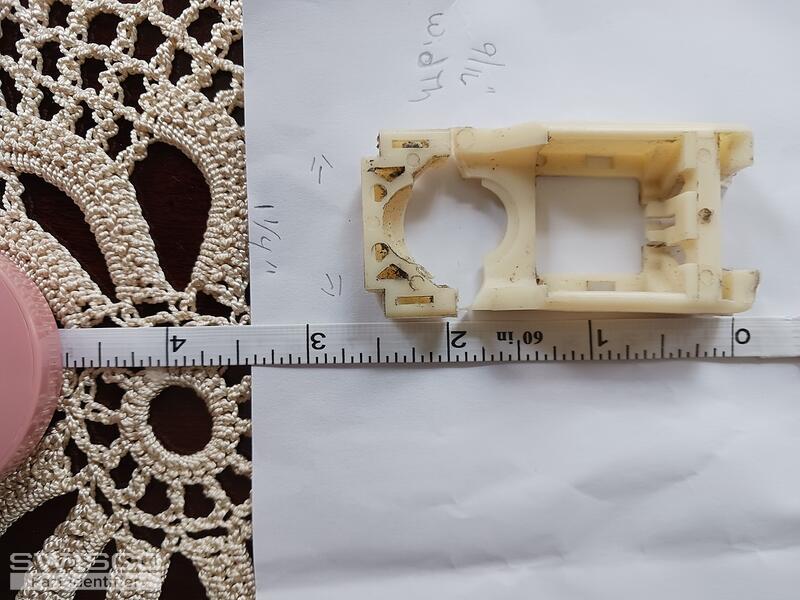

I ordered the 15-173 pivot shoe for my windows but it's too narrow. In these photos, pictured on left was part I ordered that does not fit. The other two are from my windows, both measure 1.25 inches wide and are 9/16 thick. Both types of shoes had the same type of spiral balance attached. ... (cont.)

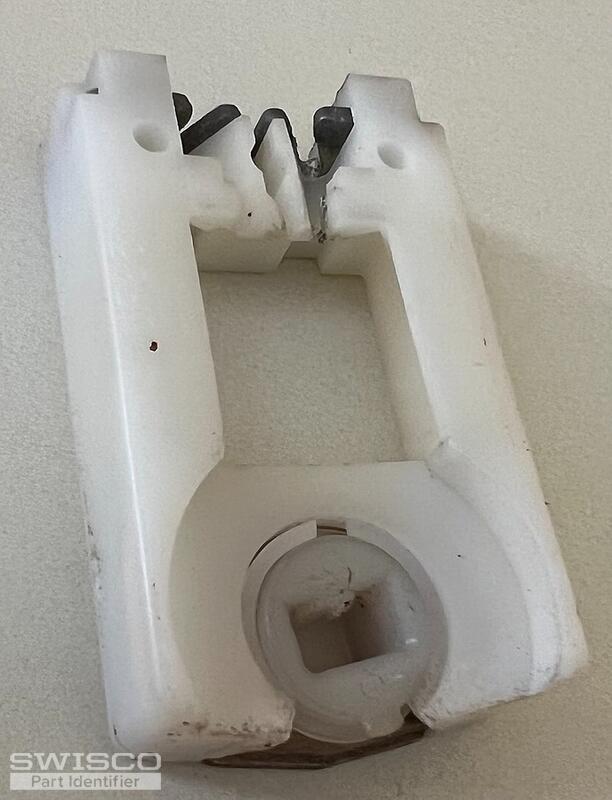

I have vinyl windows in a 1997 era Ryan Homes house which are the Liberty series from Patriot manufacturing in NJ. Several pivot locks are broken apart and need replacement. The primary height (without the projecting cam) is 2-1/32". With the projecting cam it is 2-1/8". It is 1-1/4" wide. It i ... (cont.)

So, inspected this MW window and is in need of balancers, pivot lock shoes, 1 tilt latch and possibly metal tilt pins, depending on your thoughts with the new shoe.I believe the balancer is S900-29 and -26 for upper and lower spiral balancer 26" and 29" x 3/8" tube, but sash seems light and tips are ... (cont.)

Hello, hoping you can identify this part.

Shoes

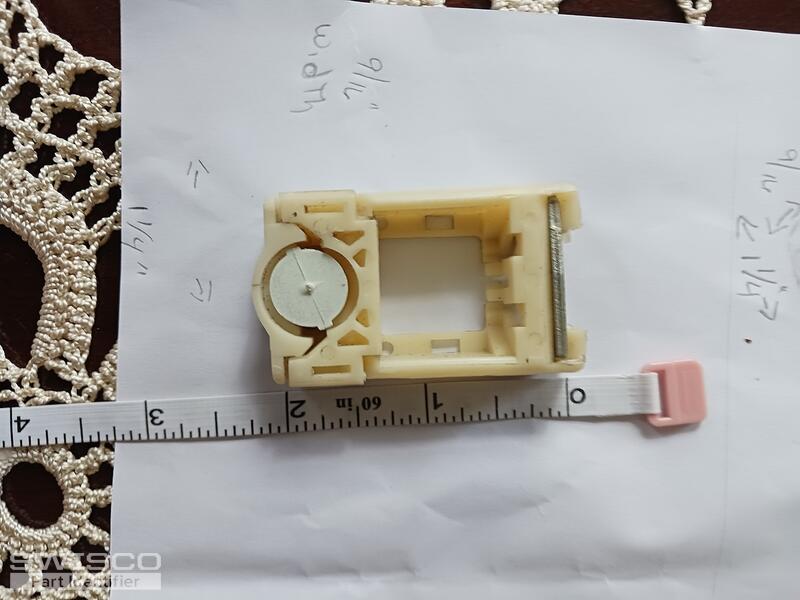

the pivot shoe I order is too small it should be 9/16" wide by 2 5/16"" height by 1 1/4" width. I had gottenhelp before and told some one these measurements and they told me to order 15-173 but it's wrong. Itlooks like 15-129 what do you think? Please advise.

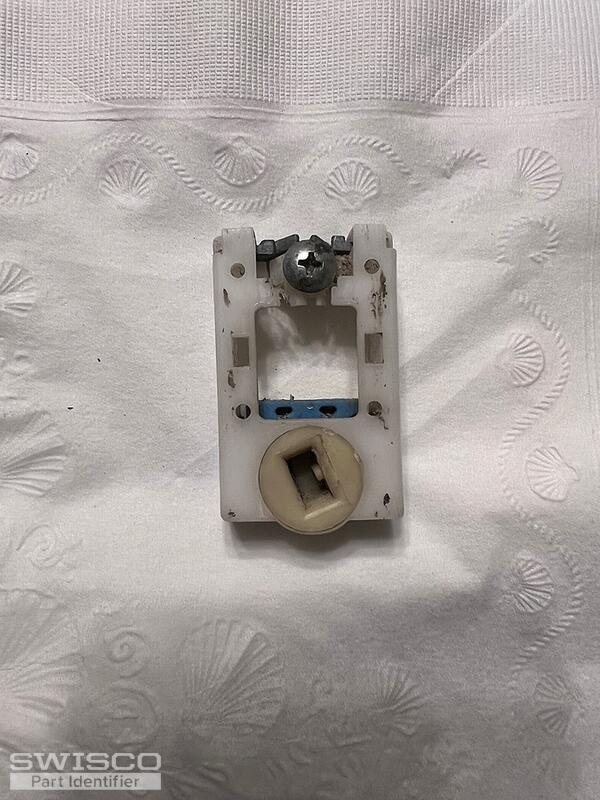

Dear Sir or Madam,Could you identify and quote the swivel lock shoe, photo attached?I need 18 items. 1.23 in width, 0.54 in thick, 2 in long.Regards,Gerd

Hello I have Patriot vinyl windows. I just ordered tilt in tabs that I hope fit. I am also looking for the parts in the attached photo. I believe the one item is called a balancing shoe. And the other is the spiral cord Looking forward to seeing if you have these parts Joe

Not which the right one is please help. Window not at location

Hi, Can you recommend a pivot shoe for the tilt window?

Hi there, find attached pictures of products that I am looking for . Do you carry it and is it available in Canada? Thanks
