Viewing all customer Discussions for:

15-118 Pivot Shoe, 9/16" Thick

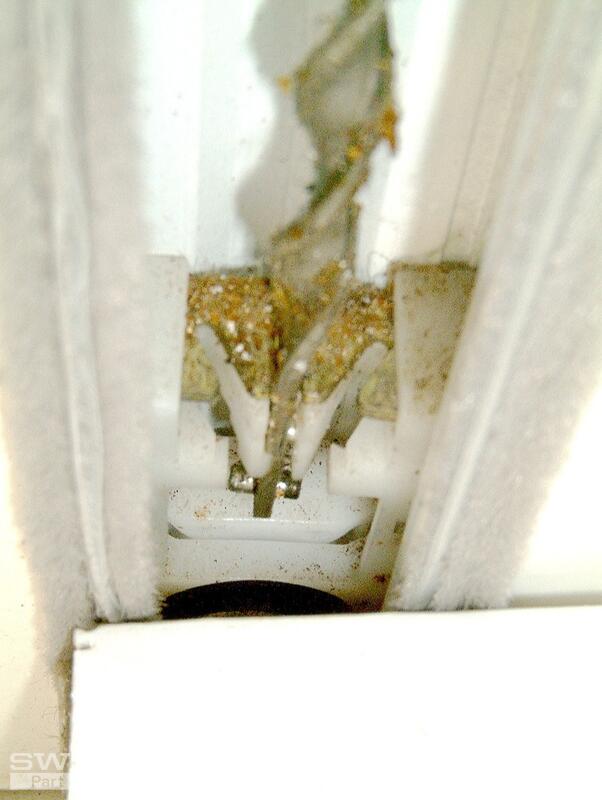

The pivot lock shoe on one of my sash windows has broken. So far I have been unable to remove the window, which is the bottom one and pivots inwards. I believe that the mechanism is yours, though so far I have found no markings. The window was installed about 13 years ago. The measurements of the wi ... (cont.)

Tilt Double Hung Windows .Spiral Balance. 2 3/16 inches long x 1 1/4 inch width x 9/16 inch thick .

I purchased 15-118 to replace the pictured pivot shoes. The new pivot shoe will not allow me to hook the spring tip without modificatio. The pivot bar when I have to replace two of them, will allow my window to slide out of one or the other of the pivot shoes . I am using a 900 - 29 spiral balance ... (cont.)

I 'm replacing pivot shoes and need 15-118 or 15-121 not clear about the difference of the cams. These are paired with 27c channel balances on original windows over 20 years old

One of the parts has the number "5050" on it. spiral balance

looking for a replacement pivet shoe. Mine is about 1 1/4 inches wide, 3/8 inches thick and is about 2 1/4 inches long. This is a replacement part for a window made in 1996. It is a tilt window with a spiral balance. Please let me know if you have or knows some organization that has them. ... (cont.)

Can not find the manufacturer of this window and one of them has lost all the hardware on the bottom pane that attaches it to the weighting system that holds the pane "up". Both metal slides that connect the pane to the sliding system cracked, broke and disappeared. On the left side, the blue inse ... (cont.)

hi, looking for two pivot lock shoes and locks for two of my windows. wondering if you can help. thanks thomas

Instead of fixing the top sash spiral balances, I'm looking to fix the top sash in place. I believe the window is a Traco Tr5000. Is there a bracket or clip that I can attach under the pivot shoe in the track and screw into? This is a picture of the pivot shoe.

The pivot shoe is 5/8? deep. The springs are around 30?. I think you can see the other dimensions in my photos. Hope you can help us. Pat

We have a need for pivot shoes. Our current kind has a number of 590CSB. Does this correspond to any of your pivot shoes.

Please let me know what style of pivot and bar this is from your stock. I do not see a similar pivot with metal "claws" or an adjustable style pivot bar

I have ordered this part in the past, is it still available?

Need help finding a comparable lock show for my window. My broken shoe is 2 inches long and 1 1/4 wiide! I don't see any identifying marks or numbers on it My name is Travis

Will the color of the wheel on tilt window pivot shoe tell me which thickness to buy? (my windows are 1983 traco tilt windows)- the color of the wheel on shoe is blue-

M&W double hung double lock window - installed in the house in 1999 Pivot Lock shoe with blue Numbers appear to be 590 CSB on the piece. Any help.

I

Please let me know if u can help

Does Swisco have any of the attached pivot shoes with part number 590CSB? Thanks, C.D.

I am trying to fix my windows and I purchased a few pivot shoes (#15-118) that are the right size but don't seem to be working properly. After I put the window back into place the pivot shoe seems to remain somewhat locked and it is extremely difficult to open and close the window. I have tried adju ... (cont.)
