Viewing all customer Discussions for:

15-177 Coil Balance Shoe, Slate Blue

Hi For the single coil I believe the plastic piece holding the coil has a "F" or "L" on it and the coil itself has a "F" or "P" on it. I'm looking to replace both assemblies for the window. For the double coil the coil has a "CL" on it then the bottom plastic piece reads "D" and the top plastic "L" ... (cont.)

The only identifying marks on my hardware is one "N" that I can see.

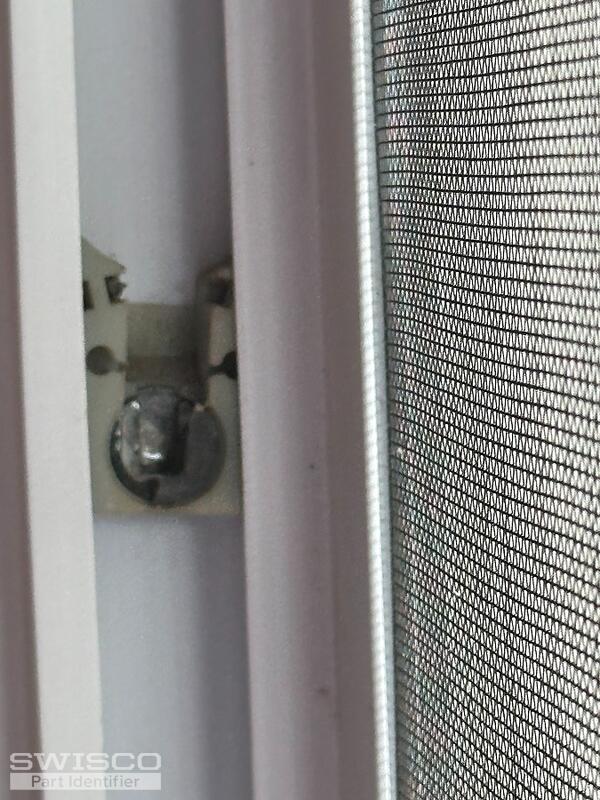

I am not sure which part is right for our windows. Please see attached photo. The pivot shoe measures 1.25" H x 1.5" W x 9/16" D

I'm needing to find and replace a hand full of these.

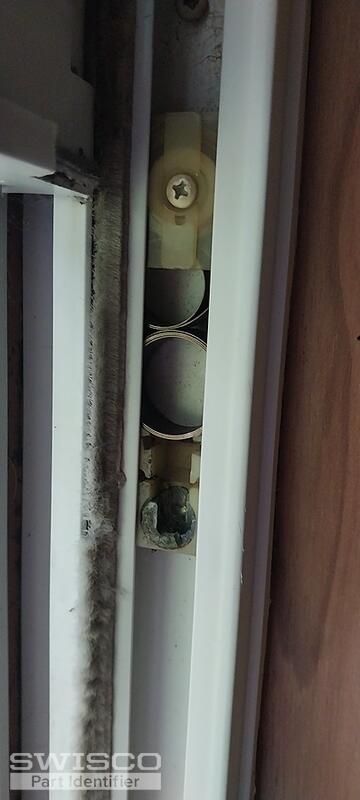

Need to identify (Mfg:Cavco) window Pivot Shoe. Approximate size 9/16 thick, 1 1/4 wide and 1 3/8 high.

It measures 1 1/4" across and 1/2" in depth. The cam is broken on the shoe.

Good afternoon: Hope all is well with you, your loved ones and your team mates. Please see the attached picture of some window parts I need to replace. I was unable to find any markings, names nor part numbers anywhere on the window or parts. The only thing that came close to resembling a mark was ... (cont.)

Hello, I assume I got a series 152 window, and I'm looking to replace the whole window coil springs, is there anyway you can show me where I can get all the required parts or do you have a whole kit for left and right side thank you, if I can send you pictures of the broken part. Thank you. ... (cont.)

Need replacement coil springs and cups for a 28" x 20" vinyl window sash.

I need help finding parts.b

Hello, I've owned my home for several years and am finally getting around to fixing some poor-performing windows. I need some help determining what pieces to order and would appreciate your help. I have double hung windows at look like they were installed in 2005. The label says series "0401 double ... (cont.)

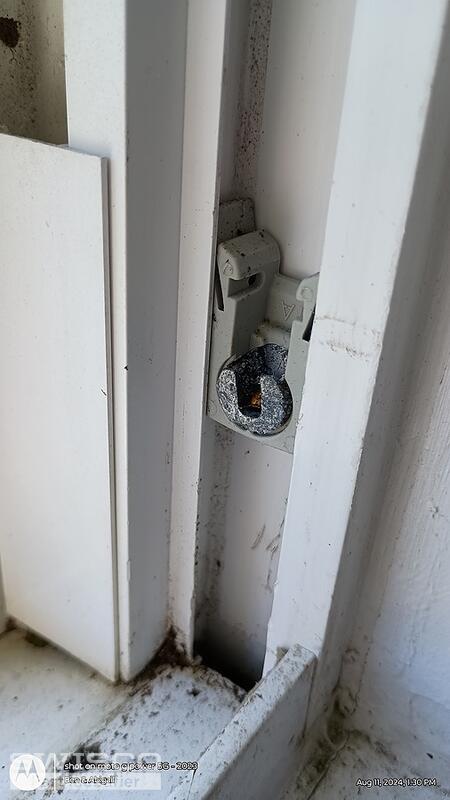

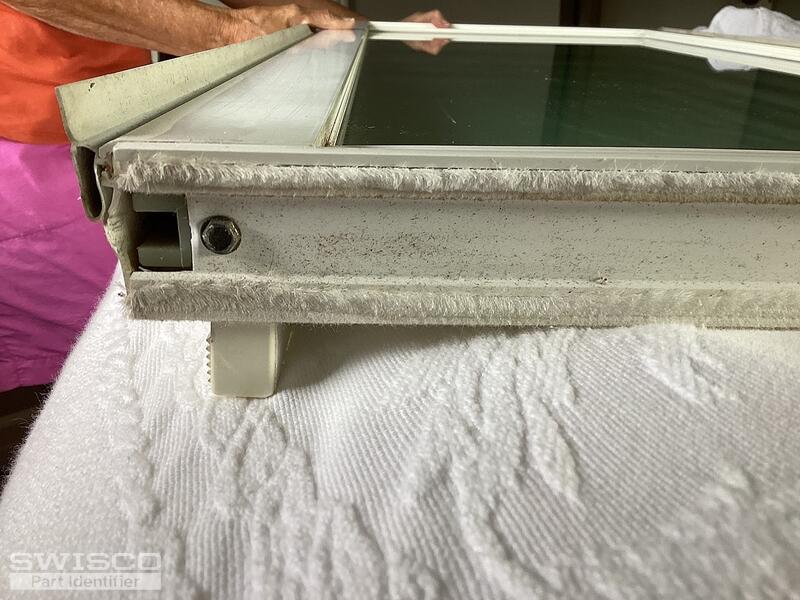

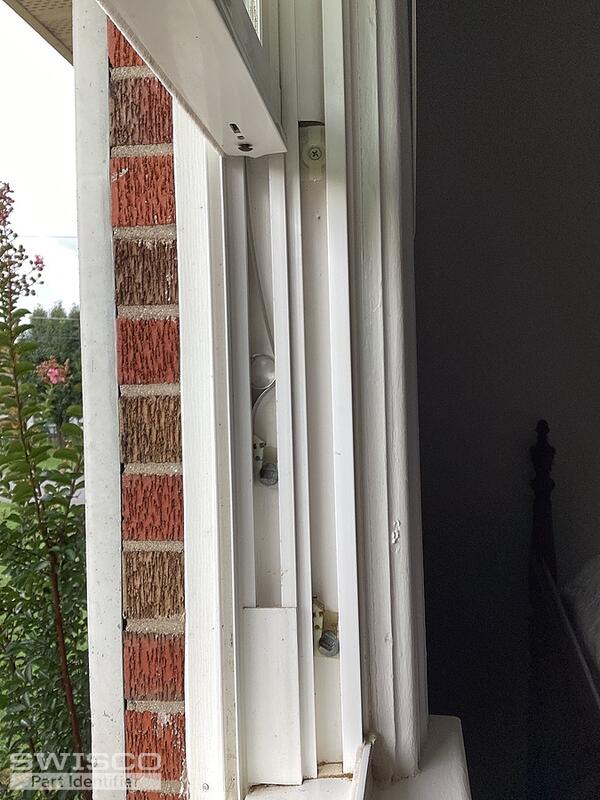

Hello, Can I get replacement parts for this window? I am sending pics of inside where the window is placed and the bottom where the pivot bar goes.

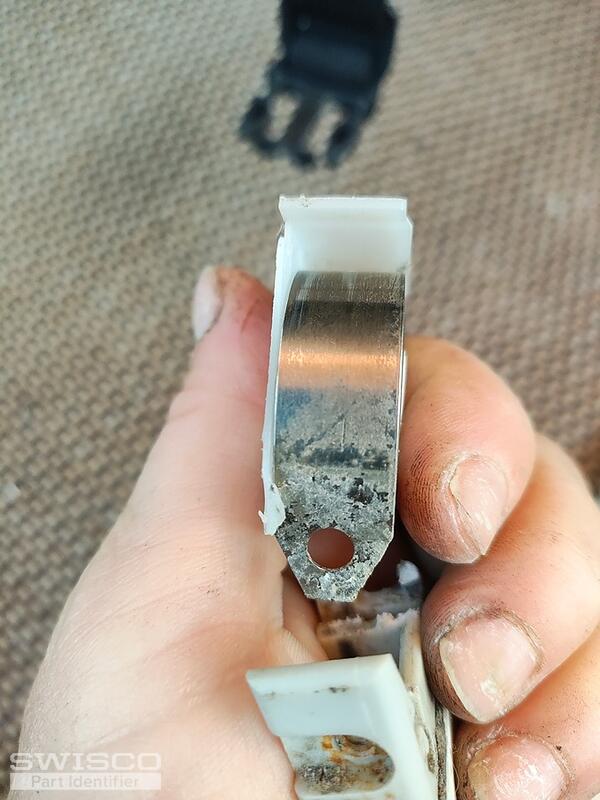

Photos: broken spring installed (right hand side), uninstalled, and closeup of marking. For closeup of marking, it looks to be badly stamped 8K (but less possibly 3K). Will need two coil replacements. Can you recommend parts? Both sides of window broke springs - this window was installed less than 1 ... (cont.)

Needing some of theses sash lift blocks.

Need tilt shoes for single hung Alliance windows. Attached photo

I am having trouble identifying the window manufacturer from the applied sticker.

This part came off an Alside window we purchased about 20 years ago. As you can see the medal part that turns is broken and the spring has broke in two. I would like to order 2 more , one as a spare. Thank you.

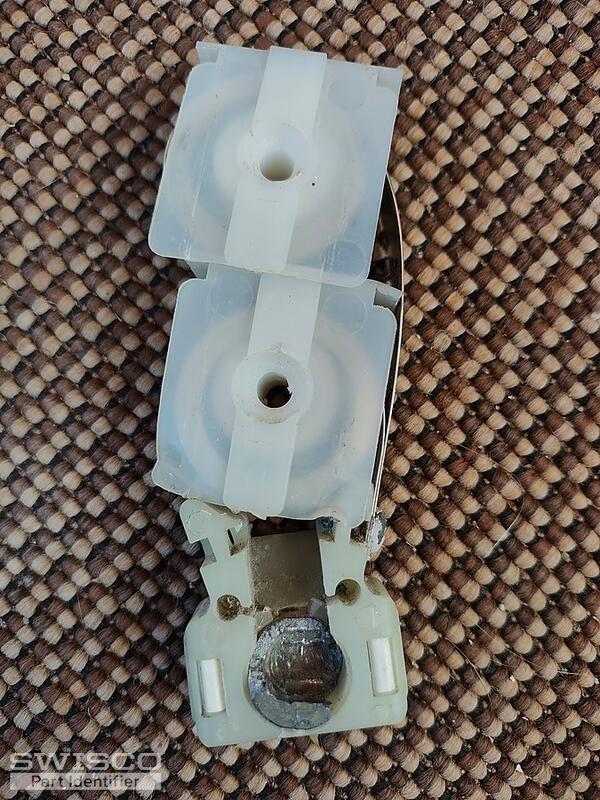

I need directions to replace a double coil system. (I have one in the picture.) Also can this be used on the right or left side of the window?Thank you.Steve

Hello. I have windows that won't stay up. Can I have the parts pictured replaced to fix the issue? Thanks.

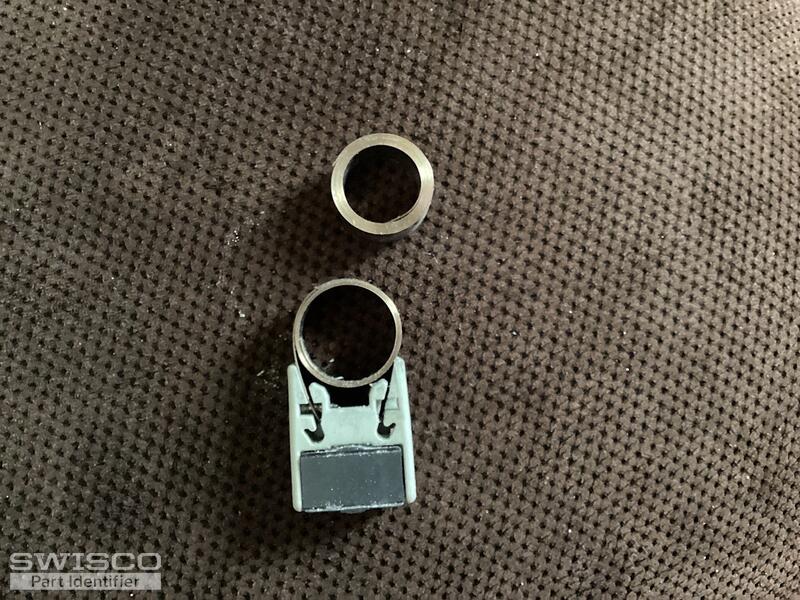

coils spring 1.16 o.d., .807 I.D., thickness .016 inches. It appears to have a letter C stamped on it.Spring holder Spindle .74 dia. 1.25 wide at base, 1.275 wide tab, height 1.415, height of tab .69 over emboss on back.coil spring is .50 high
