Viewing all customer Discussions for:

16-024 Mounting Bracket

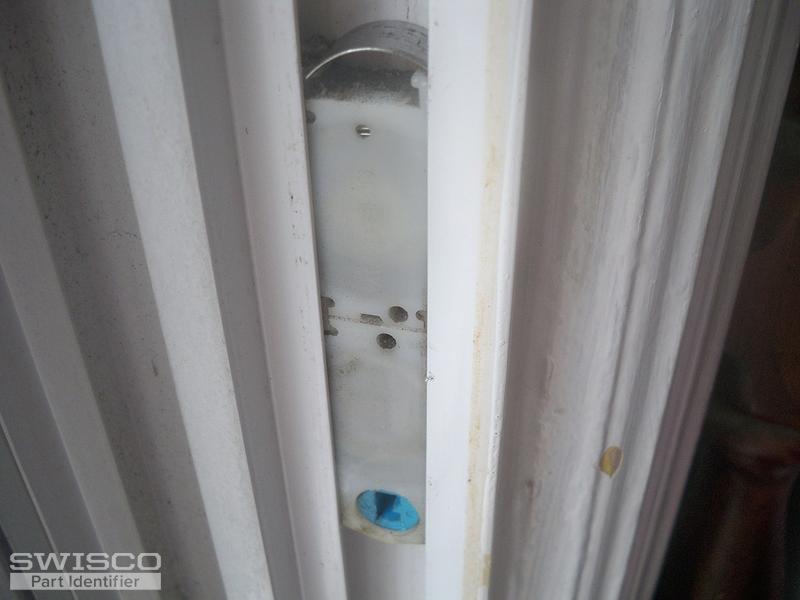

Hi,I have metal clad single hanged wood windows manufactured by Kelly Windows in Detroit, MI.Size: 33'X 99"The coil balance in several of them has shattered and need to be replaced.I have attached 3 photographs from a currently working coil balance installed in one of the windows.I am not sure which ... (cont.)

Pat. 5,353,548

I have a 32 x 54 Gorell window I need the constant force balance system for - for one side only. It looks to be a single coil with the standard house / shoe for it and the metal clip to secure and hang the balance by. The clip seems to be good, but I need the housing (shoe) and the coil to work for ... (cont.)

Window will not stay in place. No knowledge of this type of balancer. Would appreciate it if you know and have replacement parts . Thanks

These keep windows from falling when open

Here are pictures of the parts I'm looking for. Also may need the tool to spread the window open. Also any help with how to remove the sash it appears to be attached to the stops

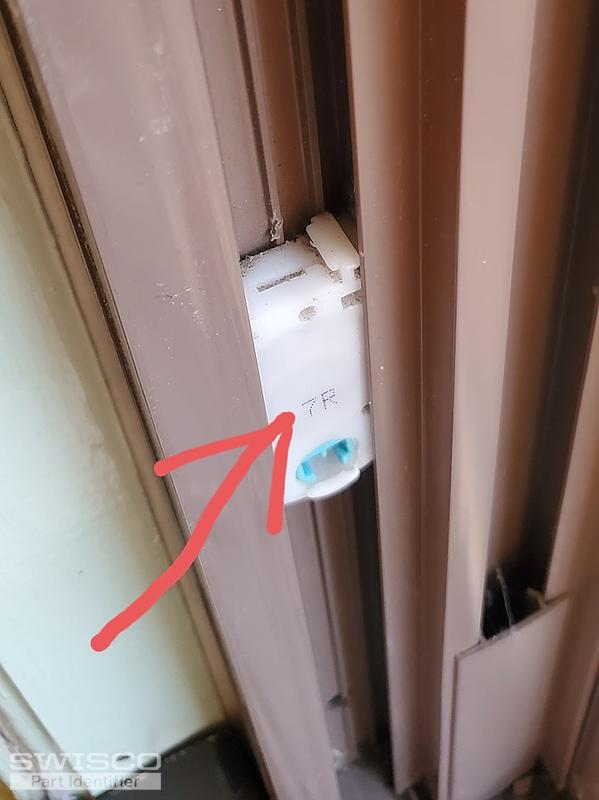

Vinyl tilt window pivot it has a 7 written in marker.

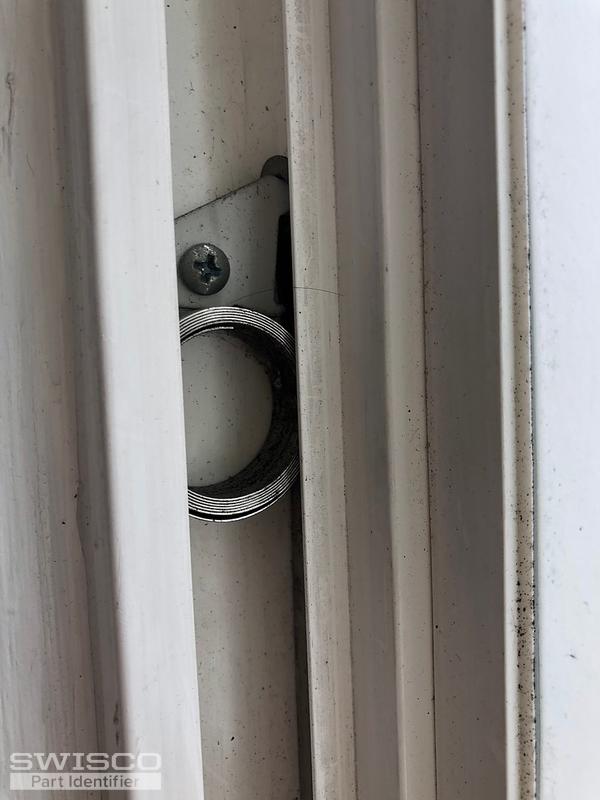

Can you help me locate this part? This is a vinyl window made by Northeast Windows. I don't see a part that looks like this.on your website. It looks to be a double coil that broke on the outside.

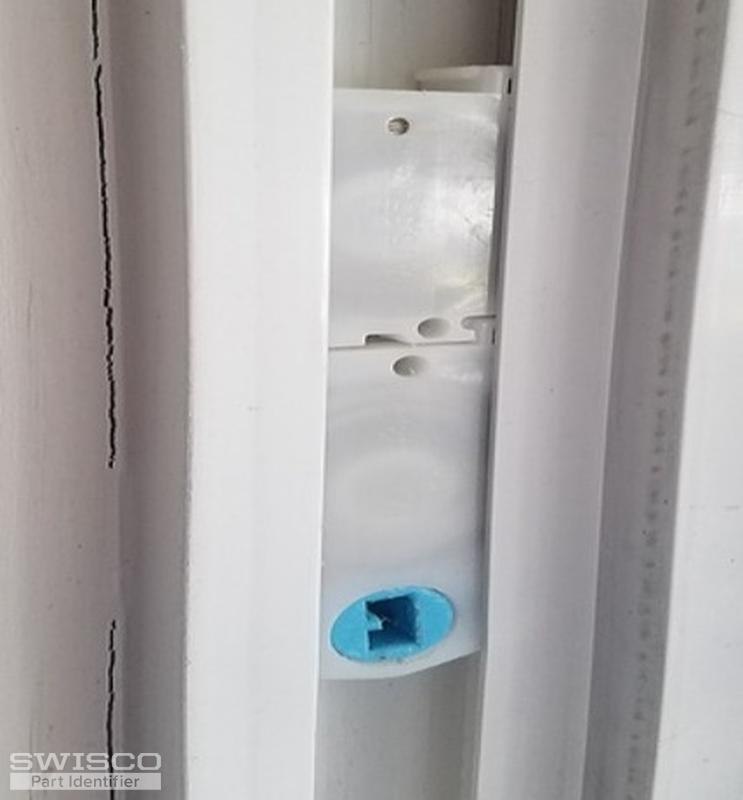

We need the part with the metal (balance?) and the one with the blue part (shoe?). Both have the number Pat 5,353,548. The metal measures 1/2 inch in width.

Number on it is pat 5353548 don't know what pound it is any help would be appreciated thanks

I need to replace both "constant force" coil balance assemblies on a Gorell 5100 Series double hung window. The window model information is: PR1178 11/35 NFRC: GOE-K-001-0021 I have not been able to get part numbers from my former installer or anyone else since Gorell is out of business. Howe ... (cont.)

this part no longer has the tension to hold the window where you put it. Therefore the window always falls to the closed position. 1. What is this part? 2. What parts need replacing to solve this?

Hello there. I need this system replaced as well as the pivot bar. I don't have any of the pivot bars The hole where the pivot bar is 3/16 hole and the spring is marked with 6e. Thank you.

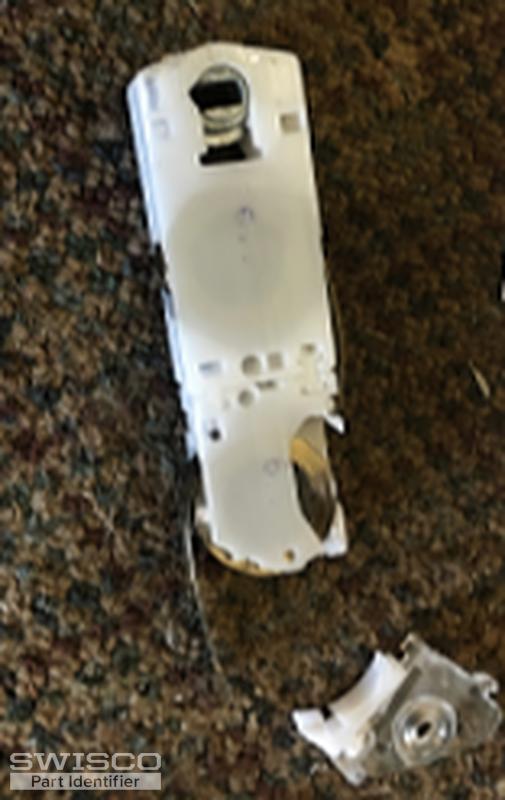

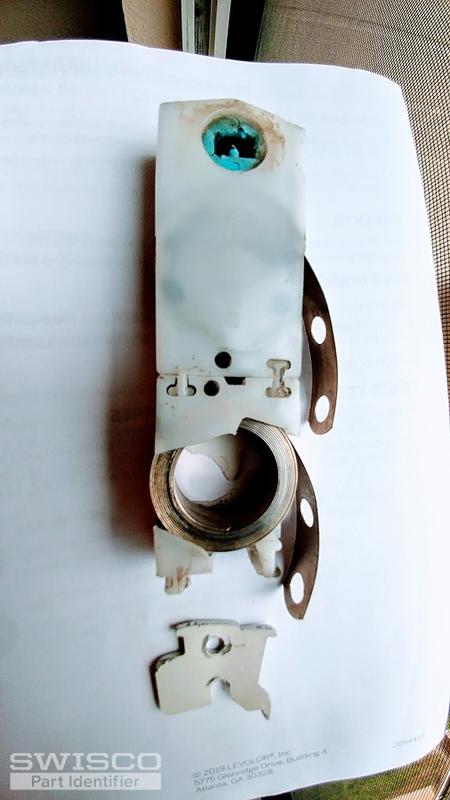

There are 3 photos, one showing the broken coil spring on our vinyl window, one showing the unbroken spring and the third showing that we do not have a notch to slide the parts in and out. The shoe has the number 4 on it, so that must be the size. I saw one of your videos showing you can use a ja ... (cont.)

how do these link together

Hello,I have older Traco double hung windows in my home and in one window the left coil balance spring plastic assembly is broken. This window has two .5 inch wide springs per side and only the bottom spring moves on the left side when the window is lowered, both springs move on the right side. I ... (cont.)

Dear Sir/Madam: 1. I have a couple Am. Craftsman Home Depot windows, 10 years old. The coil balances are bad on both sides of the bottom window panes. These panes weight about 10lbs. The windows panes are 21" x 28 3/8ths". Frames roughly 24" x 57". Outside width of the side channels is 1.5". ... (cont.)

I just ordered a number of parts to repair a few windows including mounting bracket 16-024, coil housing pivot 15-087, and tandem coil housing 15-086. I have the exact same question posted here: https://www.swisco.com/discussions/How-to-reattach-tandem-coil-balance-springs-to-mounting-bracket-77-15 ... (cont.)

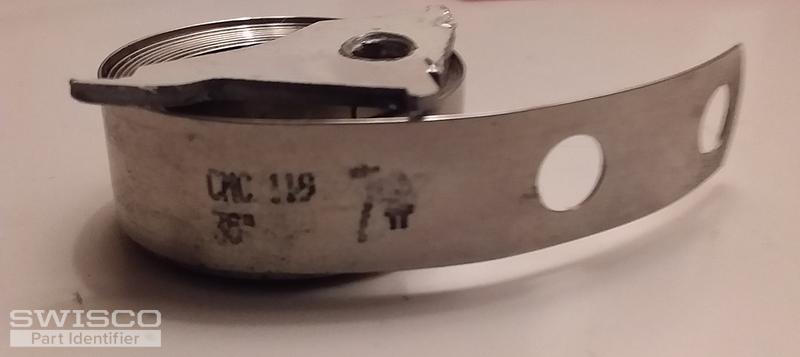

The springs on my window are broken I would like to replace them so I would need the springs for this type of window I also have others the only difference would be the length if that mattersMy name is MikeThank you in advance for your time

I have a window that won't slide at all -- but it will tilt. I believe it's because one of my pivot lock shoes has sprung its spring: I can see a coil of hardware on top of it that seems to be aligned with the window frame in the working shoe. Attached are photos of a) the working shoe, b) its match ... (cont.)
