Viewing all customer Discussions for:

S180-04 4 lbs Series 180 Coil Balance

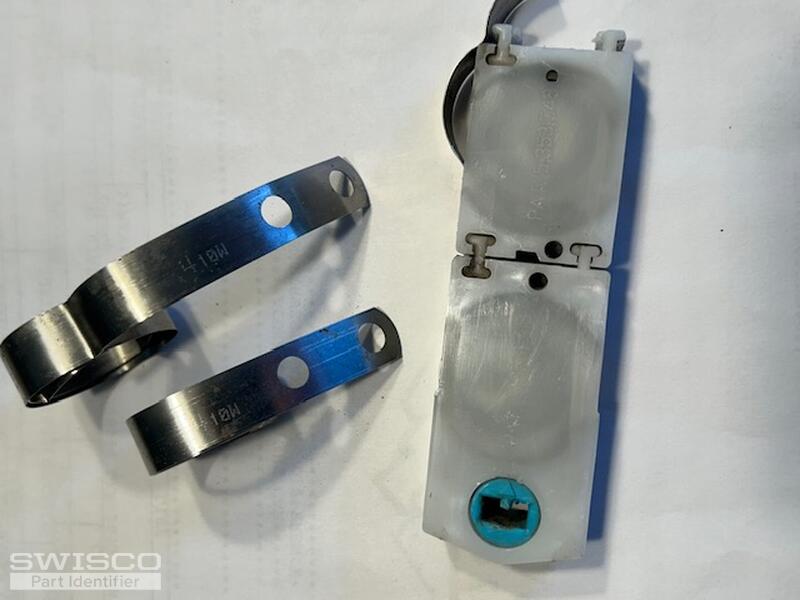

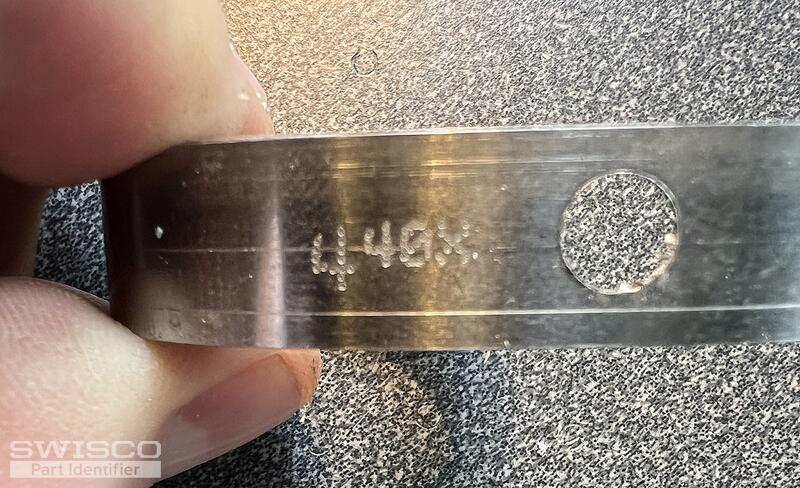

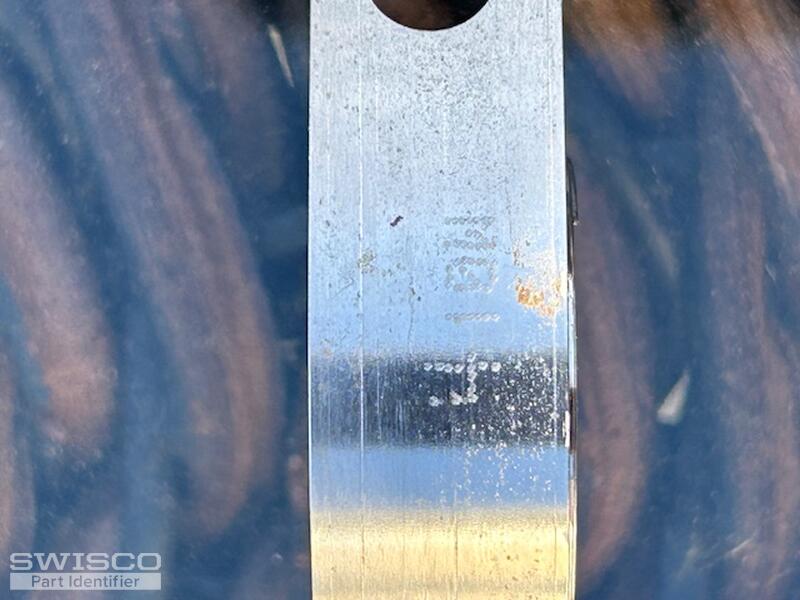

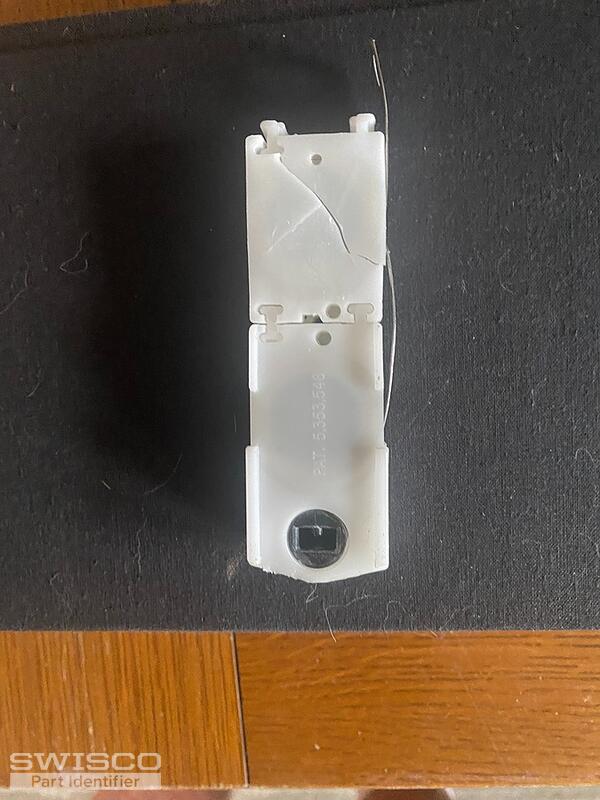

Stainless steel bands have a large #4 followed by a smaller #10W The coil balance housing has a patent number 5,353,548

I have three windows that will not remain open. I have replaced pivot shoes & balances before but non this style. I'm having troubling locating the parts on the website I need. Top coil is stamped 4, bottom coil is stamped 5. Pivot bars are the C channel style.

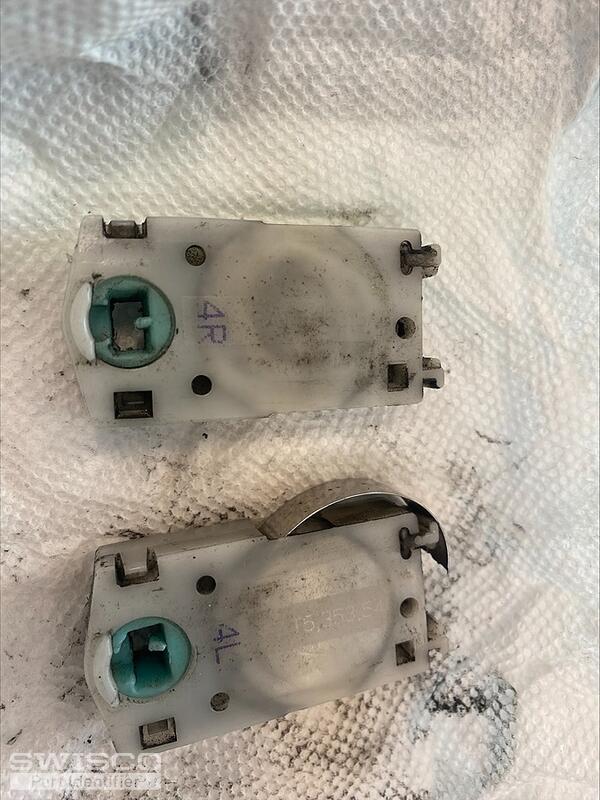

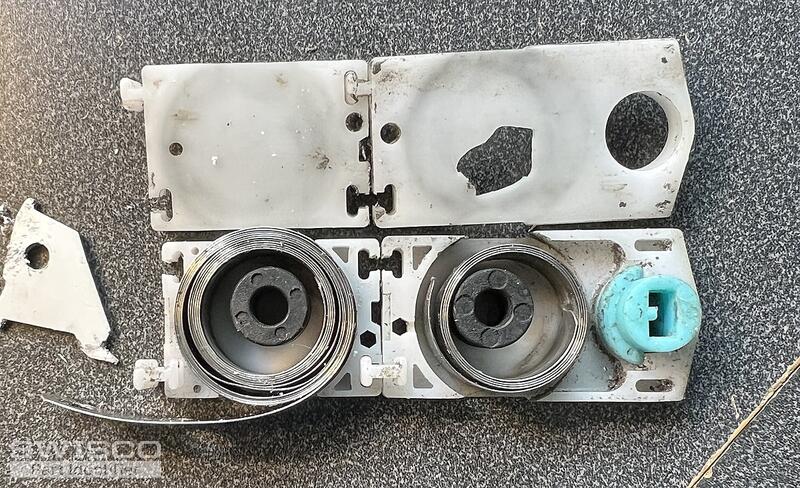

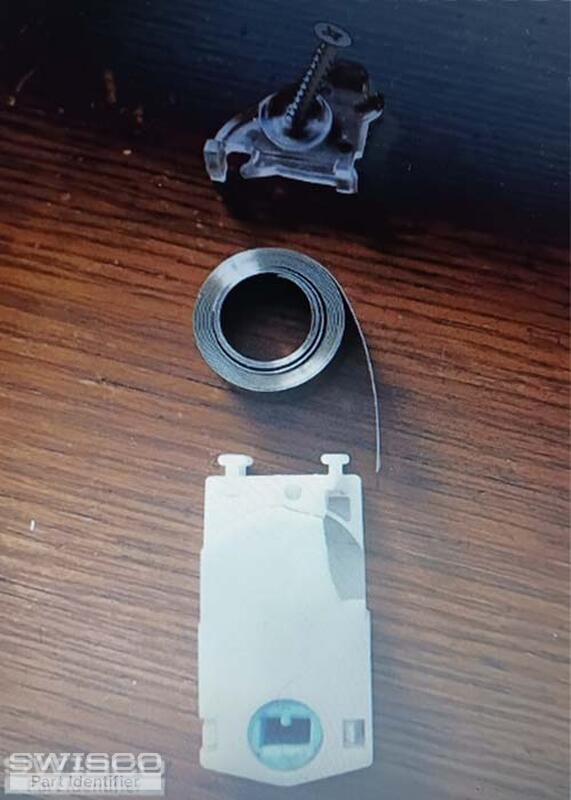

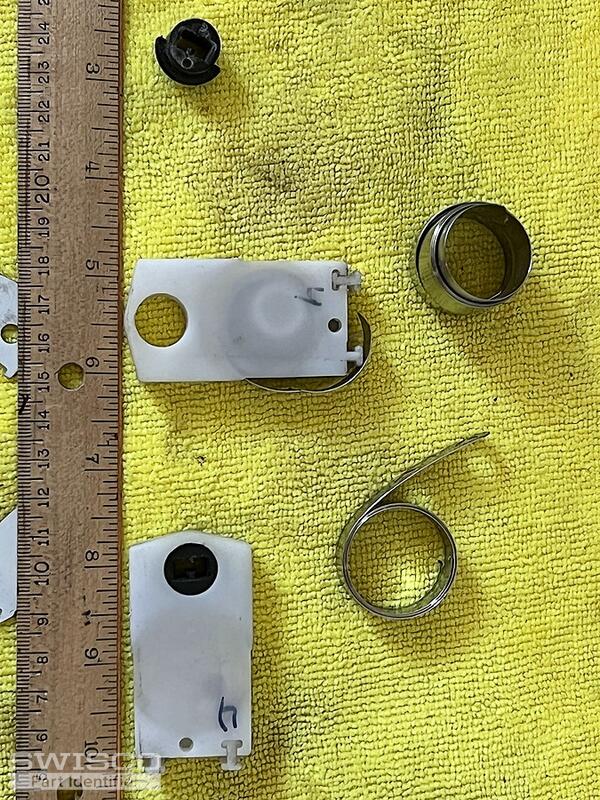

Hello, I have a vinyl window of unknown origin with a broken coil housing spring. the picture of the removed part is the left side, the installed one is the right. The top spring is kinked and broken so needs to be replaced. One coil is 4 lbs the other is 5. Question 1 - Is there a coil with a l ... (cont.)

Hello, Need a replacement spring.

Replace part

Hello, I have a broken window coil spring in my bathroom window. I am not sure what size I need. The window is smaller as it is a bathroom window. Thank you.

Looking parts and video of how to install

I think it is on the right side from view of exterior

Hi, The metal coil snapped on both sides of the bathroom window. I'm looking for a replacement part. Thank you.

My windows dont stay open. They were purchased at home depot about 2006

Hi, Need both left and ride side coil-spring packs, and a pair of tilt-lock latches. Thank you, Guy Q.

Coil balancer for a 23" American Craftsman Window #4

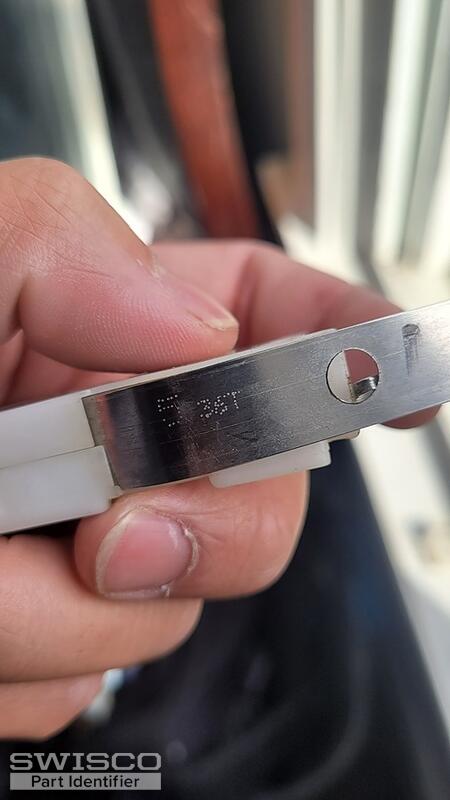

Two coils one say 4 51t other say 5 36t unit is 1.25wx.5dx2.25long

Please help me find the right parts

I have an American Craftsman Series 8500, double hung, installed in 2005.It appears that the lower sash coil spring got damaged and doesn't function.I have not yet taken the Pivot Shoe and Coil Spring out to get exact measurements, but it appears to be very similar to your Coil Housing Pivot 15-087 ... (cont.)

Hello I have 2 double hung windows both windows the upper coil balances are broken I am not sure which one to order could you please give me guidance?

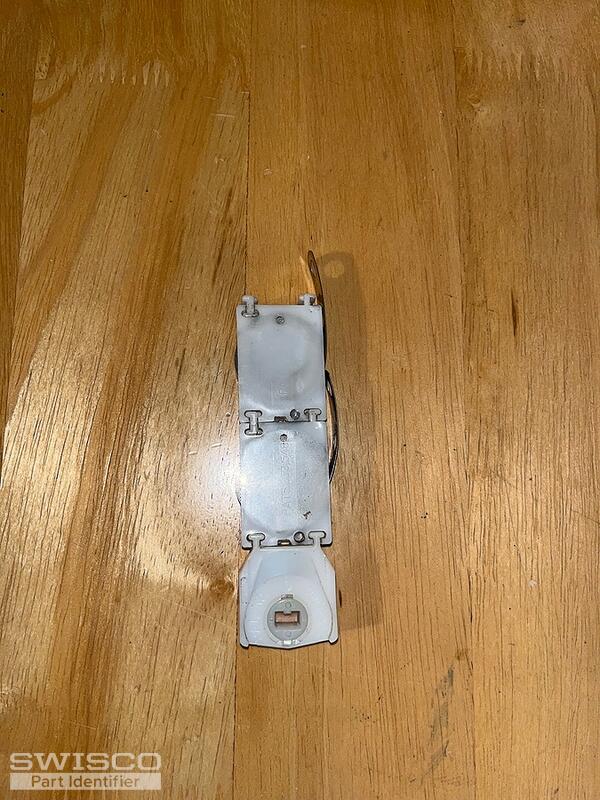

This is a pic of a pivot assembly for one of my upstairs windows. It consists two parts with each 1.25" wide, 5/8" thick and overall length of 4". Can you please provide me with the correct replacement. I will need 4 sets and the windows are 16 lbs each. Thankyou for your assistance. ... (cont.)

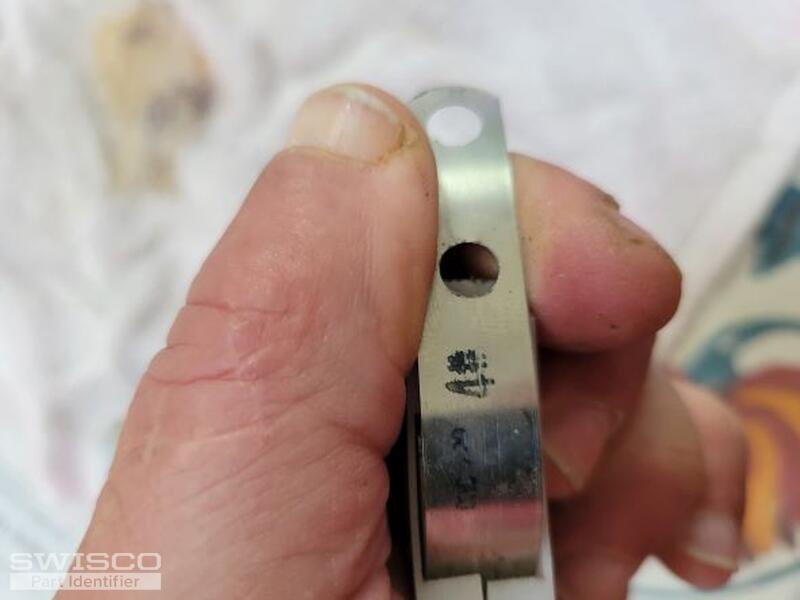

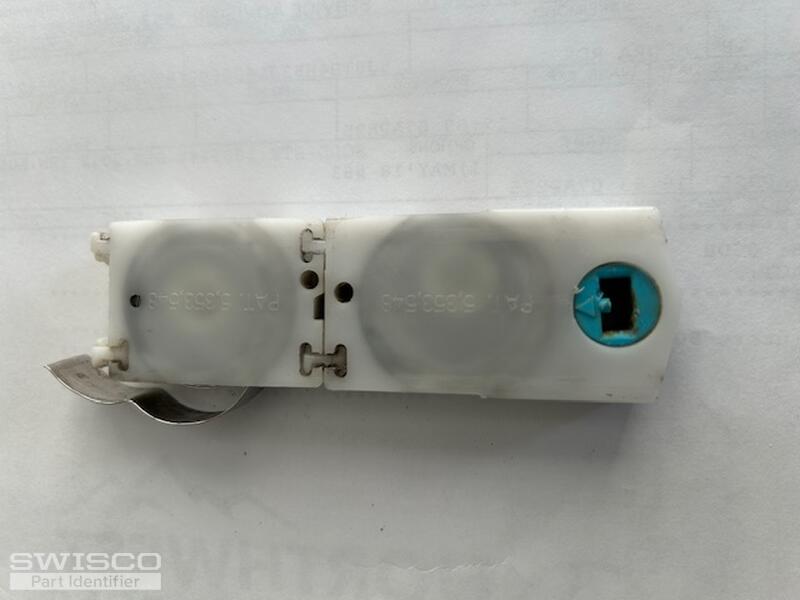

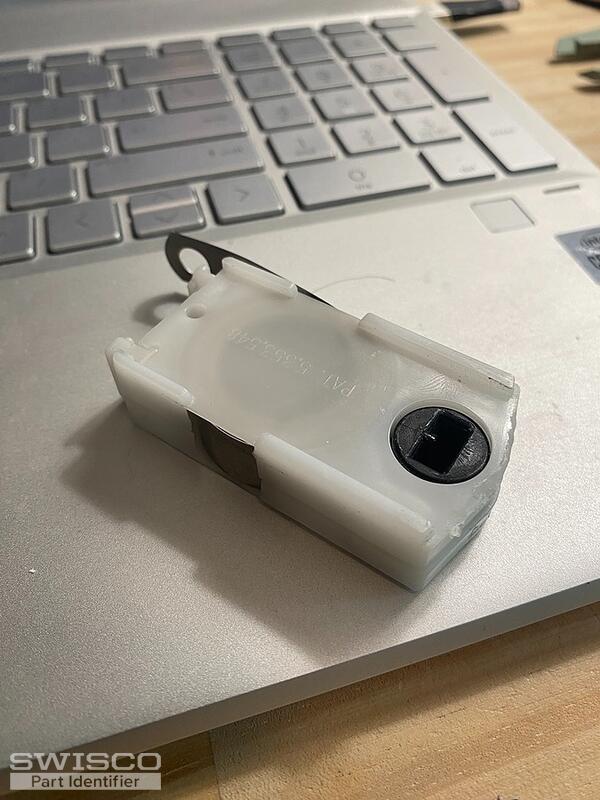

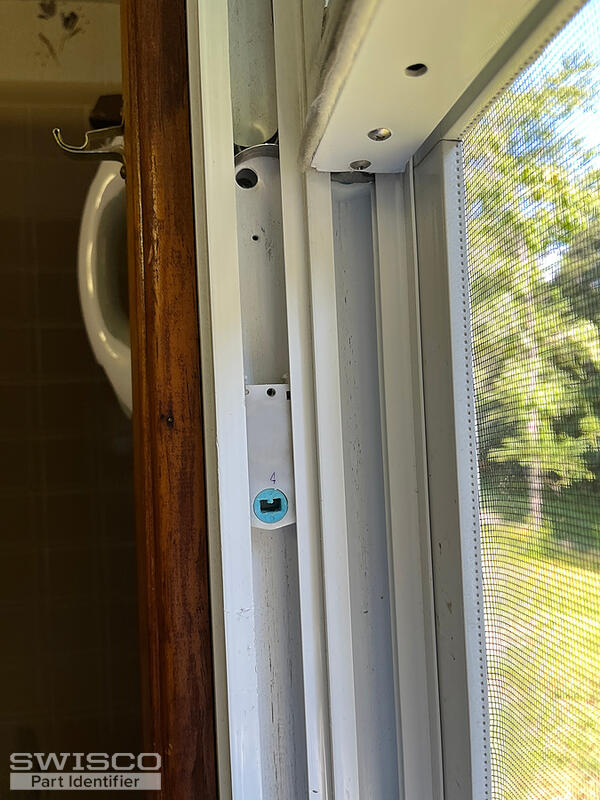

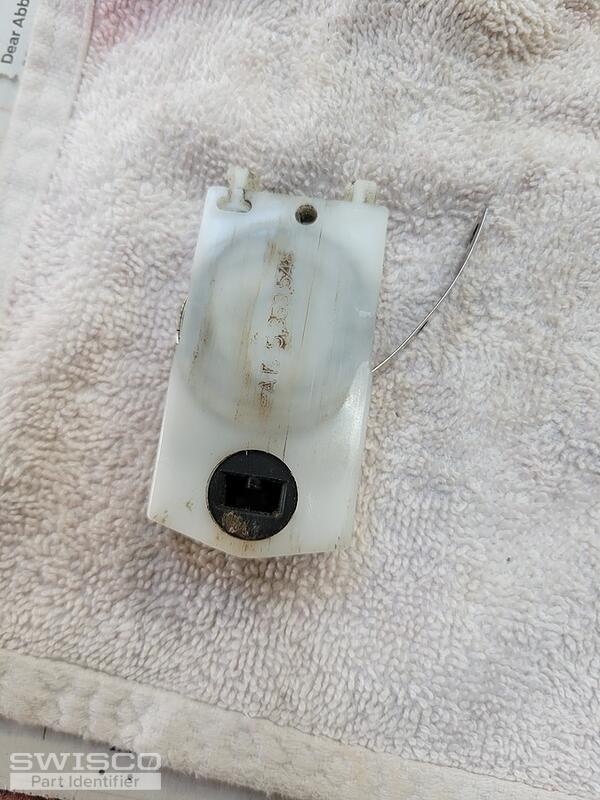

Window balancing coil for vinyl bathroom window. Balancing coil has a marking of Pat. #5,353,548 and written in blue marker is #4 and also the coil itself has also a marking of 4lbs. See photo. I need two(2) units and please send me an estimate. Thank you.

Slide T-Pivot and Roller tilt

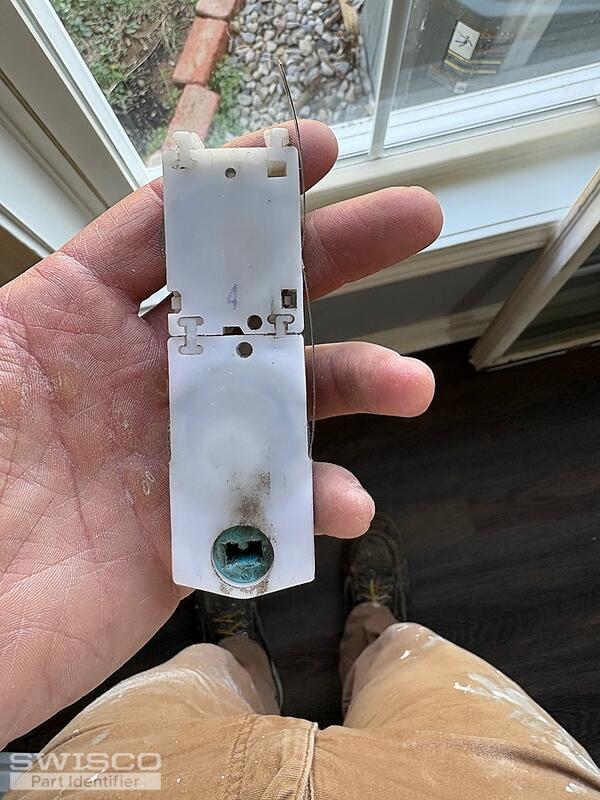

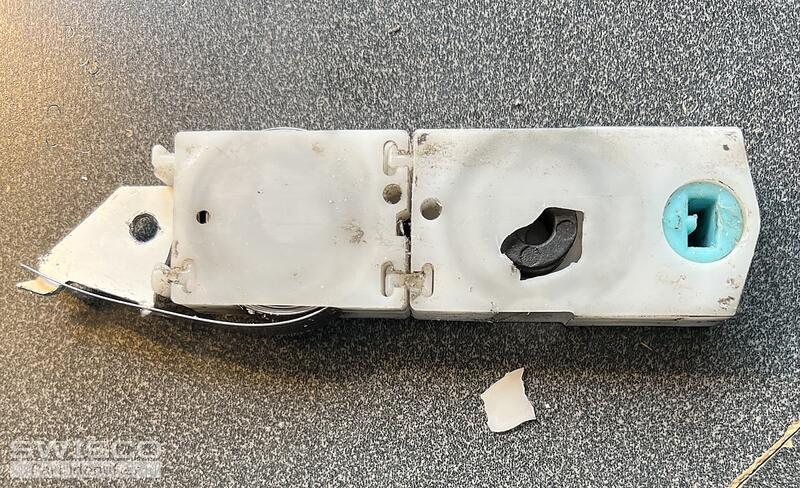

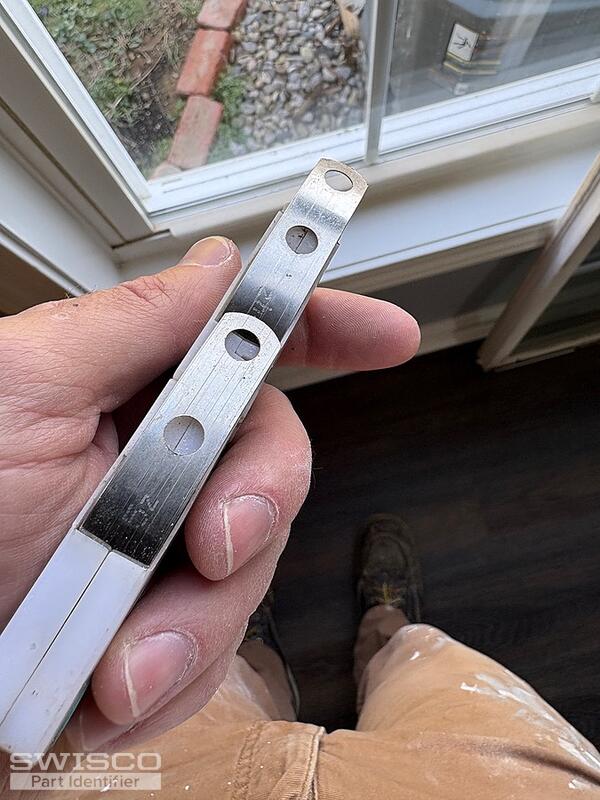

Hello I run a handyman business and need help to determine lower coil spring of tandem. 180 Coil SpringsBottom sashes weighs 15.6lbs. Now has a tandem coil spring I need to replace.Top spring, I can read at 4# but cannot read bottom spring. Should I just change this to one coil spring? 8lbs.?What s ... (cont.)
