Viewing all customer Discussions for:

S385-30 30" Series 385 Channel Balance

Have 29 5 jw cmc 11 springs in a pgt 30" tall single hung. Looking to replace.

The sash that goes on the window two corners is a little more than ½ inch wide and like 1 ½ inches long Balance ID is 29 4 ax cmc 1

I have Alpine window with 31-3/4 x 21-1/4. One of the channel balance thread broke. Need your help in identifying the replacement part. Thanks Vishnu

I need advice on ordering the correct channel balances. My channel balance is 28 inches long (w/out end pieces) and has a stamp 2790 and a DL 30.

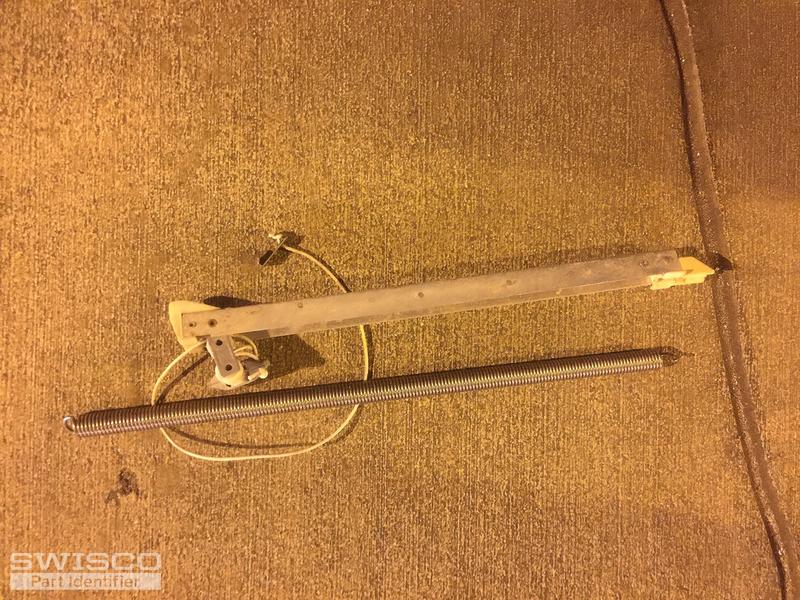

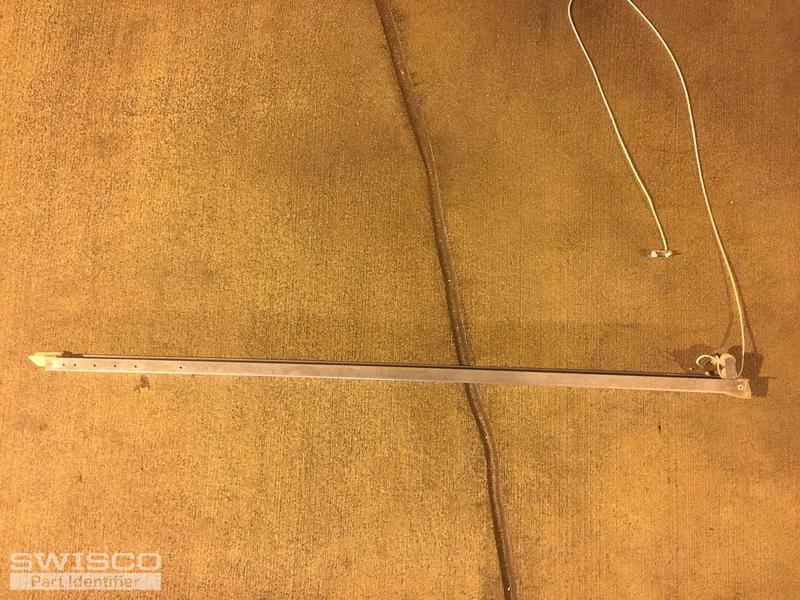

What should I buy to replace my channel balance? See enclosed pictures. Thanks

Trying to find disco part number

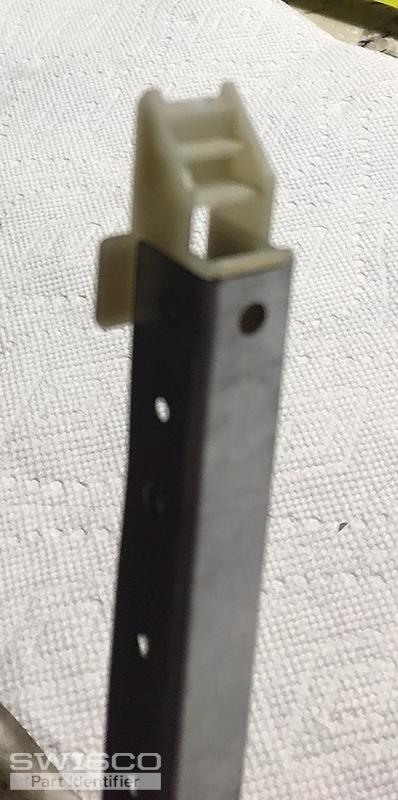

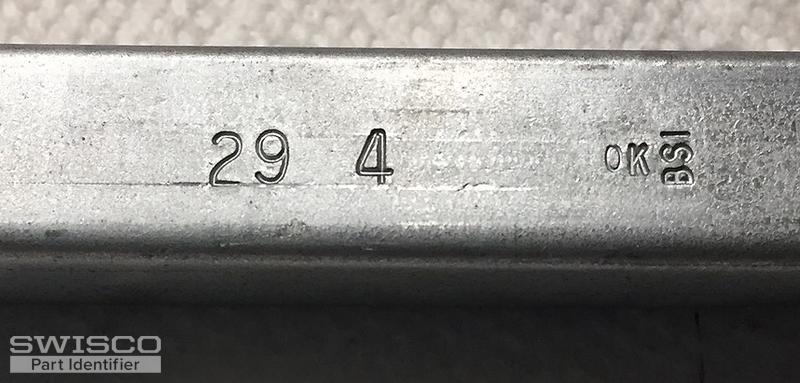

I would like to purchase 4 channel balance replacement parts for two windows I own. The metal length is 30 inches and the stamps say 29 4. Then there is a space and it says oK and then BSI perpendicular to the oK as indicated in the photo.29 4 oK BSIWe are getting our house ready to sell an ... (cont.)

1/2 inch wide. 30 inch long. 9/16 deep. Printed on back 29-2 EA2 CMC 12.

Norandex window. Channel balance says 2950 on it. 30" in length. 1/2" or 5/8" wide. . I was thinking it was part S380-30. Please confirm.

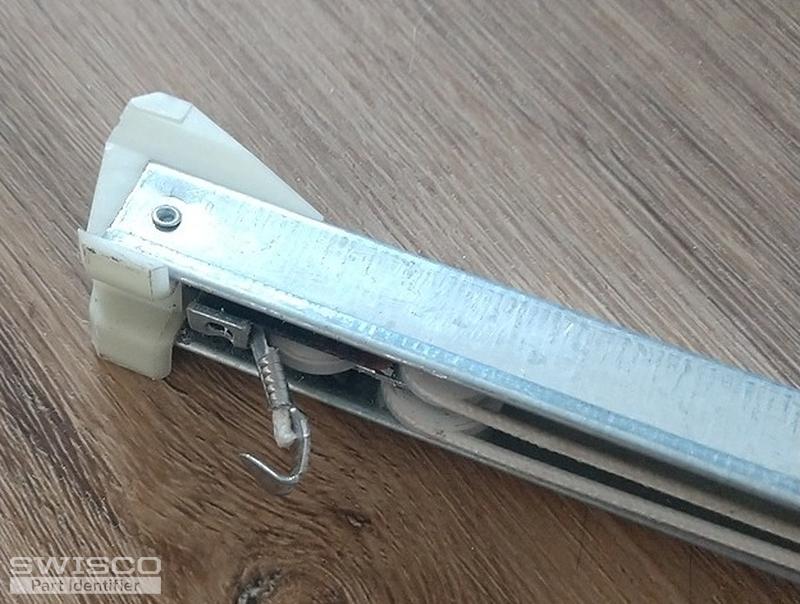

Hi, Can you help me identify the correct replacement part for this Alpine 30" spring. I have attached photos of the spring. Thanks Marcell

The metal piece 30" plus brackets on both ends.

I have a 48 X 29 single pain aluminum window with these spring assemblies.The measure 30 in not including the end pieces. It has 29 9 JW CMC 11 printed on the bar.I need two assemblies and the little plastic parts that go on the window to push the spring assemblies down.This is my first pass a ... (cont.)

1/2" wide, number 29-3 GJ5 CMC 34 on channel. It's a single hung, non-tilt window. Milgard, I think...

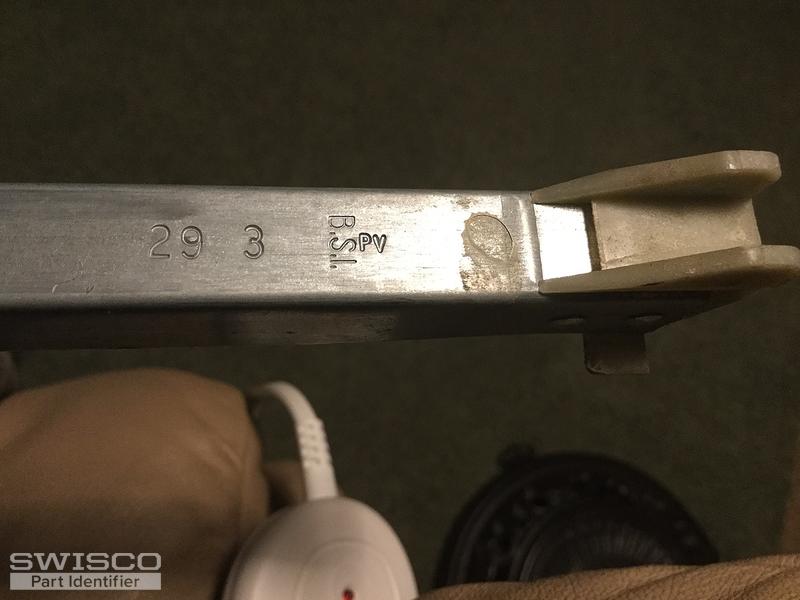

The sash balances I want to replace measure the metal channel at 30? long, the shoe is 1 3/32? wide, and it is stamped 29 3 BSI PV. What replacement sash should I order?

my channel is 1/2 wide and measures 29'' long no stamp markings to reference. Need a heavy duty replacement these are hurricane proof windows. Thanks Jim

Thanks for posting. Please confirm that the metal channel, not including the end attachments, is 30" long and 1/2" or 9/16" wide. If so, see our S380-30 or S385-30. The only difference between these two Series is the 'depth' of the bottom nylon shoe. With the Series 380 the depth of this nylon shoe ... (cont.)

we think that it's a S385-29, but we don't know what option. We have a 29 4 BT Caldwell and a 29 4 BS Caldwell. See attached pics. We also were thinking on parts 15-004, 16-002, and 19-005 to go with this channel balance. Will that be correct?

It appears that you have either an S380 or S385 balance. The difference between the two series balances lies in the shoe.The series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.If you measure your shoe as it is pictured here, you should be able to deter ... (cont.)

Length is 30" and 1/2" with 11 11 ends. What part do I order? I am a glazier by trade retired. Install is no big deal

The top plastic part of the balance in the right side of the Milgard window is showing when the window is closed (see picture). The balance is S385-30 2940 (I bought some from Swisco for the same type of window in my house). Is the top sash guide of this window broken or something else? Do you k ... (cont.)
