Viewing all customer Discussions for:

S385-30 30" Series 385 Channel Balance

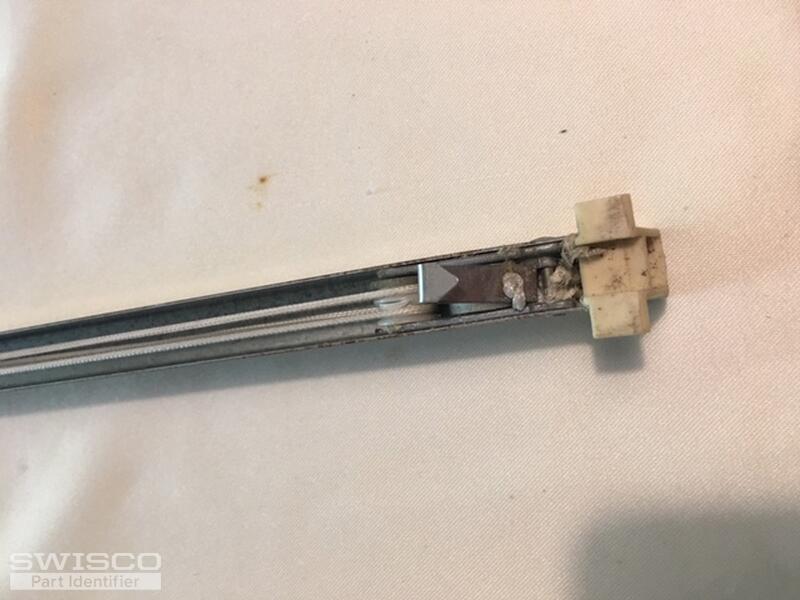

Hi, Can you help me identify the correct replacement part for this Alpine 30" spring. I have attached photos of the spring. Thanks Marcell

The metal piece 30" plus brackets on both ends.

I have a 48 X 29 single pain aluminum window with these spring assemblies.The measure 30 in not including the end pieces. It has 29 9 JW CMC 11 printed on the bar.I need two assemblies and the little plastic parts that go on the window to push the spring assemblies down.This is my first pass a ... (cont.)

1/2" wide, number 29-3 GJ5 CMC 34 on channel. It's a single hung, non-tilt window. Milgard, I think...

The sash balances I want to replace measure the metal channel at 30? long, the shoe is 1 3/32? wide, and it is stamped 29 3 BSI PV. What replacement sash should I order?

my channel is 1/2 wide and measures 29'' long no stamp markings to reference. Need a heavy duty replacement these are hurricane proof windows. Thanks Jim

Thanks for posting. Please confirm that the metal channel, not including the end attachments, is 30" long and 1/2" or 9/16" wide. If so, see our S380-30 or S385-30. The only difference between these two Series is the 'depth' of the bottom nylon shoe. With the Series 380 the depth of this nylon shoe ... (cont.)

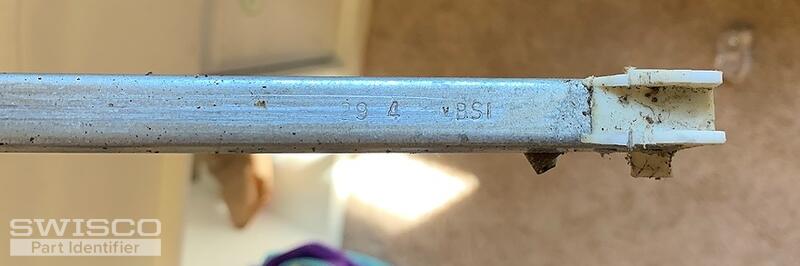

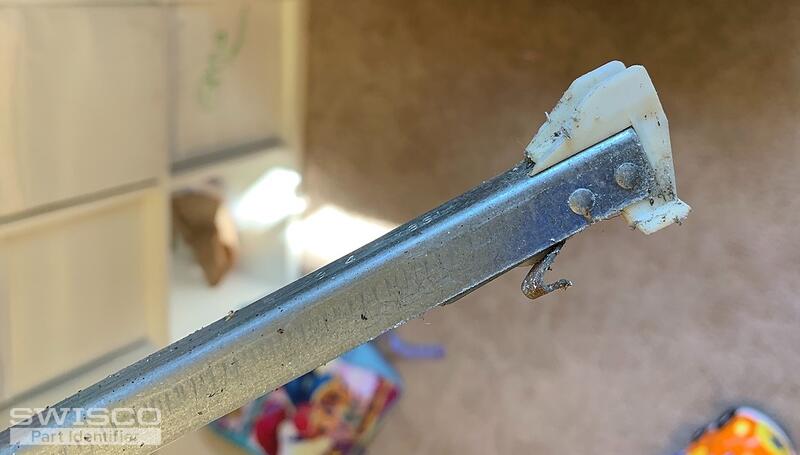

we think that it's a S385-29, but we don't know what option. We have a 29 4 BT Caldwell and a 29 4 BS Caldwell. See attached pics. We also were thinking on parts 15-004, 16-002, and 19-005 to go with this channel balance. Will that be correct?

It appears that you have either an S380 or S385 balance. The difference between the two series balances lies in the shoe.The series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.If you measure your shoe as it is pictured here, you should be able to deter ... (cont.)

Length is 30" and 1/2" with 11 11 ends. What part do I order? I am a glazier by trade retired. Install is no big deal

The top plastic part of the balance in the right side of the Milgard window is showing when the window is closed (see picture). The balance is S385-30 2940 (I bought some from Swisco for the same type of window in my house). Is the top sash guide of this window broken or something else? Do you k ... (cont.)

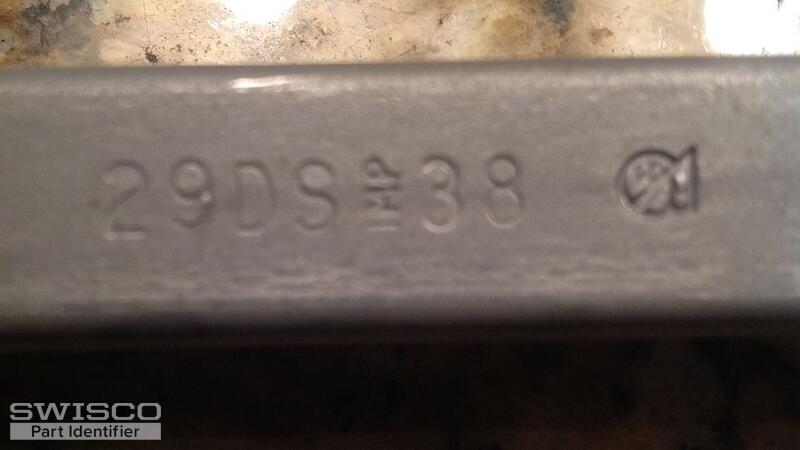

Description on the channel is 29 9 DS CALDWELLI think it is a 385??The channel length is approx 30"

Need 4 of these. part number please to order. Thank you.

I need 8 of these. The markings on the springs are 29 4 HX CMC 7 I need to get them asap. I will also want new take out clips for each. Are you able to determine the correct set ups from my pictures. I tried to give a couple different angles for the top and bottom.

Looking for two window balances stamped 29 3 FS Caldwell They are 1/2 inch wide 30 inches long (metal part)

Measures 30" long (metal part only) 1/2 wide.

Hi there, I'm going to be ordering a 29" series 385 channel balance, but I don't know what kind of top sash guides I need to order with them. Can you please help? Thank you. Yasar

Looking for replacement parts for Kinco windows. Need complete replacement top, bottom, and any parts/clips that go in the frame. The metal channel is 30"

30 inches long 2910 stamped on the balance

I am trying to order some replacement channel balances on your website and I am not sure which model to order because they look alike to me. I think I have one of these:30" Series 380 CHANNEL BALANCE30" SERIES 385 CHANNEL BALANCE30" SERIES 395 CHANNEL BALANCECan you tell me which model I need?Thanks ... (cont.)
